Description

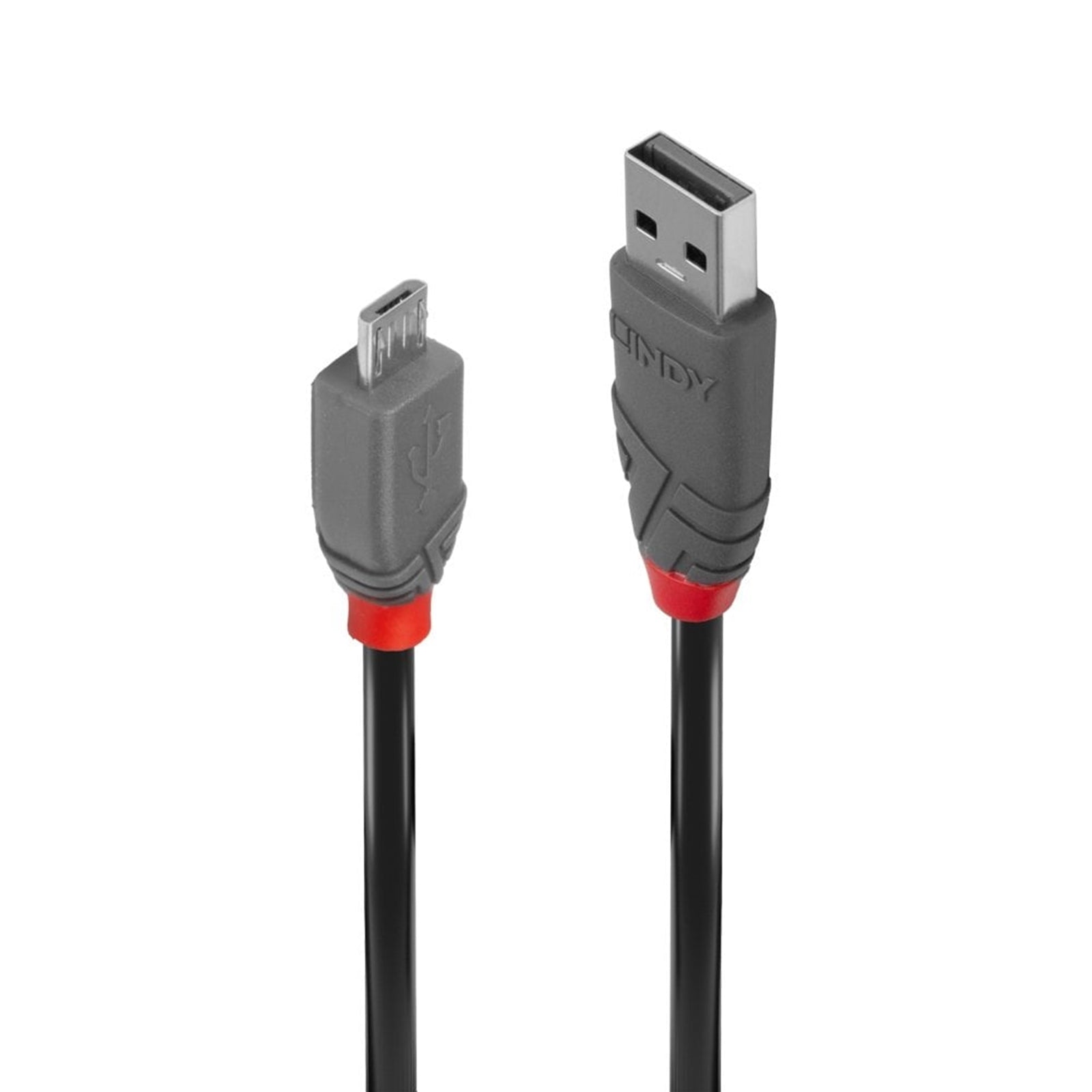

Lindy 36730 0.2m USB 2.0 Type A to Micro-B Cable, Anthra Line
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations. Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability. Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes. Anthra Line USB 2.0 Type A to Micro-B cables are available in lengths from 0.2m to 5m. Specifications: Supported Bandwidth480Mbps
Specs
What's Included
| Length | 0.2 m (0.66 ft) |
| Standard | USB 2.0 |
| Colour | Black |
| Type | Round |
| Jacket Diameter | 3.5 mm (0.14 in) |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| Conductor Gauge | 28AWG |
| Shielding | Aluminium Magnesium Braid |
| Maximum Resolution | N/A |
| Nominal Attenuation | 5.8db/km |
| Minimum Bend Radius | 16 mm (0.63 in) |
| Operating Temperature | 0�C - 60�C (32�F - 140�F) |
| Storage Temperature | 0�C - 60�C (32�F - 140�F) |
Network
| Packaging Type | Polybag |
| Warranty (Years) | 10 |
| Certificated | RoHS, REACH, UL |
Physical
| Housing Material | PVC |
| USB A (approx.) W x D x H | 15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31 in) |
| USB Micro-B (approx.) W x D x H | 10 x 24 x 7.6 mm (0.29 x 0.95 x 0.30 in) |
Other
| Connector A | USB 2.0 Type A Male |
| Connector B | USB 2.0 Type Micro-B Male |
| Connector Plating | Nickel |
| Pin Construction | Copper |
| Pin Plating | 24K Gold |
