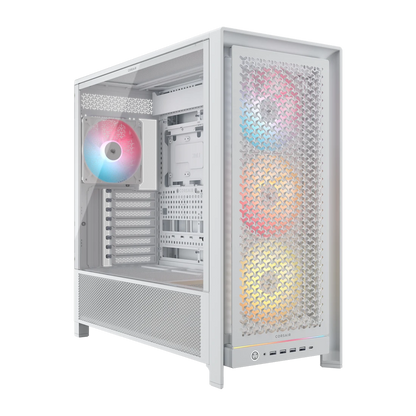

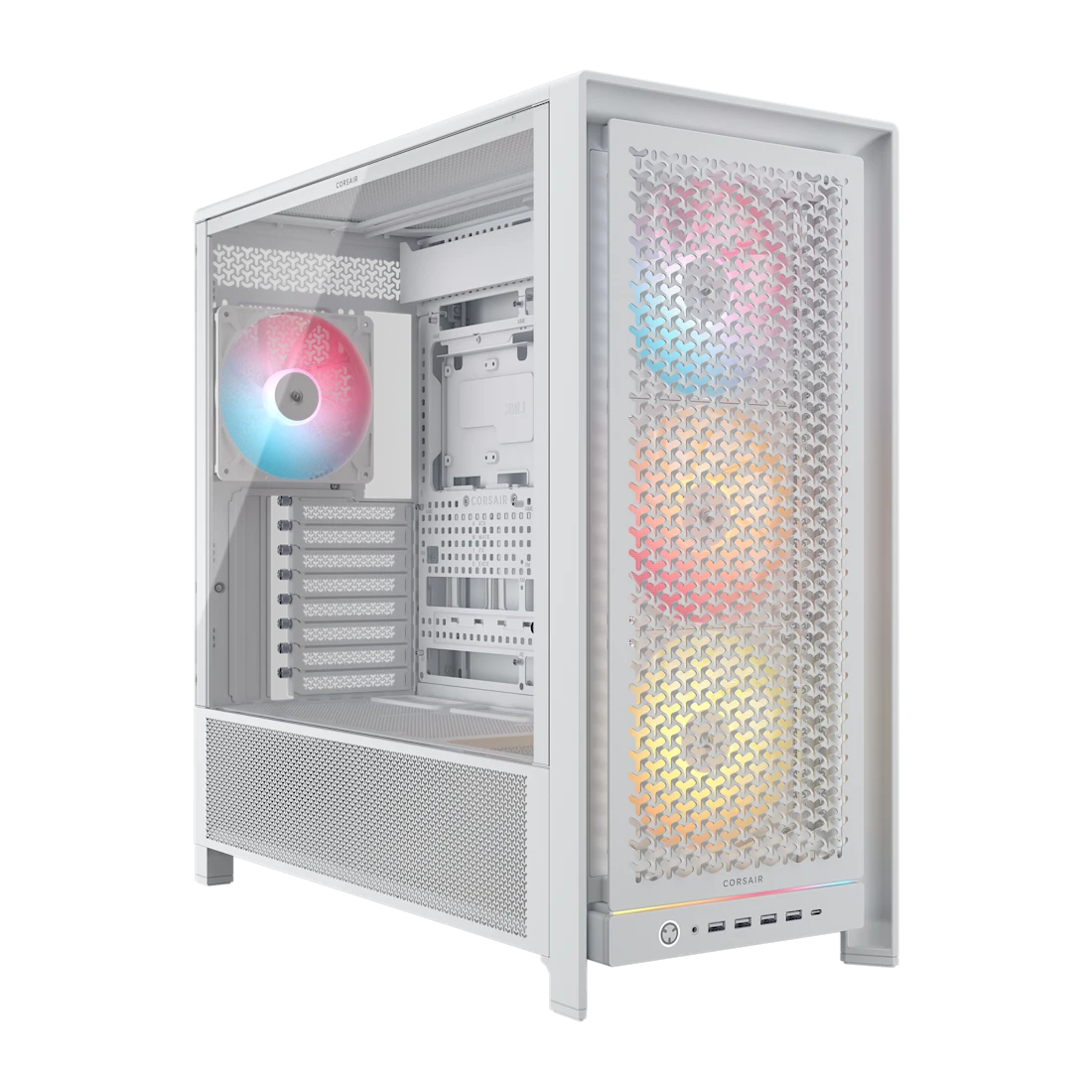

Corsair FRAME 5000D RS ARGB Mid-Tower PC Case - White
Key Highlights:
- FRAME Modular Case System
- Includes 4 x RS140 ARGB PWM Fans
- Supports Up to 420mm Radiators
- Compatible with Reverse Connector Motherboards
- Supports Up to 14 Cooling Fans
- Tempered Glass Side Panel
- RapidRoute 2.0 Cable Management
- Designed for High-End Gaming & Workstation Builds
Product Description
Build Your Way

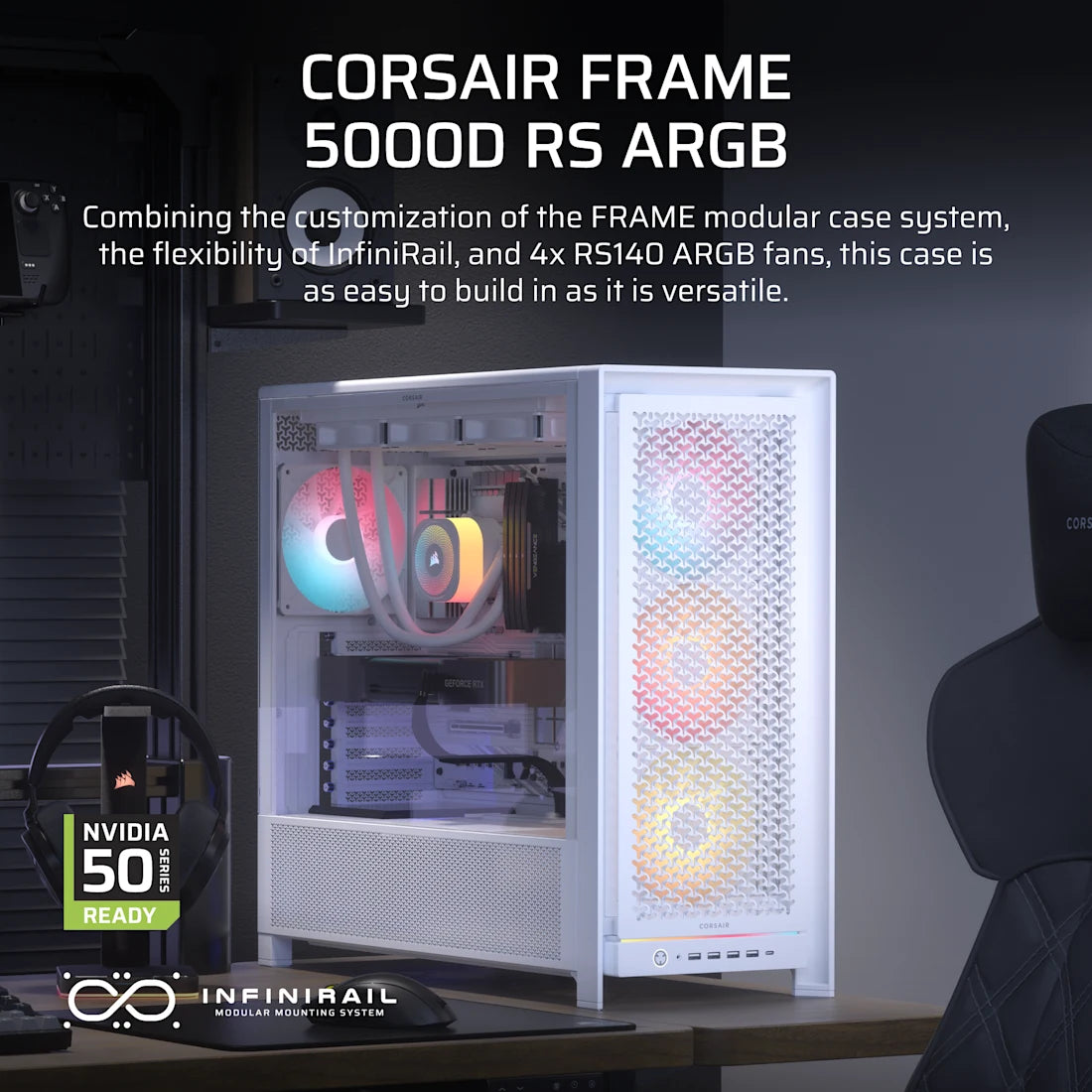

The CORSAIR FRAME 5000D RS ARGB introduces a revolutionary modular case design that evolves with your build. The FRAME Modular Case System enables extensive future upgrades and customization options, allowing enthusiasts to modify and enhance the chassis as their hardware and requirements change.
Optimised for Next-Generation Hardware

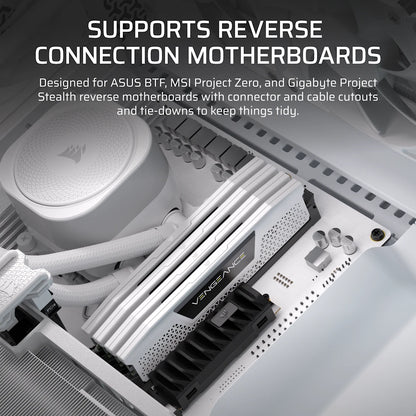

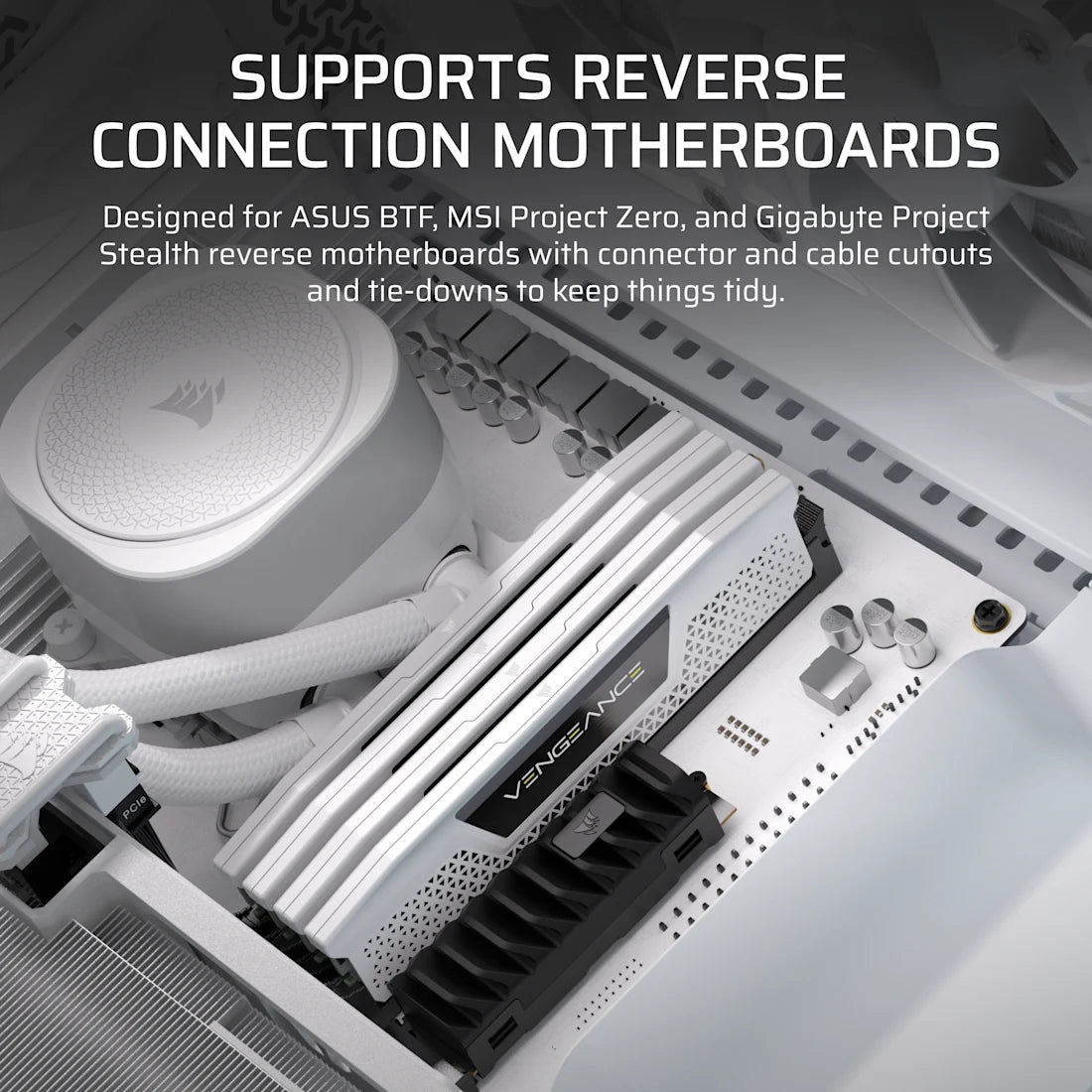

Built to accommodate the latest graphics cards, cooling systems and motherboard layouts, the FRAME 5000D provides exceptional compatibility with modern gaming and workstation components, including support for reverse-connector motherboards from ASUS, MSI and Gigabyte.
Advanced Cooling Architecture

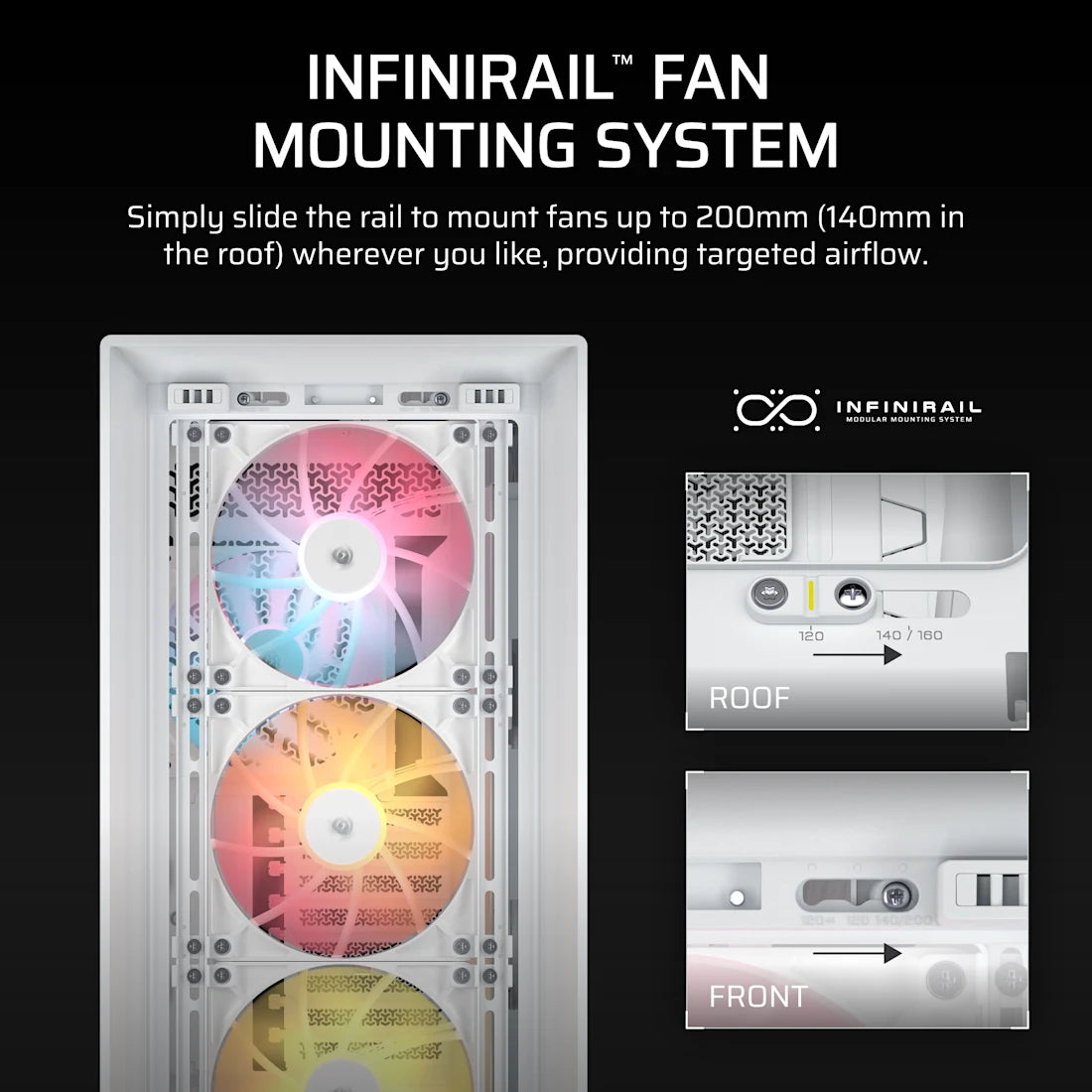

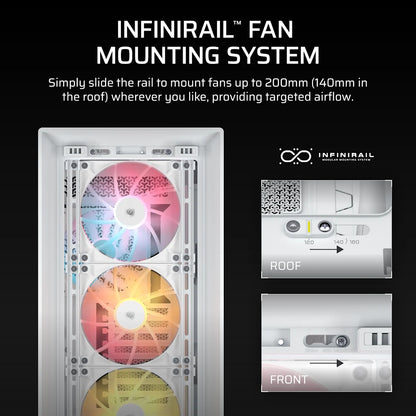

The innovative InfiniRail fan mounting system allows flexible positioning of fans up to 200mm at the front and 140mm on the roof, making it easy to optimise airflow exactly where it's needed. Combined with support for up to fourteen fans and multiple radiator configurations, the FRAME 5000D delivers outstanding thermal performance.
Included RS140 ARGB PWM Fans
Four pre-installed RS140 ARGB PWM fans provide powerful airflow and vivid lighting effects. Magnetic dome bearings help reduce noise while delivering excellent cooling efficiency, making the system ideal for high-performance PCs.
Premium Cable Management

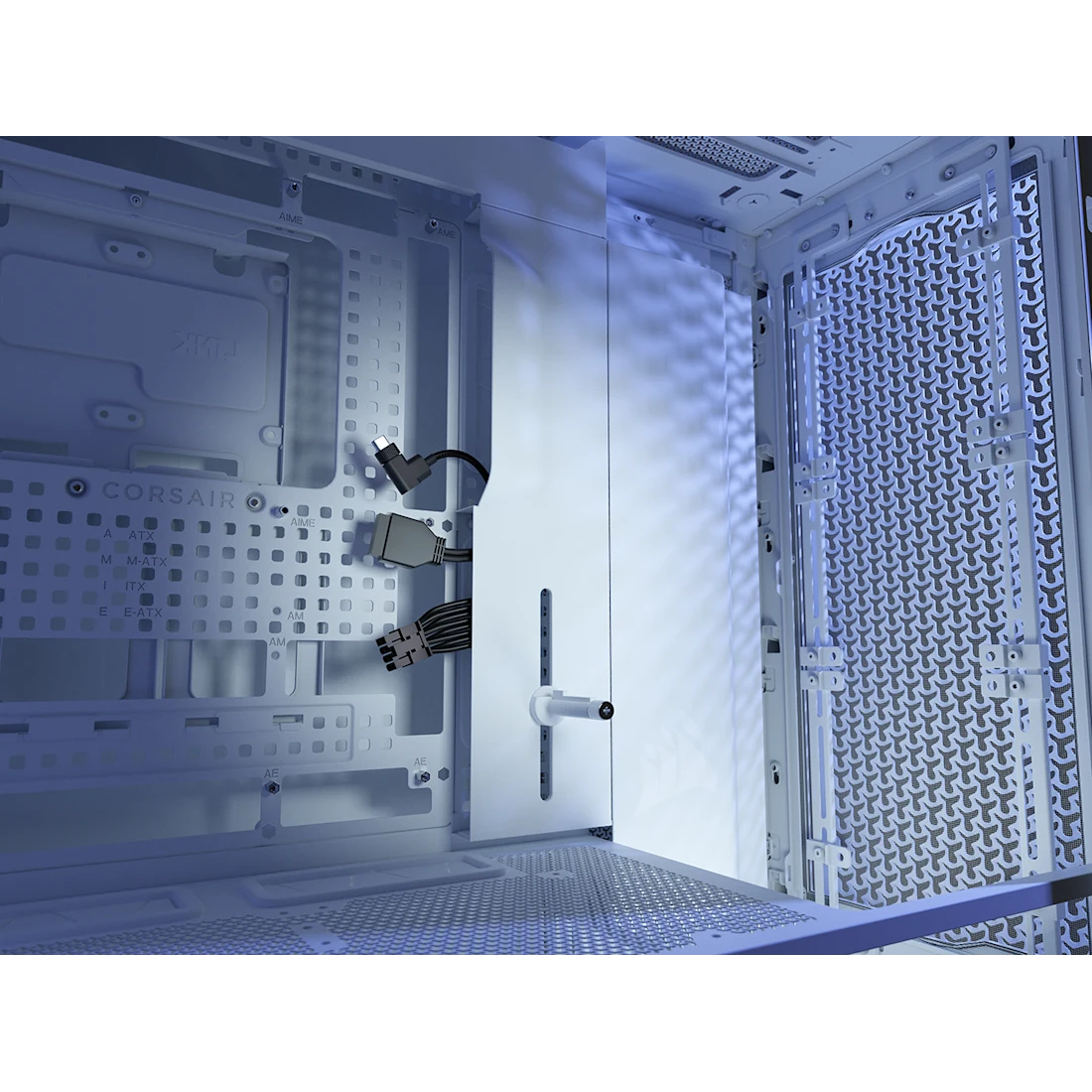

RapidRoute 2.0 introduces a pegboard motherboard tray, detachable cable tie-downs and integrated cable looms to help create exceptionally clean and professional-looking builds.
Reasons to Buy
-
FRAME Modular System: Designed for future upgrades and customization.
-
4 Included ARGB Fans: Excellent airflow out of the box.
-
420mm Radiator Support: Exceptional liquid cooling potential.
-
Reverse Connector Support: Cleaner modern builds.
-
Supports 14 Fans: Outstanding airflow flexibility.
-
RapidRoute 2.0: Simplified cable management.
-
GPU Anti-Sag Arm Included: Additional graphics card protection.
-
Premium White Finish: Perfect for showcase gaming systems.
Technical Specifications
General Specifications
| Specification |
Value |
| Brand |
Corsair |
| Series |
FRAME 5000D RS ARGB |
| Case Type |
Midi Tower |
| Colour |
White |
| Materials |
Steel, Tempered Glass, Plastic |
| Suitable For |
Gaming PCs |
Motherboard Compatibility
| Form Factor |
Supported |
| E-ATX |
Yes |
| ATX |
Yes |
| Micro-ATX |
Yes |
| Mini-ITX |
Yes |
| Reverse Connector Motherboards |
Yes |
Included Cooling
| Specification |
Value |
| Front Fans Installed |
3 x 140mm RS140 ARGB PWM |
| Rear Fans Installed |
1 x 140mm RS140 ARGB PWM |
| Total Included Fans |
4 x 140mm |
| ARGB Lighting |
Yes |
| PWM Support |
Yes |
Fan Support
| Location |
Maximum Support |
| Front |
3 x 120mm / 140mm / 200mm |
| Side |
3 x 120mm / 140mm |
| Top |
3 x 120mm / 140mm |
| Rear |
1 x 120mm / 140mm |
| Bottom |
4 x 120mm |
| Total Fan Capacity |
Up to 14 Fans |

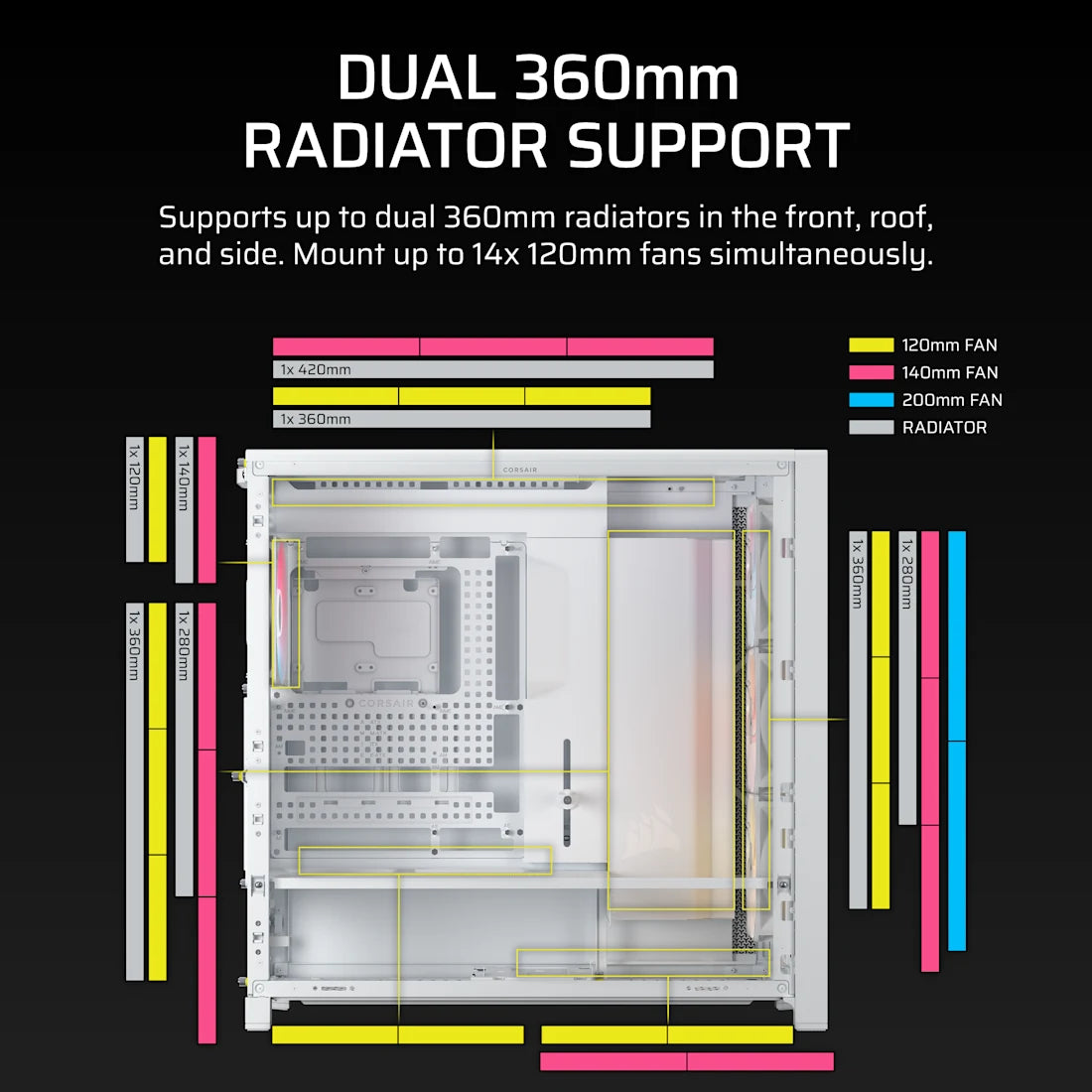

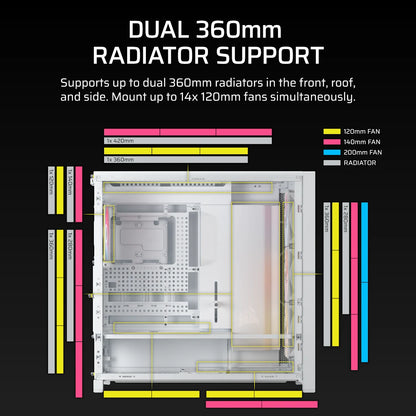

Radiator Support
| Location |
Radiator Support |
| Top |
240mm, 280mm, 360mm, 420mm |
| Front |
240mm, 280mm, 360mm |
| Side |
240mm, 280mm, 360mm |
| Rear |
120mm, 240mm |
Drive Bays
| Specification |
Value |
| 2.5" Bays |
6 |
| 3.5" Bays |
2 |
| Supported Storage |
2.5" SSD / 3.5" HDD |
Hardware Clearance
| Specification |
Value |
| Maximum GPU Length |
450 mm |
| Maximum CPU Cooler Height |
175 mm |
| Expansion Slots |
8 |
| Supported PSU Type |
ATX |

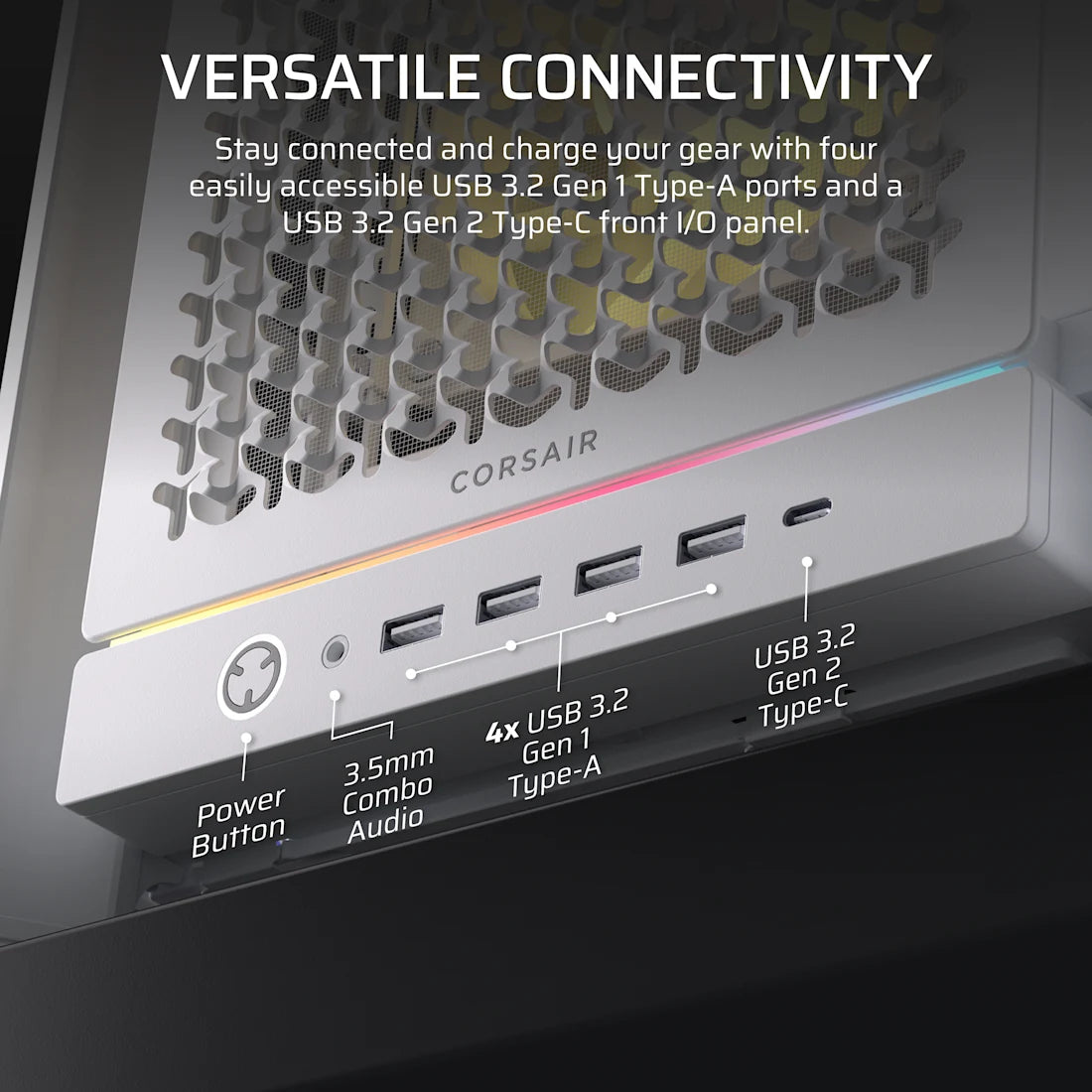

Front I/O Connectivity
| Port |
Quantity |
| USB 3.2 Gen 2 Type-C |
1 |
| USB 3.2 Gen 1 Type-A |
4 |
| Audio Combo Jack |
1 |
| Power Button |
Yes |
Special Features
| Feature |
Description |
| FRAME Modular System |
Upgradeable and highly customisable chassis |
| InfiniRail |
Adjustable fan mounting system |
| RapidRoute 2.0 |
Advanced cable management system |
| ARGB Light Strip |
Integrated front illumination |
| GPU Support Arm |
Included anti-sag stabiliser |
| Anti-Dust Filters |
Yes |

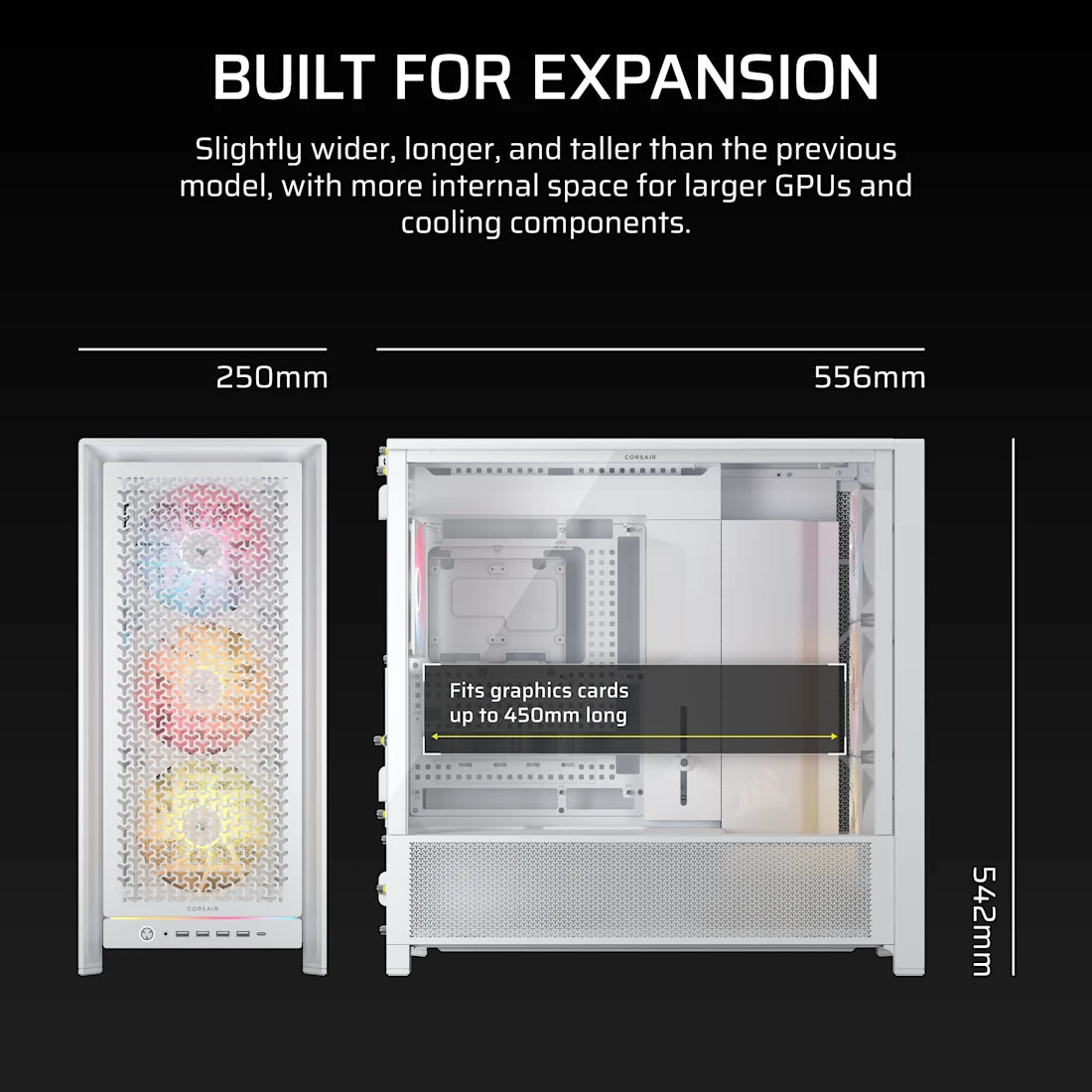

Physical Dimensions
| Specification |
Value |
| Width |
250 mm |
| Depth |
556 mm |
| Height |
542 mm |
| Weight |
15.5 kg |
Ideal Applications
- High-End Gaming PCs
- Custom Water Cooling Builds
- RTX 50 Series Systems
- Creator Workstations
- Showcase RGB Builds
- Performance Enthusiast PCs
- Multi-Radiator Cooling Setups
- Future Upgrade-Focused Builds
What's In The Box
- Corsair FRAME 5000D RS ARGB Case
- 4 x RS140 ARGB PWM Fans
- GPU Anti-Sag Support Arm
- Accessory Kit
- User Manual
Product Identifiers
| Identifier |
Value |
| Brand |
Corsair |
| Series |
FRAME 5000D RS ARGB |
| Case Type |
Midi Tower |
| Colour |
White |
| Motherboard Support |
E-ATX / ATX / Micro-ATX / Mini-ITX |
| Included Fans |
4 x 140mm RS140 ARGB PWM |
| Radiator Support |
Up to 420mm |
| Warranty |
2 Years |
