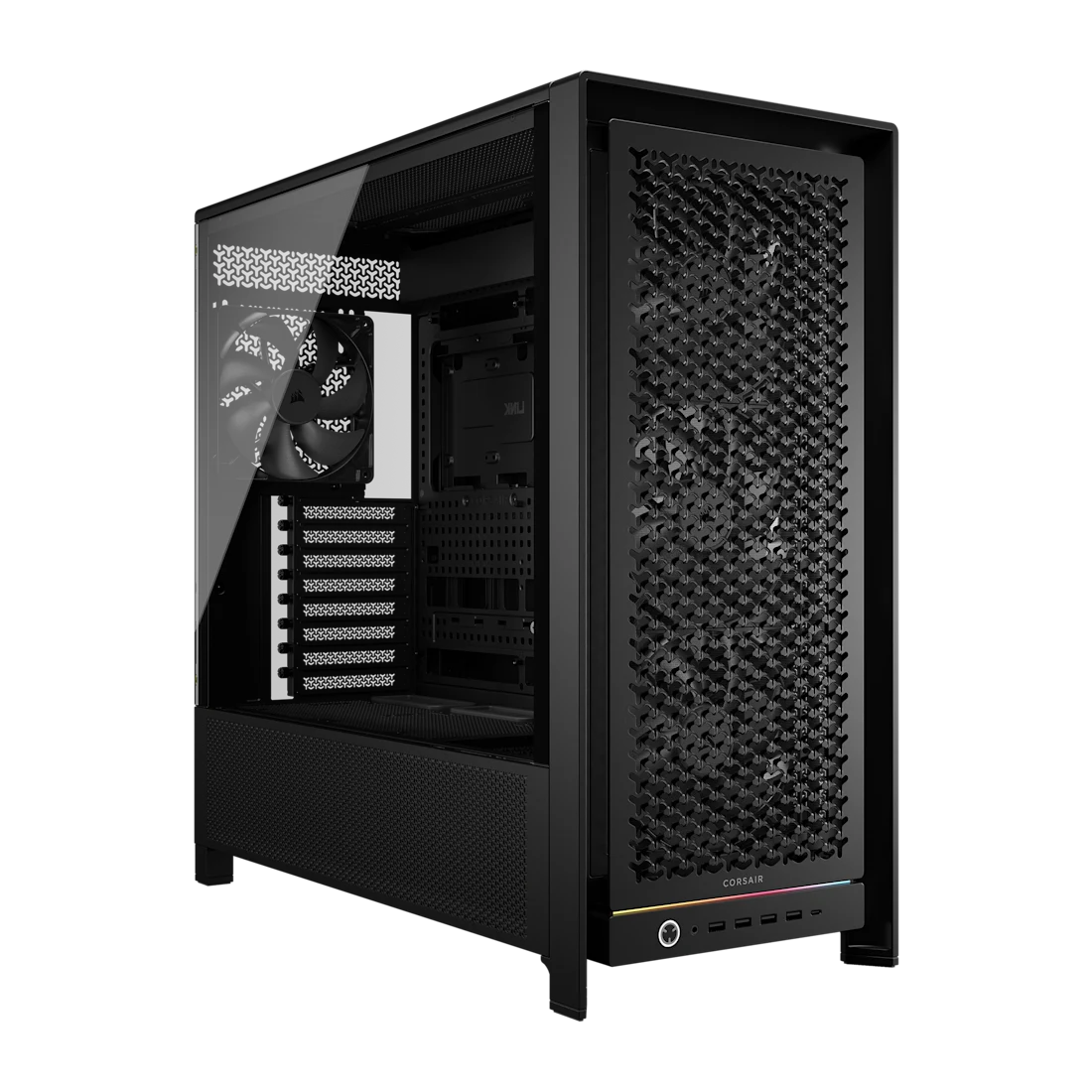

CORSAIR FRAME 5000D Modular Mid-Tower PC Case - Black Tempered Glass
Key Highlights:
- Innovative FRAME Modular Case System for extensive customization
- Supports up to 14 x 120mm cooling fans
- Includes 4 x CORSAIR RS140 PWM fans
- 420mm radiator support in the roof
- Compatible with reverse-connector motherboards
- Tempered glass side panel with ARGB front light strip
- Supports graphics cards up to 450mm long
- USB-C and 4 x USB 3.2 Type-A front I/O ports
Product Description
Build with the Best
The CORSAIR FRAME 5000D delivers a revolutionary approach to PC building with its fully modular FRAME architecture. Designed for enthusiasts, gamers and creators, this high-airflow chassis combines exceptional cooling flexibility, premium materials and future-proof compatibility for the latest hardware generations.
Revolutionary Modular Design
The FRAME Modular Case System allows builders to customize and upgrade key parts of the chassis as their requirements evolve. Whether upgrading front I/O, swapping motherboard trays or modifying internal layouts, the FRAME 5000D is designed to grow alongside future hardware upgrades.
Massive Cooling Potential
Built for demanding systems, the FRAME 5000D supports up to fourteen 120mm fans and radiators up to 420mm. Four included RS140 PWM fans deliver exceptional airflow while maintaining low noise levels thanks to magnetic dome bearing technology.
Optimised Airflow Engineering
The innovative 3D Y-pattern steel front panel is engineered to minimise airflow restriction and maximise cooling performance. Combined with extensive radiator support and CORSAIR's RapidRoute 2.0 cable management system, it creates a clean and highly efficient airflow path.
Future-Proof Hardware Compatibility
Support for modern graphics cards, reverse-connector motherboards and extensive storage options ensures the FRAME 5000D is ready for the latest gaming and workstation hardware. A built-in GPU anti-sag stabilisation arm helps protect high-performance graphics cards from PCIe slot strain.
Reasons to Buy
-
FRAME Modular System: Upgrade and customise key chassis components as your build evolves.
-
Outstanding Cooling Support: Accommodates up to fourteen fans and multiple large radiators.
-
RS140 PWM Fans Included: Comes supplied with four premium high-airflow fans.
-
420mm Radiator Support: Ideal for custom loops and high-end liquid cooling systems.
-
Reverse Motherboard Ready: Compatible with reverse-connector designs from ASUS, MSI and Gigabyte.
-
RapidRoute 2.0: Advanced cable management system for clean professional builds.
-
Tempered Glass Side Panel: Showcase premium components and RGB lighting.
-
Front USB-C Connectivity: Modern high-speed connectivity for current devices.
-
GPU Anti-Sag Arm: Additional support for large graphics cards.
-
ARGB Front Light Strip: Adds customisable RGB lighting to your build.
Technical Specifications
Design
| Specification |
Value |
| Product Type |
PC Case |
| Form Factor |
Midi Tower |
| Suitable For |
Gaming |
| Colour |
Black |
| Materials |
Steel, Plastic, Tempered Glass |
| Tempered Glass Side Panel |
Yes |
| Side Window |
Yes |
| Cable Management |
RapidRoute 2.0 System |
| Anti-Dust Filter |
Yes |
| ARGB Light Strip |
Yes |
| Illumination |
Multi-Colour RGB |
| Illumination Location |
Front Panel |
| On/Off Button |
Yes |
Motherboard Compatibility
| Specification |
Value |
| Supported Motherboards |
E-ATX, ATX, Micro-ATX, Mini-ITX |
| Reverse Connector Support |
Yes |
| Modular Frame Design |
Yes |
Cooling Support
| Specification |
Value |
| Maximum Fan Support |
Up to 14 x 120mm Fans |
| Front Fans Installed |
3 x 140mm RS140 PWM |
| Rear Fan Installed |
1 x 140mm RS140 PWM |
| PWM Fan Support |
Yes |
| Front Fan Support |
3 x 120mm / 140mm / 200mm |
| Top Fan Support |
3 x 120mm / 140mm |
| Side Fan Support |
3 x 120mm / 140mm |
| Bottom Fan Support |
4 x 120mm |
Radiator Support
| Specification |
Value |
| Front Radiator Support |
240mm, 280mm, 360mm |
| Side Radiator Support |
240mm, 280mm, 360mm |
| Rear Radiator Support |
120mm, 240mm |
| Top Radiator Support |
240mm, 280mm, 360mm, 420mm |
| Liquid Cooling Support |
Yes |
Storage
| Specification |
Value |
| 3.5" Drive Bays |
2 |
| 2.5" Drive Bays |
6 |
| Supported Drive Sizes |
2.5", 3.5" |
| SSD Form Factor |
2.5" |
Expansion & Clearance
| Specification |
Value |
| Expansion Slots |
8 |
| Maximum GPU Length |
450mm |
| Maximum CPU Cooler Height |
175mm |
| GPU Anti-Sag Support |
Included |
Ports & Interfaces
| Specification |
Value |
| USB 3.2 Gen 1 Type-A Ports |
4 |
| USB 3.2 Gen 2 Type-C Port |
1 |
| Audio / Microphone Combo Jack |
Yes |
| Modern Front I/O |
Yes |
Power Supply Compatibility
| Specification |
Value |
| Power Supply Included |
No |
| Supported PSU Form Factors |
ATX |
Dimensions & Weight
| Specification |
Value |
| Width |
250 mm |
| Depth |
556 mm |
| Height |
542 mm |
| Weight |
15.5 kg |
What's In The Box
- CORSAIR FRAME 5000D PC Case
- 4 x CORSAIR RS140 PWM Fans
- GPU Anti-Sag Stabilization Arm
- Installation Hardware
- User Manual
Warranty Information
2-Year Manufacturer Warranty.
Product Identifiers
| Identifier |
Value |
| Brand |
CORSAIR |
| Series |
FRAME |
| Model |
FRAME 5000D |
| Product Type |
Gaming PC Case |
| Form Factor |
Midi Tower |
| Colour |
Black |
