Description

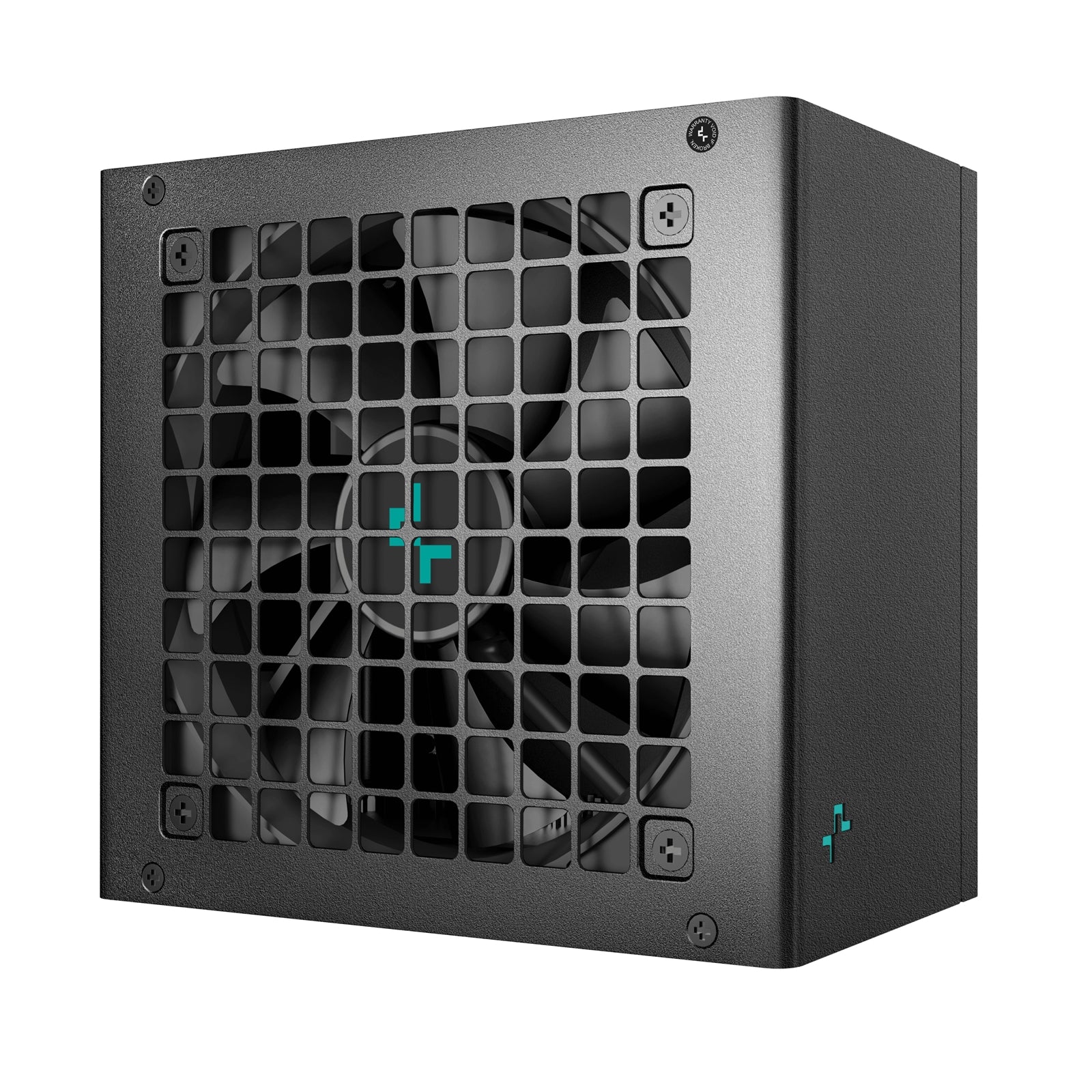

DeepCool PN650D 450W Power Supply, ATX, 12V V3.1, 80 PLUS Gold, Non-Modular, 120mm Hydro Bearing Fan, PCIe 5.0, 10-Year Warranty
The DeepCool PN650D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2x6, 2 EPS, and 3 PCIe connectors, the PN650D provides stable power for a wide range of modern high-power components.
Specs
Physical
| Product Dimensions | 150x140x86mm (W x L x H) |
| Fan Size | 120mm |
Other
| Type | ATX12V V3.1 |
| Efficiency certification | 80Plus Gold |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | =16ms(80% Load) |
| Efficiency | =90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40C |
| Regulatory | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EACErp |
| Regulation | ErP 2014 |
| Environment Protection | WEEE/RoHS/Triman/P65 |
