Description

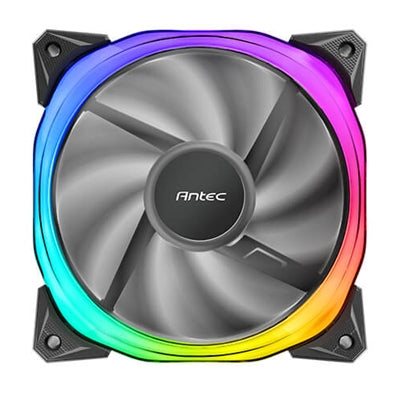

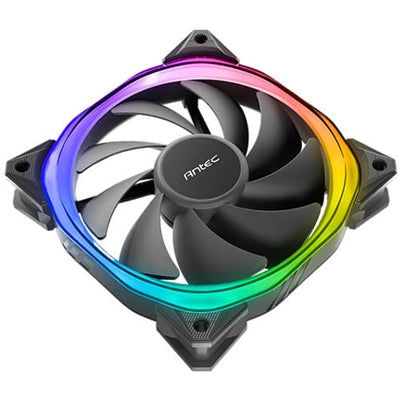

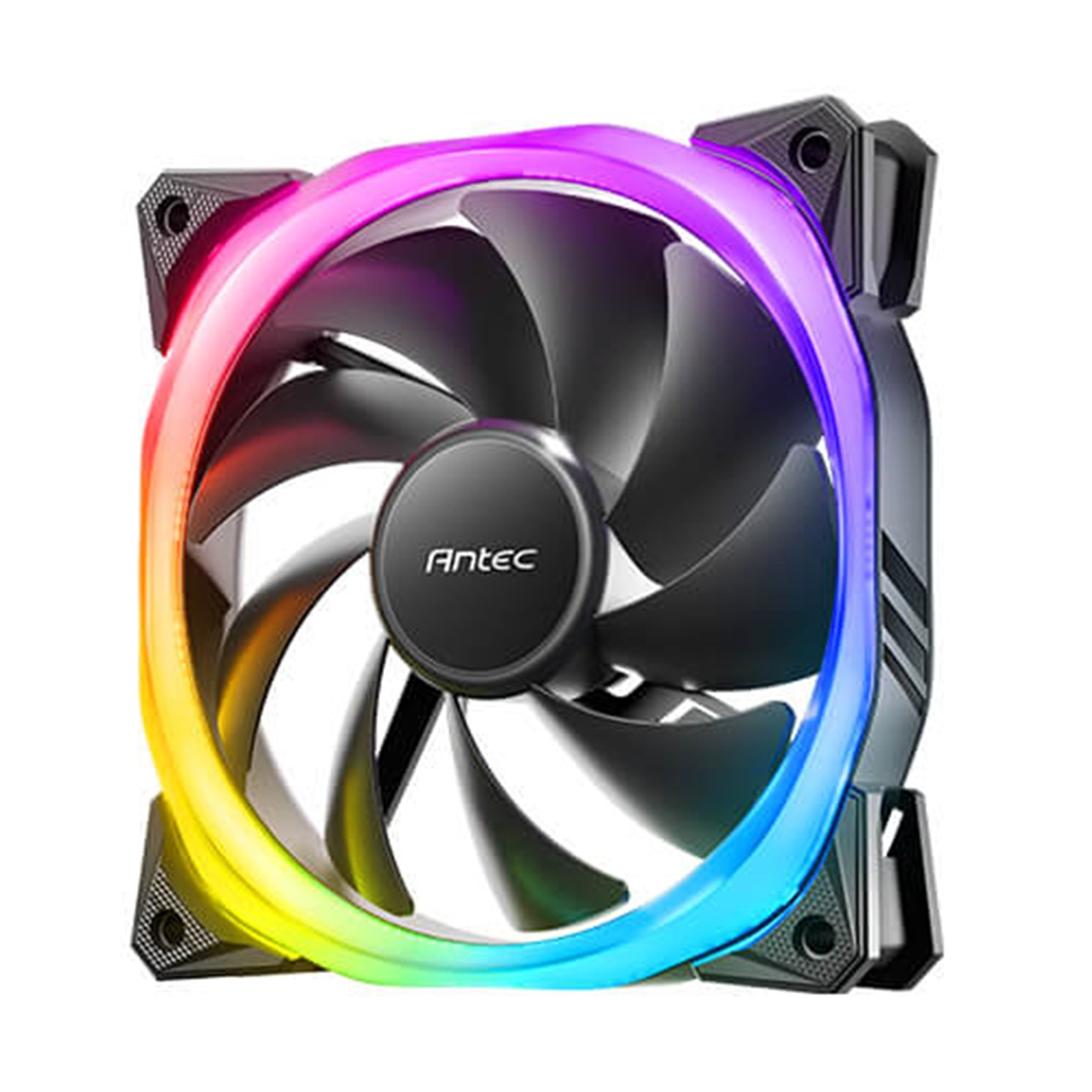

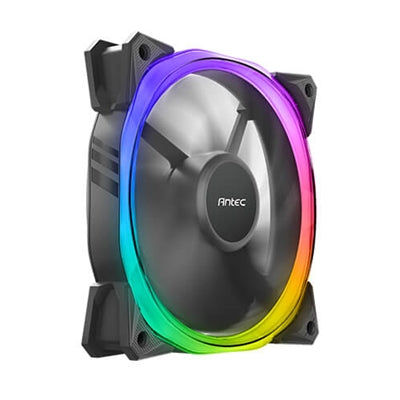

Antec Fusion 120mm ARGB, Black, Upto 2000RPM, 57.93CFM Airflow, 31.24dB Max, 4-pin PWM 3-pin LED
Unique Multilateral Shaped Lighting Frame Projects, Various Lighting Effects: The unique dodecagon-shaped lighting ring with 16 LEDs projects various lighting effects from many angles.Advance Dual-Layer Design with Crystal Layer and Frosty Layers. Wonderful Texture: The well-processed fan structure and unique shape of fine craftsmanship bring the fan quality to the next level. Durable Woven Wire: The cable is covered with durable woven wire to enhance the lifetime & create unique aesthetics. ARGB/PWM Controller: FAN: PWM Port (4pin)LED: ARGB port (3pin)DC-IN: SATA Power ConnectorLED CTRL: External LED Connector (Connect to the reset button of the chassis to turn it into LED control)LED SPEED: Control the speed of lighting effects (Low/Mid/High)PWM LED: External Signal Connector (Connect to the Motherboard for ARGB & PWM functions)MODE: Switch the lighting effects
Specs
Internal I/O Headers
| Create Your Charisma | The brand-new Fusion 120 ARGB case fan features a unique dodecagon-shaped lighting ring with 16 LEDs & a hydraulic bearing fan. It will bring you an unforgettable experience visually and functionally. |
| Compatible with the Motherboard | 2 Individual Cable |
| 4-Pin PWM Connector | Connect to the motherboard (50cm) |
| 3-Pin ARGB Connector | Connect to the motherboard for the ARGB Sync (50cm) |
| 8 Enlarged Anti-Vibration Pads | The anti-noise design with 8 anti-vibration pads can efficiently reduce noise. |
| Hydraulic Bearing Fan | Extends the lifespan and reduces the noise. |
Physical
| Bearing Type | Hydraulic Bearing |
| LED Type | Addressable RGB |
| Fan Speed | 600�200~2000�10% RPM |
| Airflow | 57.93 CFM (max.) |
| Air Pressure | 2.11 mmH2O (max.) |
| Fan Noise Level | 17.02~31.24 dB(A) |
| Lifespan | 40,000 hours /hrs 25�c |
| Connector | FAN: 4-pin PWM | LED: 3-pin |
| Rated Voltage | FAN: DC 12 V | LED: DC 5 V |
| Operation Voltage | FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V |
| Rated Current | FAN : = 0.21 A | LED : = 0.58 A |
| Warranty | 2 Years |
Other
| Model Name | Fusion 120 ARGB |
| Fan Type | PWM Fan |
