Description

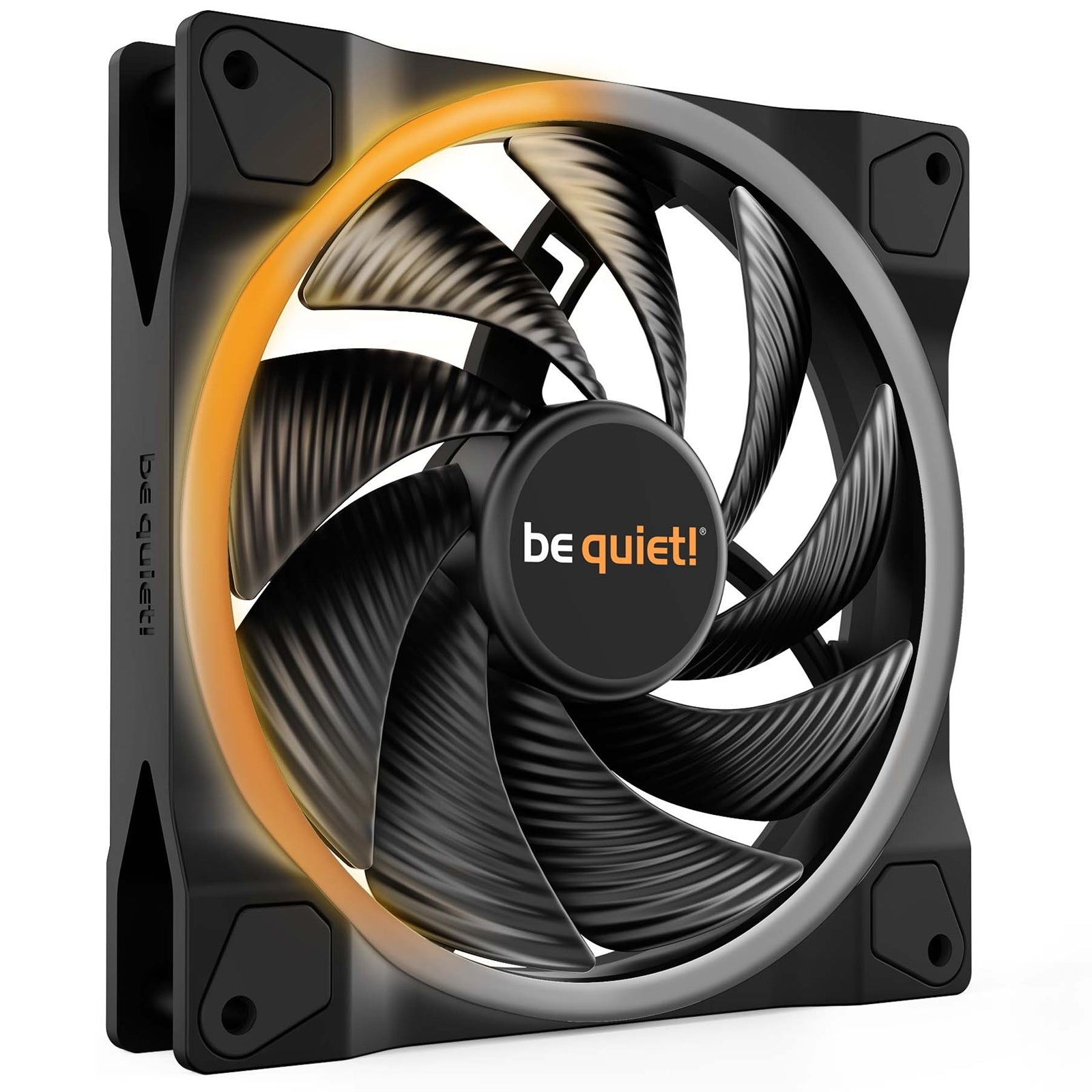

be quiet! Light Wings PWM High Speed Addressable RGB Fan, 140mm, 2200RPM, 4-Pin PWM Fan & 3-Pin ARGB Connectors, Black Frame, Black Blades, ARGB Lighting on Front & Rear
Electrical Specifications: Rated Voltage DC (V): 12Operating Voltage DC (V): 5 - 13.2Current consumption (A): 0.16Safety current (A): 0.39Input power (W): 4.68Rated Current LED (A): 0.67
Specs
What's Included
| Cables / Connectors | Daisy chain for lighting signal: YesLighting connector: 5V 3-pin ARGBConnector: 4-pin PWMCable length (mm): 500Cable sleeve: - |
| Accessories | 3-pin to 4-pin 12V-connector: -12V to 7V adapter: -12V to 5V adapter: -Screws: 4Push pins: -hard plastic washer: -Others: - |
Network
| Mechanical Specifications | Dimensions (L x W x H), (mm): 140 x 140 x 25Weight incl. fixed cables (g): 251Bearing technology: RifleMotor technology: 4-pole fan motorPush pin fixing: -Screw fixing: Yes |
Other
| LIGHT WINGS - 140mm PWM High Speed | IMPRESSIVE LIGHTING, SUPERIOR COOLINGLight Wings 140mm PWM high-speed offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.- ARGB lighting on front and rear- Multiple colors and modes for an individual look thanks to 20 LEDs- 9 silence-optimized fan blades for high pressure and low noise-generating turbulences- Remarkable performance-to-noise ratio with 31dB(A) at 2,200rpm- Long life rifle-bearing gives an operating lifetime of 60,000 hours- 3-year manufacturer�s warrantyIf you are looking for a high-speed fan with an impressive look from every angle, Light Wings 140mm PWM high-speed is your fan of choice. |
| General Data | Model: Light Wings 140mm PWM high-speedDimensions (mm): 140Color option: BlackLighting: ARGB LEDFan speed @ 100% PWM / 12V (rpm): 2200Noise level @ 100% PWM / 12V (dB(A)): 31Air Flow @ 100% PWM / 12V (CFM / m3/h): 71.7 / 121.82Air Pressure @ 100% PWM / 12V (mm H2O): 2.3 |
| Performance / Noise | Air Flow @ 100% PWM / 12V (CFM / m3/h): 71.7 / 121.82Air Pressure @ 100% PWM / 12V (mm H2O): 2.3Noise level @ 100% PWM / 12V (dB(A)): 31Lifespan (h / 25�C): 60,000 |
| Safety Certification | Approvals: CE / RoHs / RU / WEEE |
| Environmental Directives | RoHs: -Triman: - |
| Logistics Data | Article number: BL075Dimensions, package (L x W x H), (mm): 173 x 153 x 29.5Gross weight, package (kg): 0.334 |
