Description

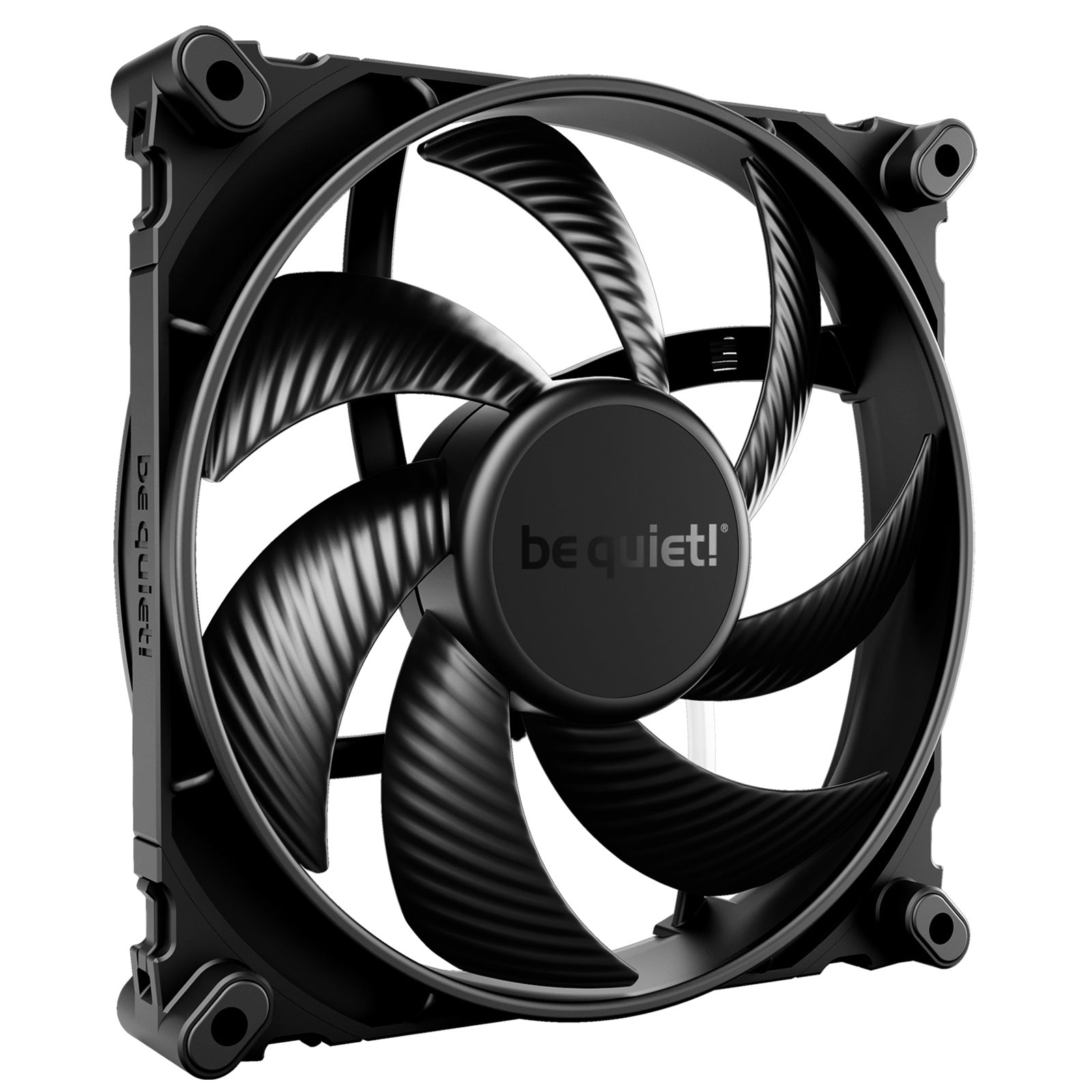

be quiet! Silent Wings 4 PWM Black Fan, 140mm, 1100RPM, 4-Pin PWM Fan Connector, Black Frame, Black Blades, Optimized Fan Blades for High End Performance, 2 Mounting Options
Cables / Connectors: Daisy chain for lighting signal: -Lighting connector: -Connector: 4-pin PWMCable length (mm): 500Cable sleeve: Yes Electrical Specifications: Rated Voltage DC (V): 12Operating Voltage DC (V): 5 - 13.2Current consumption (A): 0.30Safety current (A): 0.33Input power (W): 3.6Rated Current LED (A): -
Specs
What's Included
| Accessories | 3-pin to 4-pin 12V-connector: -12V to 7V adapter: -12V to 5V adapter: -Screws: 4Push pins: 4hard plastic washer: -Others: Rubber & hard plastic mountings |
Network
| Mechanical Specifications | Dimensions (L x W x H), (mm): 140 x 140 x 25Weight incl. fixed cables (g): 220Bearing technology: FDBMotor technology: 6-pole fan motorPush pin fixing: YesScrew fixing: Yes |
Other
| SILENT WINGS 4 - 140mm PWM | NO COMPROMISE SILENCE AND PERFORMANCESilent Wings 4 140mm PWM combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.- Optimized fan blades for the highest performance on heat sinks- Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure- Virtually inaudible operation at regular speed- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations- Anti-vibration mounting with push pins and screwed installation option- Super-long lifespan of up to 300,000h- Elegant look with high-grade fan sticker in an all-black design- 5-year manufacturer warranty |
| General Data | Model: Silent Wings 4 140mm PWMDimensions (mm): 140Color option: BlackLighting: -Fan speed @ 100% PWM / 12V (rpm): 1100Noise level @ 100% PWM / 12V (dB(A)): 13.6Air Flow @ 100% PWM / 12V (CFM / m3/h): 51.3 / 87.16Air Pressure @ 100% PWM / 12V (mm H2O): 0.92 |
| Performance / Noise | Air Flow @ 100% PWM / 12V (CFM / m3/h): 51.3 / 87.16Air Pressure @ 100% PWM / 12V (mm H2O): 0.92Noise level @ 100% PWM / 12V (dB(A)): 13.6Lifespan (h / 25�C): 300,000 |
| Safety Certification | Approvals: CE / RoHs / RU / UKCA / T�V / WEEE |
| Environmental Directives | RoHs: -Triman: - |
| Logistics Data | Article number: BL096Dimensions, package (L x W x H), (mm): 206.5 x 156 x 31Gross weight, package (kg): 0.387 |
