Description

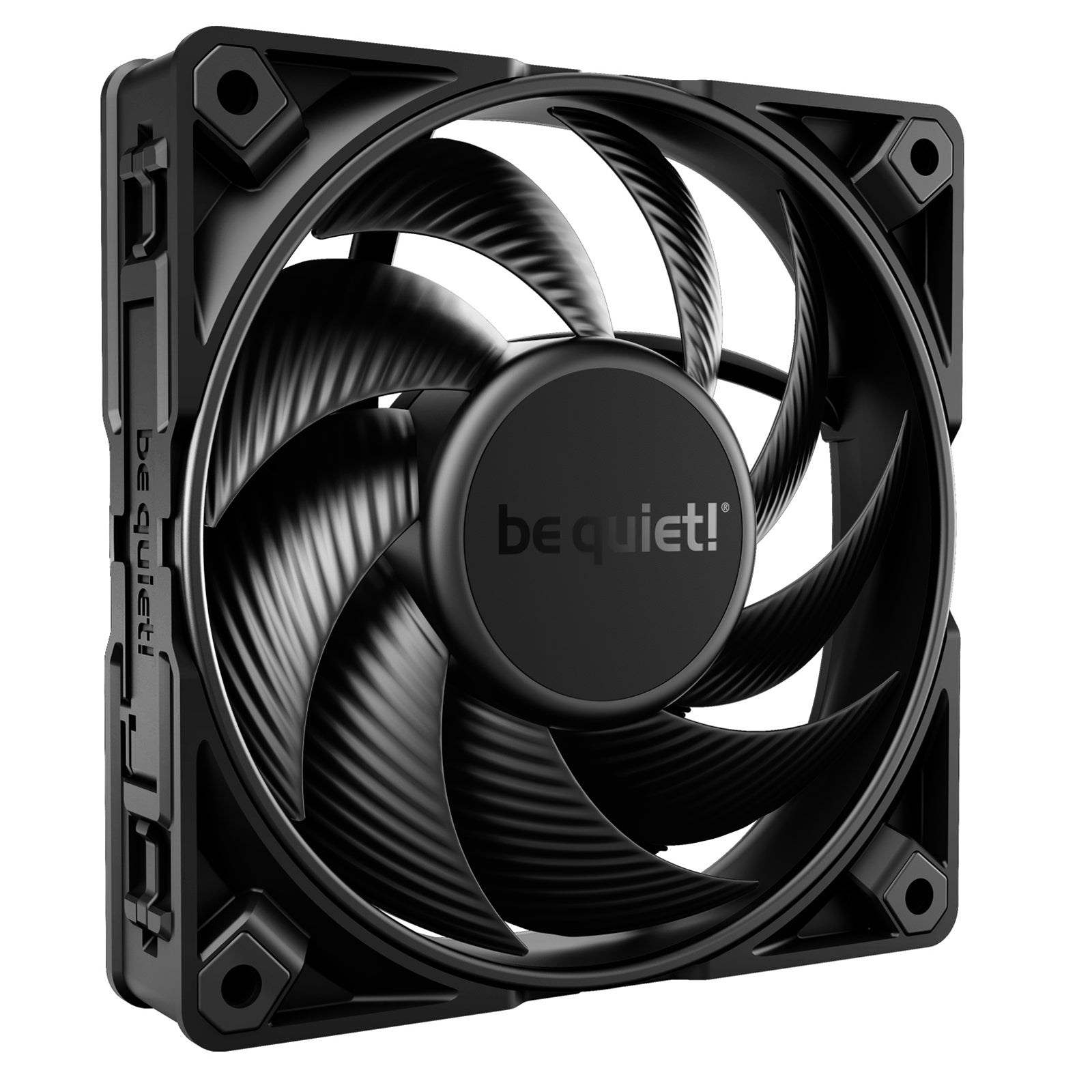

be quiet! Silent Wings Pro 4 PWM Black Fan, 120mm, 3000RPM, 4-Pin PWM Fan Connector, Black Frame, Black Blades, Optimized Fan Blades for the Highest Performance for Radiators & Heat Sinks, 3 Mounting Options, 3 Speed Switch
Cables / Connectors: Daisy chain for lighting signal: -Lighting connector: -Connector: 4-pin PWMCable length (mm): 500Cable sleeve: Yes Electrical Specifications: Rated Voltage DC (V): 12Operating Voltage DC (V): 7 - 13.2Current consumption (A): 0.30Safety current (A): 0.33Input power (W): 3.6Rated Current LED (A): -
Specs
What's Included
| Accessories | 3-pin to 4-pin 12V-connector: -12V to 7V adapter: -12V to 5V adapter: -Screws: 4Push pins: 4hard plastic washer: -Others: - |
Network
| Mechanical Specifications | Dimensions (L x W x H), (mm): 120 x 120 x 25Weight incl. fixed cables (g): 227Bearing technology: FDBMotor technology: 6-pole fan motorPush pin fixing: YesScrew fixing: Yes |
Other
| SILENT WINGS PRO 4 - 120mm PWM | LEGENDARY SILENCE, EPIC PERFORMANCE AND FEATURESSilent Wings Pro 4 120mm PWM is the most progressive, performant and versatile fan by be quiet!- Optimized fan blades for the highest performance on radiators and heat sinks- Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 3000 rpm)- Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure- Virtually inaudible operation at regular speed- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations- Individual mounting systems for use as a case fan or with a radiator- 5-year manufacturer warranty |
| General Data | Model: Silent Wings Pro 4 120mm PWMDimensions (mm): 120Color option: BlackLighting: -Fan speed @ 100% PWM / 12V (rpm): 3000Noise level @ 100% PWM / 12V (dB(A)): 36.9Air Flow @ 100% PWM / 12V (CFM / m3/h): 83.9 / 142.5Air Pressure @ 100% PWM / 12V (mm H2O): 5.31 |
| Performance / Noise | Air Flow @ 100% PWM / 12V (CFM / m3/h): 83.9 / 142.5Air Pressure @ 100% PWM / 12V (mm H2O): 5.31Noise level @ 100% PWM / 12V (dB(A)): 36.9Lifespan (h / 25�C): 300,000 |
| Safety Certification | Approvals: CE / RoHs / RU / UKCA / TUV / WEEE |
| Environmental Directives | RoHs: -Triman: - |
| Logistics Data | Article number: BL098Dimensions, package (L x W x H), (mm): 192 x 141 x 31Gross weight, package (kg): 0.4 |
