Description

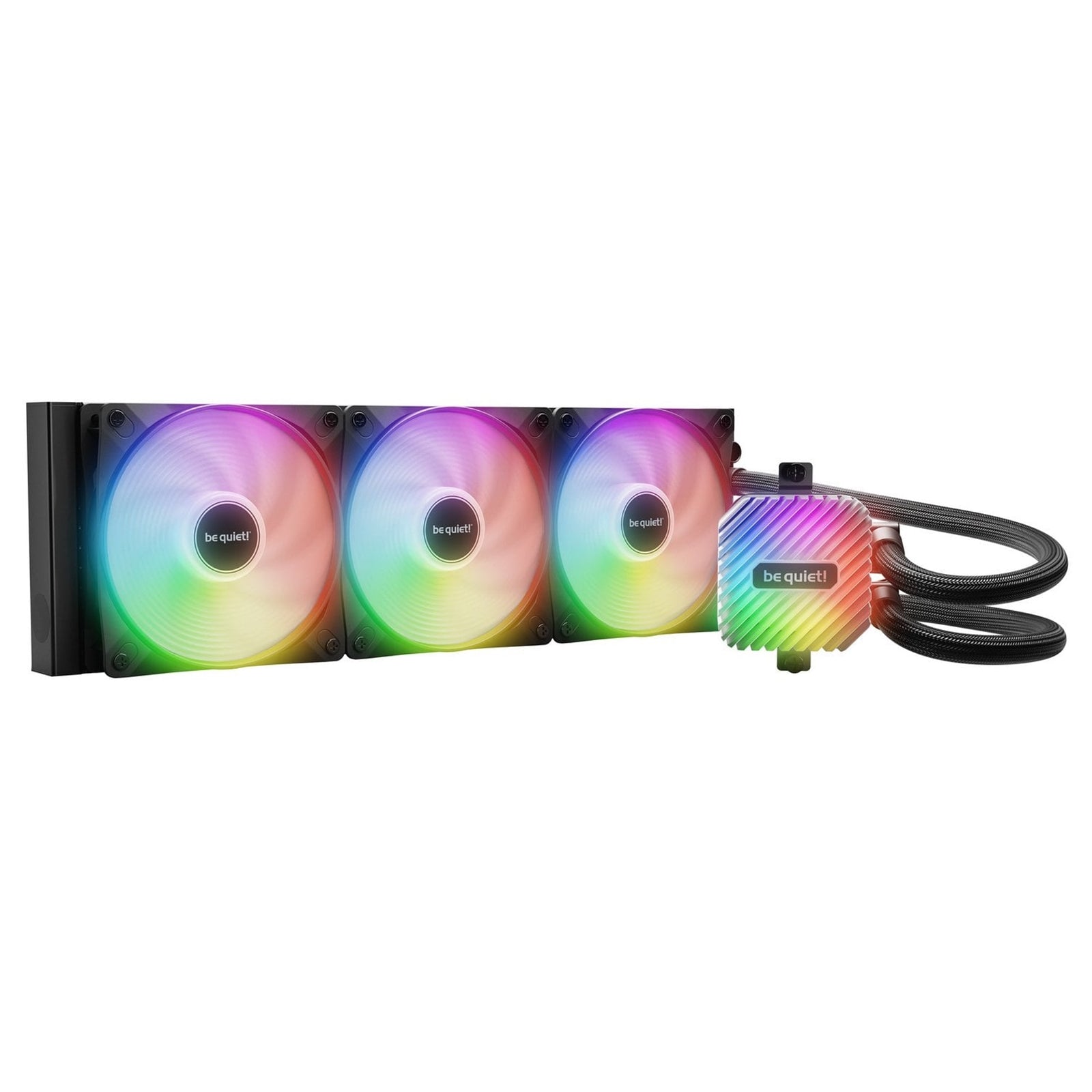

be quiet! Light Loop 360mm AIO Liquid Cooler - High-Performance ARGB All-in-One Water Cooling System with Triple Light Wings LX PWM Fans
The be quiet! Light Loop 360mm AIO CPU Water Cooler is a high-performance all-in-one water cooling solution designed for enthusiasts with overclocked systems. It combines exceptional cooling capabilities with vibrant ARGB lighting effects, making it a visually stunning addition to any PC build. The cooler features a stylish cooling block with a unique diffuser, creating stunning visuals, and comes with up to three Light Wings LX 120mm PWM high-speed fans with 16 digital LEDs for colorful illumination. Stylish Design:: Unique cooling block with a diffuser for stunning ARGB lighting effects. Quiet Operation:: State-of-the-art pump with a progressive IC for minimal noise.
Specs
Processor
| Socket Compatibility (Intel): | 1851 / 1700 / 1200 / 1150 / 1151 / 1155 |
| Socket Compatibility (AMD): | AM5 / AM4 |
What's Included
| Cable Length: | 500 mm |
| Accessories | Thermal Grease:Included |
| Bottle of Coolant (ml): | Included / 100 |
| ARGB-PWM-Hub: | Included |
| Safety Certifications | Approvals: CE, FCC, UKCA |
| Warranty (Years): | 3 |
| Article Number: | BW022 |
| EAN Code: | 4260052191132 |
| Dimensions, Package (L x W x H): | 448 x 205 x 137 mm |
| Gross Weight, Package: | 2.6 kg |
| Pieces per Packaging Unit: | 4 |
| Dimensions, Shipping Box (L x W x H): | 470 x 300 x 460 mm |
| Gross Weight, Shipping Box: | 11.3 kg |
Internal I/O Headers
| ARGB-PWM Hub: | Synchronizes up to 6 ARGB components and PWM fans. |
Physical
| Color Option: | Black |
| Dimensions (Radiator, incl. fan): | 397 x 120 x 52 mm |
| Dimensions (Cooling Block): | 75 x 94 x 82 mm |
| Total Weight: | 1.48 kg |
| Tube Length: | 400 mm |
| Radiator Material / Finish: | Aluminum / Black Spray Painted |
| Base Material / Finish: | Copper / Nickel Plated |
| Fan Dimensions: | 120 x 120 x 25 mm |
Other
| Exceptional Cooling Performance: | 360mm radiator and high-density fin stack for efficient heat dissipation. |
| Compatibility: | Supports Intel LGA 1700, AMD AM4, AM5, and other sockets. |
| Maintenance-Friendly: | Easy-access refill port and included coolant bottle. |
| Specification | Model: Light Loop 360mm |
| Noise Level (dB(A)) at 50% / 75% / 100% rpm: | 17.2 / 29.1 / 36.8 |
| Number of Fans: | 3 |
| Lighting Connector: | 3 Pin 5V Addressable |
| Refill Port: | ? |
| Pump Specifications | Pump Speed: 2900 rpm |
| Pump Adjustable: | 1500 - 2900 rpm |
| Pump Connector: | 4-pin PWM |
| Radiator Specifications | Dimensions (L x W x H): 397 x 120 x 27 mm |
| Fan Specifications | Fan Model: Light Wings LX 120mm PWM High-Speed |
| Speed at 100% PWM: | 2100 rpm |
| Airflow at 100% PWM / 12V: | 61.8 CFM / 105.1 m3/h |
| Air Pressure at 100% PWM / 12V: | 2.51 mm H2O |
| Bearing Technology: | Rifle |
| Motor Technology: | 4-pole fan motor |
| Rated Voltage: | 12V |
| Input Current: | 0.17A |
| Safety Current: | 0.45A |
| Input Power: | 5.4W |
| Connector: | 4-pin PWM |
| Lifespan (h / 25�C): | 60,000 |
| Mounting Set: | Intel, AMD |
