Description

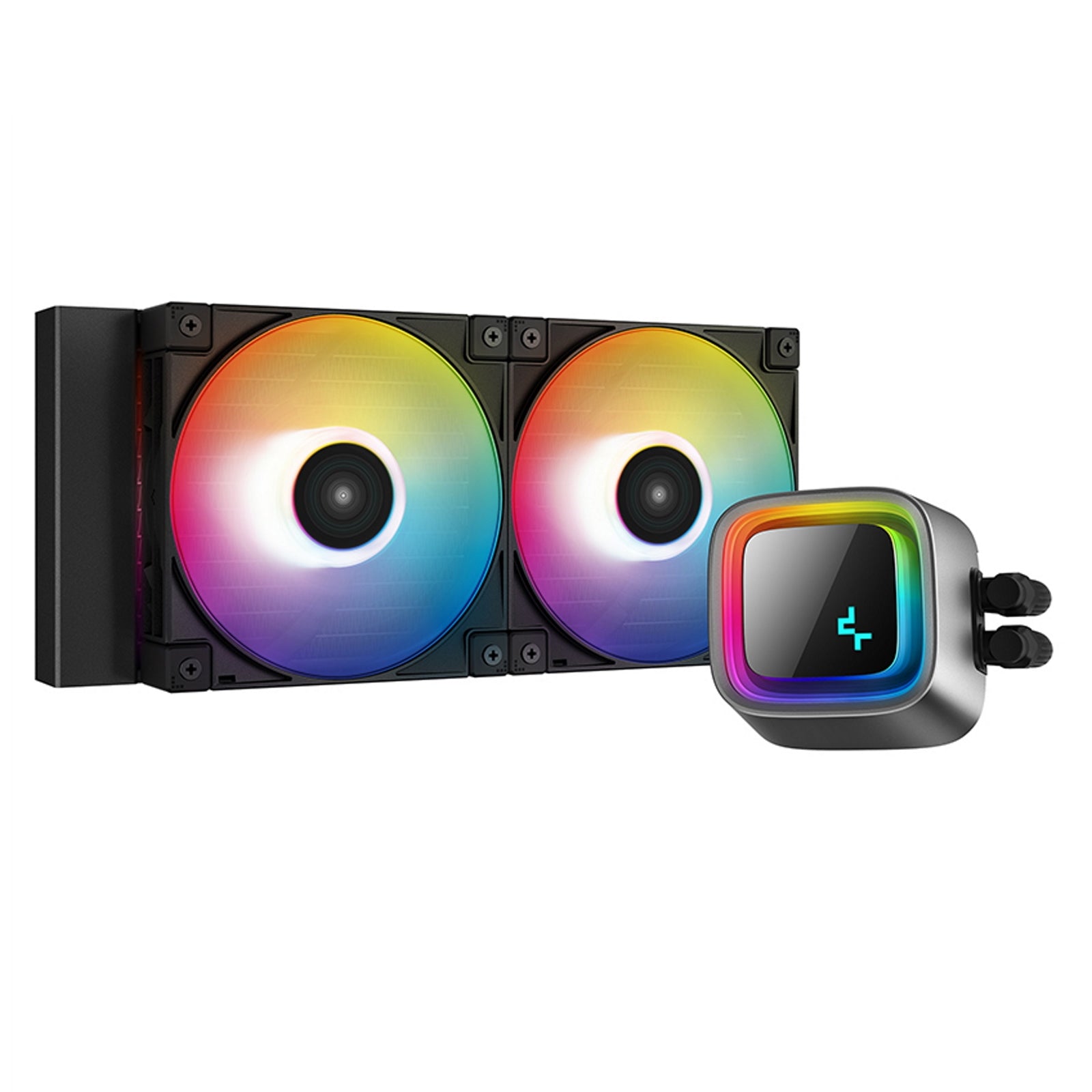

DeepCool LS520 Premium AiO Liquid CPU Cooler, Universal Socket, 240mm Radiator, PWM 2250RPM Cooling Fans, Addressable RGB LED Lighting, Fully Customizable Infinity Mirror Cap Design, Black Version
Specs
Physical
| Radiator Dimensions | 282 x 120 x 27 mm |
| Radiator Material | Aluminum |
| Tube length | 410 mm |
| Pump Dimensions | 86 x 74 x 57 mm |
| Fan Dimensions | 120 x 120 x 25 mm |
| Net Weight | 1305 g |
Other
| Application For | Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155AMD: sTRX4 / sTR4 / AM5 / AM4 |
| Pump Speed | 3100 RPM � 10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.47 A |
| Pump Power Consumption | 5.64 W |
| Fan Speed | 500~2250 RPM � 10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | =32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.29 A |
| Fan Power Consumption | 3.48 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin (+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.2 W (PUMP)/ 3.6 W (2 x FAN) |
