Description

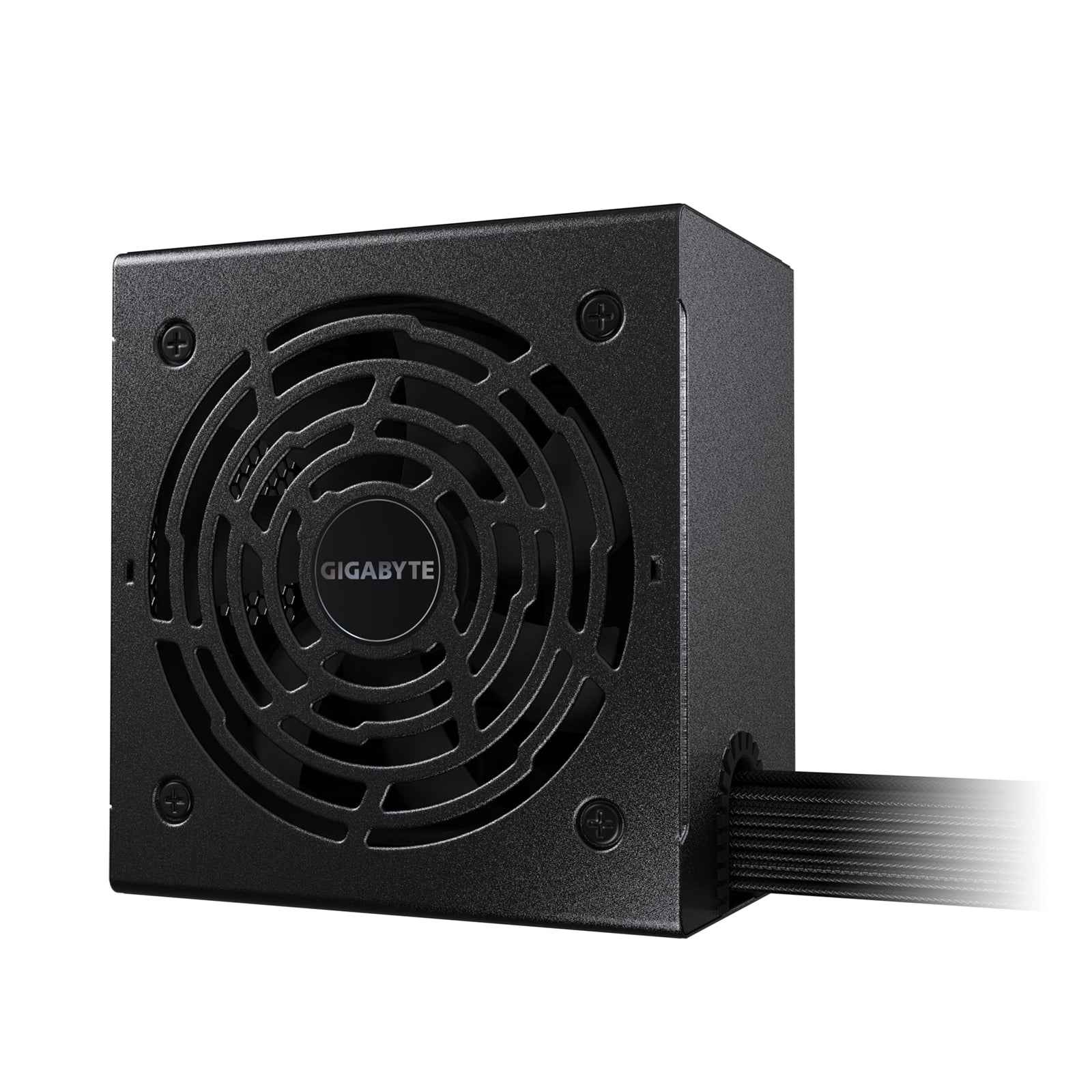

Gigabyte 750W 80+ Bronze Certified Power Supply, Silent 120mm FDB Fan, Soft-Textured Cables, Single +12V Rail, Advanced Protection, 3-Year Warranty
The Gigabyte GP-P750BS-UK is a 750W power supply unit (PSU) designed for high-performance gaming and workstation setups. It features 80 PLUS Bronze certification, ensuring energy efficiency and reliable power delivery. With a single +12V rail, it provides stable voltage output, making it ideal for demanding applications. The 120mm Fluid Dynamic Bearing (FDB) fan ensures silent operation while maintaining optimal cooling.
Specs
What's Included
| Cable Type: | Soft-textured embossed cables |
Physical
| Type: | ATX 12V |
Other
| Model: | GP-P750BS-UK |
| Input Voltage: | 200-240V AC |
| Input Current: | 6A |
| Input Frequency: | 50-60Hz |
| Output Capacity: | 750W |
| Efficiency: | 80 PLUS Bronze (88% at typical load) |
| Fan Type: | 120mm Fluid Dynamic Bearing (FDB) |
| Protection Features: | OVP, OPP, SCP, UVP, OCP, OTP |
| Power Good Signal: | 100-150ms |
| Hold Up Time: | >16ms |
| Connectors: | ATX/MB: 20+4 Pin x1 (600mm) CPU/EPS: 4+4 Pin x2 (600mm + 150mm) PCI-E: 6+2 Pin x7 (500mm + 150mm x2) SATA: x4 (500mm + 150mm + 150mm + 150mm) SATA + Peripheral: x3 + x1 (500mm + 150mm + 150mm + 150mm) |
| Warranty: | 3 years |
