Description

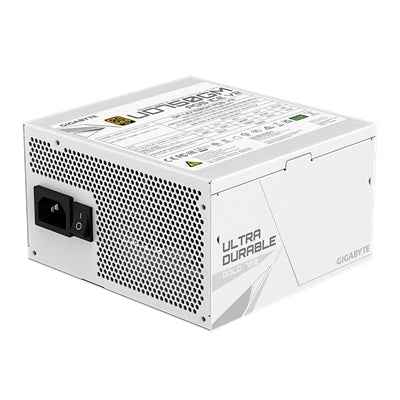

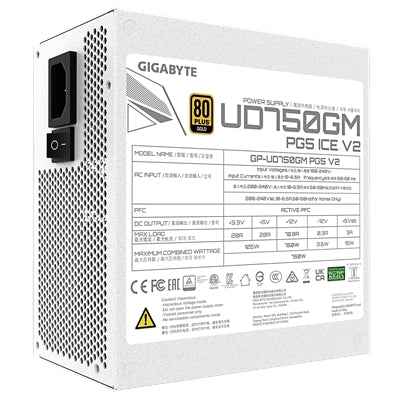

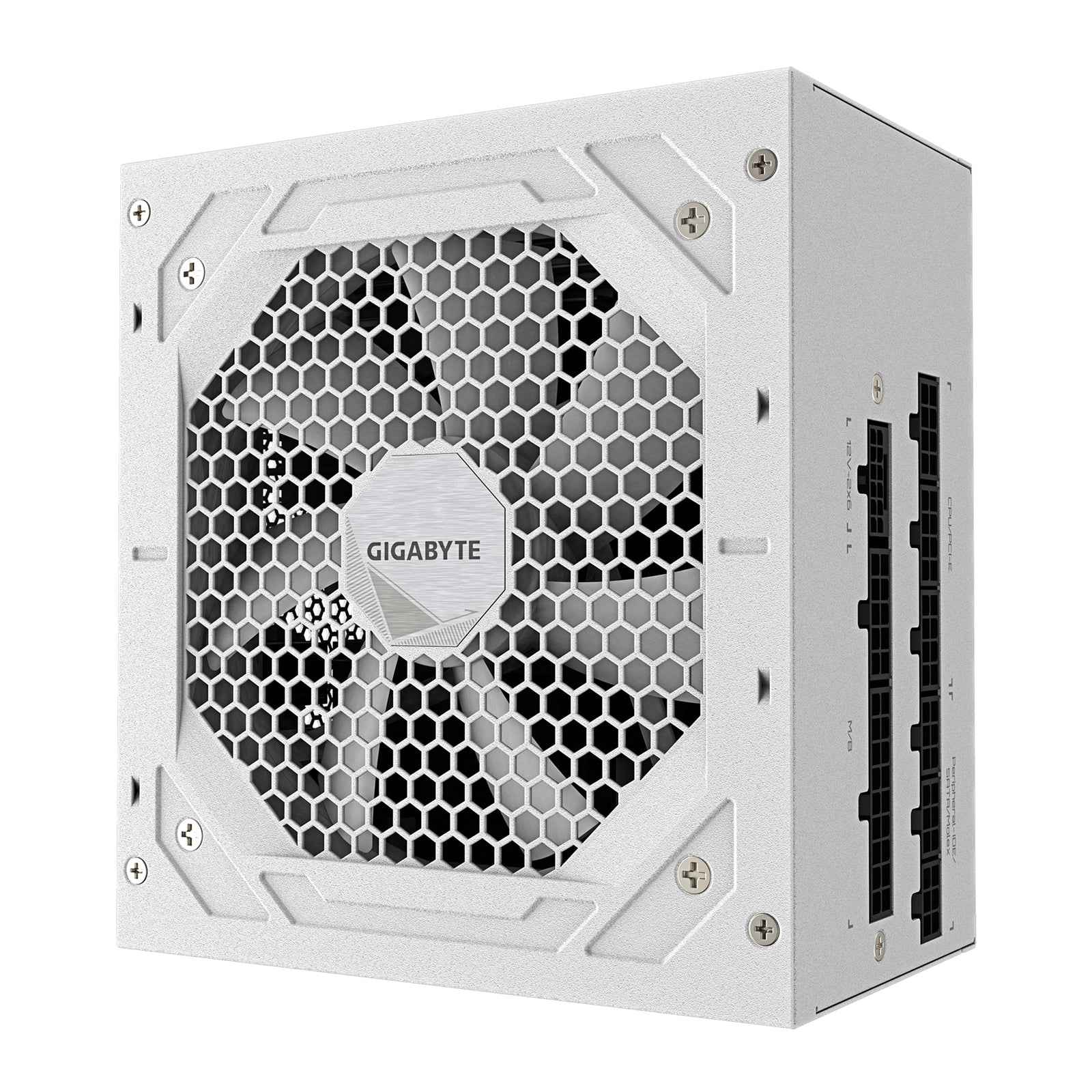

GIGABYTE GP-UD750GM 750W V2 ICE, 80 Plus Gold Certified Fully Modular Power Supply, PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug
Ultra Durable100% Japanese capacitors120mm smart hydraulic bearing (HYB) fanOptimized thermal solutionOVP/OPP/SCP/UVP/OCP/OTP protectionIntel ATX 3.1 and PCIe Gen 5.1 ready80 PLUS Gold certifiedFully modular designPowerful single +12V railCompact size 120mm smart Hydraulic Bearing(HYB) fan with smart fan switch: Fan speed adjusts automatically based on power load, staying silent when the system is idle or under 20 percent load. The hydraulic bearing fan ensures a longer, more stable lifespan for sustained performance.
Specs
Chipset & Form Factor
| ATX 3.1 and PCIe GEN 5.1 READY | Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3x GPU and 2x system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 600W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX 50 Series and beyond. |
What's Included
| Cable Type | Embossed, All white |
Physical

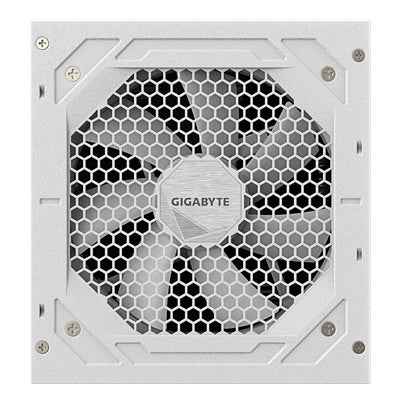

| Fan Type | 120mm Hydraulic Bearing(HYB) Fan |
Other
| Model | GP-UD750GM PG5 ICE |
| Type | Intel Form Factor ATX 12V v3.1 |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 750W |
| Efficiency | 90% at typical load |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1PCI-e 6+2 Pin x 4 : 600mm+150mm*2PCI-e 12+4 Pin x 1:700mm*1SATA x 8 : 600mm+150mm+150mm+150mm*24 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1 |
