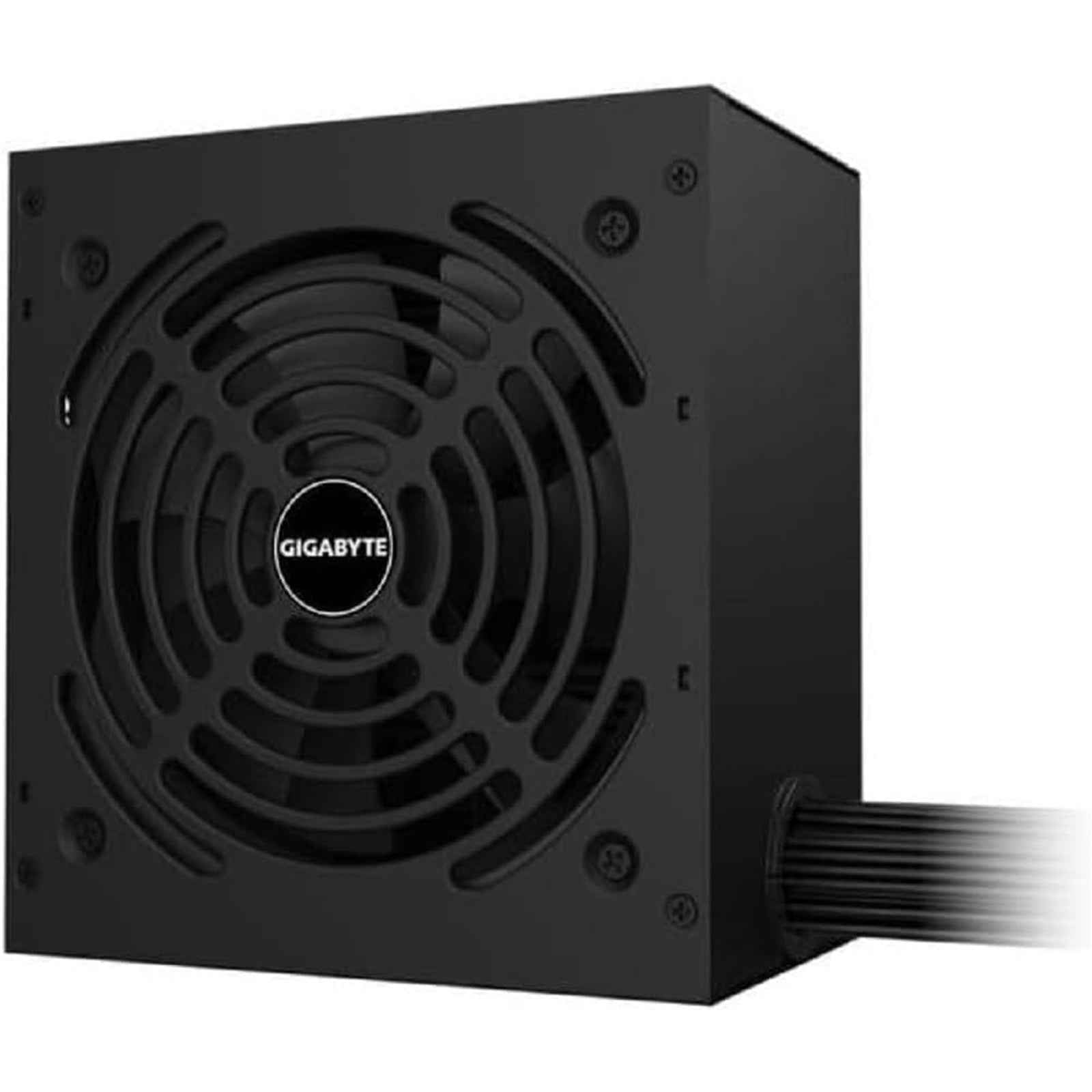

Gigabyte P650G PG5 650W ATX 3.1 Fully Modular Power Supply Unit, 80 Plus Gold Efficiency, PCIe 5.1 12VHPWR Connector, Gaming PC PSU
The GIGABYTE P650G PG5 (MPN: GP-P650G PG5) is a fully modular, high-efficiency ATX 3.1 power supply designed for modern desktop systems including next-gen graphics support via a native PCIe Gen 5.1 16-pin connector. With 80 PLUS Gold efficiency, a 120 mm hydraulic bearing fan, and comprehensive protection features, it delivers reliable power and quiet operation backed by solid build quality and long-term reliability. Operating Temperature:: Standard operating range (up to ~40�C) typical for ATX PSU class
Specs
What's Included
| Cable Length: | Optimised for mid-tower and full-tower systems |
Network
| Model / MPN: | P650G PG5 (GP-P650G PG5) |
| Form Factor: | ATX 12V v3.1 (Intel Form Factor) |
| Power Output: | 650W continuous |
| Efficiency Rating: | 80 PLUS Gold (approx. =90% efficiency at typical load) |
| Input Voltage: | 100240 VAC |
| Input Frequency: | 5060 Hz |
| Input Current: | ~106 A |
| Power Factor: | Active PFC (>0.9 typical) |
Physical
| Dimensions: | 150 x 140 x 86 mm (W x D x H) |
Other
| Protections: | OVP, OPP, SCP, UVP, OCP, OTP |
| Power Good Signal: | 100150 ms |
| Hold-up Time: | 17 ms |
| Fan: | 120mm HYB (Hydraulic Bearing) fan with intelligent speed control |
| Noise Levels: | Designed for low noise under typical loads |
| Modularity: | Fully modular all-black flat cables |
| Connectors: | 1 x 20+4-pin ATX main power1 x 4+4-pin CPU (EPS)1 x 16-pin PCIe Gen 5.1 (12VHPWR)2 x 6+2-pin PCIe6 x SATA power3 x 4-pin peripheral (PATA) |
| Warranty: | 5 years |
