Description

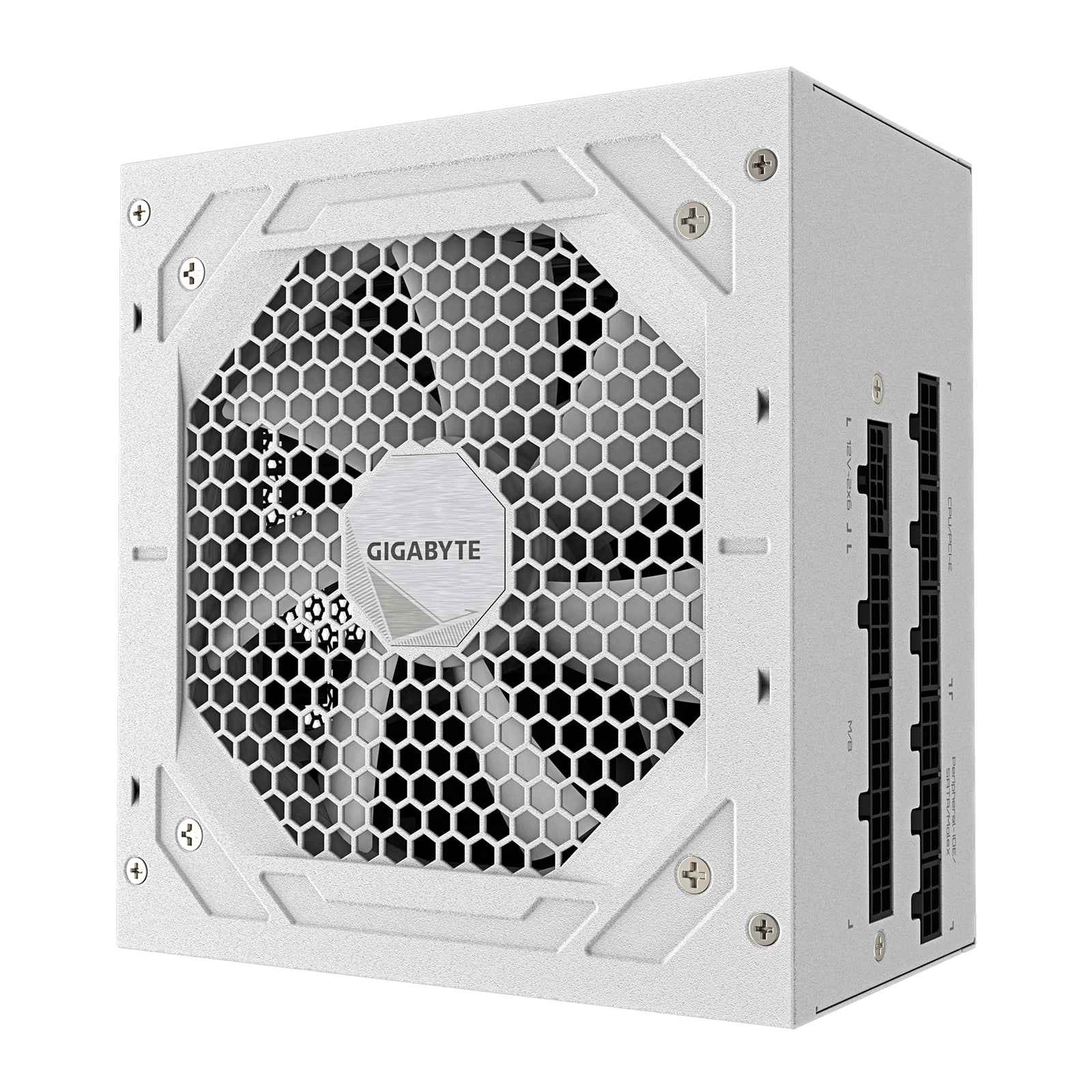

GIGABYTE UD1000GM PG5 1000W PSU V2, ICE, PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug
120mm smart Hydraulic Bearing(HYB) fan with smart fan switch: Fan speed adjusts automatically based on power load, staying silent when the system is idle or under 20 percent load. The hydraulic bearing fan ensures a longer, more stable lifespan for sustained performance.
Specs
Chipset & Form Factor
| ATX 3.1 and PCIe GEN 5.1 READY | Ready for next-gen power demands, this ATX 3.1 compliant PSU handles up to 3x GPU and 2x system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 600W for PCIe Gen 5.1 graphics cards, such as the GeForce RTX 50 Series and beyond. |
What's Included
| Cable Type | Embossed, All white |
Physical
| Fan Type | 120mm Hydraulic Bearing(HYB) Fan |
Other
| Model | GP-UD1000GM PG5 ICE |
| Type | Intel Form Factor ATX 12V v3.1 |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000W |
| Efficiency | 90% at typical load |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1PCI-e 6+2 Pin x 4 : 600mm+150mm*2PCI-e 12+4 Pin x 1:700mm*1SATA x 8 : 600mm+150mm+150mm+150mm*24 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1 |
