Description

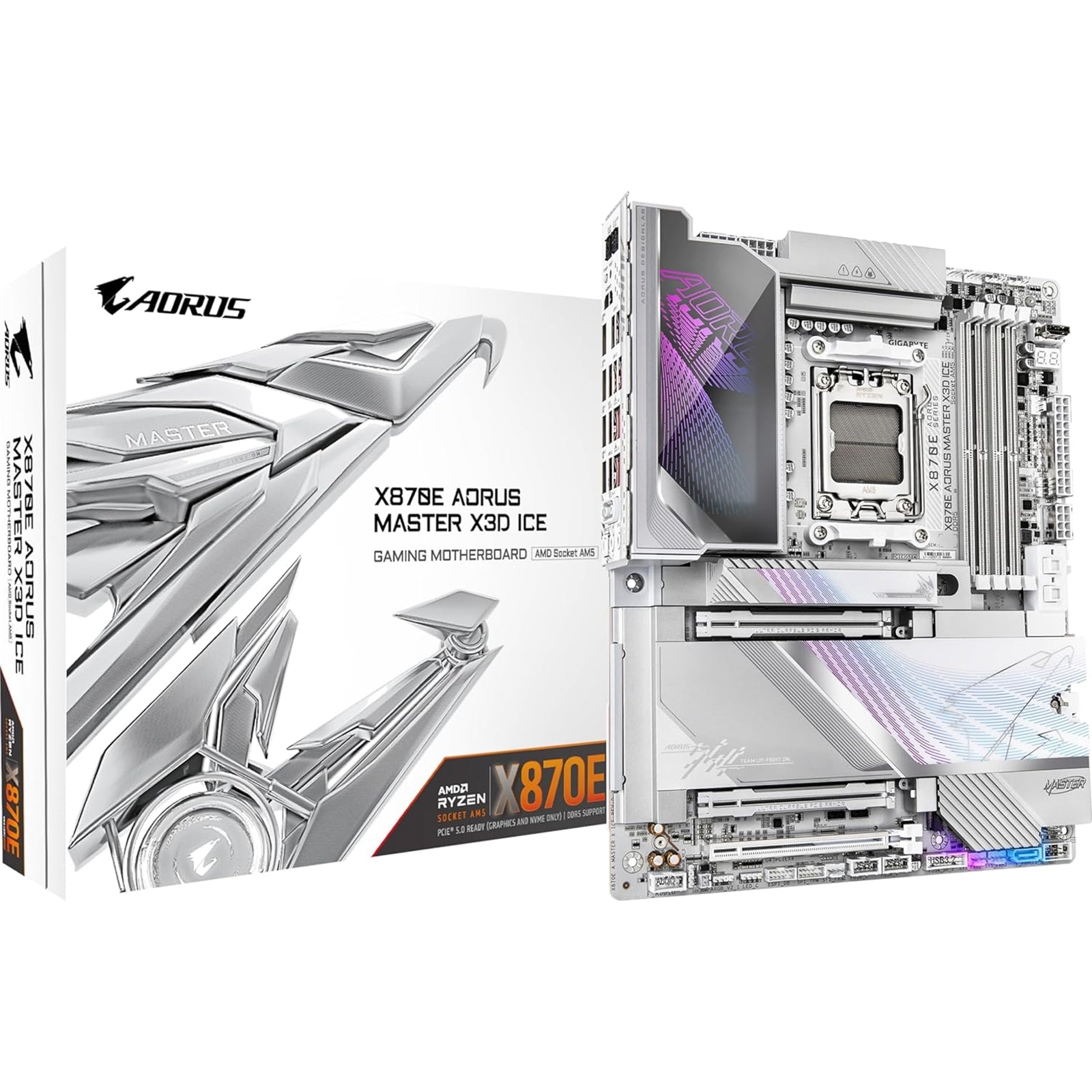

GIGABYTE X870E AORUS MASTER X3D ICE AMD AM5 ATX Motherboard, 4x DDR5, 5x M.2, PCIe 5.0, Wi-Fi 7, 10GbE LAN, 2x USB4
X870E AORUS MASTER X3D ICE 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) RAID 0 and RAID 1 support for SATA storage devices - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 4 x USB 2.0/1.1 ports available through the internal USB headers H/W Monitoring: Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection Unique Features: Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport Smart Backup Bundled Software: Norton Internet Security (OEM version)LAN bandwidth management software
Specs
Processor
| Chipset | AMD X870E |
| Memory | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 HzIntegrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
BIOS
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Network
| Wireless Communication Module | MediaTek Wi-Fi 7 MT7927, RZ738- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 320MHz wireless standard |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs2 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
Rear Panel I/O Ports
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x PCIe power connector1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers1 x system fan extension cable header (can extend three system fan headers through one cable)1 x system fan/water cooling pump header4 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header5 x M.2 Socket 3 connectors2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x HDMI port (Note)1 x chassis intrusion header1 x reset jumper1 x Clear CMOS jumper2 x temperature sensor headers |
| Back Panel Connectors | 1 x Q-Flash Plus button1 x Clear CMOS button1 x reset button1 x power button1 x HDMI port (Note)2 x USB4® USB Type-C® ports (DisplayPorts (Note))1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x USB Type-C® port, with USB 3.2 Gen 2x2 support7 x USB 3.2 Gen 2 Type-A ports (red)2 x RJ-45 ports2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector |
| I/O Controller | iTE® I/O Controller Chip |
