GIGABYTE X870I AORUS PRO ICE — AMD X870, Socket AM5, Mini-ITX
Overview

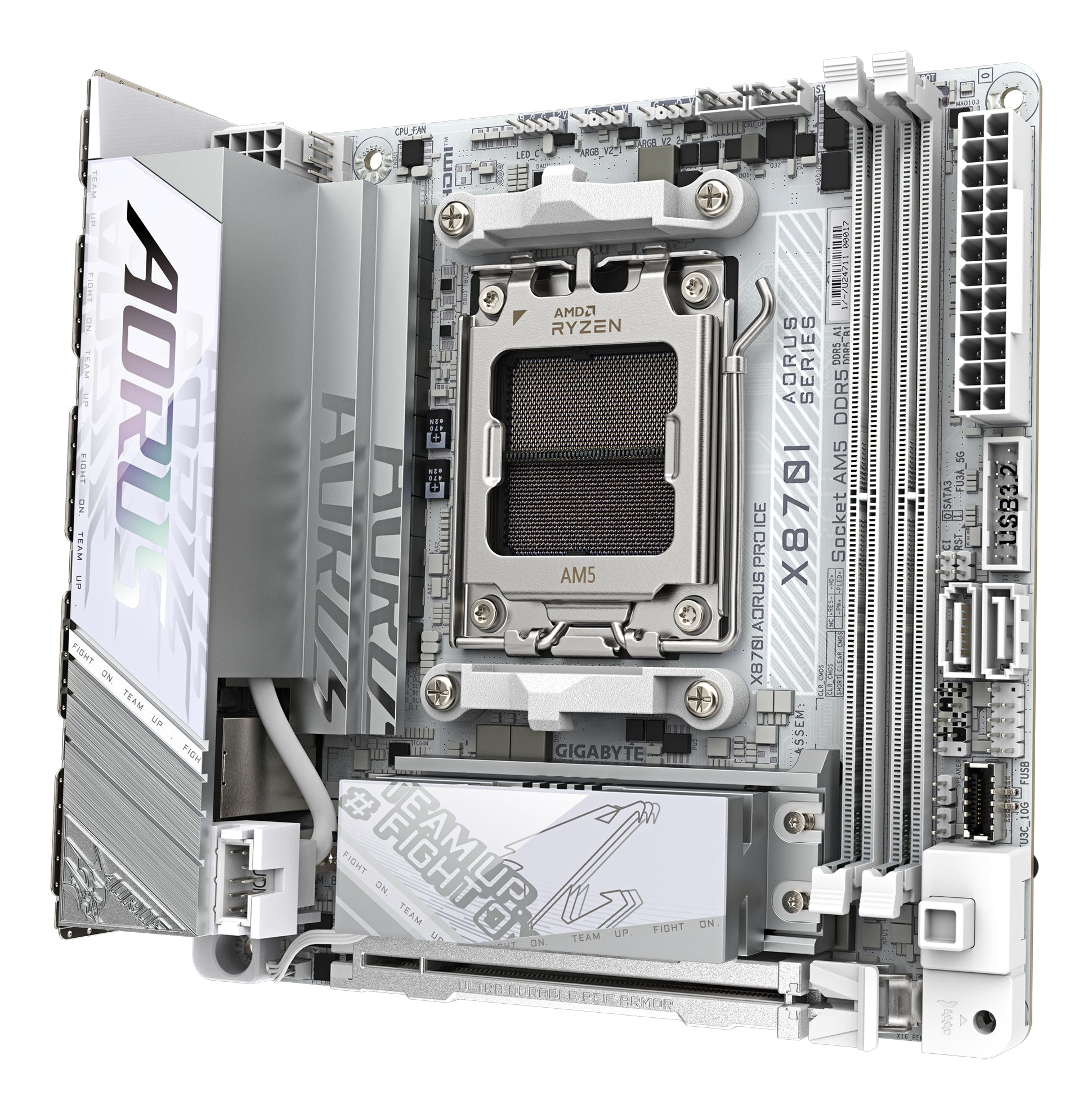

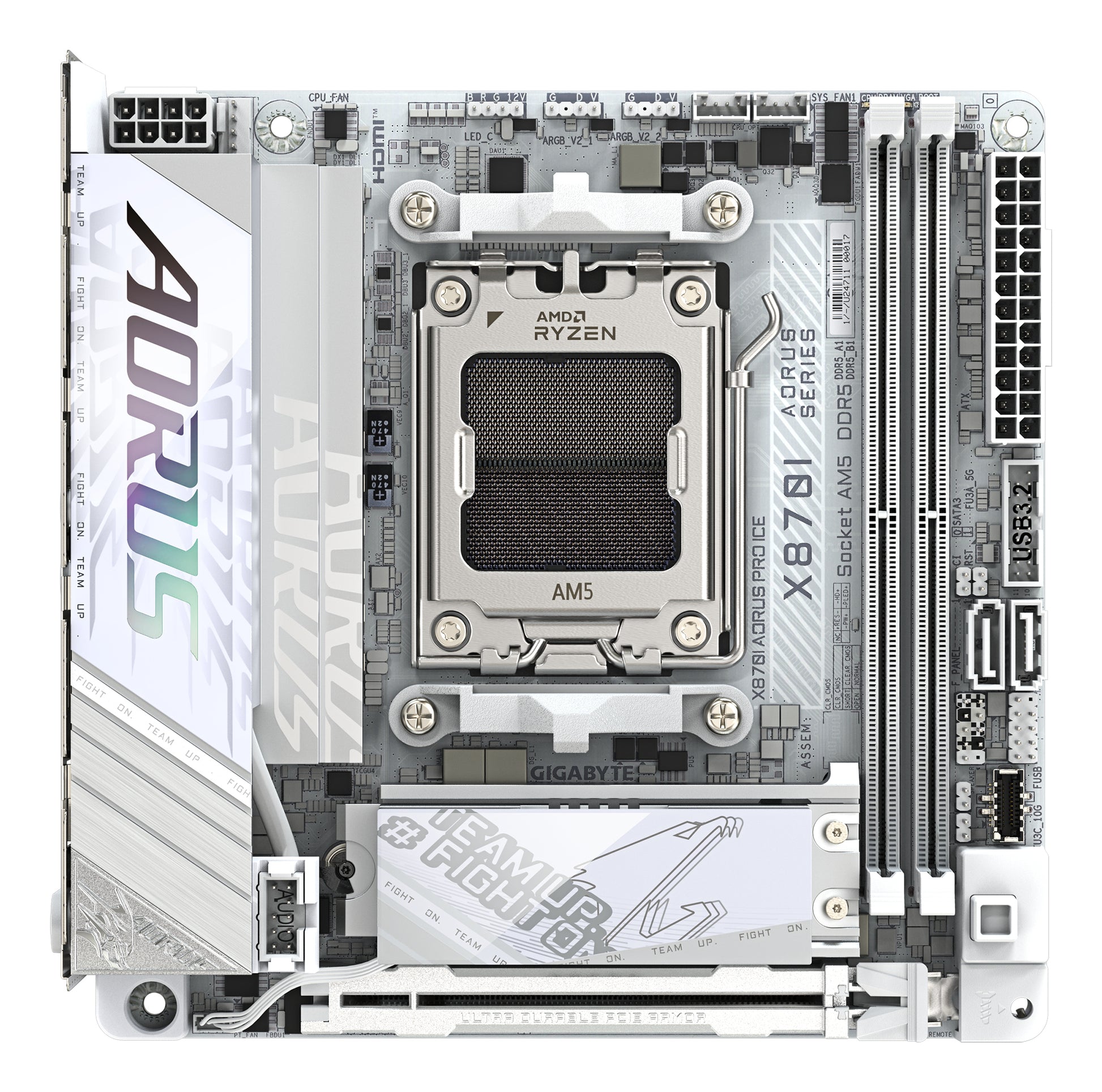

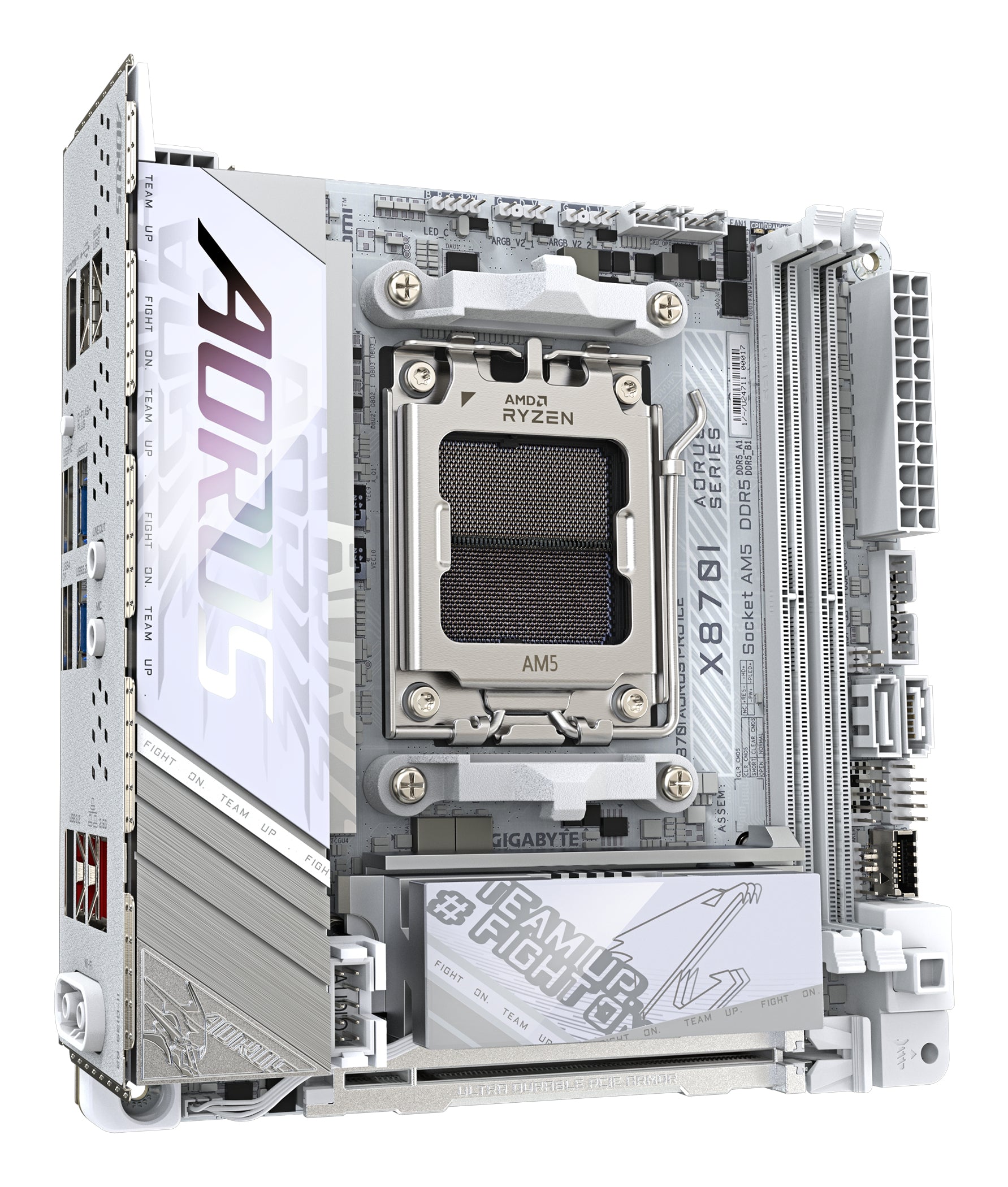

Elevate your compact build with the GIGABYTE X870I AORUS PRO ICE — a premium Mini-ITX motherboard built on the AMD X870 chipset for Socket AM5. Designed for AMD Ryzen 7000, 8000, and 9000 Series processors, it delivers flagship-class performance in a 170mm × 170mm footprint. With DDR5 support up to 8400MHz (OC), PCIe 5.0 M.2 storage, WiFi 7, USB4, and a striking white ICE aesthetic, this board is engineered for builders who refuse to compromise.
AMD Socket AM5 — Ryzen 7000 / 8000 / 9000 Support
Compatible with the full AMD Ryzen 7000, 8000, and 9000 Series processor lineup on Socket AM5, ensuring long-term platform longevity and access to AMD’s latest CPU architectures.
Digital Twin 8+2+1 Phase VRM
A robust 8+2+1 phase digital twin VRM solution delivers clean, stable power to the CPU — essential for sustained performance and overclocking headroom on high-core-count Ryzen processors. VRM Thermal Armor Advanced keeps temperatures in check.
DDR5 Memory — Up to 8400MHz (OC)
Two DIMM slots support DDR5-SDRAM in dual-channel configuration, with AMD EXPO memory module support. Maximum capacity is 128GB (64GB per slot), with clock speeds from 4400MHz up to 8400MHz (OC). Non-ECC, unbuffered.
Ultra-Fast Storage — PCIe 5.0 & PCIe 4.0 M.2
Two M.2 (M-key, 2280) slots: the primary slot runs at PCIe 5.0 x4 for next-generation NVMe speeds, and the secondary at PCIe 4.0 x4. Both feature M.2 Thermal Guard Ext. heatsinks. Two SATA III ports provide additional storage connectivity. RAID 0 and RAID 1 supported.
PCIe 5.0 x16 Slot with EZ-Latch Plus
A single PCIe 5.0 x16 slot (PCIe UD Slot) with EZ-Latch Plus for tool-free GPU installation and removal. Supports the latest generation graphics cards at full bandwidth.
Extended Connectivity — USB4 & USB 3.2

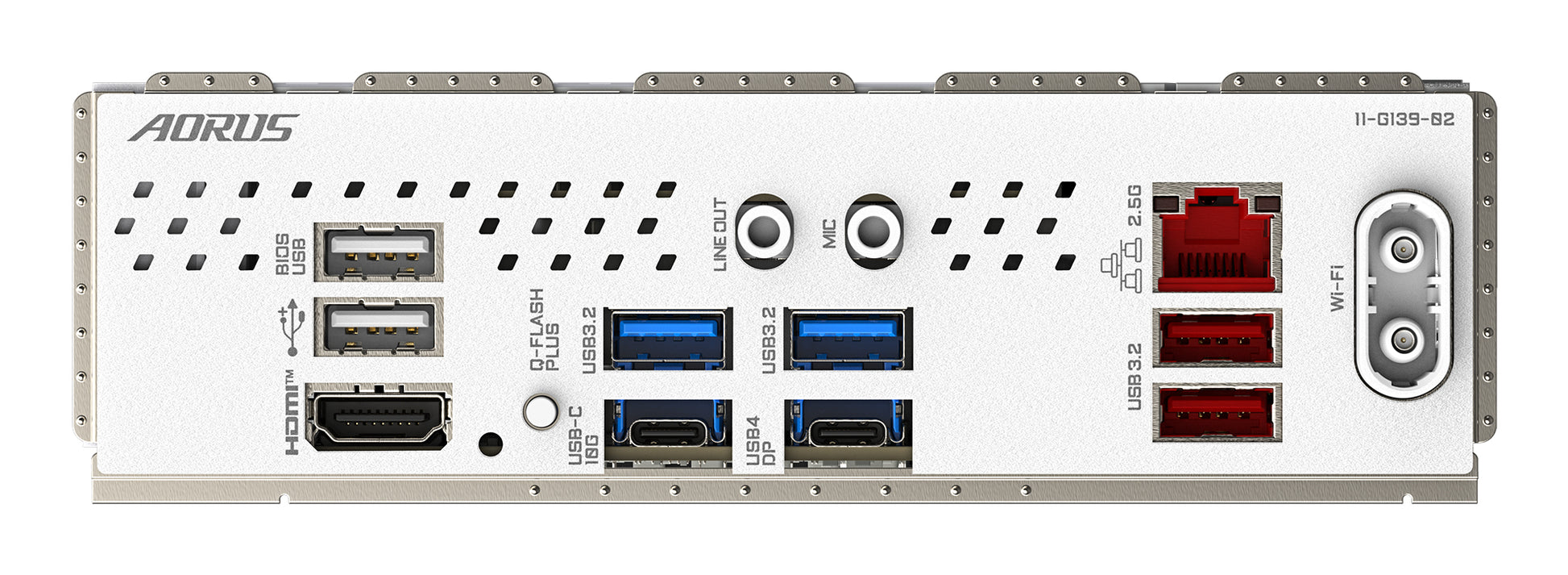

Rear panel includes 1x USB4 Gen 2x2 Type-C (40Gbps, with DisplayPort Alt Mode), 2x USB 3.2 Gen 2 Type-A (10Gbps), 2x USB 3.2 Gen 1 Type-A (5Gbps), and 2x USB 2.0. Internal headers add further USB 2.0, USB 3.2 Gen 1, and USB 3.2 Gen 2 expansion.
Fast Networking — WiFi 7 & 2.5GbE LAN

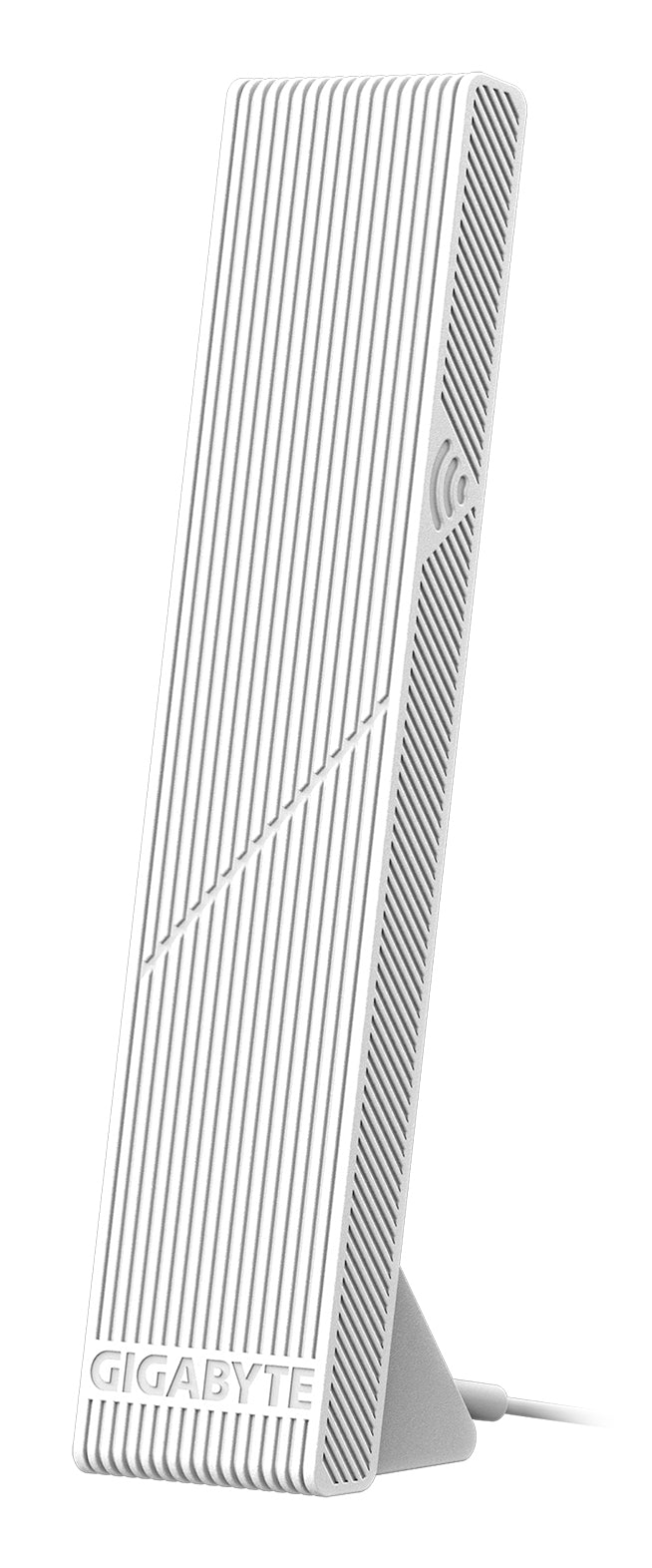

WiFi 7 (802.11be) via Realtek RTL8922AE — backward compatible with WiFi 6E/6/5/4/a/b/g/n. Directional ultra-high-gain antenna included. Bluetooth 5.4 also integrated. Wired: 2.5 Gigabit Ethernet via Realtek RTL8125 with a single RJ-45 port.
Audio — Realtek ALC4080 7.1 Channel
High-definition 7.1-channel audio powered by the Realtek ALC4080 codec. Rear panel includes headphone output and line-in jack. Front panel audio header included internally.
Display Output
1x HDMI 2.1 port (max resolution 4096×2160, HDCP supported, DirectX 12.0). Note: requires a Ryzen processor with integrated graphics (Ryzen 8000G series or similar) to use the HDMI output. The USB4 Type-C port also supports DisplayPort Alt Mode.
PC Health Monitoring
Monitors fan speed, temperature, voltage, and water cooling parameters. Supports Smart Fan speed control. BIOS: UEFI AMI, 256Mbit, ACPI 5.0, Clear CMOS jumper, DMI 2.7, SMBIOS 2.7. Windows 11 x64 supported.
What’s Included

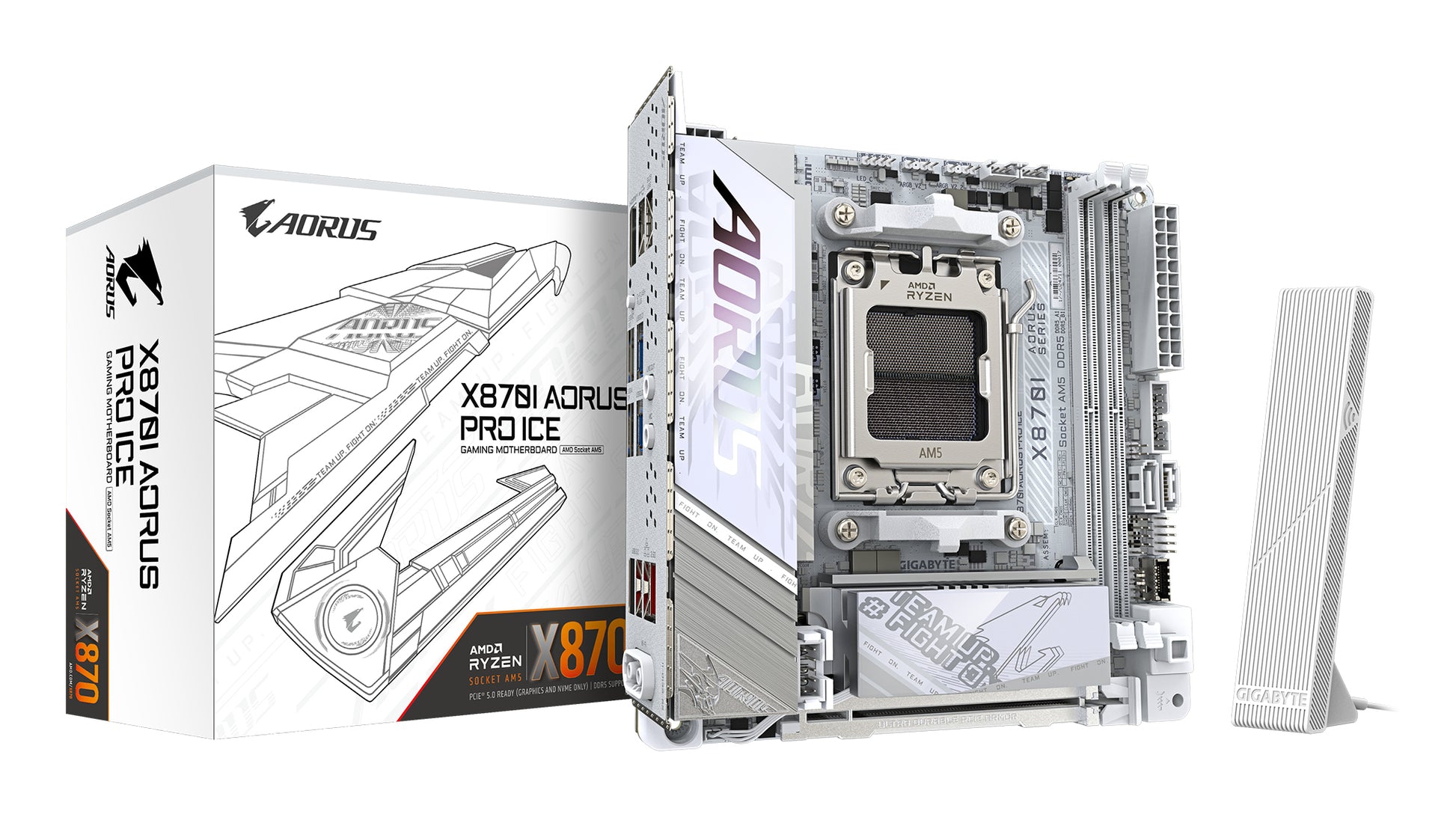

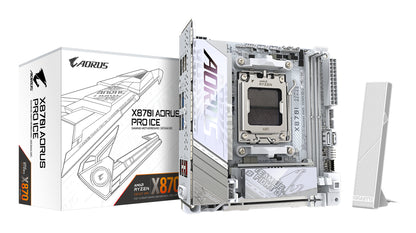

Motherboard, WiFi antenna, screws, CR2032 CMOS battery, Norton Internet Security (OEM) software.
Technical Specifications
Processor
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM5 |
| Compatible Processor Series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
Chipset & Form Factor
| Chipset Family | AMD |
| Motherboard Chipset | AMD X870 |
| Form Factor | Mini-ITX (170mm × 170mm) |
| Component For | PC |
| Product Colour | White (ICE) |
| Power Source Type | ATX |
| Windows OS Support | Windows 11 x64 |
Memory
| Supported Memory Types | DDR5-SDRAM |
| Memory Slots | 2x DIMM |
| Max Internal Memory | 128GB |
| Max Memory Per Slot | 64GB |
| Memory Channels | Dual-channel |
| Supported Clock Speeds | 4400 / 4800 / 5200 / 5600 / 5800 / 6000 / 6200 / 6400 / 6600 / 6800 / 7000 / 7200 / 7400 / 7600 / 7800 / 7900 / 7950 / 8000 / 8200 / 8266 / 8400 MHz |
| Max Clock Speed | 8400MHz (OC) |
| AMD EXPO Support | Yes |
| Unbuffered Memory | Yes |
| ECC Compatibility | Non-ECC |
Storage Controllers
| Supported Interfaces | M.2, SATA III |
| Supported Drive Types | HDD & SSD |
| M.2 (M) Slots | 2 |
| 1st M.2 Max Size | 2280 |
| 1st M.2 PCIe Gen | PCIe 5.0 |
| 2nd M.2 Max Size | 2280 |
| 2nd M.2 PCIe Gen | PCIe 4.0 |
| SATA III Ports | 2 |
| Total Drives Supported | 4 |
| RAID Support | Yes — RAID 0, 1 |
BIOS
| BIOS Type | UEFI AMI |
| BIOS Memory Size | 256 Mbit |
| ACPI Version | 5.0 |
| Clear CMOS Jumper | Yes |
| DMI Version | 2.7 |
| SMBIOS Version | 2.7 |
Expansion Slots
| PCIe 5.0 x16 Slots | 1 (PCIe UD Slot with EZ-Latch Plus) |
Network
| Ethernet Interface | 2.5 Gigabit Ethernet |
| LAN Controller | Realtek RTL8125 |
| RJ-45 Ports | 1 |
| Wi-Fi | Yes |
| Top Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Wi-Fi Standards | 802.11a/b/g, Wi-Fi 4 (n), Wi-Fi 5 (ac), Wi-Fi 6 (ax), Wi-Fi 6E (ax), Wi-Fi 7 (be) |
| WLAN Controller | Realtek RTL8922AE |
| Bluetooth | Yes — Bluetooth 5.4 |
| WiFi Antenna Jacks | 2x SMA (antenna included) |
Rear Panel I/O Ports
| USB 2.0 | 2x |
| USB 3.2 Gen 1 Type-A | 2x |
| USB 3.2 Gen 2 Type-A | 2x |
| USB 3.2 Gen 2 Type-C | 1x |
| USB4 Gen 2x2 Type-C | 1x (with DP-Alt Mode) |
| HDMI | 1x (HDMI 2.1, max 4096×2160) |
| VGA (D-Sub) | 0 |
| Headphone Output | 1x |
| Line-In | Yes |
Internal I/O Headers
| ATX Power (24-pin) | Yes |
| EPS Power (8-pin) | 1x |
| CPU Fan Connectors | 2x (4-pin) |
| Chassis Fan Connectors | 1x (4-pin, Smart Fan) |
| Water Pump Connector | 1x |
| USB 2.0 Header | 1x |
| USB 3.2 Gen 1 Header | 1x |
| USB 3.2 Gen 2 Header | 1x |
| SATA III Connectors | 2x |
| Front Panel Audio | Yes |
| Front Panel Connector | Yes |
| Chassis Intrusion Connector | Yes |
| RGB LED Headers | 3x |
Audio
| Audio Chip | Realtek ALC4080 |
| Audio Channels | 7.1 |
Graphics
| Max Resolution | 4096 × 2160 pixels |
| HDCP | Yes |
| DirectX Version | 12.0 |
| Parallel Processing | Not supported |
| HDMI Version | 2.1 |
| DisplayPort Version | 1.4 |
Physical
| Width | 170mm |
| Depth | 170mm |
| Height | 35mm |
| Board Weight | 1.2 kg |
Packaging
| Package Width | 235mm |
| Package Depth | 227mm |
| Package Height | 95mm |
| Package Weight | 1.28 kg |
| Country of Origin | Taiwan |
| EAN | 4719331866112 |
Warranty
| Warranty Period | 3 Years |
