Key Features
- Supports Intel® Core™ Ultra Processors (Series 2)
- Intel® Z890 Express Chipset
- Dual PCIe 5.0 x16 Graphics Slots
- 5 x M.2 Storage Slots Including PCIe 5.0 NVMe Support
- Thunderbolt™ 4 / USB4 Type-C Connectivity
- Dual Intel 2.5GbE LAN Controllers
- Wi-Fi 7 & Bluetooth 5.4 Networking
- DDR5 Memory Support up to 9200MT/s (OC)
Product Description
Designed for Creators and Professionals

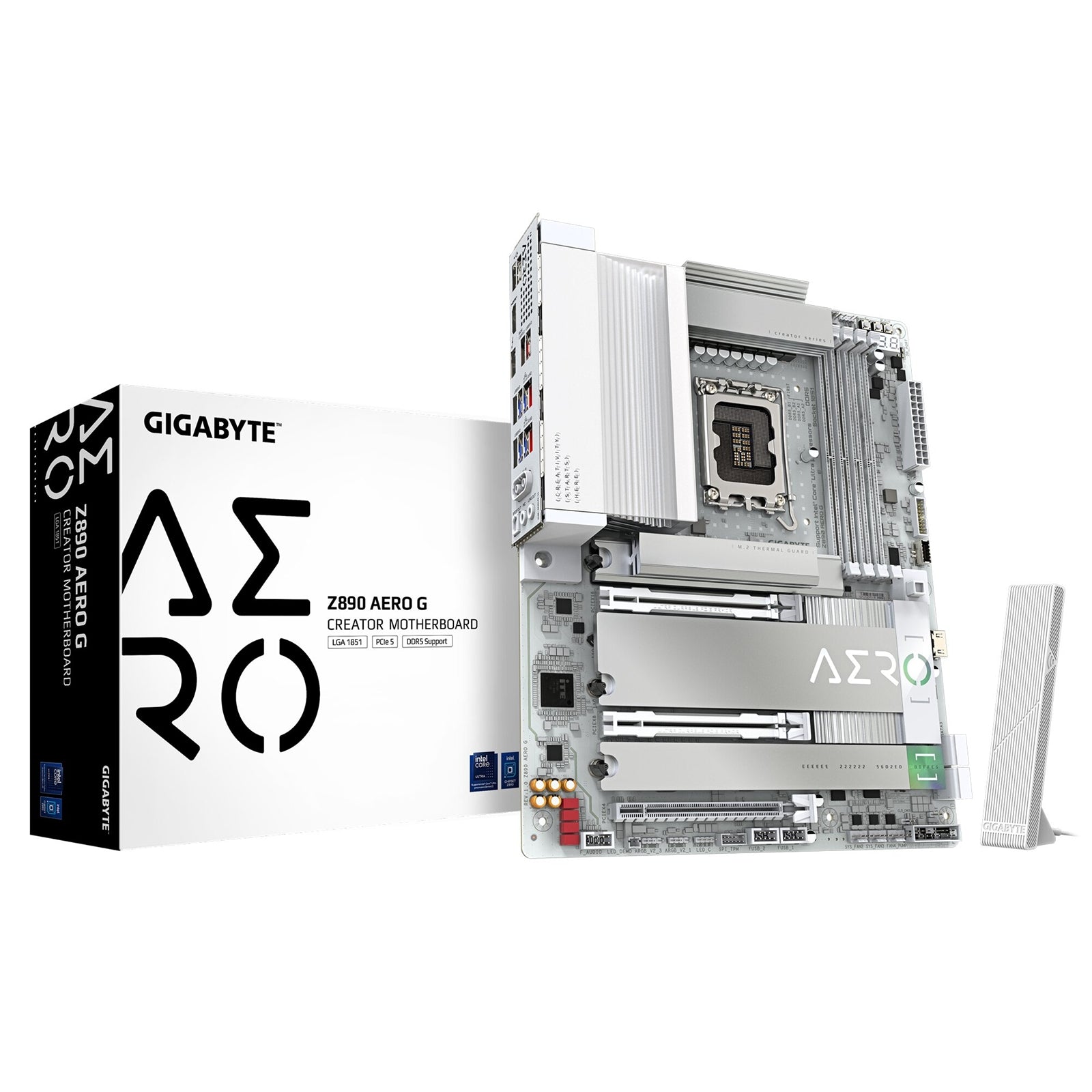

The Gigabyte Z890 AERO G is a premium content-creation motherboard engineered for Intel Core Ultra Series 2 processors. Combining workstation-grade connectivity, extensive expansion capabilities, advanced storage support and creator-focused features, it delivers exceptional performance for video editing, 3D rendering, AI workloads, photography and professional production environments.
VisionLINK & Thunderbolt Connectivity
Featuring VisionLINK and integrated Thunderbolt™ 4 technology, the Z890 AERO G simplifies workspace connectivity by providing high-speed data transfer, video output and charging through a single USB Type-C connection. Ideal for professional displays, docking solutions and external storage devices.
Extreme Memory & Processing Performance
Powered by a Digital Twin 16+1+2 phase VRM design and advanced D5 Bionic Corsa tuning technology, the motherboard supports DDR5 memory speeds up to 9200MT/s (OC) while ensuring stable operation for demanding creative applications and overclocked systems.
Built for Multi-GPU Workloads
Dual PCIe 5.0 x16 slots support high-bandwidth professional graphics configurations, making the board suitable for rendering, AI acceleration and GPU-intensive content creation workflows.
Comprehensive Future-Proof Connectivity
With Wi-Fi 7, dual Intel 2.5GbE LAN, Thunderbolt™ 4, PCIe 5.0, five M.2 slots and extensive USB connectivity, the Z890 AERO G provides exceptional expandability for current and future hardware generations.
Main Benefits
-
Creator Optimised: Designed for editing, rendering and professional workloads.
-
Intel Core Ultra Ready: Supports latest Series 2 processors.
-
Thunderbolt 4: High-speed connectivity up to 40Gbps.
-
Multi-GPU Support: Dual PCIe 5.0 x16 expansion.
-
DDR5 Performance: Up to 9200MT/s memory overclocking.
-
Wi-Fi 7 Networking: Next-generation wireless performance.
-
Dual 2.5GbE LAN: High-speed wired networking.
-
Five M.2 Slots: Extensive storage expansion options.
General Specifications
| Specification |
Details |
| Manufacturer |
Gigabyte |
| Model |
Z890 AERO G |
| Chipset |
Intel Z890 Express |
| Socket |
LGA1851 |
| Form Factor |
ATX |
| Colour |
White |
Processor Support
| Specification |
Details |
| Supported CPU Series |
Intel Core Ultra Processors (Series 2) |
| Socket Type |
LGA1851 |
| Platform |
Intel Desktop |
Memory Specifications
| Specification |
Details |
| Memory Type |
DDR5 |
| Memory Slots |
4 x DIMM |
| Maximum Capacity |
256GB |
| Memory Channels |
Dual Channel |
| Maximum Memory Speed |
DDR5-9200 (OC) |
| XMP Support |
Yes |
| CUDIMM Support |
Yes |
| ECC DIMM Support |
Supported (Operates in Non-ECC Mode) |
Power Delivery & Thermal Design
| Feature |
Details |
| VRM Configuration |
16+1+2 Digital Twin Phases |
| VRM Thermal Armor Advanced |
Yes |
| M.2 Thermal Guard L |
Yes |
| CPU Fan Headers |
2 |
| System Fan Headers |
4 |
| Water Cooling Support |
Yes |
Expansion Slots
| Specification |
Details |
| Primary PCIe Slot |
PCIe 5.0 x16 |
| Secondary PCIe Slot |
PCIe 5.0 x8 |
| Third PCIe Slot |
PCIe 4.0 x4 |
| Multi-GPU Ready |
Yes |
| PCIe UD Slot X |
Reinforced Design |
| PCIe Armor |
Metal Backplate Reinforcement |
Storage Specifications
| Specification |
Details |
| Total M.2 Slots |
5 |
| PCIe 5.0 M.2 Slots |
1 |
| PCIe 4.0 M.2 Slots |
4 |
| SATA Compatible M.2 |
1 Slot |
| SATA Ports |
4 x SATA 6Gb/s |
| RAID Support |
RAID 0, 1, 5 & 10 |
Networking Features
| Specification |
Details |
| LAN Controllers |
2 x Intel 2.5GbE |
| Ethernet Speed |
Dual 2.5Gbps |
| Wi-Fi Standard |
Wi-Fi 7 (802.11be) |
| Wireless Controller |
Intel BE202 |
| Bluetooth Version |
5.4 |
| Wireless Bands |
2.4GHz / 5GHz / 6GHz |
Graphics & Display Outputs
| Output |
Specification |
| Thunderbolt 4 / USB4 Type-C |
1 |
| Thunderbolt Resolution |
5120 x 2880 @ 60Hz |
| USB4 Display Resolution |
3840 x 2160 @ 240Hz |
| Rear HDMI |
4096 x 2160 @ 60Hz |
| Front HDMI (Sensor Panel Link) |
1920 x 1080 @ 30Hz |
Audio Specifications
| Specification |
Details |
| Audio Codec |
Realtek ALC1220 |
| Audio Channels |
2 / 4 / 5.1 / 7.1 Channel HD Audio |
| WIMA Audio Capacitors |
Yes |
| DSD Audio Support |
Yes |
| Optical S/PDIF |
Yes |
USB Connectivity
| Port Type |
Quantity |
| Thunderbolt 4 / USB4 Type-C |
1 Rear |
| USB 3.2 Gen 2 Type-A |
2 Rear |
| USB 3.2 Gen 2x2 Type-C Header |
1 Internal |
| USB 3.2 Gen 1 |
6 Total |
| USB 2.0 |
6 Total |
Rear I/O Connectivity
| Connection |
Quantity |
| Thunderbolt 4 / USB4 Type-C |
1 |
| USB 3.2 Gen 2 Type-A |
2 |
| USB 3.2 Gen 1 Type-A |
4 |
| USB 2.0 |
2 |
| HDMI |
1 |
| RJ45 LAN |
2 |
| Optical S/PDIF |
1 |
| Audio Jacks |
2 |
| Wi-Fi Antenna Connectors |
2 |
Creator Features
- VisionLINK Single-Cable Connectivity
- Sensor Panel Link Internal HDMI Output
- Multi-GPU Expansion Support
- D5 Bionic Corsa Memory Optimisation
- AI PerfDrive Intelligent Tuning
- WIFI EZ-Plug Installation System
- EZ-Latch Plus & EZ-Latch Click
- Q-Flash Auto Scan Support
- Gigabyte Control Center (GCC)
Operating System Support
| Specification |
Details |
| Windows 11 64-Bit |
Supported |
Package Contents
- Gigabyte Z890 AERO G Motherboard
- Wi-Fi 7 Antenna
- SATA Cables
- M.2 Installation Hardware
- User Documentation
Warranty Information
| Specification |
Details |
| Manufacturer Warranty |
3 Years Return-To-Base |
| DOA Period |
30 Days |
| Warranty Type |
Repair or Replacement |
| Warranty Provider |
Gigabyte |
Product Identifiers
| Identifier |
Value |
| Brand |
Gigabyte |
| Model |
Z890 AERO G |
| Chipset |
Intel Z890 Express |
| Socket |
LGA1851 |
| Memory Support |
DDR5 up to 256GB |
| Networking |
Dual 2.5GbE + Wi-Fi 7 + Bluetooth 5.4 |
| Storage |
5 x M.2 + 4 x SATA |
| Form Factor |
ATX |
