Key Features
- Intel Z890 Chipset with LGA1851 Socket
- Supports Intel Core Ultra Processors (Series 2)
- DDR5 Memory Support up to 9466+ MT/s (OC)
- Digital Twin 14+1+2 Phase VRM Design
- PCIe 5.0 x16 Graphics Slot
- 4 x M.2 Storage Slots Including PCIe 5.0 SSD Support
- Intel Wi-Fi 7 & Bluetooth 5.4 Connectivity
- USB4 Type-C, 2.5GbE LAN & DisplayPort 2.1
Product Description
Built for Intel Core Ultra Performance

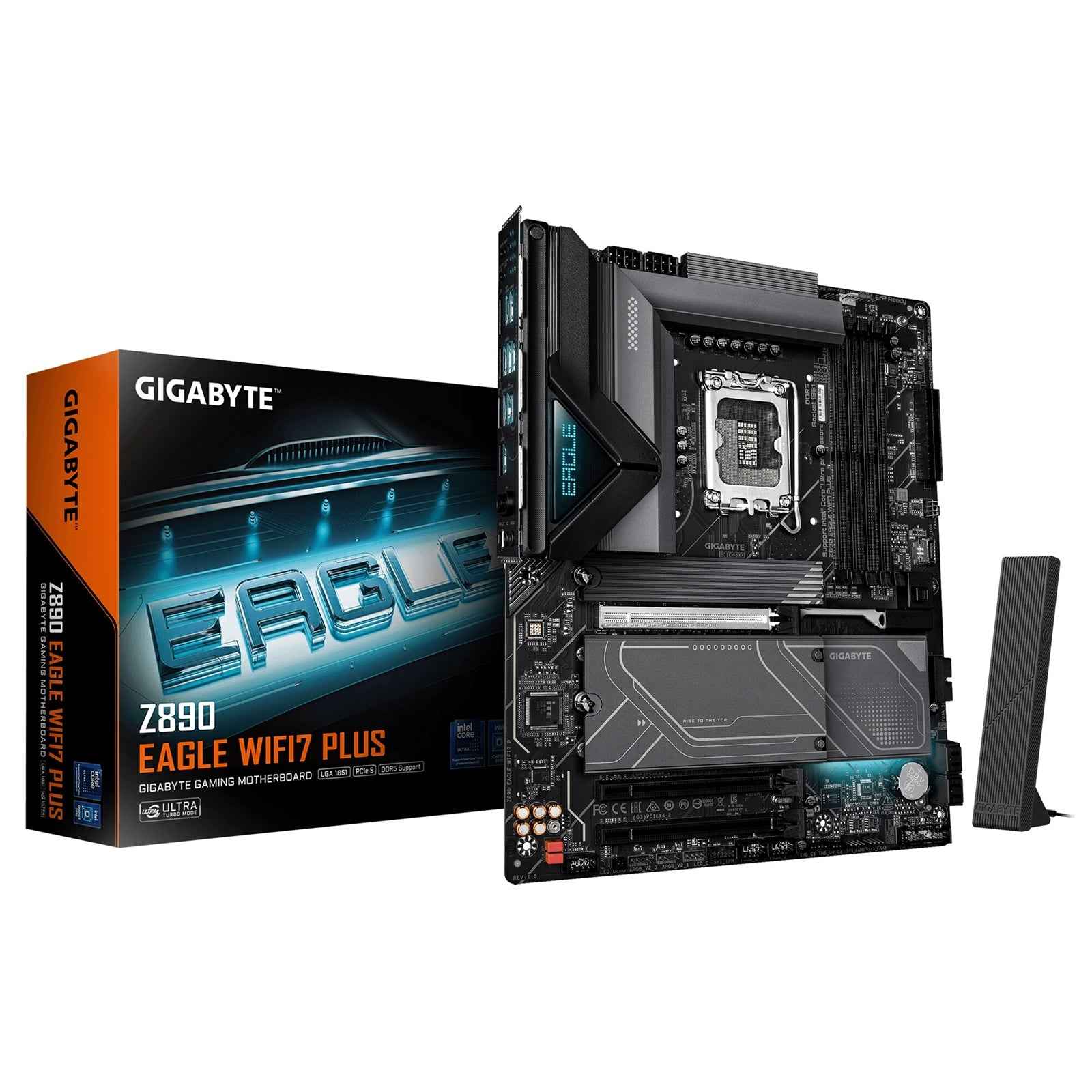

The Gigabyte Z890 EAGLE WIFI7 is engineered to power the latest Intel Core Ultra Series 2 processors, offering cutting-edge performance, advanced connectivity and future-proof expansion. With premium DDR5 support, PCIe 5.0 technology and Wi-Fi 7 networking, it provides an ideal platform for gaming, content creation and high-performance workloads.
Ultra Turbo Mode & AI Optimisation
Ultra Turbo Mode unlocks hidden performance potential, while AI PerfDrive automatically delivers customised BIOS tuning profiles to optimise performance, power efficiency and cooling characteristics based on your system configuration.
Extreme DDR5 Memory Performance
Featuring Gigabyte D5 Bionic Corsa technology, the motherboard supports DDR5 memory speeds up to 9466+ MT/s (OC) and up to 256GB total capacity across four DIMM slots. Support for Intel XMP profiles enables simple one-click memory optimisation.
Fast Storage & Expansion
Four M.2 connectors, including PCIe 5.0 NVMe support, provide ultra-fast storage performance, while the reinforced PCIe 5.0 x16 slot delivers maximum bandwidth for the latest graphics cards.
Modern Connectivity
Equipped with USB4, Wi-Fi 7, Bluetooth 5.4 and 2.5GbE Ethernet, the Z890 EAGLE WIFI7 provides high-speed connections for gaming, content creation, cloud workflows and modern peripherals.
Main Benefits
-
Intel Core Ultra Ready: Supports Intel Series 2 processors.
-
DDR5 Overclocking: Up to 9466+ MT/s memory support.
-
PCIe 5.0 Graphics: Ready for next-generation GPUs.
-
Wi-Fi 7 Networking: Latest wireless technology.
-
USB4 Connectivity: Up to 40Gbps transfers.
-
2.5Gb Ethernet: High-speed wired networking.
-
AI PerfDrive: Intelligent system tuning.
-
Premium Thermal Design: Stable operation under load.
General Specifications
| Specification |
Details |
| Manufacturer |
Gigabyte |
| Model |
Z890 EAGLE WIFI7 |
| Chipset |
Intel Z890 Express |
| CPU Socket |
LGA1851 |
| Form Factor |
ATX |
| Dimensions |
305 x 244 mm |
Processor Support
| Specification |
Details |
| Compatible CPUs |
Intel Core Ultra Processors (Series 2) |
| Socket Type |
LGA1851 |
| Platform |
Intel Desktop |
Memory Specifications
| Specification |
Details |
| Memory Type |
DDR5 |
| Memory Slots |
4 x DIMM |
| Maximum Capacity |
256GB |
| Memory Channels |
Dual Channel |
| Maximum Supported Speed |
DDR5-9466+ (OC) |
| Intel XMP Support |
Yes |
| CUDIMM Support |
Yes |
| ECC Support |
Non-ECC |
Power Delivery & Cooling
| Feature |
Details |
| VRM Design |
14+1+2 Digital Twin Phases |
| VRM Thermal Armor Advanced |
Yes |
| M.2 Thermal Guard |
Yes |
| CPU Fan Headers |
2 |
| System Fan Headers |
4 |
| Water Cooling Support |
Yes |
Expansion Slots
| Specification |
Details |
| Primary PCIe Slot |
PCIe 5.0 x16 |
| Secondary PCIe Slots |
2 x PCIe 4.0 x4 |
| Graphics Card Support |
Yes |
| EZ-Latch Plus |
Supported |
Storage Specifications
| Specification |
Details |
| Total M.2 Slots |
4 |
| PCIe 5.0 M.2 Slots |
1 |
| PCIe 4.0 M.2 Slots |
3 |
| SATA Compatible M.2 |
1 Slot |
| SATA Ports |
4 x SATA 6Gb/s |
| RAID Support |
RAID 0 / 1 / 5 / 10 |
Networking Features
| Specification |
Details |
| LAN Controller |
Realtek 2.5GbE |
| LAN Speed |
2.5Gbps |
| Wireless Standard |
Wi-Fi 7 (802.11be) |
| Wireless Controller |
Intel BE202 |
| Wireless Bands |
2.4GHz / 5GHz / 6GHz |
| Bluetooth |
Version 5.4 |
| 160MHz Channels |
Supported |
Graphics & Display Outputs
| Output |
Specification |
| USB4 Display Output |
1 x USB4 Type-C |
| DisplayPort |
1 x DisplayPort 2.1 |
| Maximum DP Resolution |
3840 x 2160 @ 144Hz |
| USB4 Video Resolution |
3840 x 2160 @ 144Hz |
Audio Specifications
| Specification |
Details |
| Audio Codec |
Realtek ALC1220 |
| Audio Channels |
2 / 4 / 5.1 / 7.1 Channel |
| Optical S/PDIF |
Yes |
| WIMA Audio Capacitors |
Yes |
USB Connectivity
| Port Type |
Quantity |
| USB4 Type-C |
1 Rear |
| USB 3.2 Gen 2 Type-A |
2 Rear |
| USB 3.2 Gen 1 |
5 Total |
| USB 2.0 |
8 Total |
| USB 3.2 Gen 2 Type-C Header |
1 Internal |
Rear I/O Connectivity
| Connection |
Quantity |
| USB4 Type-C |
1 |
| USB 3.2 Gen 2 Type-A |
2 |
| USB 3.2 Gen 1 |
3 |
| USB 2.0 |
4 |
| DisplayPort 2.1 |
1 |
| RJ45 LAN |
1 |
| Optical S/PDIF |
1 |
| Audio Jacks |
2 |
| Wi-Fi Antenna Connectors |
2 |
Internal Connectivity
| Specification |
Details |
| 24-Pin ATX Connector |
1 |
| 8-Pin EPS Connectors |
2 |
| USB Type-C Header |
1 |
| USB 3.2 Gen 1 Header |
1 |
| USB 2.0 Headers |
2 |
| Thunderbolt Add-In Headers |
2 |
| TPM Header |
1 |
| RGB Headers |
4 |
Intelligent Features
- Ultra Turbo Mode Performance Enhancement
- AI PerfDrive BIOS Profiles
- D5 Bionic Corsa Memory Optimisation
- WIFI EZ-Plug Installation System
- EZ-Latch Plus & EZ-Latch Click
- Multi-Theme BIOS Interface
- Q-Flash Auto Scan
- HWInfo Power Monitor Integration
- Gigabyte Control Center (GCC)
Operating System Support
| Specification |
Details |
| Windows 11 64-Bit |
Supported |
Package Contents
- Gigabyte Z890 EAGLE WIFI7 Motherboard
- Wi-Fi 7 Antenna
- SATA Cables
- M.2 Installation Hardware
- User Documentation
