GIGABYTE GeForce RTX 5060 EAGLE OC ICE 8G
Overview

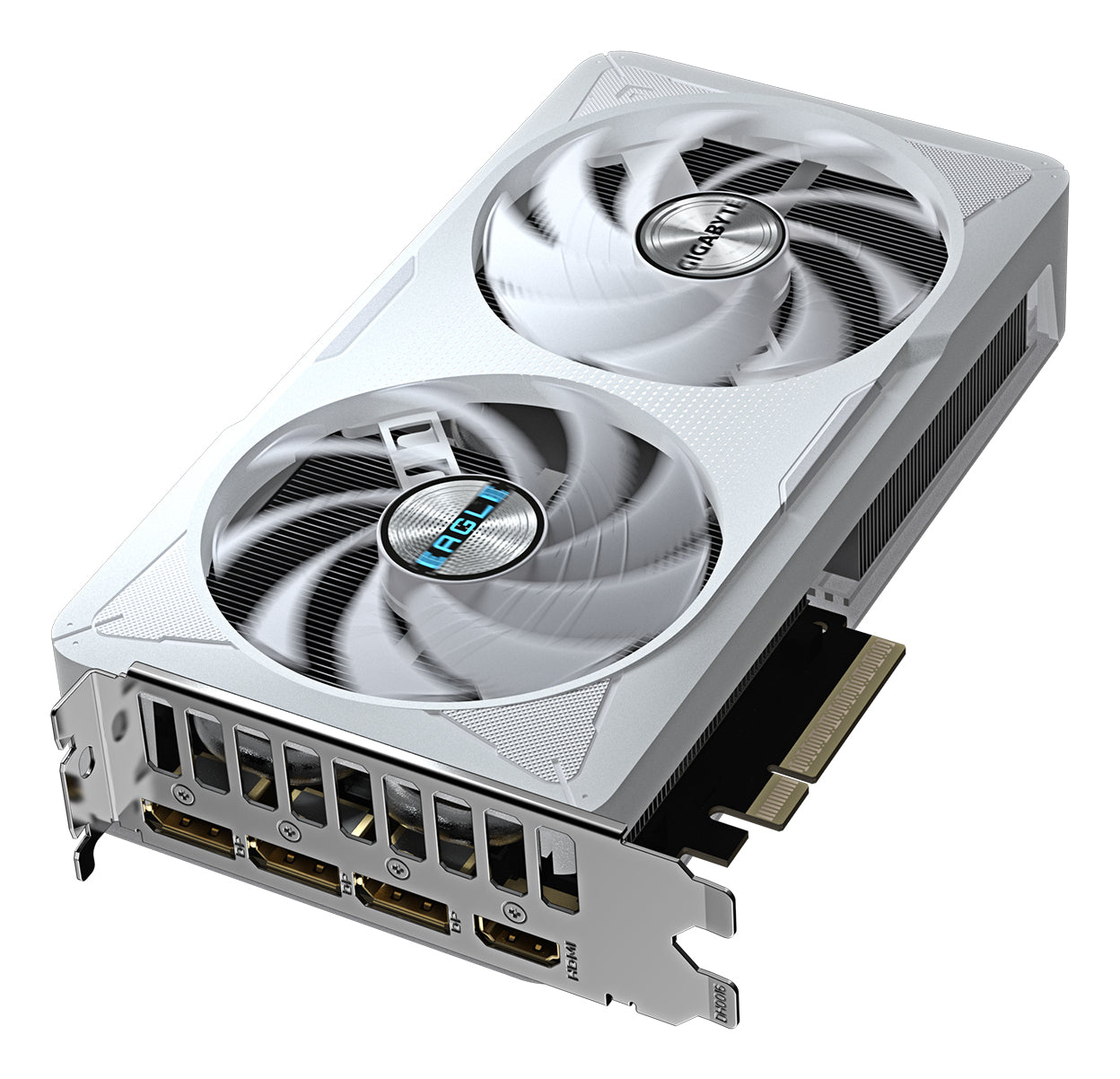

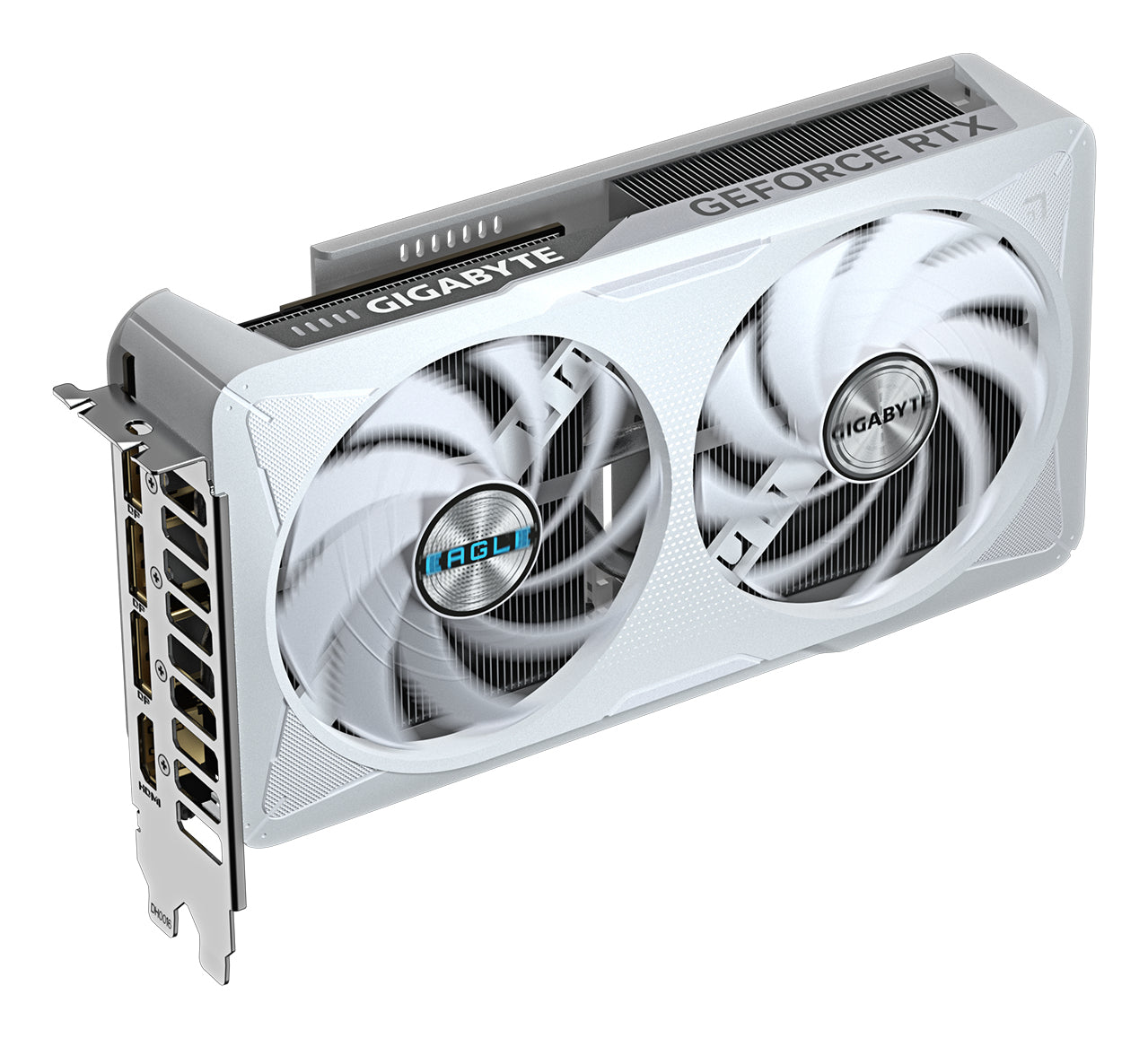

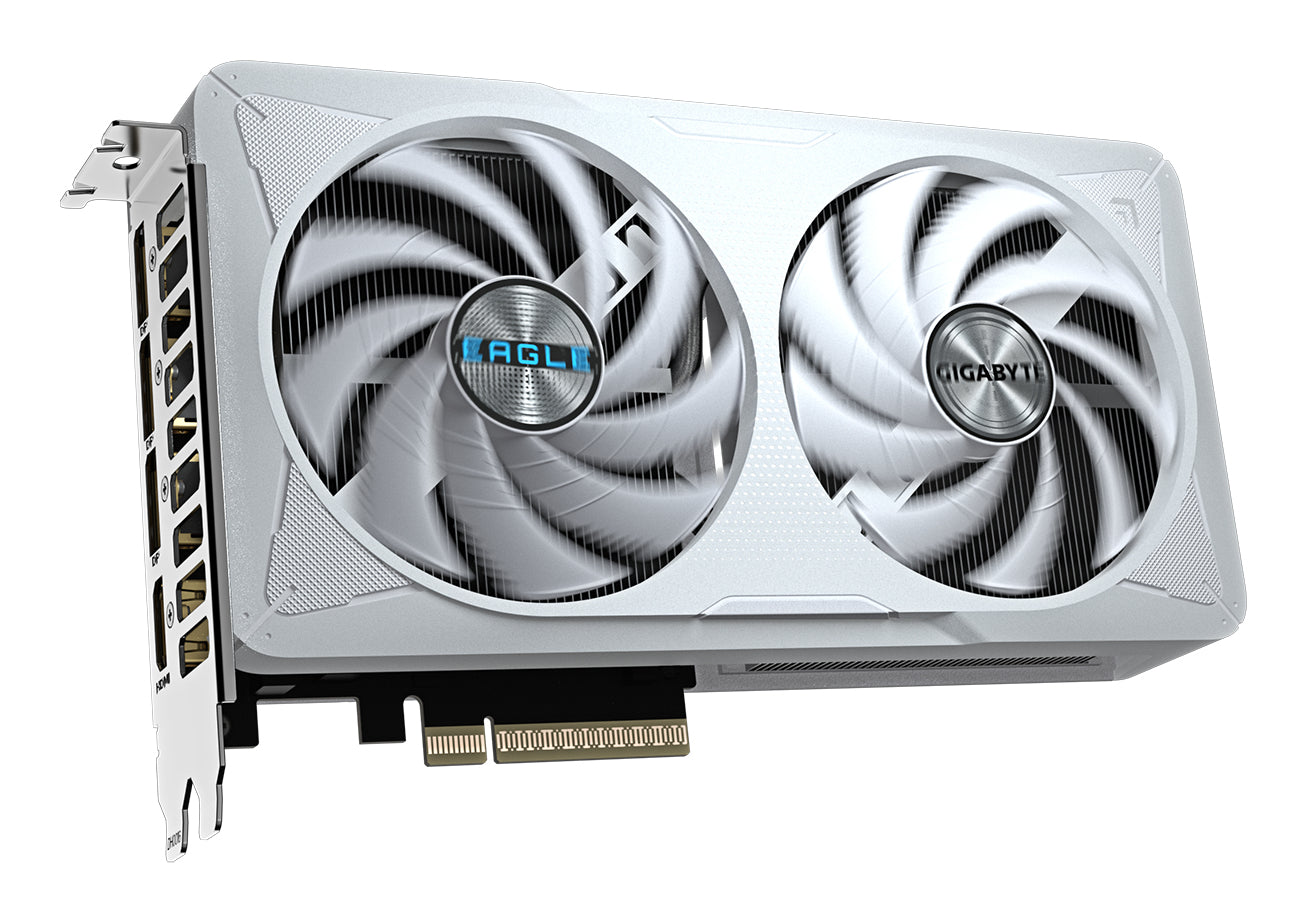

The GIGABYTE GeForce RTX 5060 EAGLE OC ICE 8G is a high-performance graphics card built on the NVIDIA Blackwell architecture, delivering next-generation gaming and creative performance. Featuring 8GB of ultra-fast GDDR7 memory on a 128-bit bus and a factory-overclocked core clock of 2550 MHz, this card is engineered for smooth, high-fidelity gaming at 1080p and 1440p. The striking all-white ICE aesthetic makes it a standout choice for white or light-themed builds.
NVIDIA Blackwell Architecture & DLSS 4
Blackwell Architecture: The RTX 5060 is powered by NVIDIA's latest Blackwell GPU architecture, bringing significant improvements in shader throughput, ray tracing performance, and AI compute efficiency over the previous generation.
DLSS 4 (Deep Learning Super Sampling): DLSS 4 uses AI-powered multi-frame generation to dramatically boost frame rates with minimal visual quality loss, enabling higher resolutions and smoother gameplay without the raw GPU cost.
NVIDIA G-SYNC Compatible: Eliminates screen tearing and stuttering for a fluid gaming experience on compatible monitors.
Overclocked Edition: Factory-overclocked to 2550 MHz boost clock out of the box — no manual tuning required for enhanced performance.
Memory & Bandwidth
8GB GDDR7 on a 128-bit memory bus running at 28,000 MHz effective clock speed, delivering 28 Gbit/s data transfer rate — providing ample bandwidth for modern gaming workloads and creative applications.
GIGABYTE WINDFORCE 2X Cooling

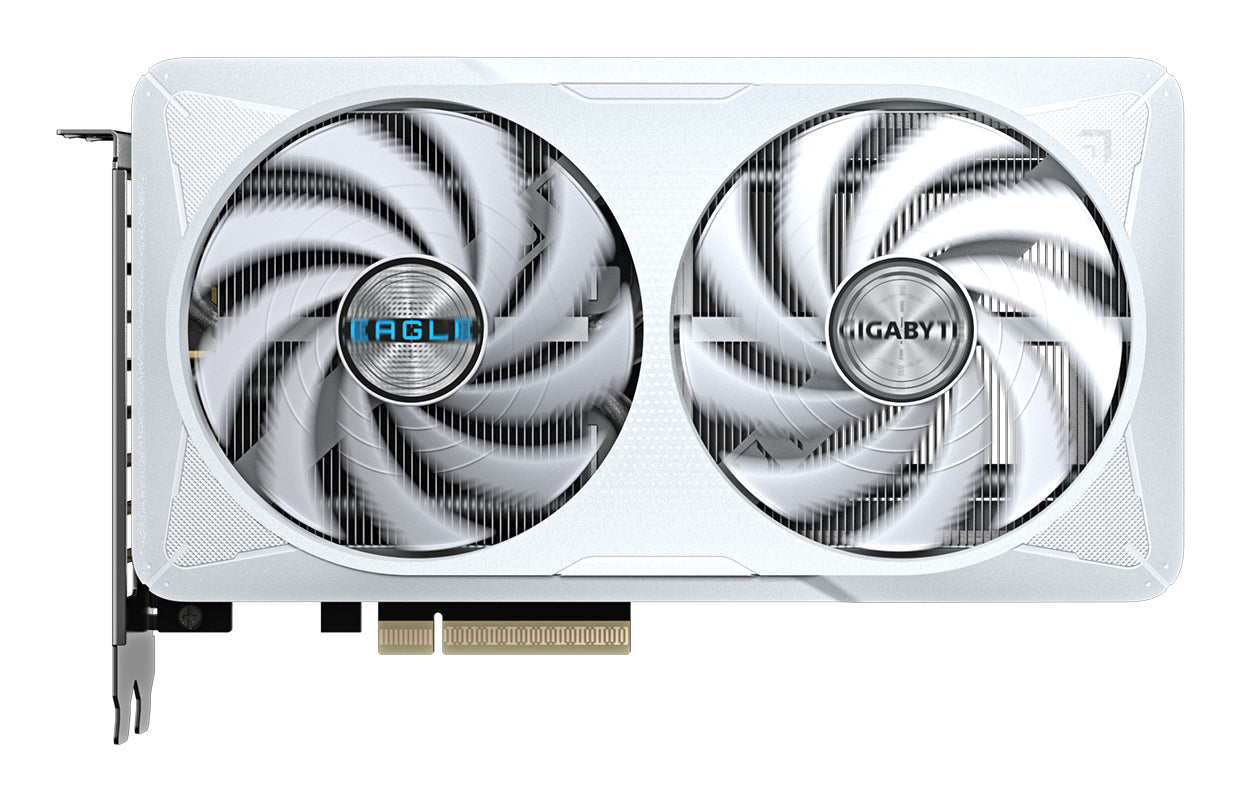

The WINDFORCE 2X cooling system features two 80mm fans with alternate-spinning blades to reduce turbulence and maximise airflow across the heatsink. The semi-passive fan mode allows the fans to stop completely under low load for silent operation. A reinforced PCB structure adds rigidity and long-term durability.
Connectivity

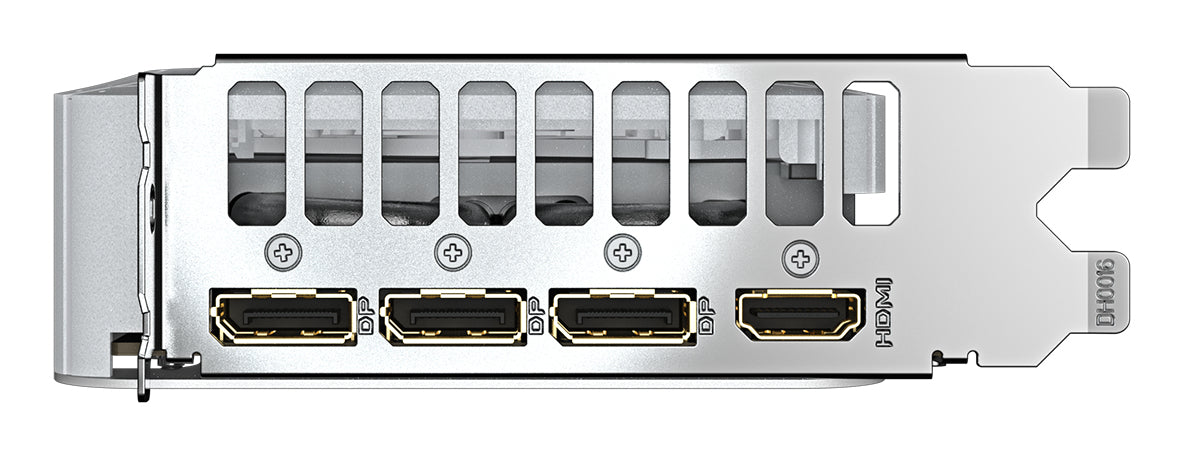

Equipped with 3× DisplayPort 2.1b and 1× HDMI 2.1b, supporting up to 4 simultaneous displays at resolutions up to 7680×4320 (8K). Connects via PCI Express 5.0 for maximum bandwidth to the CPU.
Design & Aesthetics

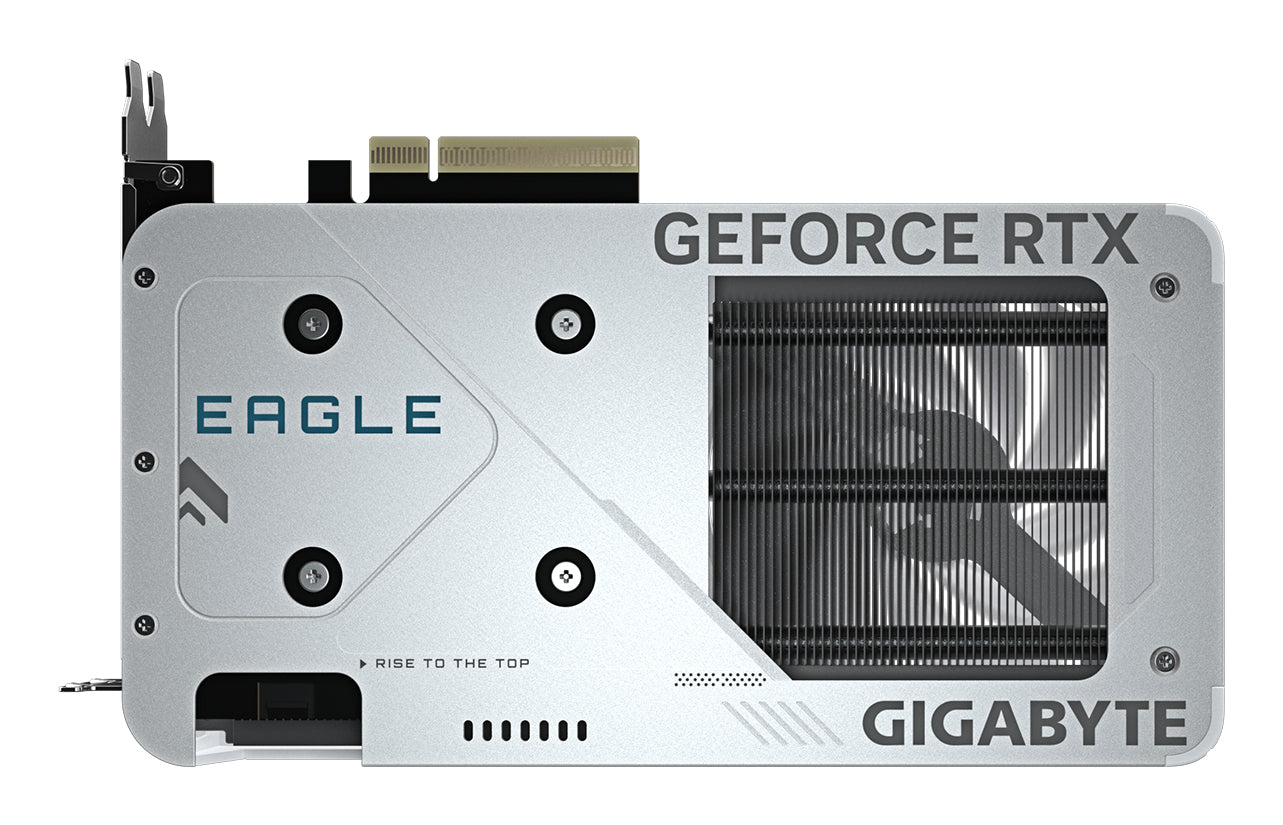

The ICE edition features an all-white shroud and backplate, making it ideal for white-themed PC builds. The Full-Height/Half-Length (FH/HL) form factor fits most standard ATX cases. The card occupies 2 expansion slots and measures 208mm (L) × 120mm (H) × 40mm (D).

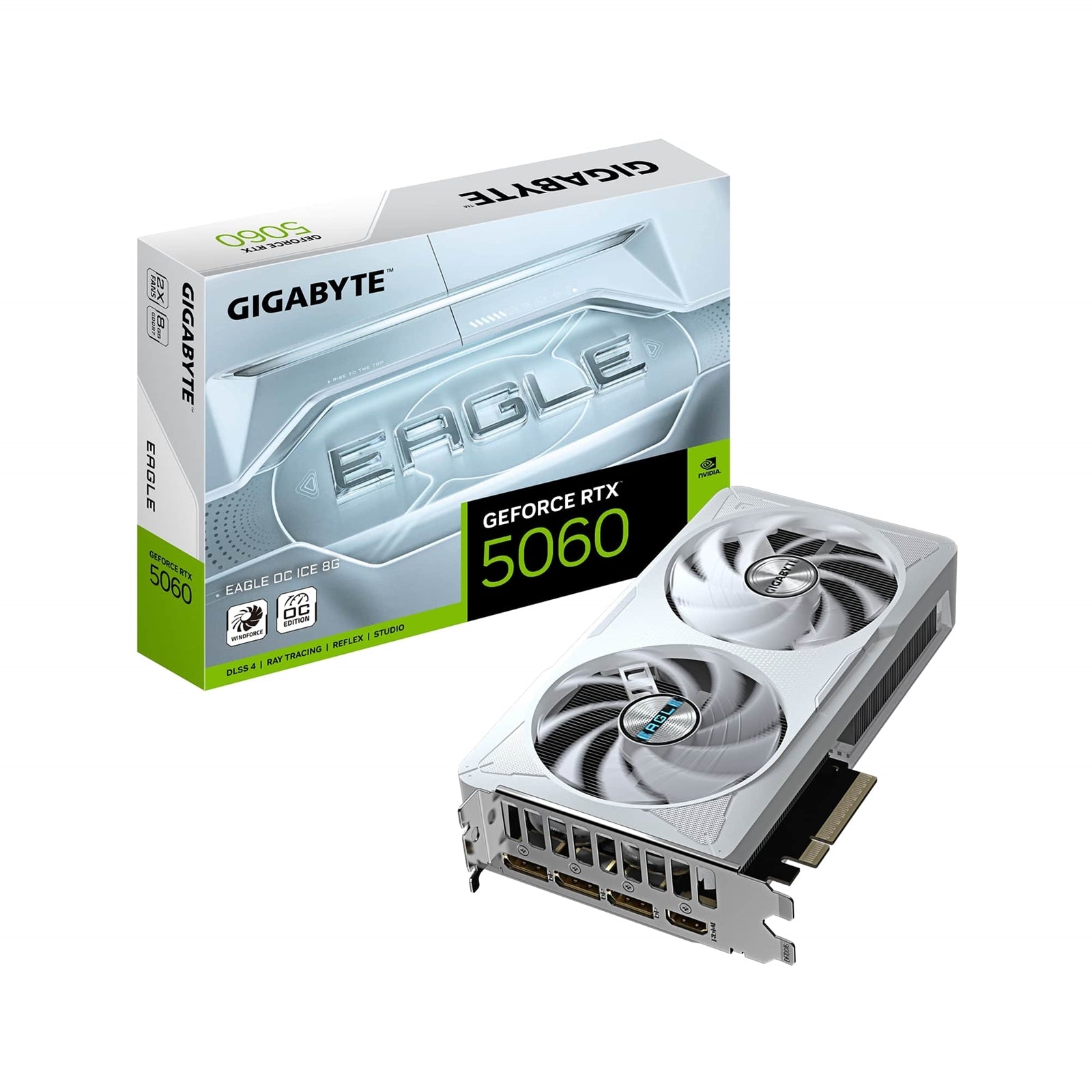

What's Included
- GIGABYTE GeForce RTX 5060 EAGLE OC ICE 8G graphics card
- Quick installation guide
- 3-year manufacturer warranty
Technical Specifications
Processor
| GPU Family | NVIDIA |
| Graphics Processor | GeForce RTX 5060 |
| Boost Clock | 2550 MHz |
| CUDA Cores | 3840 |
| Max Displays | 4 |
| Max Resolution | 7680 × 4320 (8K) |
| CUDA Support | Yes |
| OC Edition | Yes |
Memory
| VRAM | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128-bit |
| Memory Clock | 28,000 MHz |
| Data Transfer Rate | 28 Gbit/s |
Connectivity & Interface
| Interface | PCI Express 5.0 |
| DisplayPort | 3× DisplayPort 2.1b |
| HDMI | 1× HDMI 2.1b |
| DVI-D | None |
| DVI-I | None |
Performance & API Support
| DirectX | 12.0 |
| OpenGL | 4.6 |
| G-SYNC | Yes |
| Dual Link DVI | No |
| Parallel Processing | Not supported |
Power
| TDP | 109 W |
| Min. PSU Required | 450 W |

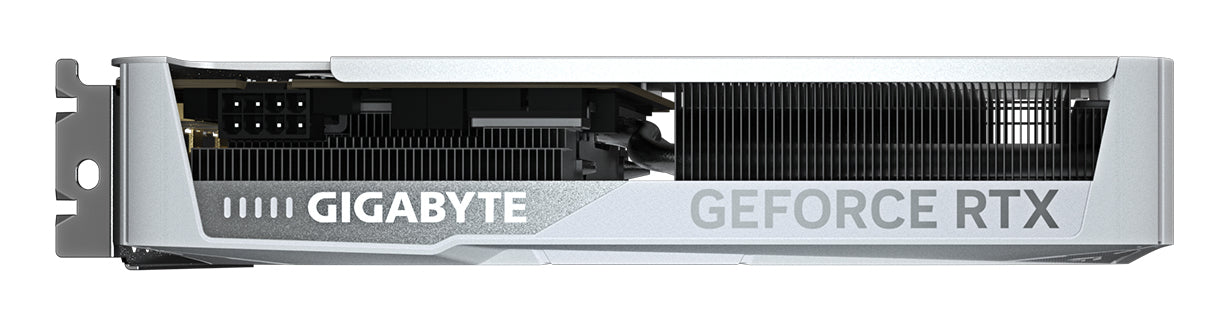

| Power Connector | 1× 8-pin |
Design & Cooling
| Cooling Type | Active |
| Cooling Technology | GIGABYTE WINDFORCE 2X |
| Number of Fans | 2 |
| Colour | White |
| Form Factor | Full-Height / Half-Length (FH/HL) |
| Slot Width | 2 slots |
Physical Dimensions
| Length | 208 mm |
| Height | 120 mm |
| Depth | 40 mm |
| Weight | 540 g |
Packaging Data
| Package Type | Box |
| Package Width | 235 mm |
| Package Depth | 330 mm |
| Package Height | 57 mm |
| Package Weight | 880 g |
| EAN | 4719331356446 |
Warranty
| Warranty | 3 years |
System Requirements
| TV Tuner | No |
