Description

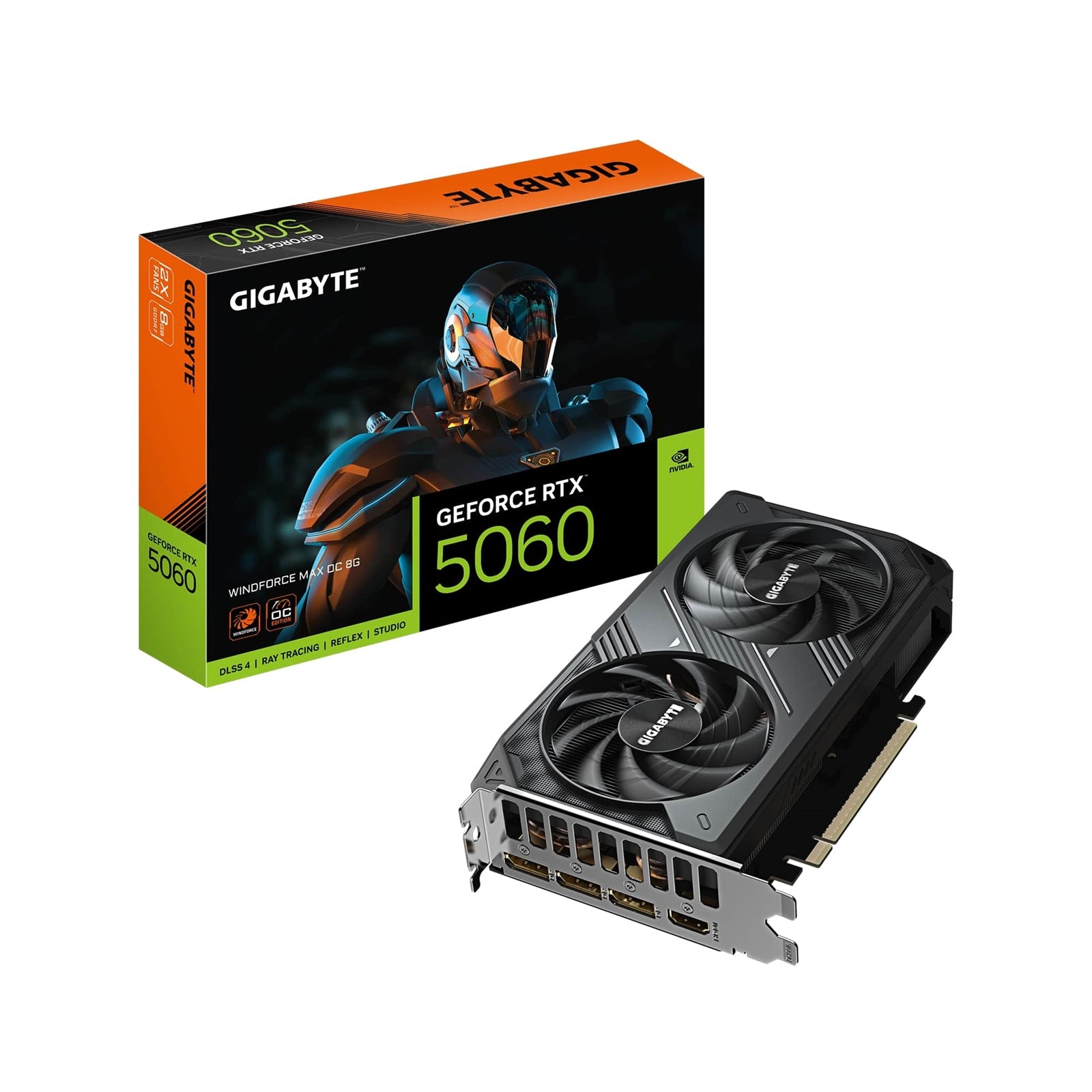

Gigabyte NVIDIA GeForce RTX 5060 WINDFORCE MAX OC 8G GDDR7 Graphics Card, 3840 CUDA Cores, 2512 MHz Core Clock, Dual Fan, 3x DisplayPorts / 1x HDMI Ports
Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4New Streaming Multiprocessors - Optimized for neural shadersFourth-Gen Ray Tracing Cores - Built for Mega Geometry LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference. LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
Specs
Processor
| Core Clock | 2512 MHz (Reference card : 2497MHz) |
| CUDA Cores | 3840 |
Memory
| Memory Clock | 28 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128 bit |
What's Included
| Accessories | Quick guide |
Internal I/O Headers
| Power Connectors | 8 Pin*1 |
Physical
| Card size | L=199 W=116 H=40 |
| PCB Form | ATX |
Other
| Graphics Processing | GeForce RTX 5060 |
| Card Bus | PCI-E 5.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
| Recommended PSU | 550W |
| Output | DisplayPort 2.1b *3HDMI 2.1b *1 |
