Description

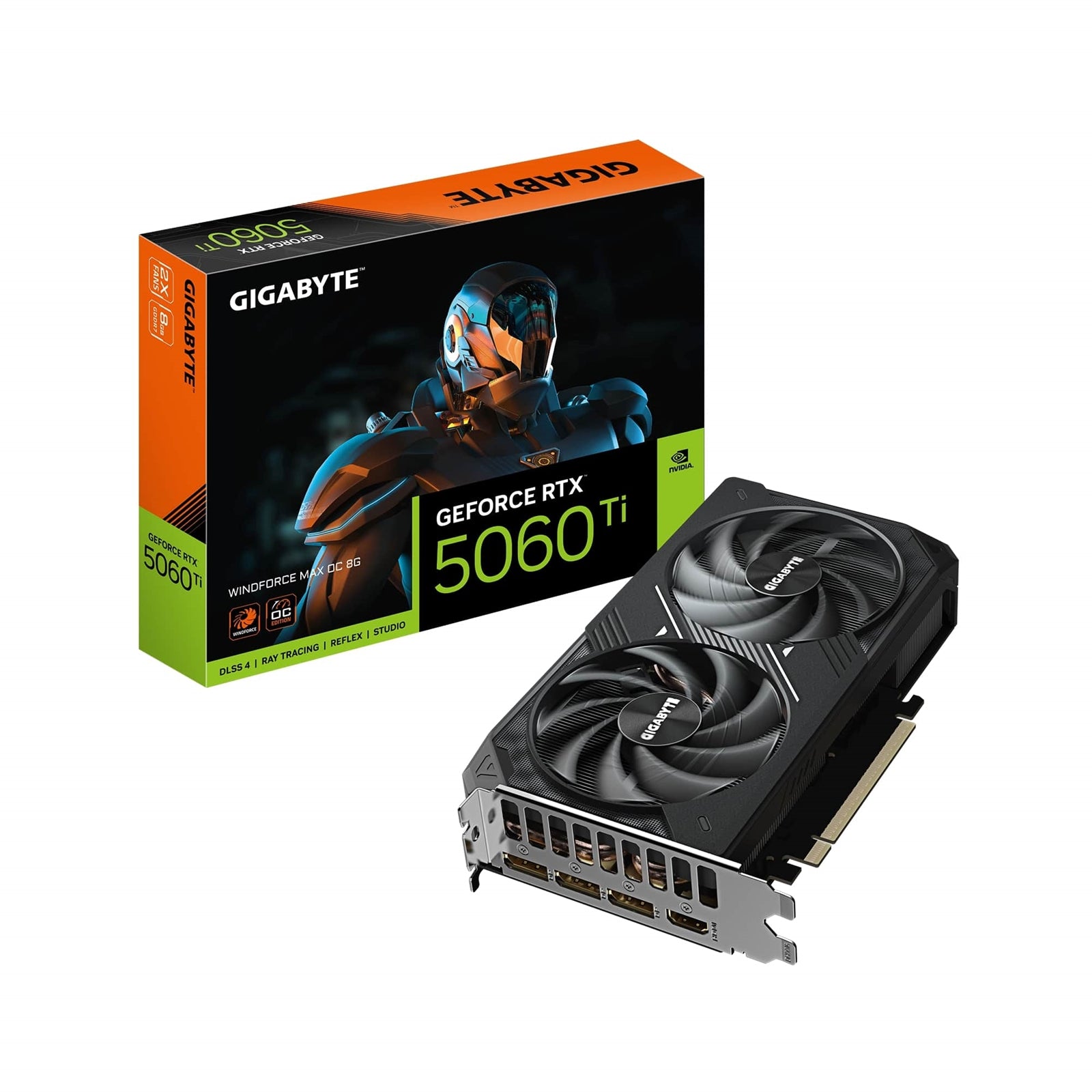

Gigabyte NVIDIA GeForce RTX 5060 Ti Windforce Max OC 8GB GDDR7 Graphics Card, 4608 CUDA Cores, 2587 MHz Core Clock, Dual Fan, 3x DisplayPorts / 1x HDMI Ports
Specs
Processor
| Core Clock | 2587 MHz (Reference card :2572 MHz) |
| CUDA Cores | 4608 |
Chipset & Form Factor
| Fifth-Gen Tensor Cores | Max AI performance with FP4 and DLSS 4 |
| New Streaming Multiprocessors | Optimized for neural shaders |
| Fourth-Gen Ray Tracing Cores | Built for Mega Geometry |
Memory
| Memory Clock | 28 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128 bit |
What's Included
| Accessories | Quick guide |
Internal I/O Headers
| Power Connectors | 8 Pin*1 |
Physical
| Card size | L=208 W=120 H=40 mm |
| PCB Form | ATX |
Other
| Graphics Processing | GeForce RTX 5060 Ti |
| Card Bus | PCI-E 5.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
| Recommended PSU | 650W |
| Output | DisplayPort 2.1b *3HDMI 2.1b *1 |
