PC Gear UK Office PC — Intel Core i3-12100 | 8GB DDR4 | 512GB NVMe | Small Form Factor
Overview
A compact, capable pre-built office and home PC assembled by PC Gear UK. Built around Intel's 12th Gen Core i3-12100 processor in a slim small form factor case, this system is ideal for everyday tasks including emails, web browsing, video streaming, document editing, and light productivity work. Includes a free USB WiFi dongle for wireless connectivity out of the box.
Processor — Intel Core i3-12100
4 cores / 8 threads on Intel's Alder Lake architecture. Base clock 3.30GHz, boosting up to 4.30GHz. LGA1700 socket, 12MB cache, 60W TDP (89W max turbo). Includes integrated Intel UHD Graphics 730 (300MHz base, 1.40GHz max dynamic frequency) — no discrete GPU required for everyday use.
Memory — 8GB DDR4
Adata Premier 8GB DDR4 DIMM running at 3200MHz. Single module installed in 1 of 2 available slots, leaving one slot free for a future upgrade.
Storage — 512GB NVMe SSD
Adata Legend 710 512GB NVMe SSD (M.2 PCIe Gen3, 2280). Sequential read up to 2400MB/s, write up to 1600MB/s. No HDD or optical drive included.
Motherboard — Gigabyte H610M H V3 DDR4
Intel H610 chipset, LGA1700 socket, Micro-ATX form factor. 2x DDR4 slots, 1x M.2 socket, 4x SATA 6Gb/s, GbE LAN. Video outputs: 1x D-Sub (VGA) + 1x HDMI. PCIe 4.0 x16 primary slot + PCIe 3.0 x1 slot.

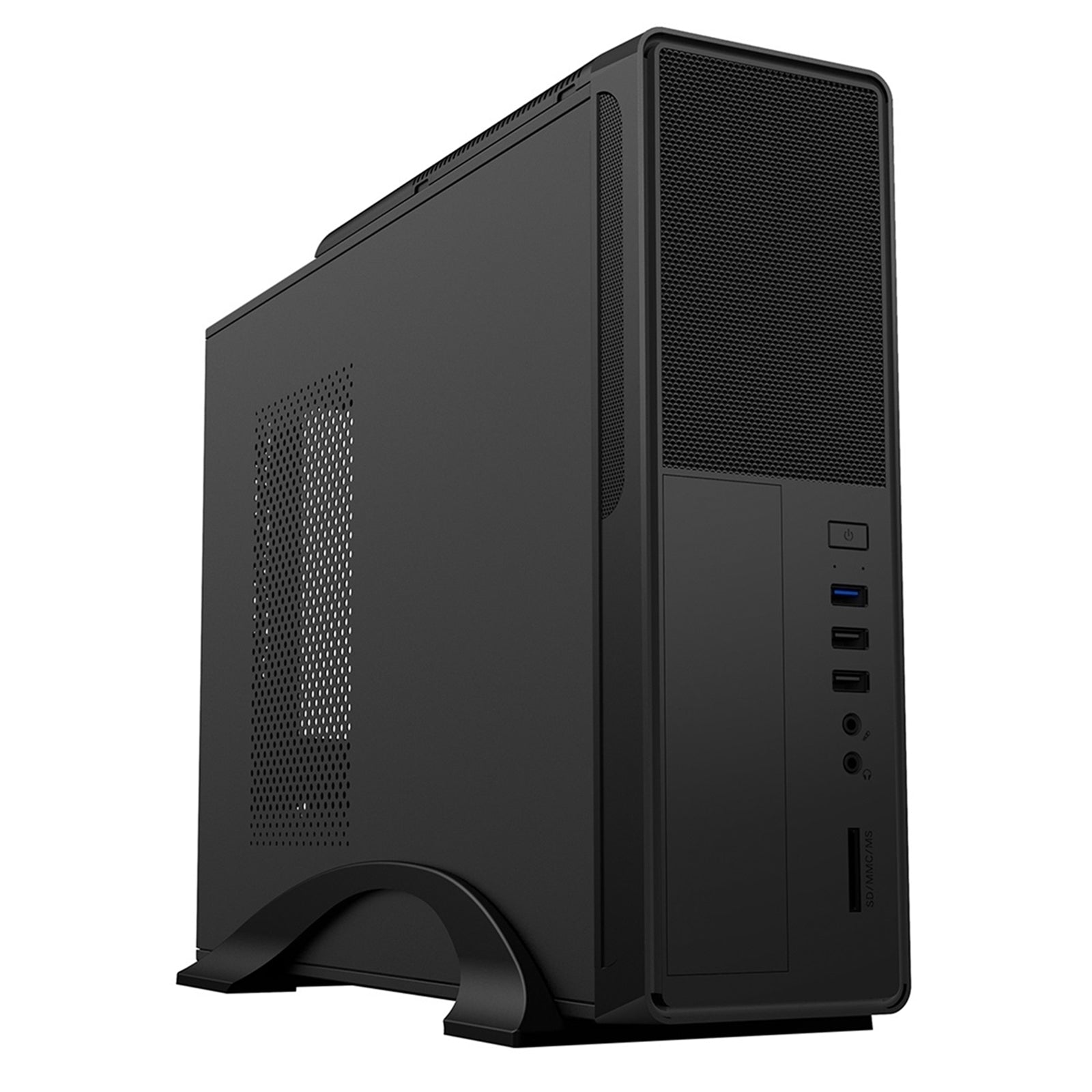

Case — CiT S014B Slim Micro-ATX
Compact slim small form factor case with mesh front panel and top-mounted 80mm fan for airflow. Includes a silent 300W Micro-SFX PSU. Front I/O: 1x USB 3.0, 2x USB 2.0, HD Audio/Mic, built-in SD/TF card reader.
Connectivity
Wired: GbE LAN (RJ-45). Wireless: Free USB WiFi dongle included. Rear I/O: 1x PS/2, 1x D-Sub, 1x HDMI, 2x USB 3.2 Gen 1, 4x USB 2.0, 1x RJ-45, 3x audio jacks.
Card Reader
Built-in SD/MMC/MS 3-in-1 card reader on the front panel.
Intel Smart Cache
Intel Smart Cache is dynamically allocated to each processor core based on workload, increasing the probability that each core can access data from fast cache — reducing latency and improving responsiveness for everyday tasks.
Operating System & Warranty
No operating system supplied. Warranty: 3 years — 1st year parts including collect & return, plus 2 further years labour (UK mainland only).
Technical Specifications
Processor
| Processor | Intel Core i3-12100 (Alder Lake) |
| Cores / Threads | 4 cores / 8 threads |
| Base Clock | 3.30GHz |
| Boost Clock | 4.30GHz |
| Socket | LGA1700 |
| Cache | 12MB |
| TDP | 60W (89W max turbo) |
| Integrated Graphics | Intel UHD Graphics 730 (300MHz base, 1.40GHz max) |
Memory
| Memory | 8GB DDR4 |
| Memory Speed | 3200MHz |
| Configuration | 1x 8GB (2 slots total, 1 occupied) |
| Module | Adata Premier AD4U32008G22-BGN |
Storage
| SSD | Adata Legend 710 512GB NVMe (ALEG-710-512GCS) |
| Interface | M.2 PCIe Gen3 (2280) |
| Read Speed | Up to 2400MB/s |
| Write Speed | Up to 1600MB/s |
| HDD | N/A |
| Optical Drive | None |
Motherboard
| Motherboard | Gigabyte H610M H V3 DDR4 |
| Chipset | Intel H610 |
| Form Factor | Micro-ATX |
| Socket | LGA1700 |
| Memory Slots | 2x DDR4 |
| M.2 Slots | 1x M.2 Socket 3 |
| SATA Ports | 4x SATA 6Gb/s |
| LAN | GbE (1Gbps) |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| Video Outputs | 1x D-Sub (VGA), 1x HDMI |
Rear I/O (Motherboard)
| PS/2 | 1x |
| D-Sub (VGA) | 1x |
| HDMI | 1x |
| USB 3.2 Gen 1 | 2x |
| USB 2.0 | 4x |
| RJ-45 (LAN) | 1x |
| Audio Jacks | 3x |
Internal I/O Headers
| ATX Power | 1x 24-pin |
| ATX 12V | 1x 8-pin |
| Fan Headers | 1x CPU fan, 2x system fan |
| USB Headers | 1x USB 3.2 Gen 1, 2x USB 2.0 |
| RGB Header | 1x RGB LED strip |
| Front Audio | 1x HD Audio |
| TPM Header | 1x (GC-TPM2.0 SPI compatible) |
| Serial Port | 1x |
| Chassis Intrusion | 1x |
Power Supply
| PSU | 300W Micro-SFX (included with CiT S014B case) |
| Cables | 1x 20+4-pin ATX, 1x 4-pin ATX 12V, 2x 4-pin Molex, 3x SATA, 1x FDD |
Case
| Chassis | CiT S014B Slim Micro-ATX Small Form Factor |
| Colour | Black |
| Front I/O | 1x USB 3.0, 2x USB 2.0, HD Audio, Mic, SD/TF Card Reader |
| Card Reader | SD/MMC/MS 3-in-1 (built-in) |
Connectivity
| LAN | GbE (1Gbps, RJ-45) |
| WiFi | Free USB WiFi Dongle included |
Physical
| Package Weight | 5.3 kg |
Software & Warranty
| Operating System | No OS supplied |
| Warranty | 3 Years (1st year parts + collect & return; 2 further years labour — UK mainland only) |
