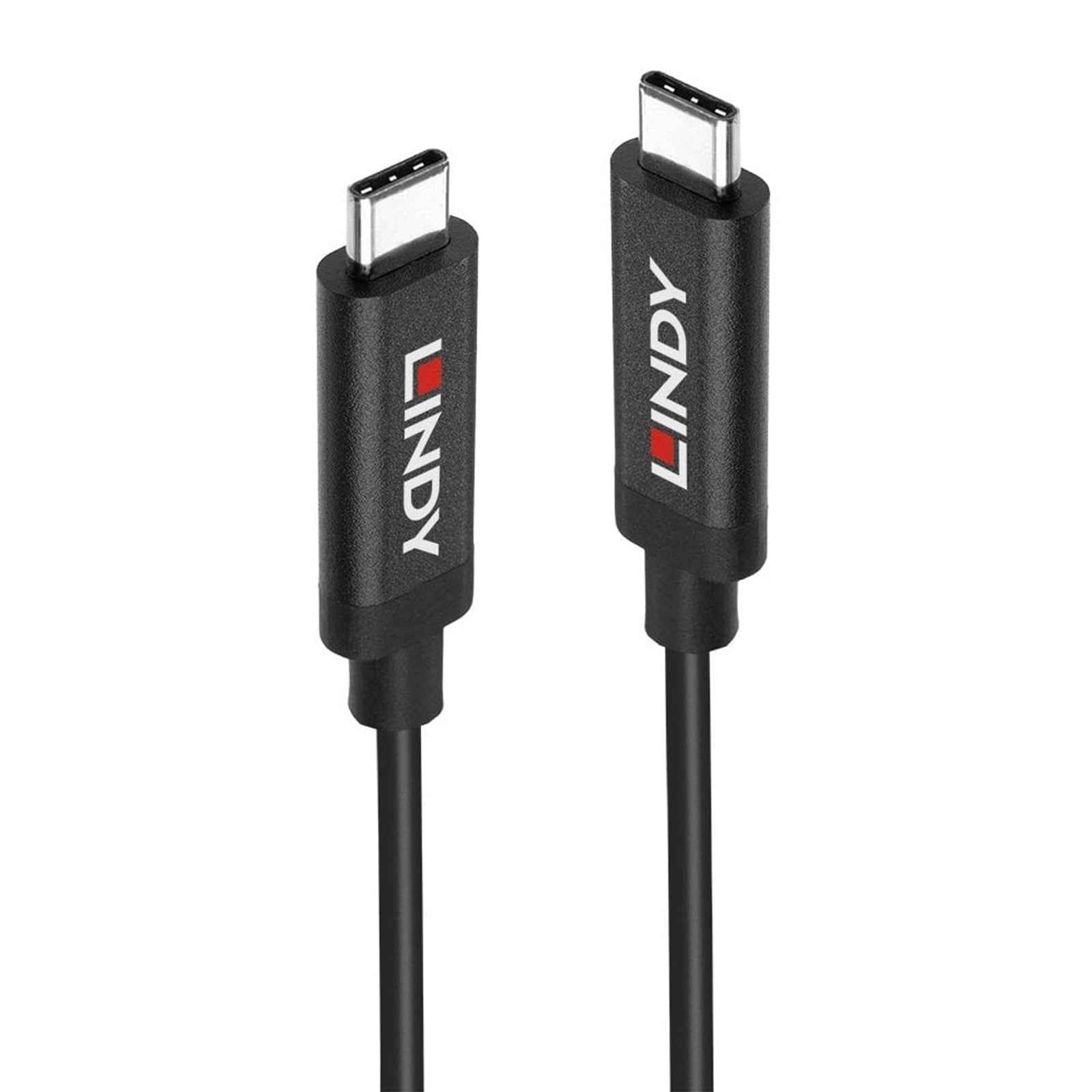

Lindy 5m USB 3.2 Gen 2 Type-C Active Cable - 10Gbps, 8K Video, 60W Power Delivery
Key Highlights:
- 5 Metre Active USB Type-C Extension Cable
- USB 3.2 Gen 2 Performance up to 10Gbps
- Supports 8K Video Transmission
- DisplayPort Alternate Mode Compatible
- USB Power Delivery up to 60W (20V / 3A)
- Active Signal Boosting Electronics Built In
- Compatible with USB-C & Thunderbolt 3/4 Devices
- Plug and Play Installation
Product Description
Extend USB-C Connectivity Without Compromise
The Lindy USB 3.2 Gen 2 Type-C Active Cable is a professional extension solution designed to increase the connection distance between modern USB-C devices while maintaining high-speed data transfer and video performance. Integrated active circuitry boosts signal quality over longer distances, ensuring stable and reliable operation across demanding applications.
High-Speed USB 3.2 Gen 2 Performance
Supporting data transfer speeds of up to 10Gbps, this cable enables fast file transfers, external storage connectivity and efficient peripheral operation. It provides the bandwidth required for modern professional and commercial environments.
Video, Data and Power in One Cable
The cable supports DisplayPort Alternate Mode, allowing high-resolution video transmission alongside USB data and power delivery. This makes it ideal for meeting rooms, classrooms, collaboration spaces and professional AV installations.
Supports Modern Display Applications
Capable of supporting resolutions up to 8K 60Hz and 4K 120Hz, the cable allows crystal-clear video output for large format displays, professional monitors and digital signage applications.
Power Delivery Support
With USB Power Delivery support up to 60W, compatible devices such as laptops, tablets and USB-C accessories can receive power while simultaneously transferring data and video through a single connection.
Reasons to Buy
-
Active Signal Amplification: Reliable USB-C extension over 5 metres.
-
10Gbps Bandwidth: High-speed USB 3.2 Gen 2 performance.
-
8K Display Support: Ideal for professional AV applications.
-
60W USB Power Delivery: Supports charging and power delivery.
-
DisplayPort Alt Mode: Video, data and power over one cable.
-
Thunderbolt Compatible: Works with Thunderbolt 3 and 4 systems.
-
Plug & Play Operation: No software installation required.
-
Professional Build Quality: Shielded construction and premium connectors.
Technical Specifications
General
| Specification |
Value |
| Brand |
Lindy |
| Product Type |
USB Type-C Active Cable |
| Cable Length |
5m |
| Colour |
Black |
| USB Standard |
USB 3.2 Gen 2 |
Data Performance
| Specification |
Value |
| Maximum Data Transfer Rate |
10Gbps |
| Supported Bandwidth |
10Gbps |
| Transmission Technology |
USB 3.2 Gen 2 |
| Transmission Medium |
Twisted Pair |
Video Support
| Specification |
Value |
| DisplayPort Alternate Mode |
Supported |
| Maximum Resolution |
7680 x 4320 @ 60Hz |
| 4K Support |
4096 x 2160 @ 120Hz |
| DisplayPort 1.4 Support |
Yes |
| DisplayPort 1.2 Support |
Yes |
Power Delivery
| Specification |
Value |
| USB Power Delivery |
Yes |
| Maximum Power Delivery |
60W |
| Power Output |
20V / 3A |
| Charging Support |
Supported |
Connector Specifications
| Specification |
Value |
| Connector A |
USB Type-C Male |
| Connector B |
USB Type-C Male |
| Connector Housing |
PVC Overmold |
| Connector Plating |
Nickel Plated |
| Pin Material |
Copper |
| Pin Plating |
Gold Plated |
| Connector Type |
Straight |
Cable Construction
| Specification |
Value |
| Cable Type |
Round |
| Jacket Material |
TPE |
| Cable Diameter |
5.3mm |
| Conductor Material |
Tinned Copper |
| Conductor Gauge |
31AWG + 32AWG + 34AWG |
| Shielding |
85% Tinned Copper |
Physical Dimensions
| Specification |
Value |
| Connector Dimensions |
28.5 x 6.2 x 12mm |
| Cable Length |
5m (16.4ft) |
| Net Weight |
0.20kg |
| Gross Weight |
0.26kg |
Compatibility
| Specification |
Value |
| USB-C Devices |
Supported |
| Thunderbolt 3 Devices |
Supported |
| Thunderbolt 4 Devices |
Supported |
| Laptops |
Supported |
| MacBooks |
Supported |
| Docking Stations |
Supported |
Environmental Specifications
| Specification |
Value |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-10°C to 60°C |
| Minimum Bend Radius |
53mm |
Certifications
| Specification |
Value |
| CE |
Yes |
| FCC |
Yes |
| RoHS |
Yes |
| REACH |
Yes |
| California Proposition 65 |
Yes |
Applications
- Meeting Rooms
- Conference Facilities
- Educational Environments
- Large Format Display Installations
- Interactive Touch Panels
- USB-C Docking Stations
- Professional AV Installations
- Hybrid Working Setups
What's In The Box
- Lindy USB 3.2 Gen 2 Type-C Active Cable 5m
- Protective Packaging
Product Identifiers
| Identifier |
Value |
| Brand |
Lindy |
| Cable Length |
5m |
| Interface |
USB 3.2 Gen 2 Type-C |
| Maximum Data Rate |
10Gbps |
| Maximum Resolution |
8K 60Hz / 4K 120Hz |
| Power Delivery |
60W |
| Connector Type |
USB Type-C Male to USB Type-C Male |
| Colour |
Black |
