Description

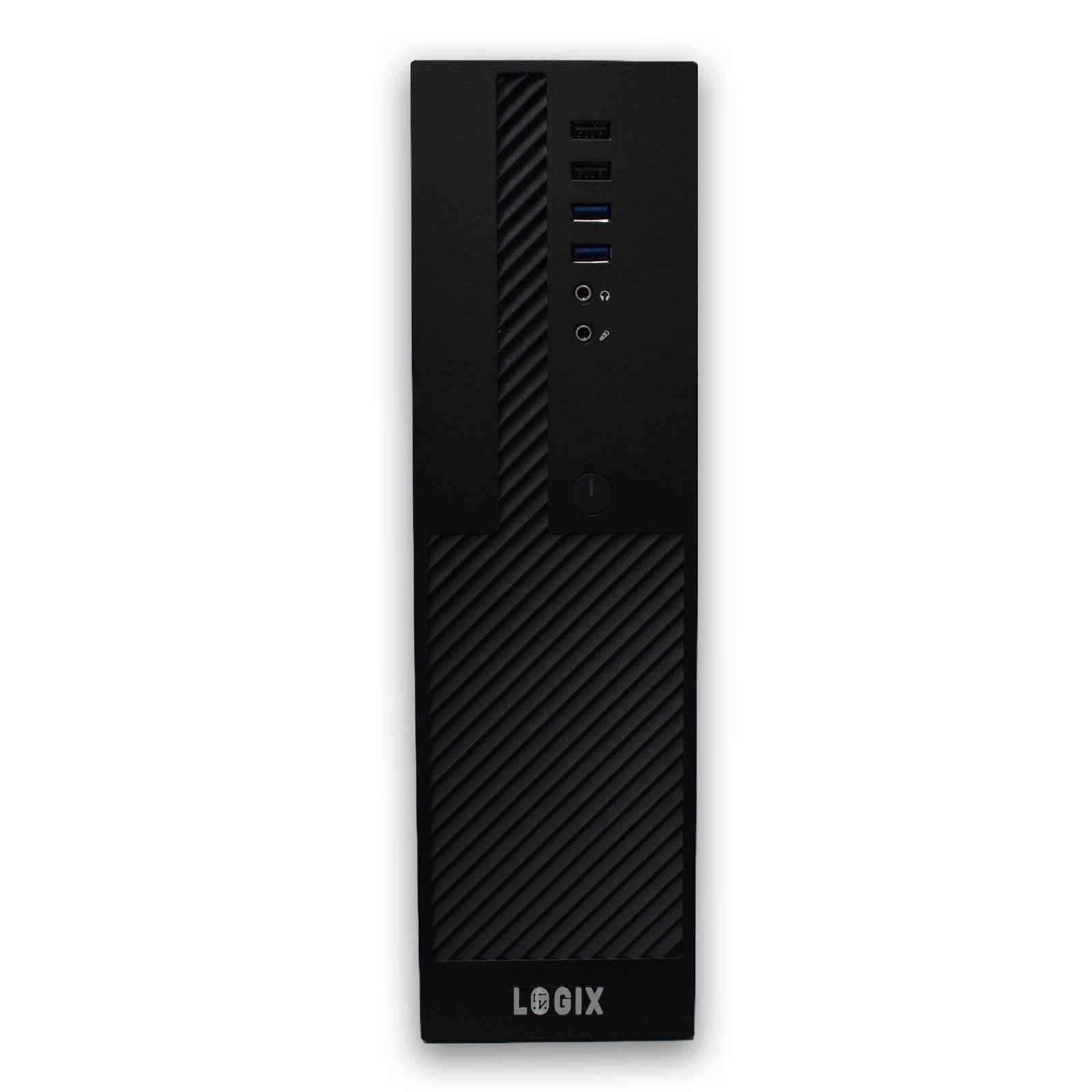

LOGIX Intel Core Ultra 5 10 Core, Small Form Factor SFF Business / Education PC with 16GB DDR5 RAM, 500GB SSD, Windows 11 Pro, Keyboard, Mouse & 3 Year Warranty
Be Future Ready for AI: Prepare for the next era of PC gaming with an Intel Core Ultra processor-based AI PC. Unlock better streaming and gaming performance. Offload AI tasks like background removal, audio optimisation, and auto-framing to the NPU so you can stream and game smoothly. Compact & Stylish Case: The discreet LOGIX small form case fits perfectly in any home setupsmall enough to save space, yet roomy enough for powerful components and efficient cooling. Whether you're working from home, browsing the web, watching movies, or managing family tasks, the LOGIX U1-516P delivers smooth, reliable performance. Its built with care in the UK, combining quality components with a clean, professional lookno flashy lights, just solid performance. Quiet & Compact Fits easily on or under a desk without taking up space.Ready to Go Comes with Windows 11 Pro pre-installed and updated. No bloatware, so you get a clean, fast experience from the start.Secure & Stable Wired-only internet connection helps reduce online threats.Plug & Play Includes a Logitech MK120 keyboard and mouse so you can get started right away.Built to Last:With trusted brands and high build standards, this PC is designed to be futureproof and reliable. It even comes with a full 3-year warranty for peace of mind. Total Cores: 10# of Performance-cores: 6# of Efficient-cores: 4# of Low Power Efficient-cores: 0Total Threads: 10Max Turbo Frequency: 4.9 GHzPerformance-core Max Turbo Frequency : 4.9 GHzEfficient-core Max Turbo Frequency: 4.4 GHzPerformance-core Base Frequency: 3.3 GHzEfficient-core Base Frequency: 2.7 GHzCache: 20 MB Intel Smart CacheTotal L2 Cache: 22 MBProcessor Base Power: 65 WMaximum Turbo Power: 121 WIntel Deep Learning Boost (Intel DL Boost) on CPU: Yes NPU Specifications: NPU Name: Intel AI BoostNPU Peak TOPS (Int8): 13Sparsity Support: YesWindows Studio Effects Support: YesAI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN Operating System: Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date. No Bloatware Warranty: 3 Years Parts & Labour Including Collect and Return (UK mainland only)
Specs
Processor
| Processor | Intel Core Ultra 5 225 2.7Ghz up to 4.9GHz 10 Core, 10 Threads, 20MB Cache Integrated Graphics |
| Processor Cores | 10 |
| Processor Threads | 10 |
| Core Clock Speed | 2.70GHz |
| Core Boost Speed | 4.90GHz |
Memory
| Memory | Kingston ValueRAM KVR56U46BS8-16 16GB (1x 16GB) DIMM System Memory, 5600MHz, DDR5, CL46Voltage: 1.10VLatency Timing: CL46Speed: 5600MT/s (PC5-44800)1 x 16GB DIMM MemoryIntel XMP Profile Support |
| Memory Configuration | 1 x 16GB 2 Lanes (1 occupied) |
Storage Controllers
| Superfast Storage | A 500GB Kingston PCIe 4.0 NVMe SSD means lightning-fast boot times, quick file access, and smooth performancemuch faster than traditional hard drives. |
| SSD Drive | Kingston NV3 (SNV3S/500G) 500GB NVMe SSD, M.2 Interface, PCIe Gen4, 2280Data storage life160 TBWMTBF1,500,000 hoursInterfaces/PortsPCIe Gen4 x4 NVMe |
| Hard Drive | No Additional Drive Fitted |
| Optical Drive | No Optical Drive Fitted |
| Rear I/O | 1 x DisplayPort1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Clear CMOS jumper |
| Chassis | LOGIX Small Form Purpose Built Robust Chassis |
| IO Ports | 2 x USB 3.02 x USB 2.0HD MicHD AudioPower |
Network
| Power Supply | 300w TFX Pre-Fitted PSU |
| Motherboard | Gigabyte H810M K Intel 1851 Socket Motherboard, Micro ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port |
| Expansion Slot | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
Physical
| Package Weight | 6.9 kg |
Other
| Fast & Reliable Performance | Powered by the latest Intel Ultra Core 5 processor with 10 cores and 10 threads, it runs at a base speed of 2.70GHz and can boost up to 4.90GHzideal for multitasking, streaming, and everyday computing. |
| Smooth Multitasking | Comes with 16GB of ultra fast Kingston DDR5 memory, giving you plenty of speed for browsing, working, and entertainment. You can upgrade later if needed. |
| Operating System: | Windows 11 ProProcessor: Intel Ultra Core 5 225Memory (RAM): Kingston Technology 16GB DDR5 (upgradeable to 64GB DDR5)Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSDGraphics: Intel Graphics (maximum resolution 7680 x 4320) Motherboard: Gigabyte H810M Ultra Durable MotherboardCase: LOGIX Small Form FactorConnections: Front 2 x USB-A 3.02 x USB-A 2.03.5mm HD microphone & audioBack: 1 x DisplayPort1 x HDMI2 x USB-A 3.2 Gen 14 x USB-A 2.01 x RJ-45 Ethernet3 x 3.5mm AudioNetworking: Wired: Realtek 1Gbps GbE LANPeripherals: Logitech MK120 Wired Keyboard & Mouse Warranty: 3 years - parts and collection included (UK mainland only) |
| Format | Gen4 x4 NVMe |
| Max Read/Write Speeds | Read: Up to 6000MB/SWrite: Up to 2200MB/S |
| Graphics | GPU Name: Intel GraphicsGraphics Base Frequency: 300 MHzGraphics Max Dynamic Frequency: 1.8 GHzGPU Peak TOPS (Int8): 4Graphics Output: eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRLXe-cores: 2Max Resolution (HDMI): 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS), (7680 x 4320 @ 60Hz (HDMI 2.1 FRL)Max Resolution (DP): 7680 x 4320 @ 60HzMax Resolution (eDP) - Integrated Flat Panel), 3840 x 2400 @ 120HzDirectX Support: 12OpenGL Support: 4.5OpenCL Support: 3H.264 Hardware Encode/Decode: YesH.265 (HEVC) Hardware Encode/Decode: YesAV1 Encode/Decode: YesIntel Quick Sync Video: Yes# of Displays Supported: 2 Native (4 via daisy chain)Intel Deep Learning Boost (Intel DL Boost) on GPU: YesAI Software Frameworks Supported by GPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebGPU |
| Graphics Card I/O | No Graphics Card Fitted. Uses Intel On-Chip Graphics |
| Card Reader | No Card Reader Fitted |
