Description

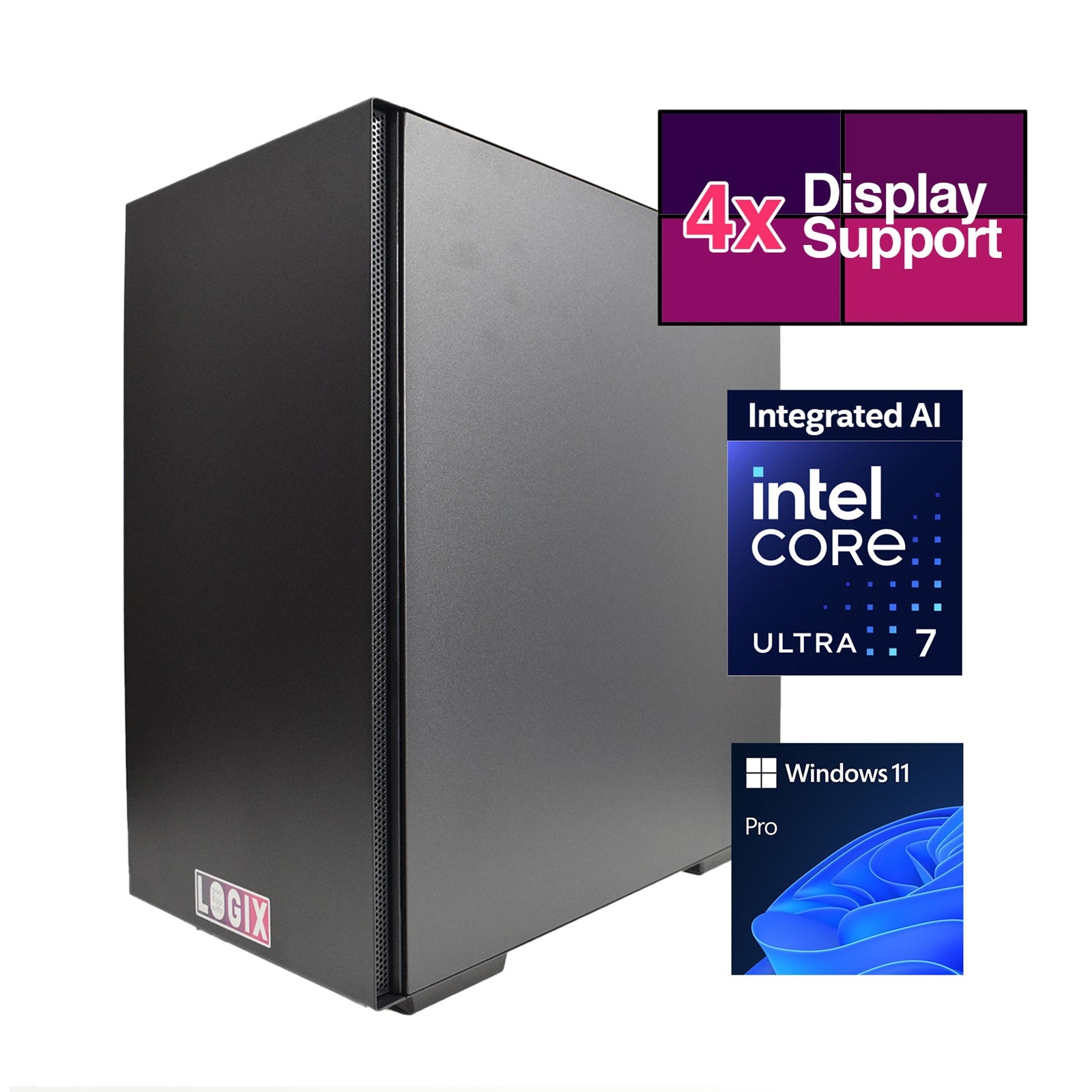

LOGIX Intel Core Ultra 7 AI Powered 20 Core, 3.90GHz (5.50GHz Boost) NPU with 13 TOPS, 32GB Kingston DDR5 Memory, 1TB Kingston NVMe, Gigabyte RTX 4060 8GB 4xMonitor, 2 x 2.5GB LAN, Windows 11 Pro
Whether you're building an AI-powered workstation, a CCTV monitoring hub, or simply need a reliable, high-performance PC for your home office, the LOGIX CCT-U732P is built to handle it all quietly, efficiently, and securely. Smart Power for Work, Security & Everyday Use: The LOGIX CCT-U732P is a powerful, compact desktop PC built for modern home offices, small businesses, and CCTV monitoring setups. Whether you're managing multiple security feeds, working across several apps, or tapping into AI-powered tasks, this system is designed to keep up quietly and efficiently. Powered by Next-Gen Intel Core Ultra: Featuring the Intel Core Ultra 7 265K processor with 20 cores and 20 threads, this PC delivers ultra-responsive performance for multitasking and productivity. Its built-in AI NPU offloads background tasks like noise filtering and auto-framing, freeing up your CPU and GPU for smoother performance overall. Built in the UK, Backed by Warranty: Hand-assembled in the UK with trusted components, the CCT-U732P is backed by a 3-year parts and collection warranty for total peace of mind. NPU Specifications: NPU Name: Intel AI BoostNPU Peak TOPS (Int8) 13Sparsity Support YesWindows Studio Effects Support YesAI Software Frameworks Supported by NPUOpenVINO, WindowsML, DirectML, ONNX RT, WebNN Security & Reliability: Intel Standard Manageability (ISM) : YesIntel Control-Flow Enforcement Technology : YesIntel AES New Instructions : YesSecure Key : YesIntel OS Guard : YesIntel Trusted Execution Technology : YesExecute Disable Bit : YesIntel Boot Guard : YesMode-based Execute Control (MBEC) : YesIntel Virtualization Technology : Yes Core Clock2460 MHzCUDA Cores3072Memory Clock17 GbpsMemory Size8 GBMemory TypeGDDR6Memory Bus128 bitCard BusPCI-E 4.0Digital max resolution7680x4320Multi-View4 Operating System: Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date Warranty: 3 Years Parts & Labour Including Collect and Return (UK mainland only)
Specs
Processor
| Processor | Intel Core Ultra 7 265KF 20 Core, 20 Threads, 3.9GHz up to 5.5GHz Arrow Lake Processor LGA 1851, 36MB Cache, 125W, 250W Maximum Turbo Power |
| Processor Cores | 20 |
| Processor Threads | 20 |
| Core Clock Speed | 3.90GHz |
| Core Boost Speed | 5.50GHz |
Memory
| Memory | Kingston ValueRAM KVR52U42BD8-32 32GB (1x32GB) System Memory, 5200MT/s, DDR5, CL42, DIMMVoltage: 1.1VSpeed: 5200MT/s (PC5-41600)1 x 32GB DIMM MemoryIntel XMP Profile Support |
| Memory Configuration | 1 x 32GB 4 Lanes (1 occupied) |
Storage Controllers
| Fast Storage & Clean Setup | A 1TB Kingston NVMe SSD ensures fast load times and quick access to your files. Preinstalled with Windows 11 Pro, fully updated and bloatware-free, the system is ready to go out of the box no unnecessary software to slow you down. |
| SSD Drive | Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 4000 MB/sForm FactorM.2 2280InterfacePCIe 4.0 x4 NVMeCapacity1TBSequential Read6000MB/sSequential Wrire4000MB/sNAND3DEndurance (Total Bytes Written)320TB |
| Hard Drive | No Additional Drive Fitted2 x 2.5" or 3.5" Drive Bays Available For Expansion |
| Optical Drive | No Optical Drive Fitted |
| Rear I/O | 1 x PS/2 keyboard/mouse port1 x HDMI port (Note)2 x DisplayPorts (Note)1 x USB 3.2 Gen 2 Type-A port (red)2 x USB 3.2 Gen 1 ports3 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C� header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| Chassis | DeepCool MACUBE 110 Case, Home & Business, Black, Micro Tower, 2 x USB 3.0, Solid Panel, Micro ATX |
| IO Ports | 2 x USB 3.01 x AudioPowerReset |
Network
| Networking: | Wired:2 x 2.5Gbps GbE LANWarranty: 3 years - parts and collection included (UK mainland only) |
| Power Supply | DeepCool PF500 500W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS White, Non Modular, UK Plug1 x Main Power Connector 24-Pin (20+4)1 x EPS 12V Connector 8-Pin (4+4)2 x PCIE 6+2 Pin (x1)6 x SATA2 x 4-Pin Peripheral |
| Motherboard | Gigabyte B860M DS3H Intel 1851 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Sockets, 1x USB-C Port, 2.5GbE LAN |
| Expansion Slot | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3) |
Physical
| Package Weight | 6.9 kg |
Other
| Built for Multi-Screen CCTV & Business Use | Equipped with an NVIDIA GeForce RTX 4060 graphics card, the CCT-U732P supports up to 4 monitors and 16 camera feeds in up to 8K resolution. Perfect for CCTV monitoring or high-resolution multi-screen work, it offers 2 HDMI and 2 DisplayPort outputs for flexible display setups. |
| Operating System: | Windows 11 ProProcessor: Intel Core Ultra 7 - 3.90GHz (5.50GHz boost) 20-cores & 20 threadsMemory (RAM): Kingston Technology 32GB DDR5 (upgradeable to 128GB DDR5 additional memory slot available)Storage: Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSDStorage Expansion: 2 x 3.5"/2.5" Combo & 2 x 2.5"Graphics: Gigabyte Nvidia GeForce RTX 4060 OC 8GB Graphics Card with 2 x HDMI 2.1 & 2 x DisplayPort 1.4 portsMotherboard: Gigabyte B860 DS3H Case: Deep Cool micro towerConnections: Front 2 x USB 3.01 x HD Mic/AudioBack: 1 x PS/2 keyboard port1 x PS/2 mouse port2 x DisplayPort2 x HDMI port1 x USB 3.2 Gen 2 Type-A port (red) on the back panel2 x USB 3.2 Gen 1 ports on the back panel3 x USB 2.0/1.1 ports on the back panel1 x RJ-45 port3 x audio jacks |
| Format | Gen4 x4 NVMe |
| Max Read/Write Speeds | Read: Up to 6000MB/SWrite: Up to 400MB/S |
| Graphics | Gigabyte NVIDIA GeForce RTX 4060 D6 8G Graphics Card, 8GB GDDR6, 3072 CUDA Cores, 2460 MHz Core Clock, Single Fan, 2x DisplayPorts / 2x HDMI Ports |
| Graphics Card I/O | DisplayPort 1.4a x 2HDMI 2.1 x 2 |
| Card Reader | No Card Reader Fitted |
