MSI MAG A650BNL 650W 80 PLUS Bronze Fully Modular ATX Power Supply
Key Highlights:
- 650W Continuous Power Output
- 80 PLUS Bronze Certified Efficiency
- Fully Modular Cable Design
- Single +12V Rail Architecture
- 120mm Fluid Dynamic Bearing Fan
- DC-to-DC & Full Bridge Topology
- Compact 140mm Depth Design
- Comprehensive Protection Features
Product Description
Built for Reliable Gaming Performance
The MSI MAG A650BNL power supply is designed to provide stable and efficient power delivery for gaming PCs and everyday enthusiast systems. Combining MSI's MAG series durability with modern power delivery technologies, it offers dependable performance for gamers and PC builders seeking a quality, fully modular PSU.
80 PLUS Bronze Certified Efficiency
Achieving up to 90% efficiency under typical loads, the MAG A650BNL helps reduce energy waste, minimise heat output and improve overall system efficiency for long-term performance.
Fully Modular Convenience
The fully modular cable system allows users to install only the cables required for their specific build. This simplifies cable management, improves airflow and creates a cleaner-looking system interior.
Stable Power Delivery
Featuring DC-to-DC conversion and full bridge topology, the power supply delivers stable voltage regulation and dependable operation under varying workloads, making it well-suited for modern CPUs and graphics cards.
Quiet & Efficient Cooling
The integrated 120mm Fluid Dynamic Bearing fan provides effective cooling while balancing acoustic performance, ensuring quiet operation and long-term reliability.
Reasons to Buy
-
650W Output: Ideal for mainstream gaming and productivity systems.
-
80 PLUS Bronze: Improved energy efficiency.
-
Fully Modular Design: Easier installation and cleaner cable routing.
-
Single Rail Design: Consistent and reliable power delivery.
-
Compact Form Factor: Fits comfortably in most ATX cases.
-
FDB Cooling Fan: Low-noise and long-life operation.
-
Advanced Power Design: DC-to-DC and full bridge architecture.
-
Comprehensive Protection: Enhanced safety for system components.
Technical Specifications
General
| Specification |
Value |
| Brand |
MSI |
| Series |
MAG |
| Model |
A650BNL |
| Product Type |
ATX Power Supply Unit |
| Colour |
Black |
Power Output
| Specification |
Value |
| Total Power |
650W |
| Combined +12V Output |
648W |
| Combined +3.3V Output |
100W |
| Combined +5V Output |
100W |
| Combined -12V Output |
3.6W |
| Combined +5VSB Output |
12.5W |
Power Rail Specifications
| Specification |
Value |
| +3.3V Maximum Current |
20A |
| +5V Maximum Current |
20A |
| +12V Maximum Current |
54A |
| -12V Maximum Current |
0.3A |
| +5VSB Maximum Current |
2.5A |
| Single Rail Design |
Yes |
Input Specifications
| Specification |
Value |
| Input Voltage |
100 - 240V AC |
| Maximum Input Current (110V) |
10A |
| Maximum Input Current (220V) |
5A |
| Power Factor Correction |
Active PFC |
| Efficiency |
Up to 90% |
Certification
| Specification |
Value |
| 80 PLUS Certification |
80 PLUS Bronze |
| Form Factor |
ATX |
| Purpose |
PC |

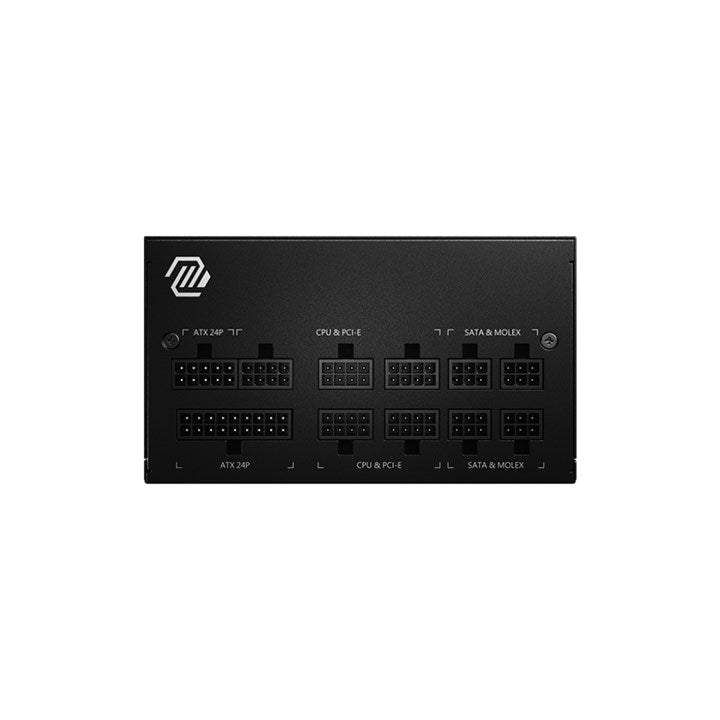

Connectors
| Specification |
Value |
| Motherboard Connector |
20+4 Pin ATX |
| CPU Connectors |
2 x 4+4 Pin EPS |
| PCIe 6+2 Pin Connectors |
4 |
| SATA Power Connectors |
6 |
| Molex Connectors |
4 |
| Cabling Type |
Fully Modular |
Power Design Features
| Specification |
Value |
| DC-to-DC Design |
Yes |
| Full Bridge Topology |
Yes |
| Voltage Regulation |
Enhanced Stability |
| Single Rail Architecture |
Yes |

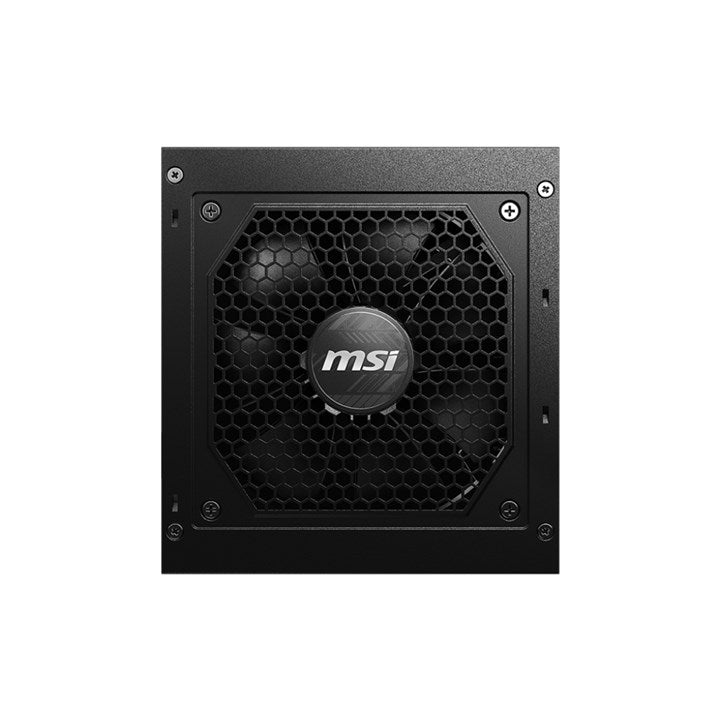

Cooling System
| Specification |
Value |
| Cooling Type |
Active |
| Fan Size |
120mm |
| Fan Bearing Type |
Fluid Dynamic Bearing |
| Number of Fans |
1 |
Protection Features
| Specification |
Value |
| OCP |
Over Current Protection |
| OPP |
Over Power Protection |
| OVP |
Over Voltage Protection |
| SCP |
Short Circuit Protection |
Physical Specifications
| Specification |
Value |
| Width |
150mm |
| Depth |
140mm |
| Height |
86mm |
| Package Type |
Retail Box |
What's In The Box
- MSI MAG A650BNL 650W Power Supply
- Fully Modular Cable Set
- Cable Storage Pack
- Power Cord
- Mounting Screws
- User Documentation
Product Identifiers
| Identifier |
Value |
| Brand |
MSI |
| Series |
MAG |
| Model |
A650BNL |
| Power Output |
650W |
| Efficiency Rating |
80 PLUS Bronze |
| Form Factor |
ATX |
| Modular Design |
Fully Modular |
| Cooling Fan |
120mm Fluid Dynamic Bearing |
