MSI MAG Forge 100R Midi Tower Gaming Case – Black
Overview

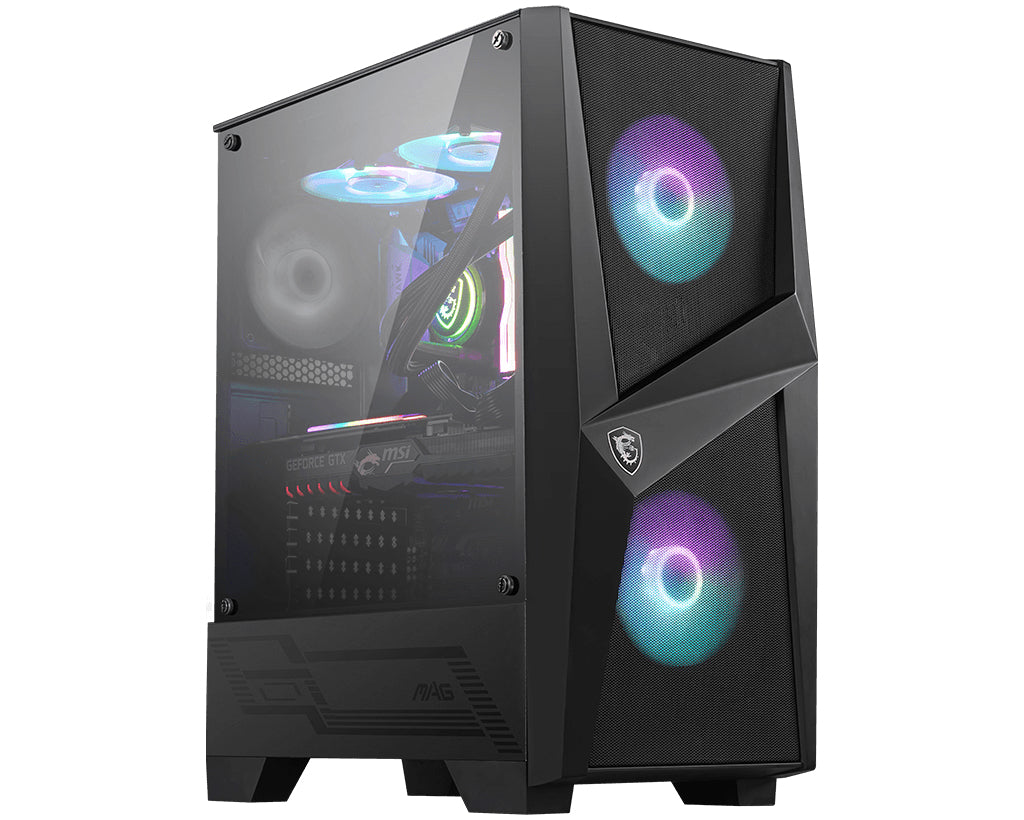

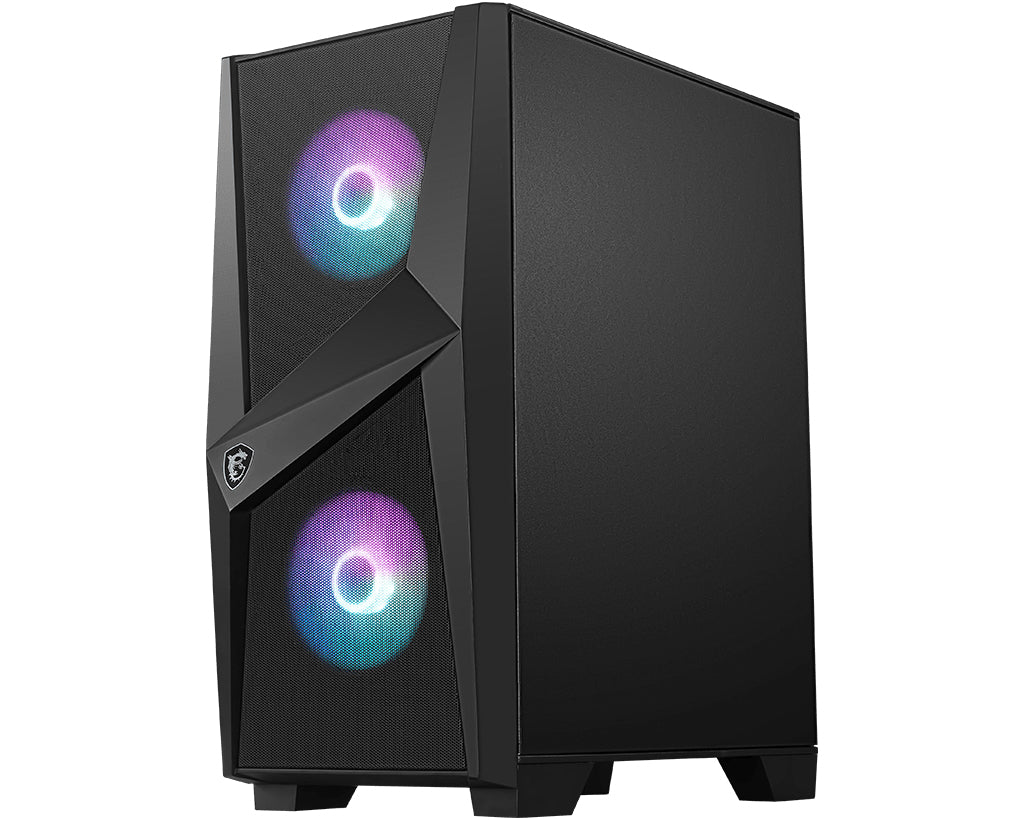

The MSI MAG Forge 100R is a compact midi tower gaming case designed for strong airflow and striking ARGB aesthetics. Featuring 3x pre-installed fans (2x 120mm ARGB front + 1x 120mm rear), a 4mm tempered glass side panel, mesh-optimised front panel, and support for up to 330mm radiators, it delivers solid thermal performance for ATX, Micro-ATX, and Mini-ITX builds. An integrated 1-to-6 ARGB LED control board with 9 lighting effects and MSI Mystic Light sync compatibility completes the package.
Key Technology Features

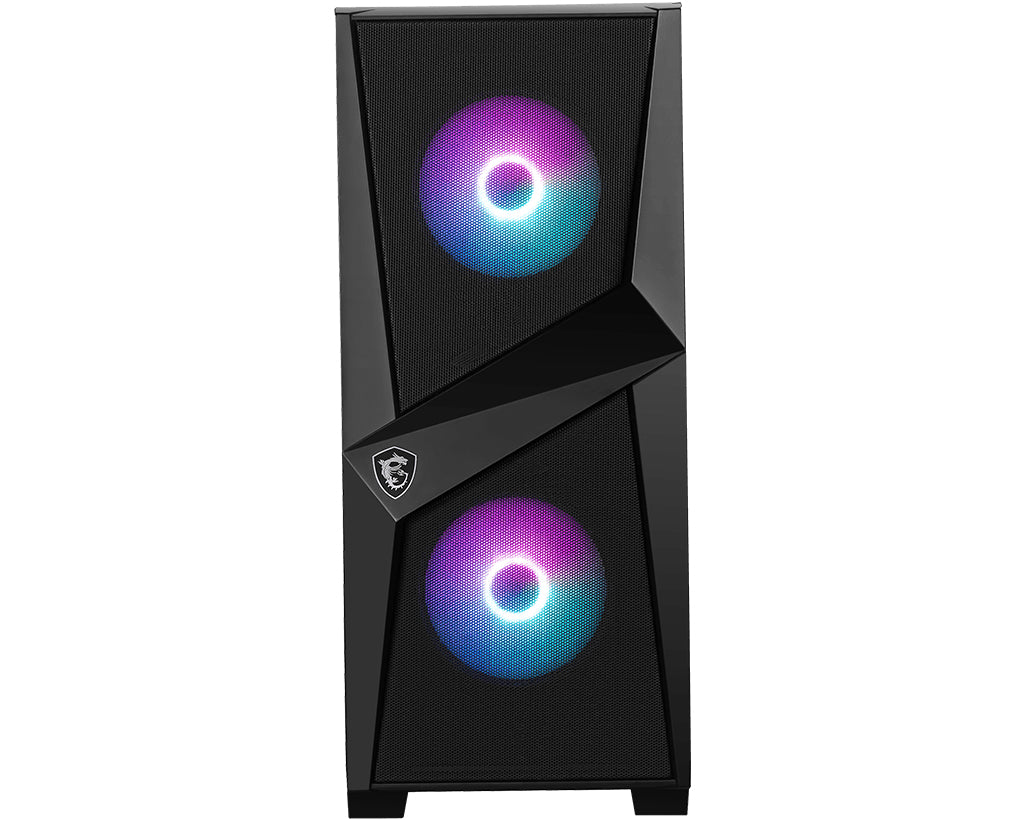

3x Pre-Installed ARGB Fans
2x 120mm ARGB PWM fans at the front (vertically aligned for positive air pressure) and 1x 120mm fan at the rear. Supports up to 3 front fans (120/140mm) and 2 top fans (120/140mm).
1-to-6 ARGB LED Control Board
Built-in ARGB control board with 9 lighting effects and LED switch button for standalone control or MSI Mystic Light motherboard sync.

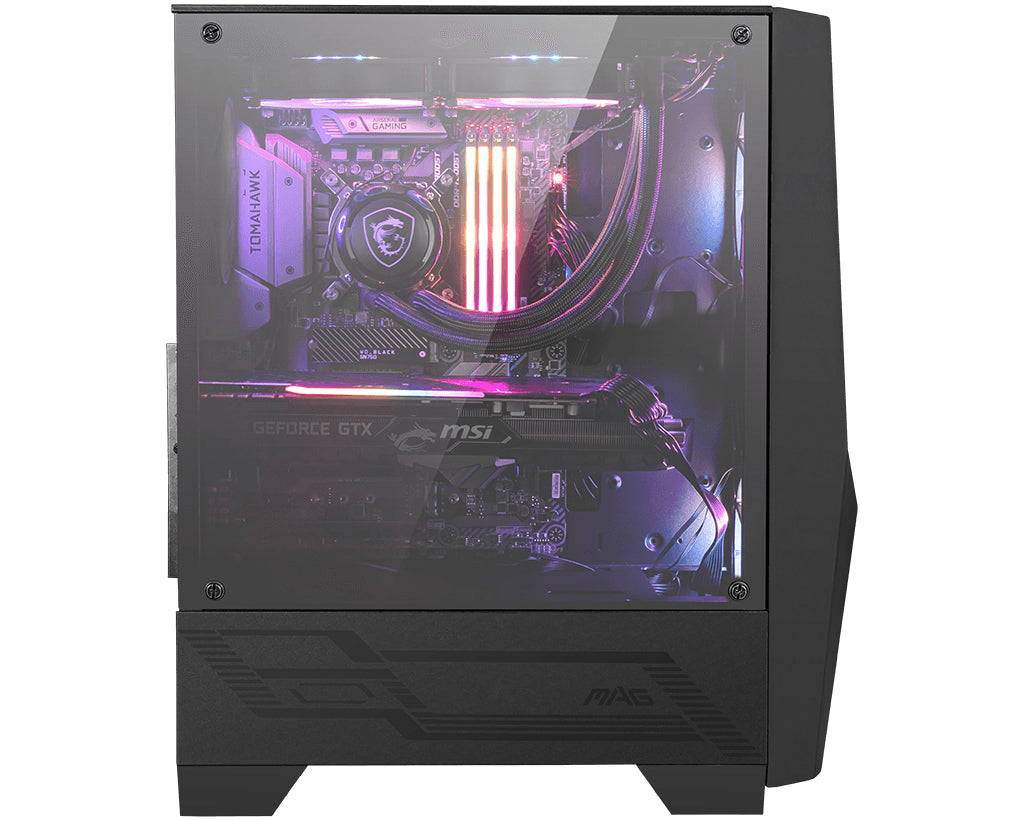

4mm Tempered Glass Side Panel
Tool-less 4mm tempered glass side panel for easy access and a clear view of your build and lighting.
Liquid Cooling Support
Supports radiators up to 330mm for AIO liquid cooler installations.
Anti-Dust Filter
Anti-dust filter included to protect internal components and simplify maintenance.
Flexible Storage
2x 3.5" HDD bays and 3x 2.5" SSD bays with HDD/SSD combo cage. 7 expansion slots.
Bottom-Mounted PSU
PSU mounts at the bottom (not included). Max PSU length: 200mm.
What's Included
MSI MAG Forge 100R case, 2x 120mm ARGB front fans, 1x 120mm rear fan, 1-to-6 ARGB LED control board, 4mm tempered glass side panel, anti-dust filter. PSU not included. 2-year warranty.
Technical Specifications
Main Specifications
| Form Factor | Midi Tower |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Side Panel | 4mm Tempered Glass (tool-less) |
| Colour | Black / Transparent |
| Dimensions (W×D×H) | 210 × 421 × 499 mm |
| Net Weight | 5.64 kg |
| Expansion Slots | 7 |
| Warranty | 2 years |
Clearance
| Max CPU Cooler Height | 160 mm |
| Max GPU Length | 330 mm |
| Max PSU Length | 200 mm |
Fan Support
| Front | 2× 120mm ARGB installed (supports 120/140mm, max 3) |
| Rear | 1× 120mm installed (supports 120mm, max 1) |
| Top | None installed (supports 120/140mm, max 2) |
| Pre-Installed Fans | 3× 120mm (2 ARGB front + 1 rear) |
Radiator Support
| Max Radiator Size | 330mm |
Storage
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 3 |
| HDD/SSD Combo Cage | Yes |
Front I/O
| USB 3.2 Gen 1 Type-A | 2 |
| Audio | In + Out |
| Buttons | Power, Reset, LED Switch |
Power Supply
| PSU Included | No |
| PSU Location | Bottom |
Packaging
| EAN / Barcode | 4719072676407 |
