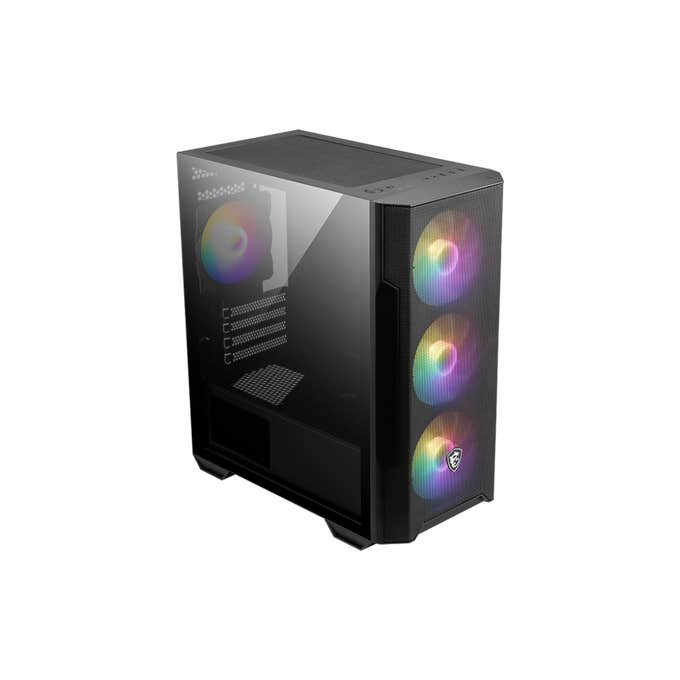

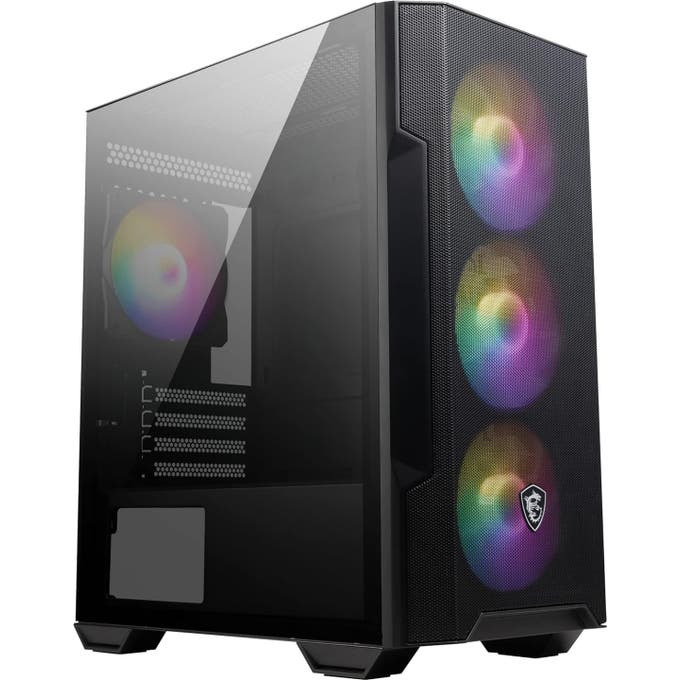

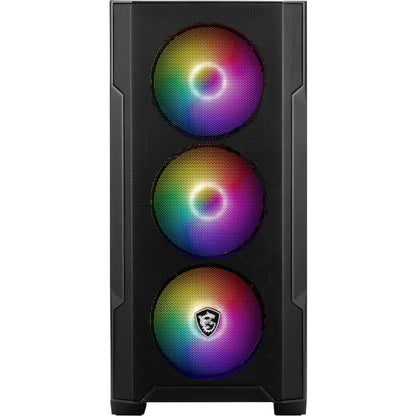

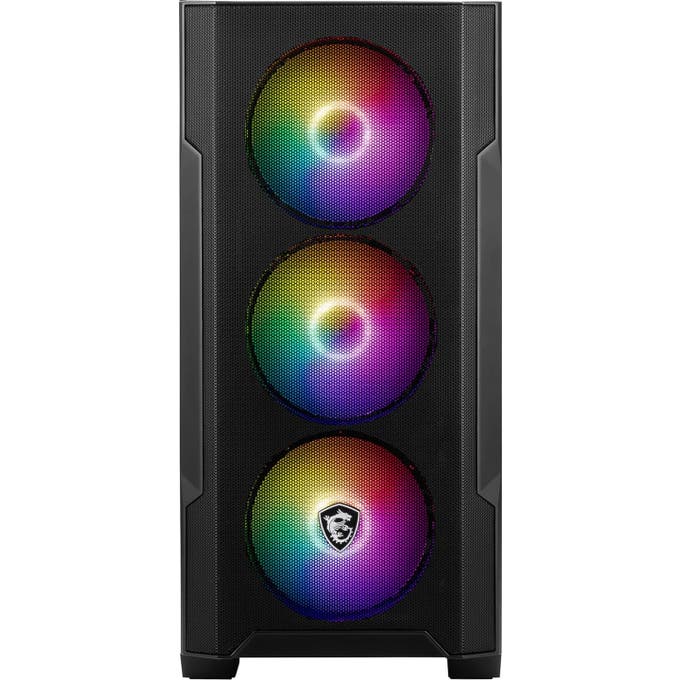

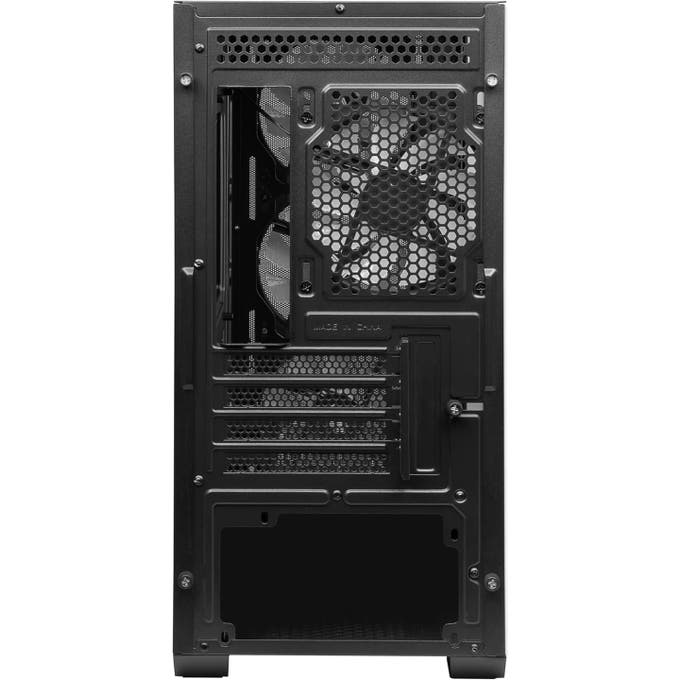

MSI MAG FORGE M100R Gaming Case - Micro-ATX ARGB Tempered Glass Chassis
Key Highlights:
- Compact Micro-ATX Gaming Chassis
- 4 x Pre-Installed ARGB Fans Included
- Tempered Glass Side Panel
- High-Airflow Front Mesh Design
- MSI Mystic Light Compatible
- Supports Up to 330mm Graphics Cards
- Liquid Cooling Ready with 240mm Radiator Support
- ARGB Control Hub Included
Product Description
Compact Size, Full Gaming Performance
The MSI MAG FORGE M100R is a stylish Micro-ATX gaming chassis engineered to deliver impressive airflow, vibrant ARGB lighting and excellent component compatibility. Designed for gamers who want premium features without the footprint of a full-size tower, the MAG FORGE M100R provides the perfect foundation for a powerful gaming build.
Brilliant ARGB Lighting
Equipped with four pre-installed ARGB fans, the MAG FORGE M100R provides vibrant illumination straight out of the box. Compatible with MSI Mystic Light, users can synchronise lighting effects with supported MSI components and peripherals for a unified gaming setup.
Optimised Cooling Performance
The ventilated front mesh panel allows cool air to flow directly into the chassis, improving thermal performance during demanding gaming sessions. Multiple fan and radiator mounting locations provide additional cooling flexibility for high-performance hardware.
Show Off Your Components
The tempered glass side panel offers a clear view of your internal hardware and RGB lighting effects, making it easy to showcase carefully selected components and custom lighting configurations.
Built for Modern Hardware
Supporting powerful graphics cards, liquid cooling solutions and Micro-ATX motherboards, the MAG FORGE M100R delivers the flexibility required for today's gaming systems while maintaining a compact footprint.
Reasons to Buy
-
Four ARGB Fans Included: Excellent airflow and eye-catching lighting.
-
Micro-ATX Form Factor: Compact size with strong hardware compatibility.
-
Tempered Glass Side Panel: Showcase your gaming build.
-
Mesh Front Airflow Design: Enhanced cooling performance.
-
Mystic Light Compatible: Synchronise RGB lighting across your setup.
-
Liquid Cooling Support: Compatible with 240mm radiators.
-
Modern Gaming Styling: Premium MAG-series design language.
-
Expandable Cooling Options: Multiple fan mounting positions.
Technical Specifications
General
| Specification |
Value |
| Product Type |
Gaming PC Case |
| Series |
MSI MAG |
| Model |
FORGE M100R |
| Form Factor |
Micro Tower |
| Colour |
Black |
| Suitable For |
Gaming Systems |
Motherboard Compatibility
| Specification |
Value |
| Supported Motherboards |
Micro-ATX, Mini-ITX |
Design Features
| Specification |
Value |
| Side Window |
Tempered Glass |
| ARGB Lighting |
Yes |
| Lighting Colour |
Multi-Colour RGB |
| MSI Mystic Light Support |
Yes |
| Power Button |
Yes |
| Reset Button |
Yes |
Storage Support
| Specification |
Value |
| 2.5" Drive Bays |
2 |
| 3.5" Drive Bays |
2 |
| Supported Storage Types |
2.5" SSD, 3.5" HDD |
Expansion & Clearance
| Specification |
Value |
| Expansion Slots |
4 |
| Maximum Graphics Card Length |
330 mm |
| Maximum CPU Cooler Height |
160 mm |
| Maximum PSU Length |
200 mm |
Pre-Installed Cooling
| Specification |
Value |
| Front Fans |
3 x 120mm ARGB Fans |
| Rear Fan |
1 x 120mm ARGB Fan |
| Total Included Fans |
4 |
Fan Support
| Specification |
Value |
| Front Fan Support |
3 x 120mm |
| Top Fan Support |
2 x 120mm |
| Rear Fan Support |
1 x 120mm |
| Maximum Fans Supported |
6 |
Radiator Compatibility
| Specification |
Value |
| Front Radiator Support |
120mm, 240mm |
| Top Radiator Support |
120mm, 240mm |
| Rear Radiator Support |
120mm |
Front I/O Ports
| Specification |
Value |
| USB 3.2 Gen 1 Type-A |
2 |
| Audio Output |
1 |
| Microphone Input |
1 |
| LED Control Button |
Yes |
RGB Features
| Specification |
Value |
| ARGB Fan Hub Included |
Yes |
| Mystic Light Sync |
Yes |
| Lighting Modes |
Multiple Preset Effects |
Dimensions & Weight
| Specification |
Value |
| Width |
200 mm |
| Depth |
388 mm |
| Height |
423 mm |
| Net Weight |
Approx. 4.1 kg |
What's In The Box
- MSI MAG FORGE M100R Gaming Case
- 3 x 120mm ARGB Front Fans
- 1 x 120mm ARGB Rear Fan
- Integrated ARGB Fan Hub
- Installation Hardware
- User Documentation
Product Identifiers
| Identifier |
Value |
| Brand |
MSI |
| Manufacturer Part Number |
MAG FORGE M100R |
| Series |
MAG |
| Model |
FORGE M100R |
| Form Factor |
Micro Tower |
| Motherboard Support |
Micro-ATX / Mini-ITX |
| Colour |
Black |
