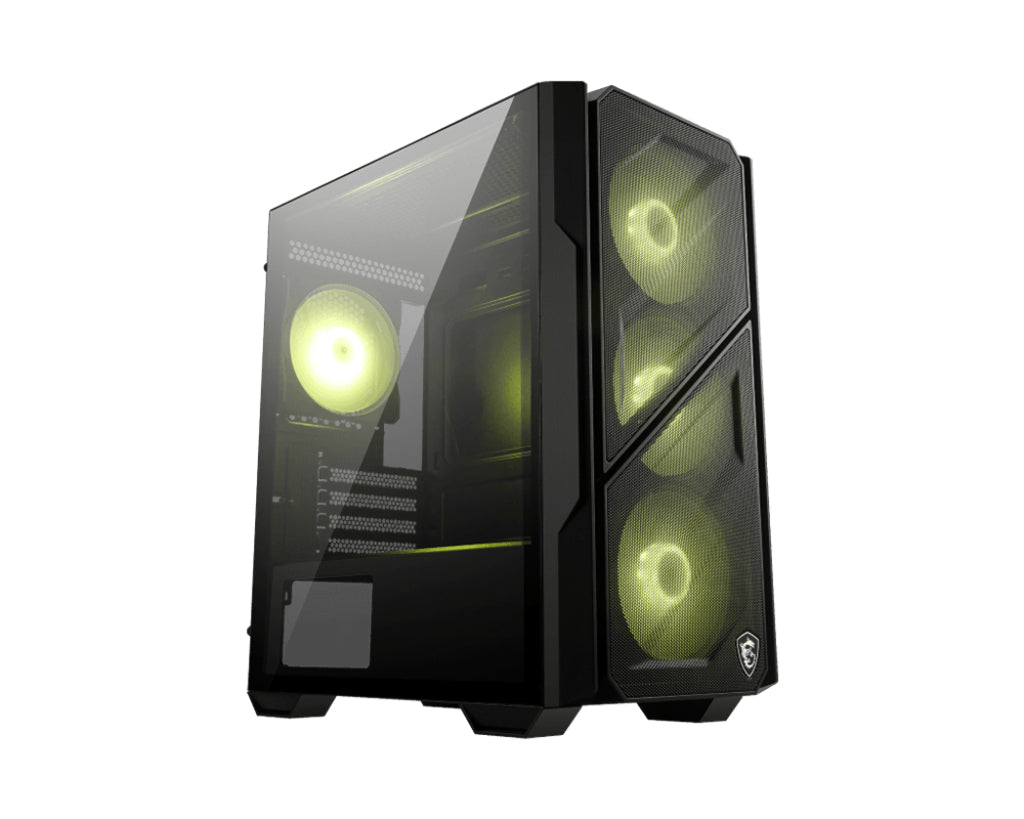

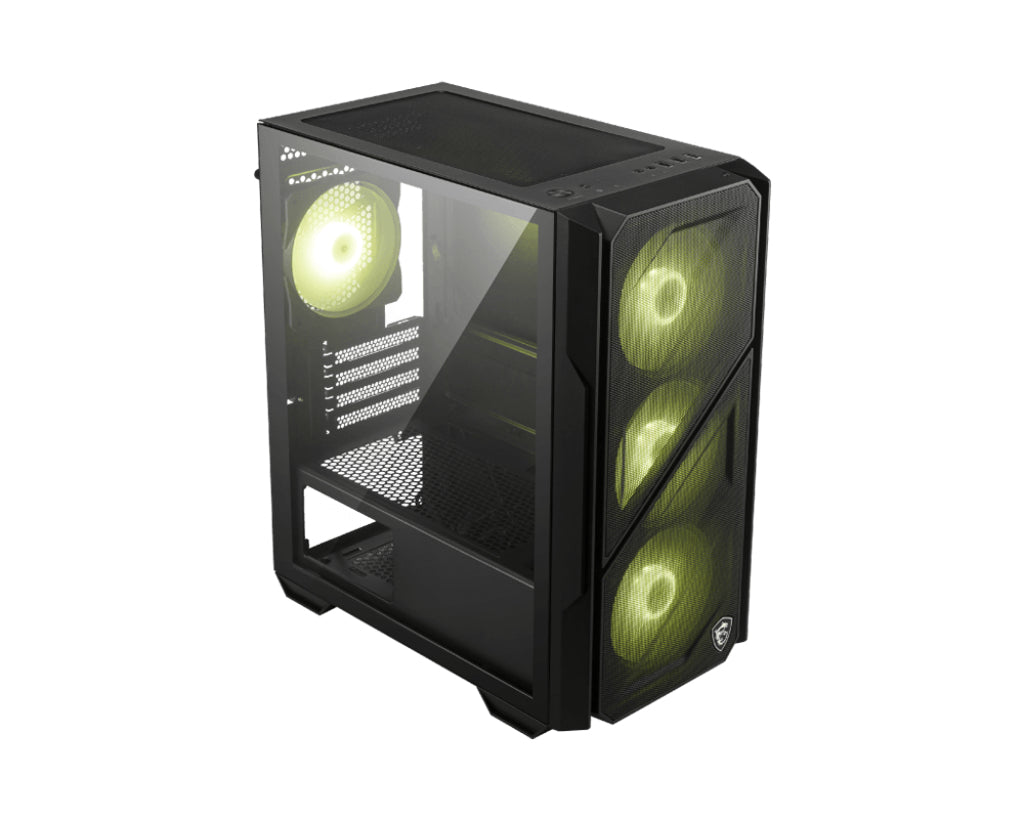

MSI MAG Forge M110R AIRFLOW Mini Tower Gaming Case – Black
Overview
The MSI MAG Forge M110R AIRFLOW is a compact mini tower gaming case built for Micro-ATX and Mini-ITX builds. Featuring 4x pre-installed ARGB fans (3x 120mm front + 1x 120mm rear), a 3mm tempered glass side panel, 1-to-6 ARGB control board with 26 lighting effects, and support for up to 240mm AIO liquid coolers, it delivers powerful airflow and striking aesthetics in a space-saving form factor.
Key Technology Features

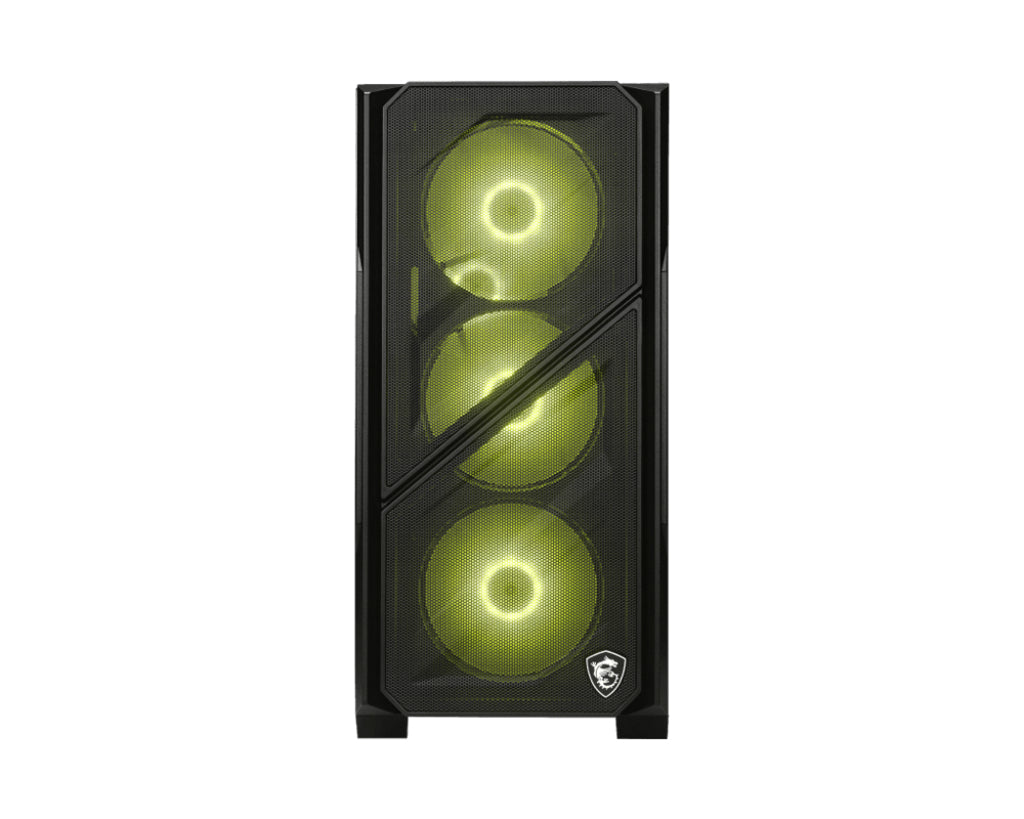

4x Pre-Installed ARGB Fans
3x 120mm ARGB fans at the front and 1x 120mm ARGB fan at the rear, pre-installed. Supports up to 3 front fans (120mm), 2 top fans (120mm), 3 side fans, and 1 rear fan (120mm) for up to 6 fans total.
1-to-6 ARGB Control Board – 26 Lighting Effects
Pre-installed 1-to-6 ARGB control board supports up to 6 ARGB fans with 26 built-in lighting effects, toggled via the LED switch button. Syncs with MSI Mystic Light via motherboard header.

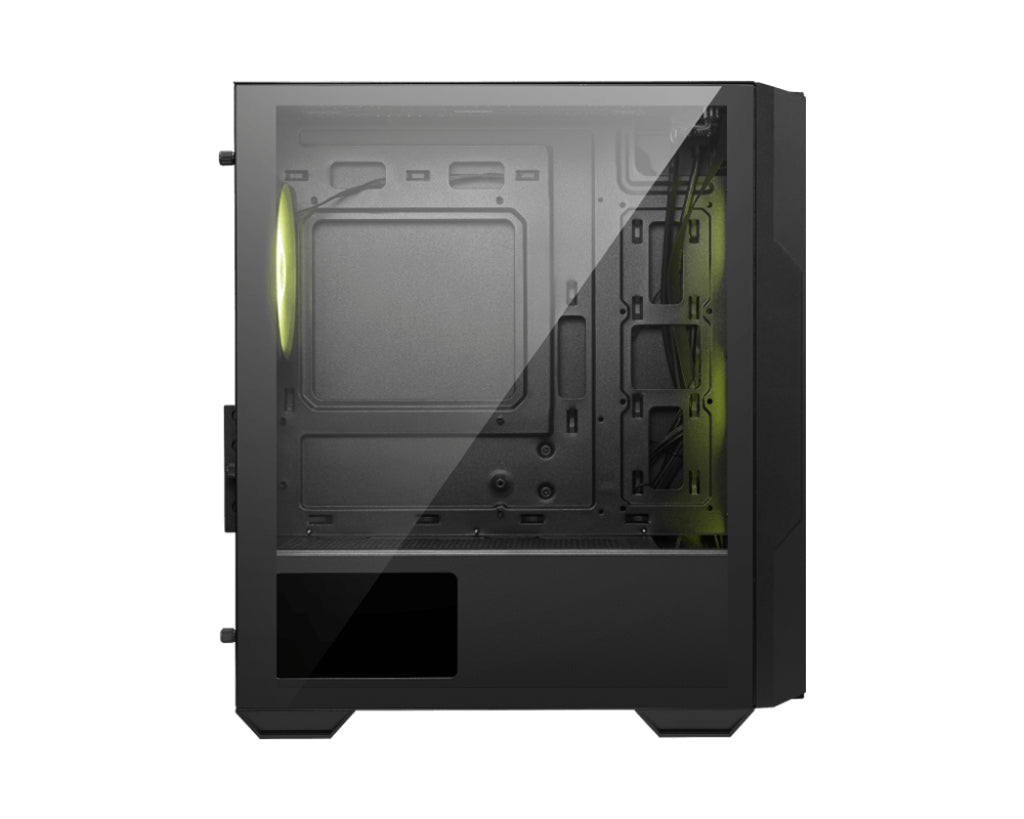

3mm Tempered Glass Side Panel
Premium 3mm tempered glass side panel for durability and a clear showcase of your build and ARGB lighting.
240mm Radiator Support
Supports 120mm and 240mm radiators at the front and top, and 120mm at the rear for AIO liquid cooling.
Dust Filters
Top magnetic dust filter and removable bottom filter to prevent dust buildup and simplify maintenance.
Compact & Practical Interior
Supports GPUs up to 300mm, CPU coolers up to 160mm, and PSUs up to 180mm (ATX). 1x 3.5" and 2x 2.5" storage bays with HDD/SSD combo cage. 4 expansion slots. Cable management included.
What's Included
MSI MAG Forge M110R AIRFLOW case, 3x 120mm ARGB front fans, 1x 120mm rear fan, 1-to-6 ARGB control board, 3mm tempered glass side panel, top magnetic dust filter, bottom removable dust filter. PSU not included.
Technical Specifications
Main Specifications
| Form Factor | Mini Tower |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Material | Metal |
| Side Panel | 3mm Tempered Glass |
| Colour | Black |
| Dimensions (W×D×H) | 200 × 388 × 423 mm |
| Net Weight | 4.27 kg |
| Expansion Slots | 4 |
Clearance
| Max CPU Cooler Height | 160 mm |
| Max GPU Length | 300 mm |
| Max PSU Length | 180 mm |
| PSU Form Factor | ATX |
| PSU Location | Bottom |
Fan Support
| Front | 3× 120mm ARGB installed (supports 120mm, max 3) |
| Rear | 1× 120mm ARGB installed (supports 120mm, max 1) |
| Top | None installed (supports 120mm, max 2) |
| Side | None installed (max 3) |
| Pre-Installed Fans | 4× 120mm ARGB |
Radiator Support
| Front | 120 / 240mm |
| Top | 120 / 240mm |
| Rear | 120mm |
Storage
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 2 |
| HDD/SSD Combo Cage | Yes |
Front I/O
| USB 2.0 Type-A | 2 |
| USB 3.2 Gen 1 Type-A | 1 |
| Audio Out | Yes |
| Buttons | Power, Reset, RGB Control |
Packaging
| EAN / Barcode | 4711377386227 |
| Package Weight | 5.01 kg |
