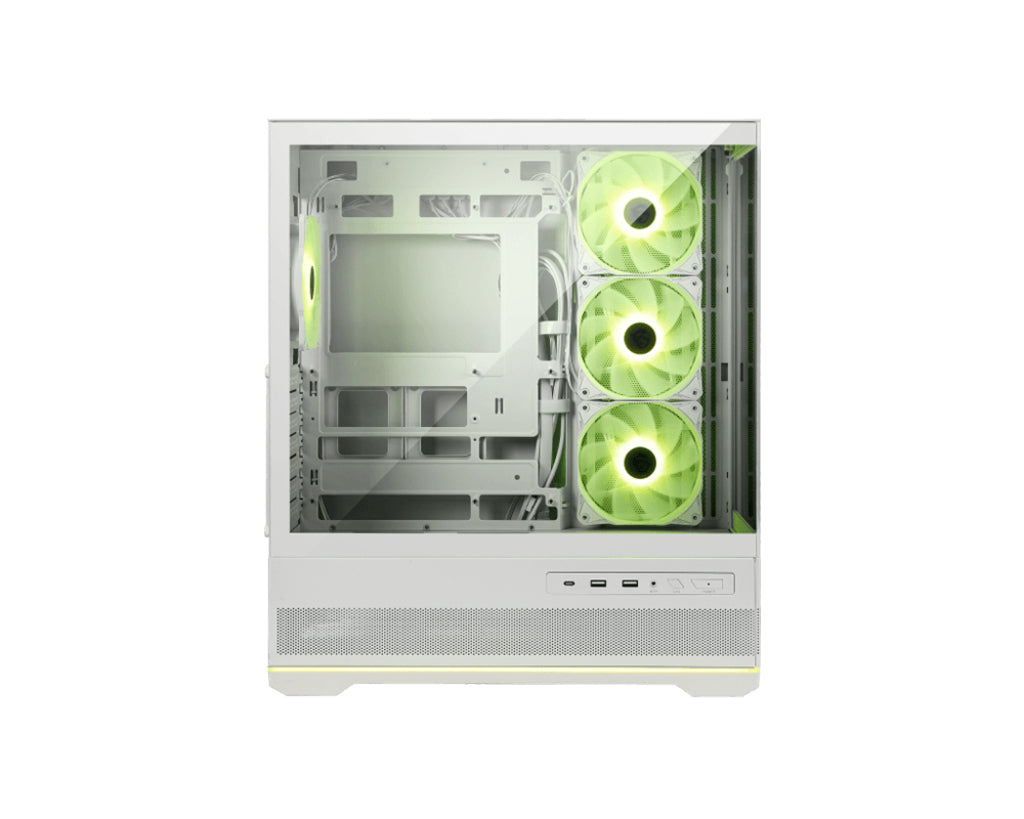

MSI MAG Pano 110R PZ Midi Tower Gaming Case – White
Overview
The MSI MAG Pano 110R PZ is a premium midi tower gaming case in White, featuring a 270-degree panoramic tempered glass design and 4x pre-installed ARGB fans (3x 120mm reverse-blade side + 1x 120mm rear). With a 1-to-5 ARGB fan control hub supporting 18 lighting effects, 360mm radiator support on top, side, and bottom, and compatibility with ATX, Micro-ATX, Mini-ITX, and back-connect PROJECT ZERO motherboards, it delivers exceptional versatility and aesthetics.
Key Technology Features
270° Panoramic Tempered Glass
Three-sided panoramic tempered glass provides an expansive view to showcase your components and ARGB lighting from every angle.
1-to-5 ARGB Fan Control Hub
Supports up to 5 ARGB fans with 18 selectable lighting effects via a single LED switch button. Fully compatible with MSI Mystic Light for motherboard sync.
4x Pre-Installed ARGB Reverse-Blade Fans
3x 120mm ARGB reverse-blade fans on the side and 1x 120mm ARGB fan at the rear. Supports up to 3 side (120/140mm), 3 top (120/140mm), 3 bottom (120/140/160mm), and 1 rear (120mm) fan — up to 10 fans total.
360mm Radiator Support – Top, Side & Bottom
Supports 360mm AIO liquid coolers on the top, side, and bottom panels. Rear supports 120mm.
Back-Connect Motherboard Support
Compatible with regular ATX, Micro-ATX, Mini-ITX, and back-connect ATX/Micro-ATX PROJECT ZERO motherboards for a clean, cable-free aesthetic.
Upgraded Airflow Layout
Lower chamber surrounded by vents for enhanced heat dissipation. Supports up to 10 fans for maximum ventilation and stable performance.
Metal Nameplate & MAG Identity
Decorated with a metal nameplate highlighting the MAG family identity, with metallic-like hardness and robust construction throughout.
What's Included
MSI MAG Pano 110R PZ White case, 3x 120mm ARGB reverse-blade side fans, 1x 120mm ARGB rear fan, 1-to-5 ARGB fan control hub, panoramic tempered glass panels. PSU not included.
Technical Specifications
Main Specifications
| Form Factor | Midi Tower |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX (incl. Back-Connect / PROJECT ZERO) |
| Material | Tempered Glass + Metal |
| Colour | White |
| Side Panel | 270° Panoramic Tempered Glass |
| Dimensions (W×D×H) | 225 × 420 × 485 mm |
| Expansion Slots | 7 |
Clearance
| Max CPU Cooler Height | 160 mm |
| Max GPU Length | 400 mm |
| Max PSU Length | 200 mm |
| PSU Form Factor | ATX |
| PSU Location | Bottom |
| PSU Included | No |
Fan Support
| Side | 3× 120mm ARGB reverse-blade installed (supports 120/140mm, max 3) |
| Rear | 1× 120mm ARGB installed (supports 120mm, max 1) |
| Top | None installed (supports 120/140mm, max 3) |
| Bottom | None installed (supports 120/140/160mm, max 3) |
| Pre-Installed Fans | 4× 120mm ARGB |
| Max Total Fans | 10 |
Radiator Support
| Side | 120 / 240 / 360mm |
| Top | 120 / 240 / 360mm |
| Bottom | 120 / 240 / 360mm |
| Rear | 120mm |
Storage
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |
Front I/O
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2 Type-C | 1 |
| Audio Combo Jack | Yes |
| Buttons | Power, LED On/Off |
Packaging
| EAN / Barcode | 4711377293198 |
