MSI MAG Pano 130R PZ Midi Tower Gaming Case – Black
Overview
The MSI MAG Pano 130R PZ is a premium midi tower gaming case featuring a 270-degree panoramic tempered glass design, 4x pre-installed ARGB fans (3x 120mm reverse-blade side + 1x 120mm rear), and a unique rotatable GPU bracket for horizontal or vertical GPU installation. Supporting ATX, Micro-ATX, and Mini-ITX motherboards including back-connect PROJECT ZERO boards, 360mm radiators on both top and side, and GPUs up to 400mm, it delivers exceptional versatility and aesthetics in Black.
Key Technology Features
Back-Connect Motherboard Support
Supports ATX and Micro-ATX back-connect PROJECT ZERO motherboards, routing all cables behind the motherboard tray for a completely clean, clutter-free build aesthetic.
Rotatable GPU Bracket
One bracket, two orientations. A quick 90° rotation allows switching between horizontal and vertical GPU installations without additional hardware. (Riser cable sold separately for vertical mounting.)
270° Panoramic Tempered Glass
Three-sided panoramic display enhances aesthetics and maintains a clean design, showcasing your ARGB build from every angle.

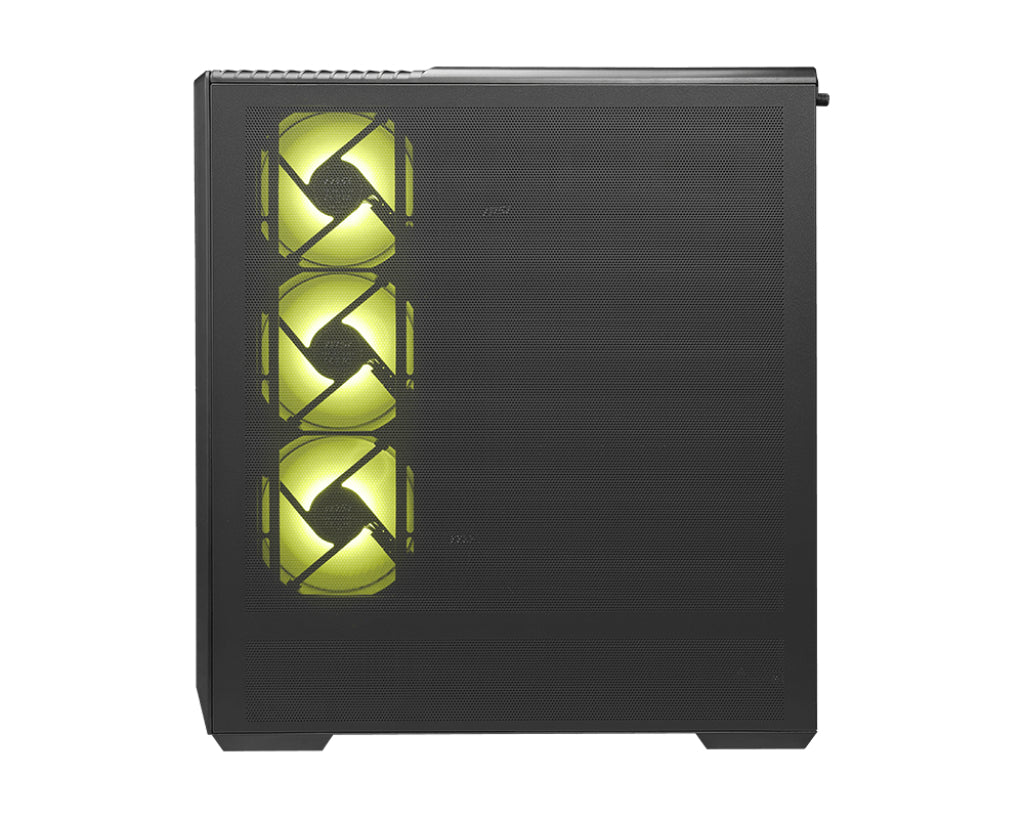

4x Pre-Installed ARGB Reverse-Blade Fans
3x 120mm ARGB reverse-blade fans on the side and 1x 120mm ARGB fan at the rear. Supports up to 3 side fans, 3 top fans, and 1 rear fan — up to 10 fans total.
360mm Radiator Support – Top & Side
Supports 360mm AIO liquid coolers on both the top (up to 360mm) and side (up to 360mm). Rear supports 120mm.
Upgraded Airflow Layout
Lower chamber surrounded by vents for enhanced heat dissipation. Magnetic top and removable bottom dust filters keep the system clean.
MAG Design Language
Bold diagonal lines and sharp cut angles match MAG series motherboards, liquid coolers, and power supplies for a cohesive, polished build aesthetic.
What's Included
MSI MAG Pano 130R PZ Black case, 3x 120mm ARGB reverse-blade side fans, 1x 120mm ARGB rear fan, rotatable GPU bracket, panoramic tempered glass panels, magnetic top dust filter, removable bottom dust filter, HDD/SSD combo cage. PSU not included. Riser cable for vertical GPU not included.
Technical Specifications
Main Specifications
| Form Factor | Midi Tower |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX (incl. Back-Connect / PROJECT ZERO) |
| Material | Metal |
| Colour | Black |
| Side Panel | 270° Panoramic Tempered Glass |
| Dimensions (W×D×H) | 232 × 460 × 490 mm |
| Net Weight | 8.37 kg |
| Package Weight | 10 kg |
| Expansion Slots | 7 |
Clearance
| Max CPU Cooler Height | 165 mm |
| Max GPU Length | 400 mm |
| Max PSU Length | 180 mm |
| PSU Form Factor | ATX |
| PSU Included | No |
Fan Support
| Side | 3× 120mm ARGB reverse-blade installed (max 3) |
| Rear | 1× 120mm ARGB installed (max 1) |
| Top | None installed (max 3) |
| Pre-Installed Fans | 4× 120mm ARGB |
| Max Total Fans | 10 |
Radiator Support
| Side | 120 / 140 / 360mm |
| Top | 120 / 140 / 240 / 280 / 360mm |
| Rear | 120mm |
Storage
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 3 |
| HDD/SSD Combo Cage | Yes |
Front I/O
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2x2 Type-C (20Gbps) | 1 |
| Audio Combo Jack | Yes |
| Buttons | Power, Reset |
Packaging
| EAN / Barcode | 4711377365758 |
