MSI MAG PANO M100R PZ Micro-ATX PC Gaming Case - Panoramic Tempered Glass
Key Highlights:
- 270° Panoramic Tempered Glass Design
- Supports Back-Connect / Project Zero Motherboards
- Includes 4 Pre-Installed ARGB Fans
- Built-In 1-to-4 ARGB & PWM Fan Control Board
- Supports Up to 360mm Top Radiator
- Supports Graphics Cards up to 390mm
- USB 3.2 Gen 2x2 Type-C Front I/O
- Supports Up to 10 x 120mm Cooling Fans
Product Description
A New Turning Point in PC Building

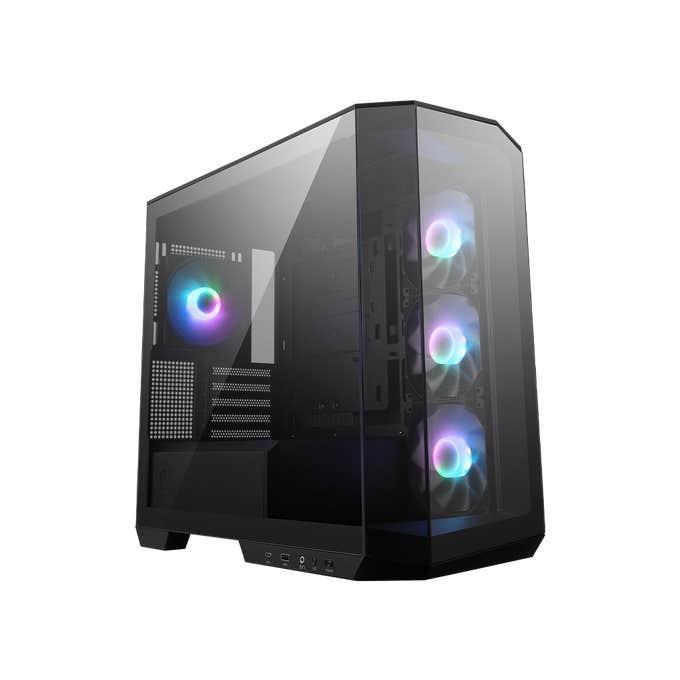

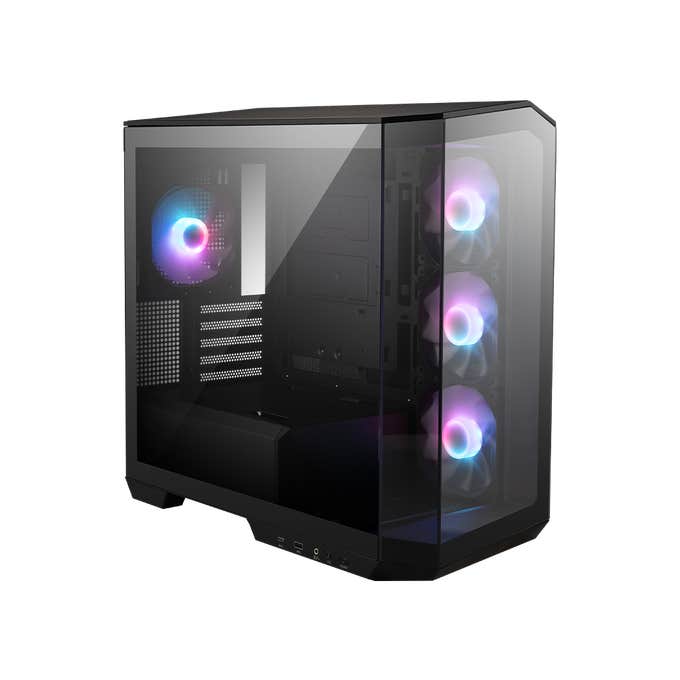

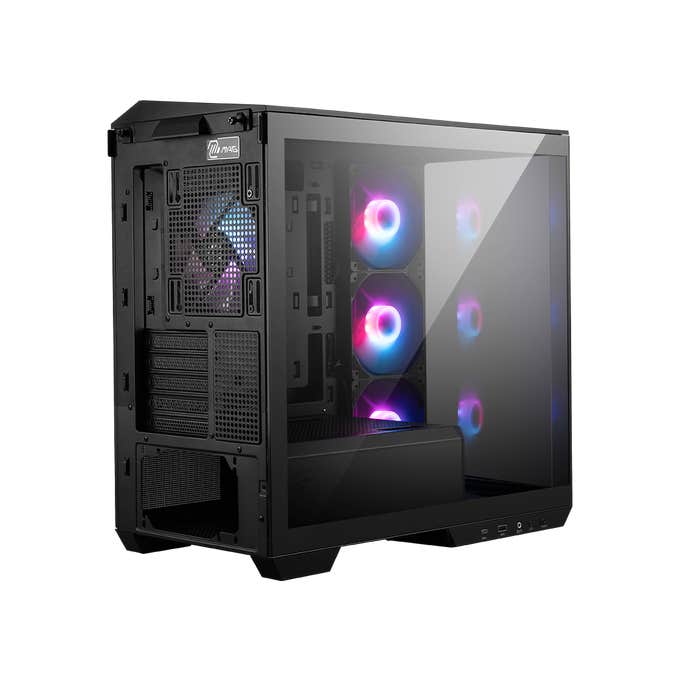

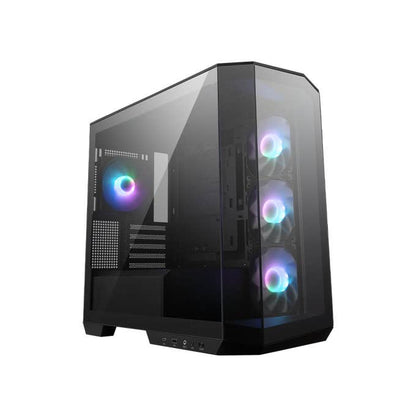

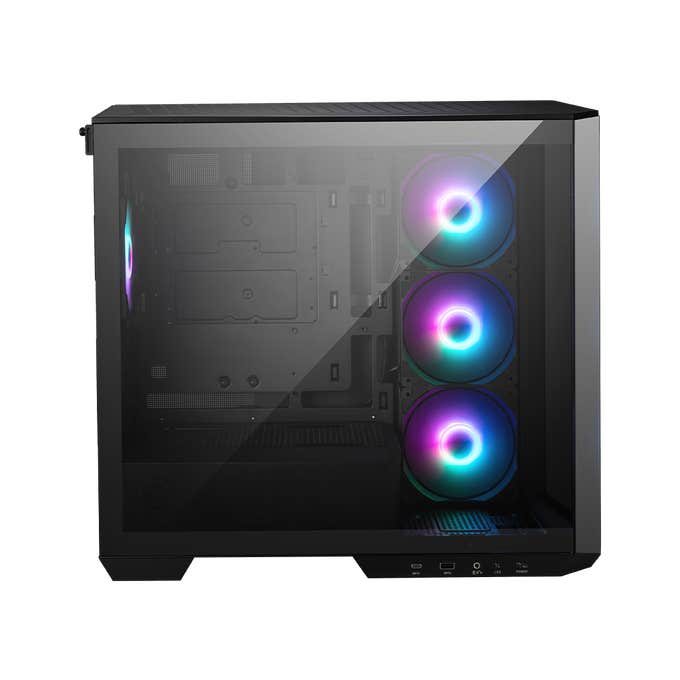

The MSI MAG PANO M100R PZ has been designed for builders who want to showcase their hardware without compromise. Featuring a stunning 270-degree panoramic tempered glass design, this Micro-ATX gaming chassis provides an unobstructed view of your components and RGB lighting, creating a clean and modern showcase for your gaming system.
Built for Project Zero and Back-Connect Systems
Designed to support MSI Project Zero and other back-connect Micro-ATX motherboards, the MAG PANO M100R PZ helps simplify cable management while enhancing airflow and aesthetics. By routing cables behind the motherboard tray, your build remains clean and professional looking.
Exceptional Cooling Potential
Supplied with four ARGB fans, including three reverse-blade side fans and one rear exhaust fan, the chassis is optimised for maximum airflow. Support for up to ten 120mm fans and a 360mm top-mounted radiator makes the MAG PANO M100R PZ ideal for powerful gaming and workstation systems.
Premium Features for Modern Builders
A built-in ARGB and PWM control hub, removable magnetic dust filters, extensive cable routing options and high-speed USB Type-C connectivity ensure the MAG PANO M100R PZ provides the tools enthusiasts need for a premium PC build experience.
Reasons to Buy
-
270° Panoramic Glass: Show off your hardware with minimal visual obstruction.
-
Project Zero Ready: Designed for back-connect motherboard compatibility.
-
Four ARGB Fans Included: Excellent cooling straight out of the box.
-
ARGB Lighting Hub: Easy control of lighting effects and fan speeds.
-
Supports 360mm Radiators: Ready for high-performance liquid cooling systems.
-
Excellent Cable Management: 33mm routing space and integrated Velcro straps.
-
Type-C Connectivity: USB 3.2 Gen 2x2 front-panel port for modern peripherals.
-
Large GPU Clearance: Supports graphics cards up to 390mm long.
-
Magnetic Dust Filters: Easy cleaning and maintenance.
-
Tempered Glass Construction: Showcase your components in style.
Technical Specifications
General
| Specification |
Value |
| Brand |
MSI |
| Series |
MAG |
| Model |
PANO M100R PZ |
| Case Type |
Micro-ATX Tower |
| Colour |
Black |
| Side Panel |
270° Tempered Glass |
| Market Segment |
Gaming |
Motherboard Compatibility
| Specification |
Value |
| Supported Motherboards |
Micro-ATX, Mini-ITX |
| Back-Connect Support |
Yes |
| MSI Project Zero Compatible |
Yes |
Cooling Support
| Specification |
Value |
| Maximum Fan Support |
Up to 10 x 120mm Fans |
| Pre-Installed Side Fans |
3 x 120mm ARGB Reverse-Blade Fans |
| Pre-Installed Rear Fan |
1 x 120mm ARGB Fan |
| Fan Control Hub |
1-to-4 ARGB/PWM Controller |
| Top Fan Support |
3 x 120mm or 2 x 140mm |
| Rear Fan Support |
1 x 120mm or 1 x 140mm |
| Side Fan Support |
3 x 120mm |
| Bottom Fan Support |
1 x 120mm |
| PSU Shroud Fan Support |
2 x 120mm |
Radiator Compatibility
| Specification |
Value |
| Top Radiator Support |
120mm, 240mm, 360mm |
| Rear Radiator Support |
120mm, 140mm |
| Liquid Cooling Support |
Yes |
Storage Support
| Specification |
Value |
| 2.5" Drive Mounts |
Up to 3 |
| 3.5" Drive Mounts |
Up to 1 |
| Drive Configuration |
1 x 2.5", 1 x Combo 2.5"/3.5" |
Expansion & Clearances
| Specification |
Value |
| Expansion Slots |
5 |
| Maximum GPU Length |
390mm |
| Maximum CPU Cooler Height |
175mm |
| Maximum PSU Length |
200mm |
| Power Supply Support |
ATX |
Front I/O Ports
| Specification |
Value |
| USB 3.2 Gen 2x2 Type-C |
1 |
| USB 3.2 Gen 1 Type-A |
1 |
| Audio Out |
1 |
| Mic In |
1 |
| LED Control Button |
Yes |
| Power Button |
Yes |
Features
| Specification |
Value |
| ARGB Lighting |
Yes |
| ARGB/PWM Hub Included |
Yes |
| Cable Routing Space |
33mm |
| Velcro Cable Straps |
Pre-Installed |
| Magnetic Dust Filters |
Top & Bottom |
| Tool-Friendly Design |
Yes |
| Panoramic Display Layout |
Yes |
Dimensions & Weight
| Specification |
Value |
| Dimensions (D x W x H) |
488 x 235 x 453 mm |
| Net Weight |
8.66 kg |
| Gross Weight |
11.29 kg |
What's In The Box
- MSI MAG PANO M100R PZ PC Case
- 3 x 120mm ARGB Reverse-Blade Fans
- 1 x 120mm ARGB Rear Fan
- Integrated ARGB/PWM Control Board
- Installation Hardware
- User Documentation
Product Identifiers
| Identifier |
Value |
| Brand |
MSI |
| Series |
MAG |
| Model |
PANO M100R PZ |
| Product Type |
Micro-ATX Gaming Case |
| Motherboard Support |
Micro-ATX, Mini-ITX |
| Colour |
Black |
