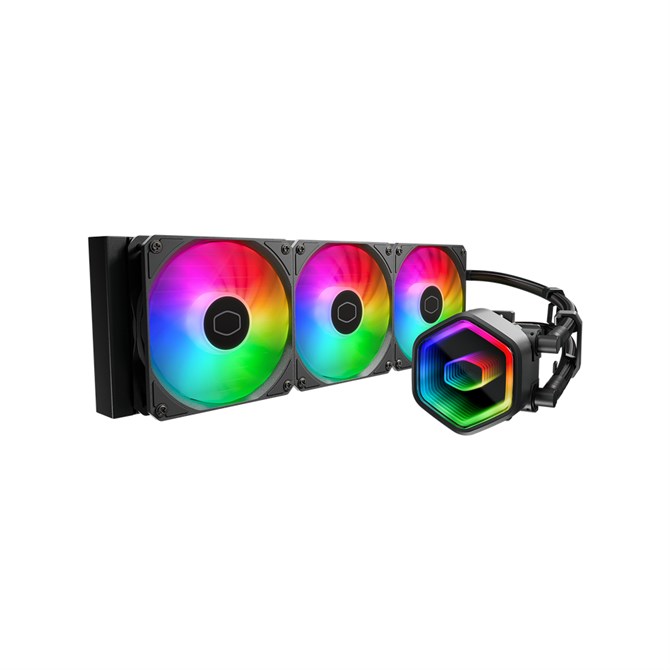

Cooler Master MasterLiquid 360 Core II 360mm Liquid CPU Cooler (Black)
Overview
The Cooler Master MasterLiquid 360 Core II is a high-performance liquid CPU cooling solution designed for modern gaming and workstation builds. Featuring a refined dual chamber pump, enhanced fans, and an elegant infinity mirror pump design, it delivers powerful and efficient thermal management with low noise operation.
Key Features
- 360mm liquid cooling system with 3x 120mm fans
- Infinity mirror pump design for premium aesthetics
- Dual chamber pump for improved cooling efficiency
- Wide compatibility with Intel and AMD platforms
- Optimized 400mm tubing for flexible installation
- Daisy chain fan connection for easier cable management
- Low-noise operation with high airflow performance
Cooling Performance
The Core II utilises upgraded fans with improved blade design, delivering strong airflow up to 120 m³/h while maintaining a quiet operation profile. Combined with a powerful 3100 RPM pump, it ensures efficient heat dissipation even under heavy workloads.
Compatibility
Supports a wide range of modern processor sockets including Intel LGA 1700 and LGA 1851, as well as AMD AM4 and AM5 platforms, ensuring flexibility for current and next-generation builds.
Technical Specifications
Performance
| Type | Liquid Cooling Kit |
| Suitable For | Processor |
| Fan Diameter | 120 mm |
| CPU Socket Support | LGA 1150, 1151, 1156, 1200, 1700, 1851, AM4, AM5 |
| Fan Speed (Min) | 650 RPM |
| Fan Speed (Max) | 1750 RPM |
| Airflow | 120 m³/h |
| Max Air Pressure | 2 mmH₂O |
| PWM Support | Yes |
| Bearing Type | Sleeve Bearing |
| Fan Noise (Max) | 30 dB |
| Pump Noise | 25 dB |
| Pump Speed | 3100 RPM |
| Pump Connector | 3-pin + 4-pin |
| Pump MTTF | 50,000 h |
| Fan MTTF | 160,000 h |
| Quantity | 1 |
Design & Build
| Colour | Black |
| Radiator Material | Aluminum |
| Number of Fans | 3 |
| RGB Lighting | Yes (Multi-colour) |
Power
| Rated Voltage | 12 V |
| Fan Power Consumption | 2.76 W |
| Pump Power Consumption | 3.6 W |
| Rated Current | 0.23 A |
| Safety Current | 0.45 Ah |
| Pump Voltage | 12 V |
Dimensions
| Radiator Width | 394 mm |
| Radiator Depth | 119 mm |
| Radiator Height | 27.2 mm |
| Pump Width | 83 mm |
| Pump Depth | 76.2 mm |
| Pump Height | 52.3 mm |
| Fan Size (W×D×H) | 120 × 120 × 25 mm |
| Tubing Length | 400 mm |
Compatibility
| Intel Support | LGA 1150 / 1151 / 1156 / 1200 / 1700 / 1851 |
| AMD Support | AM4 / AM5 |
Cooling System Features
| Dual Chamber Pump | Yes |
| Infinity Mirror Design | Yes |
| Daisy Chain Fans | Yes |
| Optimised Tubing | Yes |
