Description

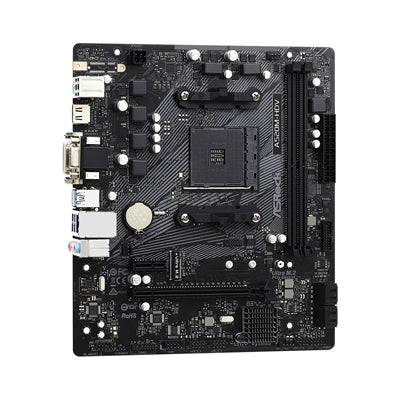

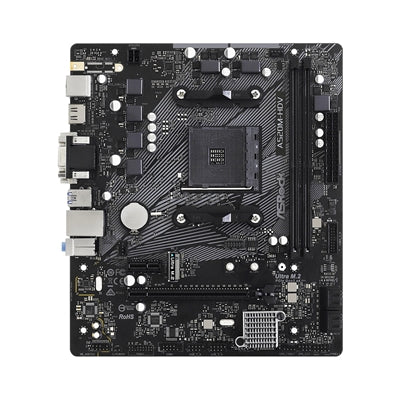

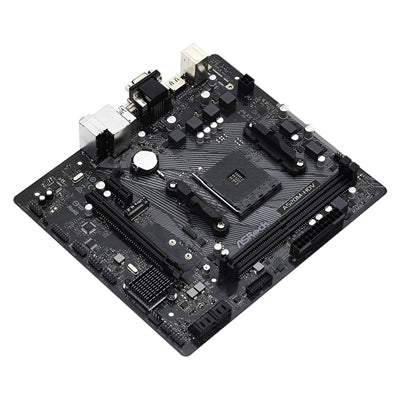

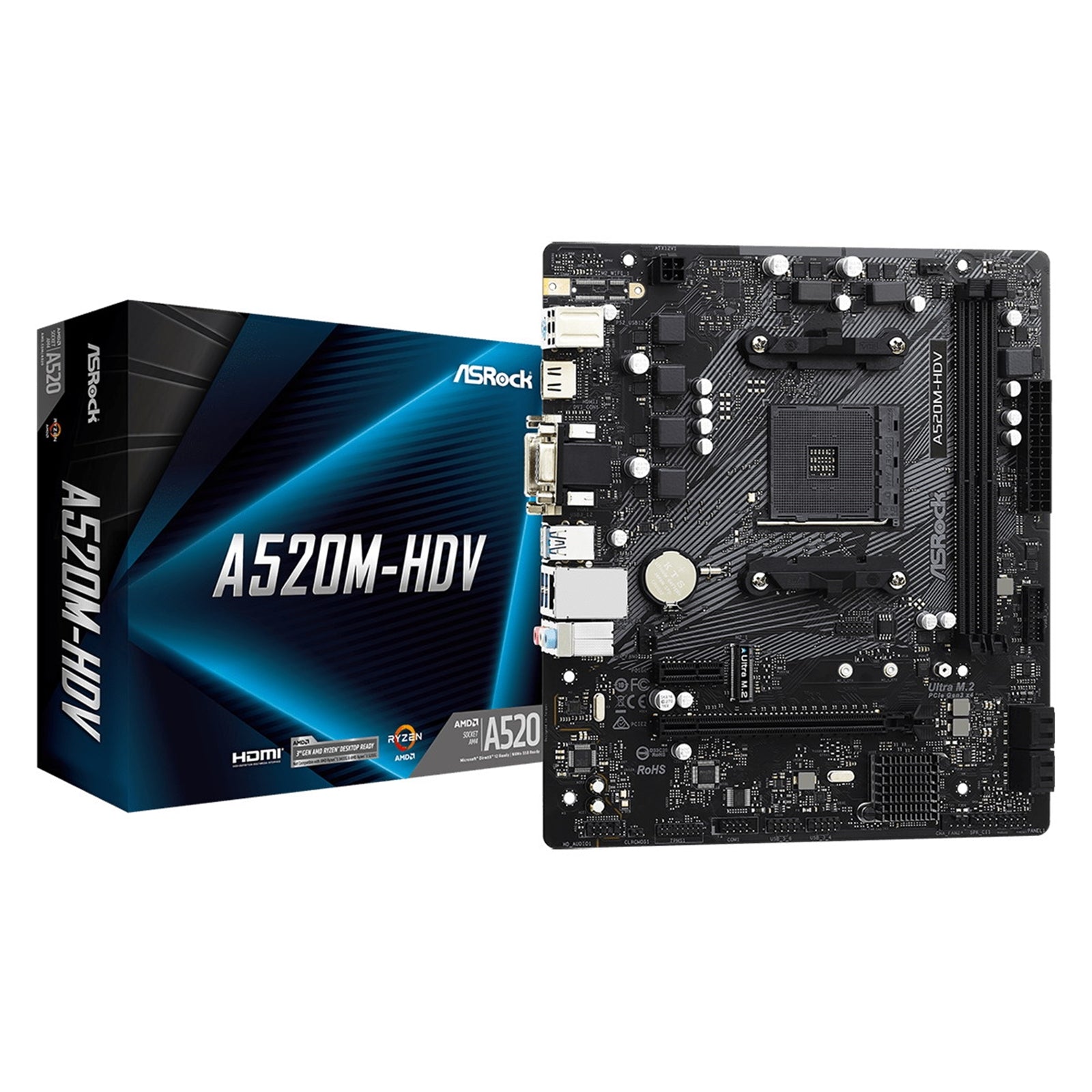

ASRock A520M-HDV Super Alloy AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x DVI-D / 1x HDMI Port
Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors6 Phase Power DesignSupports DDR4 4733+ (OC)1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1Graphics Output Options: D-Sub, DVI-D, HDMI7.1 CH HD Audio (Realtek ALC887 Audio Codec)4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)6 x USB 3.2 Gen1(4 x Rear, 2 x Front)6 x USB 2.0(2 x Rear, 4 x Front)Realtek Gigabit LAN HDMI 4k @60Hz: Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. 3 Graphics Outputs: Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. Software and UEFI: SoftwareASRock Motherboard Utility (A-Tuning)ASRock XFast LANUEFIASRock Full HD UEFIASRock Instant Flash Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | AMD A520 |
| Memory | Dual Channel DDR4 Memory Technology2 x DDR4 DIMM SlotsAMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memoryAMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memoryAMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memoryAMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memoryMax. capacity of system memory: 64GBSupports Extreme Memory Profile (XMP) memory modules15� Gold Contact in DIMM Slots |
Storage Controllers
| Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) | The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. |
| Connector | 1 x SPI TPM Header1 x COM Port Header1 x Chassis Intrusion and Speaker Header1 x CPU Fan Connector (4-pin)2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector1 x 4 pin 12V Power Connector1 x Front Panel Audio Connector2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |

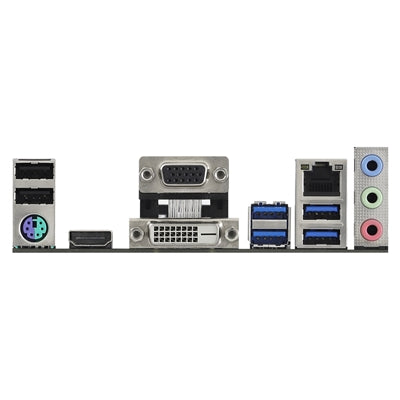

| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x DVI-D Port1 x HDMI Port2 x USB 2.0 Ports (Supports ESD Protection)4 x USB 3.2 Gen1 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cable1 x Screw for M.2 Socket |
| Hardware Monitor | Temperature Sensing: CPU, Chassis FansFan Tachometer: CPU, Chassis FansQuiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis FansFan Multi-Speed Control: CPU, Chassis FansCASE OPEN detectionVoltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cmSolid Capacitor design |
| OS | Microsoft Windows 10 64-bit |
BIOS
| Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APUDirectX 12, Pixel Shader 5.0Shared memory default 2GB. Max Shared memory supports up to 16GB.Three graphics output options: D-Sub, DVI-D and HDMISupports Triple MonitorSupports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60HzSupports DVI-D with max. resolution up to 1920x1200 @ 60HzSupports D-Sub with max. resolution up to 1920x1200 @ 60HzSupports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)Supports HDR (High Dynamic Range) with HDMI 2.1Supports HDCP 2.3 with DVI-D and HDMI 2.1 PortsSupports 4K Ultra HD (UHD) playback with HDMI 2.1 PortSupports Microsoft PlayReady |
Network
| Slots | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)1 x PCI Express 3.0 x1 Slot |
Other
| Unique Feature | ASRock Super AlloyPremium 50A Power ChokeSapphire Black PCBHigh Density Glass Fabric PCBASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
