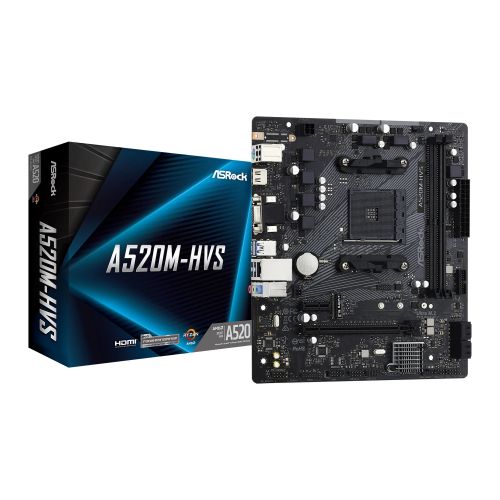

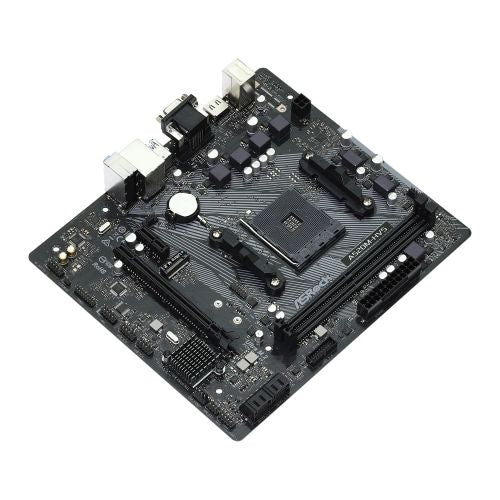

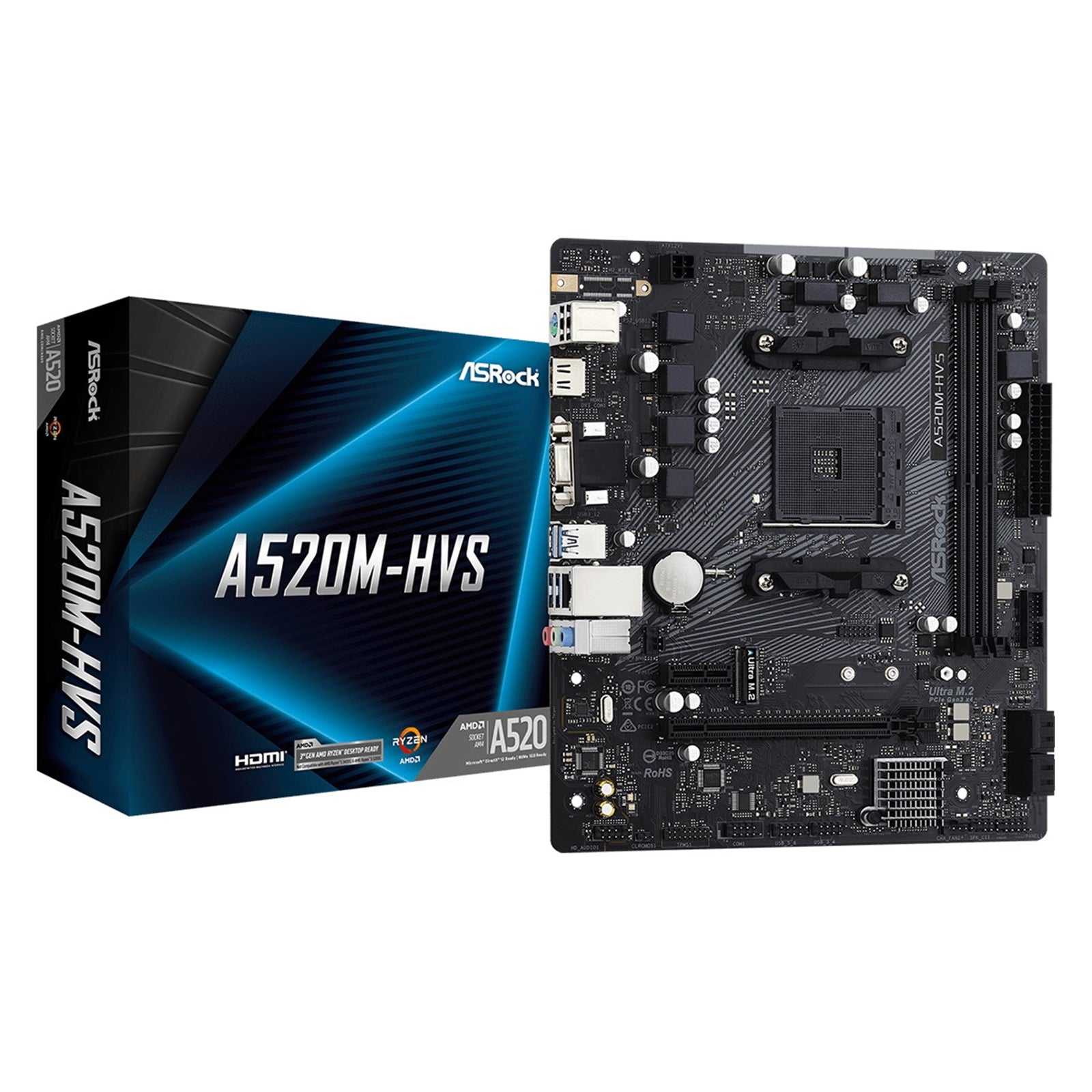

AMD A520 Micro ATX Motherboard (AM4, DDR4, PCIe Gen3, HDMI + VGA)
Overview
This AMD A520 Micro ATX motherboard is designed as a reliable and affordable platform for everyday computing and gaming builds. Supporting AMD Ryzen 5000 / 4000 / 3000 series processors, it offers essential features including DDR4 memory support, PCIe Gen3 expansion, and versatile connectivity options.
Key Features
- Socket AM4 with AMD A520 chipset
- Compatible with Ryzen 3000 / 4000 / 5000 CPUs
- 2x DDR4 DIMM slots supporting up to 64GB
- Memory overclocking up to 4533 MHz
- PCIe 3.0 x16 + PCIe 3.0 x1 expansion
- Ultra M.2 (PCIe Gen3 x4 & SATA3)
- Dual graphics outputs: HDMI + VGA (D-Sub)
- Realtek Gigabit LAN
- 7.1 channel HD audio (Realtek ALC887)
- Windows 11 ready
Performance & Storage
The motherboard features a PCIe Gen3 x4 Ultra M.2 slot delivering data speeds up to 32Gb/s, alongside support for SATA III storage. With dual-channel DDR4 memory support, users benefit from high-speed system performance suitable for both work and gaming.
Graphics & Display
Equipped with both HDMI (4K @ 60Hz) and VGA (D-Sub) outputs, the board ensures compatibility with modern and legacy displays, offering flexibility for various setups.
Technical Specifications
Processor
| Manufacturer | AMD |
| Socket | Socket AM4 |
| Compatibility | AMD Ryzen 3000 / 4000 / 5000 |
Memory
| Memory Type | DDR4-SDRAM |
| Slots | 2 (DIMM) |
| Max Memory | 64 GB |
| Memory Speeds | 2133 – 4533 MHz |
| Channels | Dual-channel |
| ECC | Non-ECC |
Storage
| Interfaces | M.2, SATA III |
| Max Drives | 5 |
Graphics
| GPU Family | AMD Radeon Vega |
| Video Outputs | HDMI, VGA (D-Sub) |
Internal I/O
| USB 2.0 Headers | 2 |
| USB 3.2 Gen1 Headers | 1 |
| Front Audio | Yes |
| ATX Power (24-pin) | Yes |
| CPU Fan Header | Yes |
| Chassis Fan Headers | 2 |
| COM Port Header | 1 |

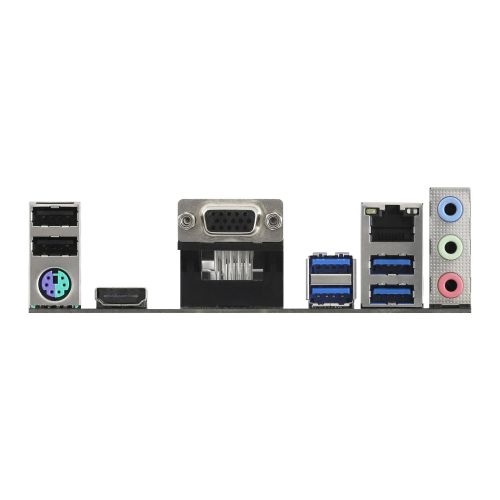

Rear I/O
| USB 2.0 Ports | 2 |
| USB 3.2 Gen1 Ports | 4 |
| Ethernet | 1 × RJ-45 |
| PS/2 | 1 |
| VGA | 1 |
| HDMI | 1 |
| Microphone Input | Yes |
Network
| Ethernet | Gigabit Ethernet |
| LAN Controller | Realtek RTL8111H |
| Wake-on-LAN | Yes |
| Wi-Fi | No |
Features
| Chipset | AMD A520 |
| Form Factor | Micro ATX |
| Audio | 7.1 Channel HD (Realtek ALC887) |
| Component For | PC |
Expansion Slots
| PCIe x16 (Gen3) | 1 |
| PCIe x1 (Gen3) | 1 |
BIOS
| Type | UEFI AMI |
Physical
| Width | 230 mm |
| Depth | 201 mm |
Other
| HS Code | 84733020 |
| Included Cables | SATA |
| Drivers Included | Yes |
