Description

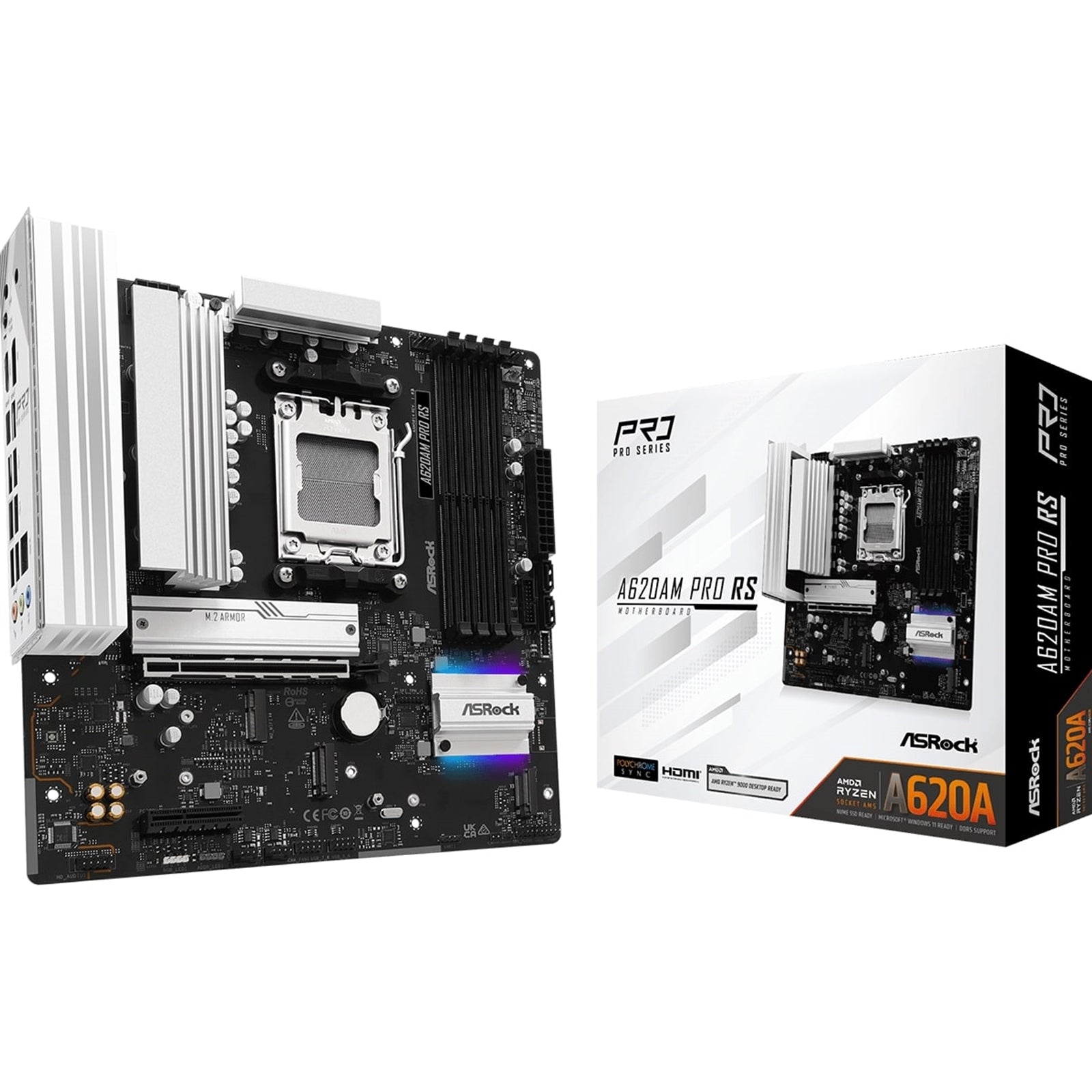

ASRock A620AM PRO RS AMD Socket AM5 Motherboard, 4x DDR5 Slots, 3x M.2 Socket, 2.5GbE LAN, 1x HDMI Port/ 1x DisplayPort
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Optimized VRM Design: Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. Dr. MOSDr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability. Power Connector: Hi-Density Power ConnectorCPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking. 6 Layer PCB: The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! Intelligent Cooling Design: Aluminum HeatsinkThe first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Signal RGB: Signal RGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. Post Status Checker: Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance. Superb Productivity: Dual Channel DDR5Rock-Solid Durability6+2+1 Power Phase, Dr.MOSPre-Installed I/O Shield EZ Update: BIOS Flashback ButtonASRock Auto Driver InstallerEZ TroubleshooterASRock Post Status Checker Certifications: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | AMD A620A |
| Memory | Dual Channel DDR5 Memory Technology4 x DDR5 DIMM SlotsSupports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)Max. capacity of system memory: 256GBSupports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
Memory
| DDR5 XMP & EXPO Support | Derived from the 'built for stable and reliable' designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. |
Storage Controllers
| High Speed M.2 Solution | Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. |
BIOS
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
Network
| Dragon 2.5 Gb/s LAN | The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you�ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. |
| Slots | CPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 modeChipset:- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- 15� Gold Contact in VGA PCIe Slot (PCIE1) |
Rear Panel I/O Ports
| Front USB 3.2 Gen1 Type-C | Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. |
| Connector | - 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header- 3 x Addressable LED Headers- 1 x CPU Fan Connector (4-pin)- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Rear Panel I/O | - 2 x Antenna Mounting Points- 1 x HDMI Port- 1 x DisplayPort 1.4- 3 x USB 3.2 Gen1 Type-A Ports- 1 x USB 3.2 Gen1 Type-C Port- 4 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNCUEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash |
| Accessories | - 1 x User Manual- 2 x SATA Data Cables- 4 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| OS | - Microsoft Windows 10 64-bit / 11 64-bit |
Other
| Ultrafast Connectivity | 2.5G LAN |
