Description

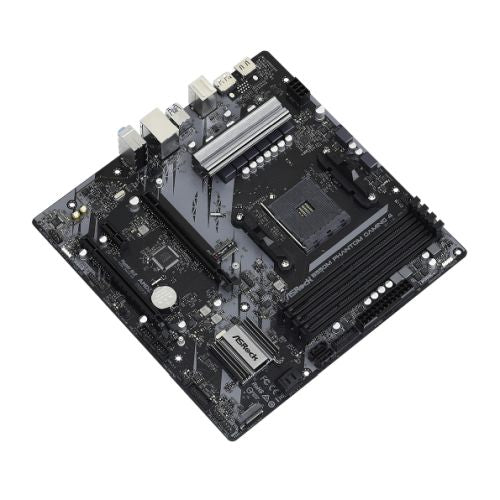

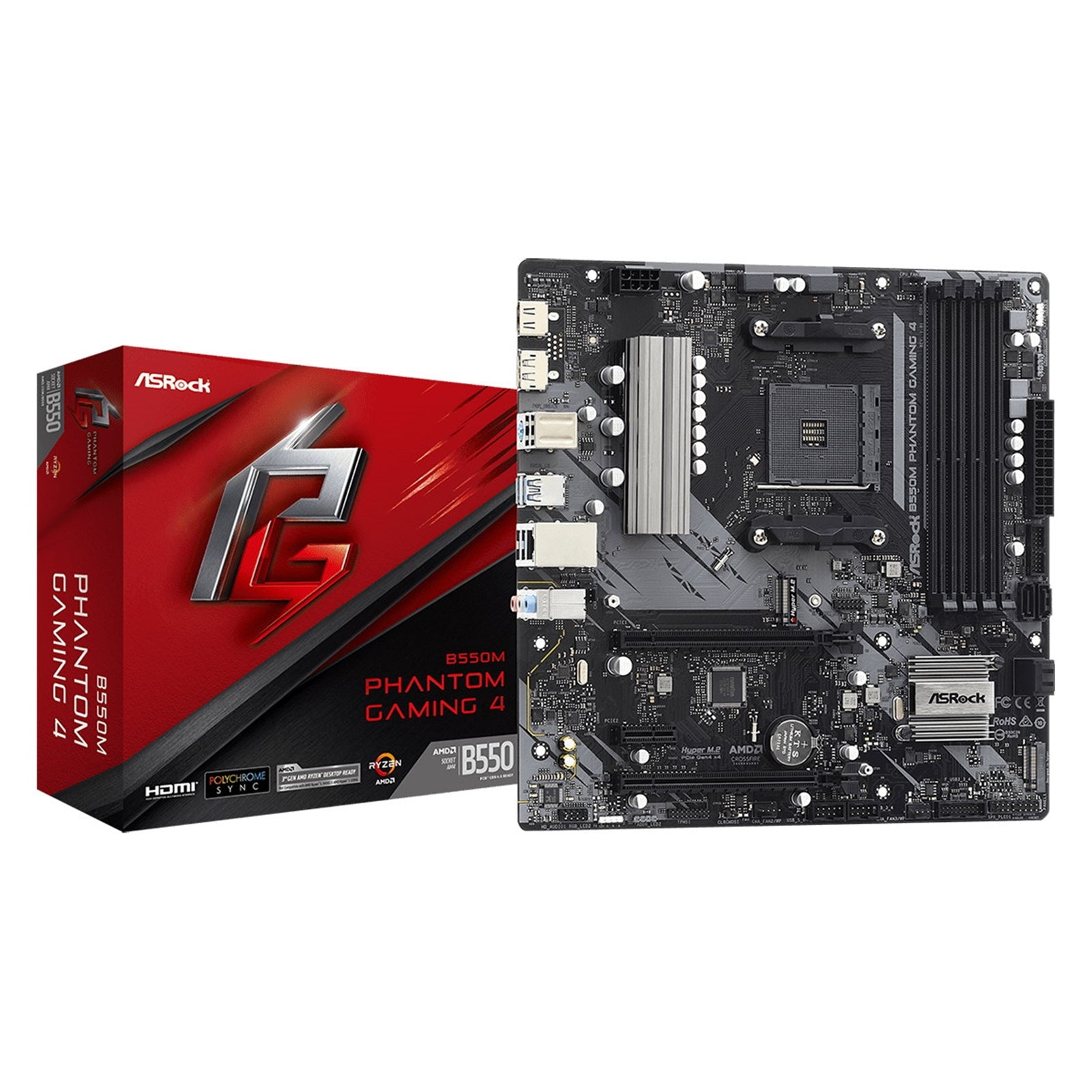

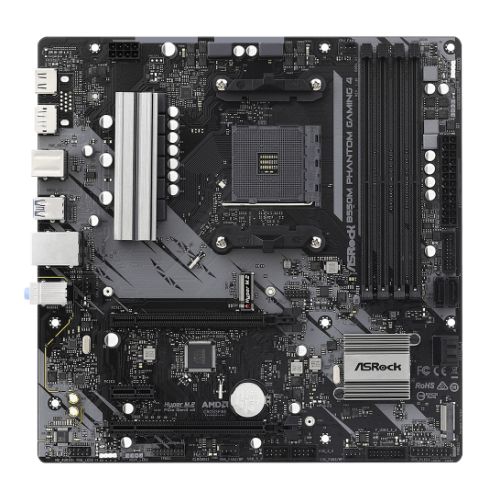

ASRock B550M Phantom Gaming 4 AMD AM4 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 2x M.2 Sockets, GbE LAN, 1x DisplayPort / 1x HDMI Port
Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop Processors8 Power Phase designSupports DDR4 4733+ (OC)1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1Supports AMD CrossFireXGraphics Output Options: HDMI, DisplayPort7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)4 x SATA3, 1 x Hyper M.2(PCIe Gen4 x4), 1 x M.2(PCIe Gen3 x2 & SATA3)8 x USB 3.2 Gen1 (4 Front, 4 Rear)6 x USB 2.0 (4 Front, 2 Rear)Realtek Gigabit LAN Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It�s all about bringing a new gaming experience to gamers! 8 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers. Dual Graphics Outputs: Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. HDMI 4k @60Hz: Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. *Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G. Software and UEFI: Software- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNCUEFI- ASRock Full HD UEFI- ASRock Instant Flash Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Specs
Processor
| Chipset | AMD B550 |
| Memory | Dual Channel DDR4 Memory Technology4 x DDR4 DIMM SlotsAMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memoryAMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memoryMax. capacity of system memory: 128GBSupports Extreme Memory Profile (XMP) memory modules15� Gold Contact in DIMM Slots |
Storage Controllers
| 2oz Copper PCB | 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance! |
| Connector | 1 x SPI TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers2 x Addressable LED Headers1 x CPU Fan Connector (4-pin)3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x Front Panel Audio Connector2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |

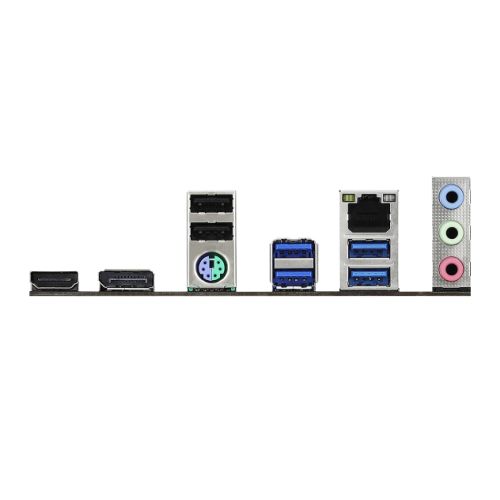

| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x DisplayPort 1.44 x USB 3.2 Gen1 Ports (Supports ESD Protection)2 x USB 2.0 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables2 x Screws for M.2 Sockets |
| Hardware Monitor | Temperature Sensing: CPU, Chassis/Water Pump FansFan Tachometer: CPU, Chassis/Water Pump FansQuiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump FansFan Multi-Speed Control: CPU, Chassis/Water Pump FansVoltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, +1.8V |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cmSolid Capacitor design2oz Copper PCB |
| OS | Microsoft Windows 10 64-bit |
BIOS
| Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APUDirectX 12, Pixel Shader 5.0Shared memory default 2GB. Max Shared memory supports up to 16GB.Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllersSupports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60HzSupports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120HzSupports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)Supports HDR (High Dynamic Range) with HDMI 2.1Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 PortsSupports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 PortsSupports Microsoft PlayReady |
Network
| Slots | AMD Ryzen series CPUs (Matisse)- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)AMD Ryzen series APUs (Renoir)2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)1 x PCI Express 3.0 x1 SlotSupports AMD Quad CrossFireX and CrossFireX |
Other
| Premium 50A Power Choke | Compared to traditional chokes, ASRock�s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. |
| Unique Feature | ASRock Super Alloy- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Hyper M.2 (PCIe Gen4x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
