Description

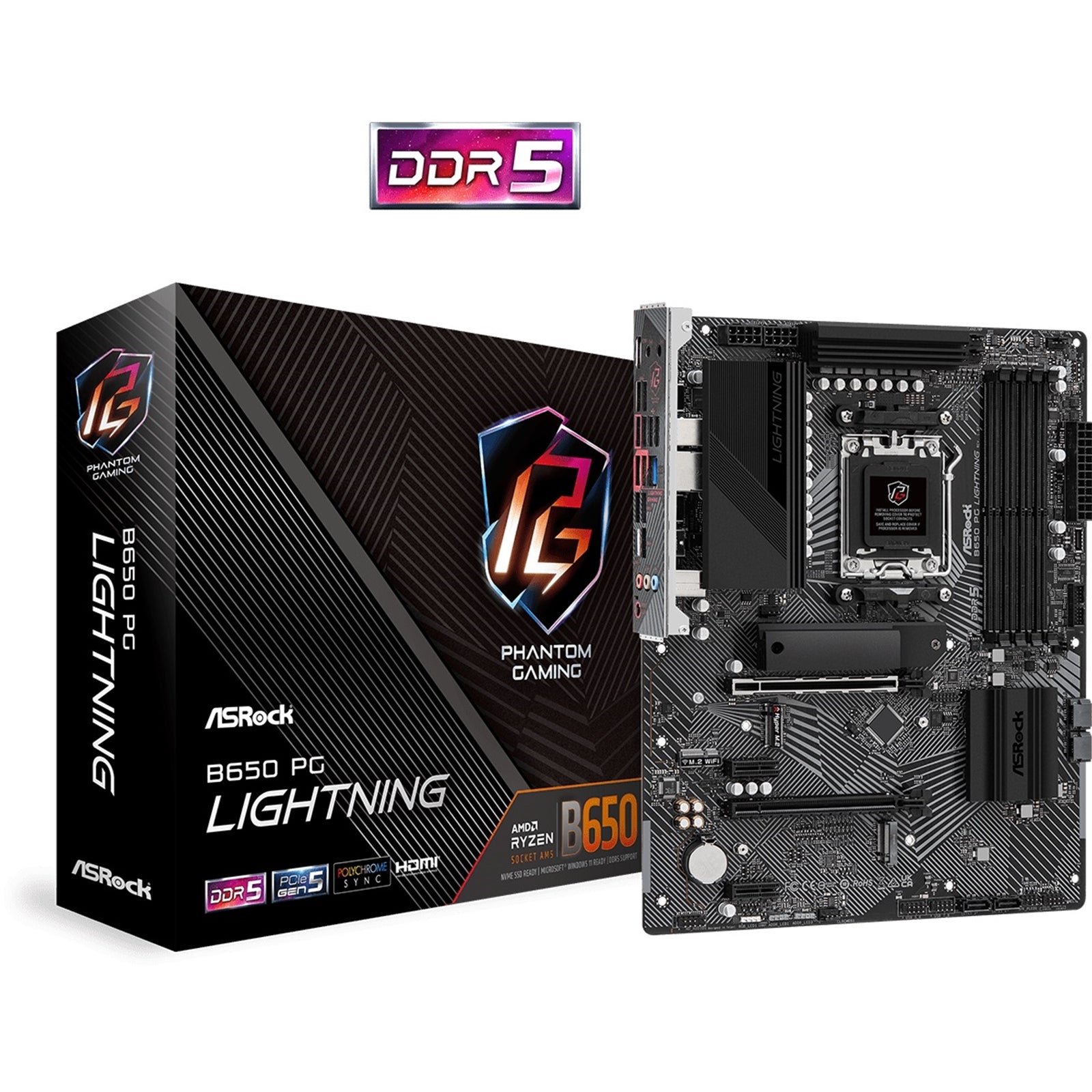

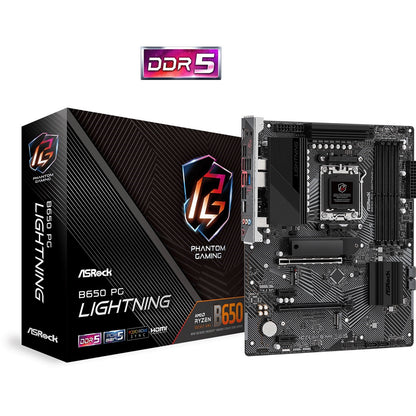

ASRock B650 PG Lightning AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, 1x HDMI Port
Optimized VRM Design - SPS (Smart Power Stage): Dr.MOS design features the latest SPS (Smart Power Stage) technology. It�s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. 14+2+1 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. 8 Layer PCB design: The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise Blazing OC Tuner: The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS. Nahimic Audio - Audio That Matters: Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Enhance Communication Quality: The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. XXL M.2 Heatsink: The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance. Auto Driver Installer: Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically! BIOS Flashback: Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required. Software and UEFI: SoftwareASRock Motherboard Utility (Phantom Gaming Tuning)ASRock Phantom Gaming LAN SoftwareASRock Polychrome SYNCUEFIASRock Full HD UEFIASRock Auto Driver InstallerASRock Instant Flash Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Extreme Memory Overclocking - DDR5 EXPO & XMP Support | Derived from the built for stable and reliable designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6400MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO�/ Intel� XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. |
| Chipset | AMD B650 |
| Memory | Dual Channel DDR5 Memory Technology4 x DDR5 DIMM SlotsSupports DDR5 non-ECC, un-buffered memory up to 6400+(OC)Max. capacity of system memory: 128GBSupports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules |
Memory
| DDR5 Memory with Protection Circuit | Due to the unique electrical architecture of DDR5 DIMM, there�s a high risk of damaging the memory module if AC power isn�t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. |
BIOS
| Graphics | Integrated AMD RDNA 2 graphics (Actual support may vary by CPU)1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
Network
| Slots | CPU:1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 modeChipset:1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
Rear Panel I/O Ports
| Connector | 1 x SPI TPM Header1 x Power LED and Speaker Header1 x RGB LED Header3 x Addressable LED Headers1 x CPU Fan Connector (4-pin)1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)1 x Front Panel Audio Connector2 x USB 2.0 Headers (Support 4 USB 2.0 ports)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver) |
| Rear Panel I/O | 2 x Antenna Mounting Points1 x HDMI Port1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)4 x USB 2.0 Ports1 x RJ-45 LAN Port1 x BIOS Flashback ButtonHD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | 1 x User Manual2 x SATA Data Cables3 x Screws for M.2 Sockets |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm8 Layer PCB |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
Internal I/O Headers
| High Speed M.2 Solution - PCIe Gen5 x4 for SSD | The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. |
| Phantom Gaming 2.5 Gb/s LAN | The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you�ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. |
Other
| Unique Feature | Superb ProductivityPCIe Gen5 (M.2)Dual Channel DDR5Rock-Solid Durability14+2+1 Power Phase, 60A SPSPre-Installed I/O ShieldUltrafast Connectivity2.5G LANASRock Lightning Gaming PortsEZ UpdateBIOS Flashback ButtonASRock Auto Driver Installer |
