Description

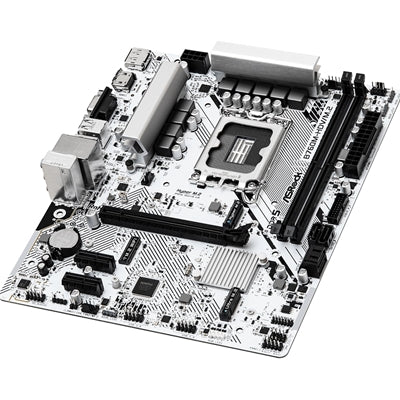

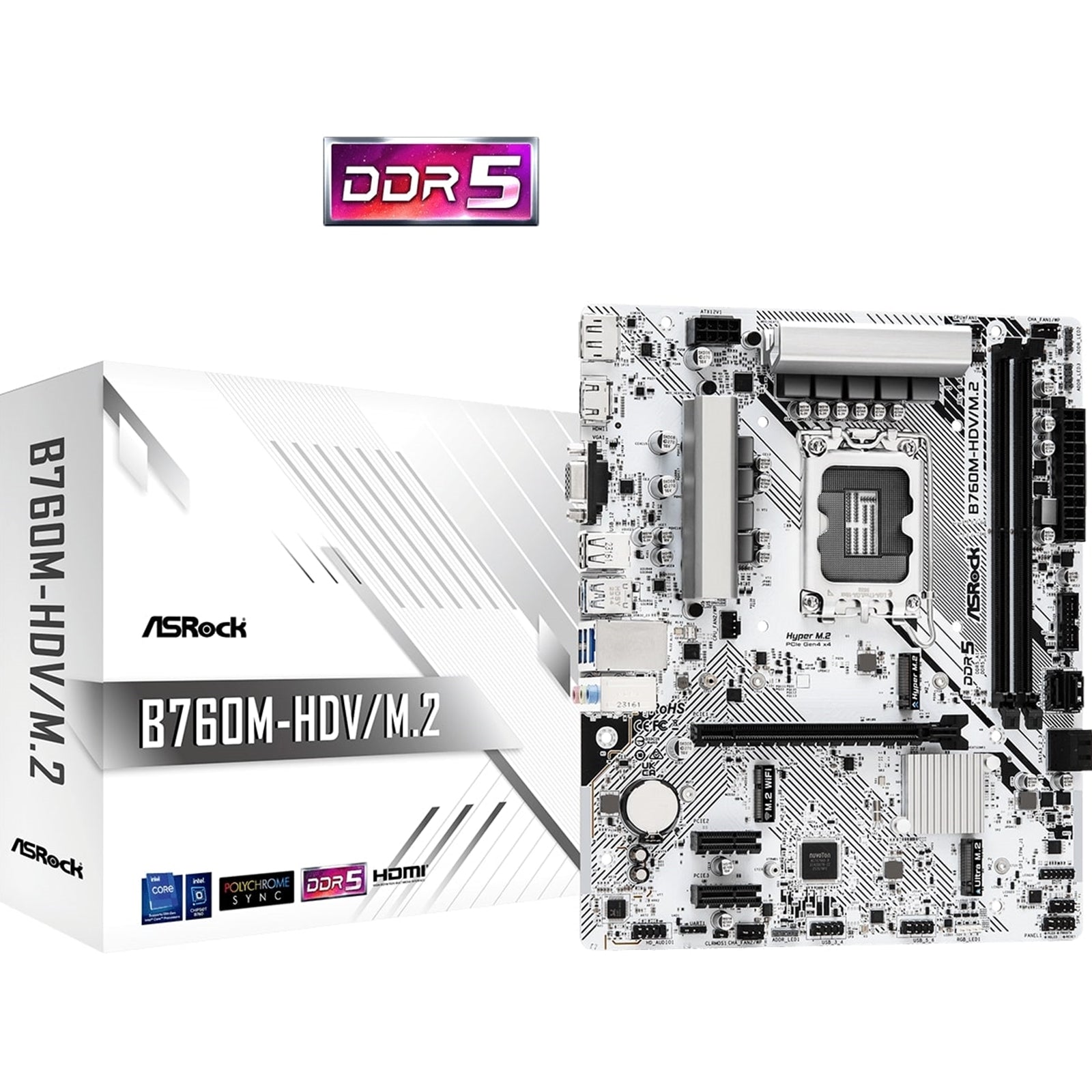

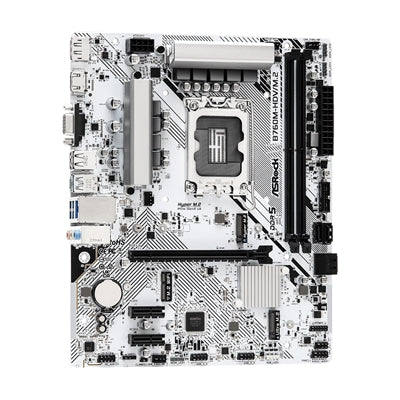

ASRock B760M-HDV/M.2 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Sockets, 2.5GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port
Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)7+1+1 Power PhaseSupports DDR5 7200MHz (OC)1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: HDMI, DisplayPort, D-SubRealtek ALC897 7.1 CH HD Audio Codec4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),1 Ultra M.2 (PCIe Gen3 x4)1 USB 3.2 Gen1 Type-C (Rear),5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),6 USB 2.0 (2 Rear, 4 Front)Dragon 2.5G LANSupports ASRock Auto Driver Installer 7+1+1 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. M.2 (KEY E) For WiFi: Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.Wi-Fi module is not included. 3 Graphics Outputs: Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Auto Driver Installer: No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.step1: Install Auto Driver Installerstep2: Update drivers neededstep3: Done! 1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively.1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively. Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | Intel B760 |
| Memory | Dual Channel DDR5 Memory Technology2 x DDR5 DIMM SlotsSupports DDR5 non-ECC, un-buffered memory up to 7200+(OC)Max. capacity of system memory: 96GBSupports Intel Extreme Memory Profile (XMP) 3.0 |
Memory
| DDR5 XMP & EXPO Support | Derived from the �built for stable and reliable� designing concept, ASRock does not compromise on any details. This motherboards is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. |
BIOS
| Graphics | Intel Xe Graphics Architecture (Gen 12)1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60HzIntel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
Network
| Slots | CPU1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 modeChipset:2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi moduleSupports NVMe SSD as boot disks |
Rear Panel I/O Ports
| Connector | 1 x SPI TPM Header1 x Chassis Intrusion and Speaker Header1 x RGB LED Header3 x Addressable LED Headers1 x CPU Fan Connector (4-pin)1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x Front Panel Audio Connector2 x USB 2.0 Headers (Support 4 USB 2.0 ports)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)Supports in total up to 12V/3A, 36W LED StripSupport in total up to 5V/3A, 15W LED StripCPU_FAN1 supports the fan power up to 1A (12W).CPU_FAN2/WP supports the fan power up to 2A (24W).CHA_FAN1~2/WP support the fan power up to 2A (24W).CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. |

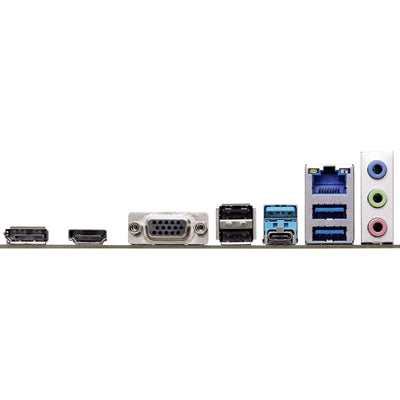

| Rear Panel I/O | 2 x Antenna Mounting Points1 x D-Sub Port1 x HDMI Port1 x DisplayPort 1.41 x USB 3.2 Gen1 Type-C Port3 x USB 3.2 Gen1 Type-A Ports2 x USB 2.0 Ports1 x RJ-45 LAN PortHD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | SoftwareASRock Motherboard Utility (A-Tuning)ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNCUEFIASRock EZ ModeASRock Full HD UEFIASRock My Favorites in UEFIASRock Auto Driver InstallerASRock Instant FlashASRock Easy RAID Installer |
| Accessories | 1 x User Manual1 x I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets |
| Form Factor | Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
Internal I/O Headers
| High Speed M.2 Solution(PCIe Gen4 x4) | Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. |
| Dragon 2.5 Gb/s LAN | The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you�ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. |
| USB 3.2 Gen1 Type-C | USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case. |
Other
| Unique Feature | Superb ProductivityDual Channel DDR5Rock-Solid Durability7+1+1 Power PhaseASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) TechnologyUltrafast Connectivity2.5G LANEZ UpdateASRock Auto Driver Installer |
