Description

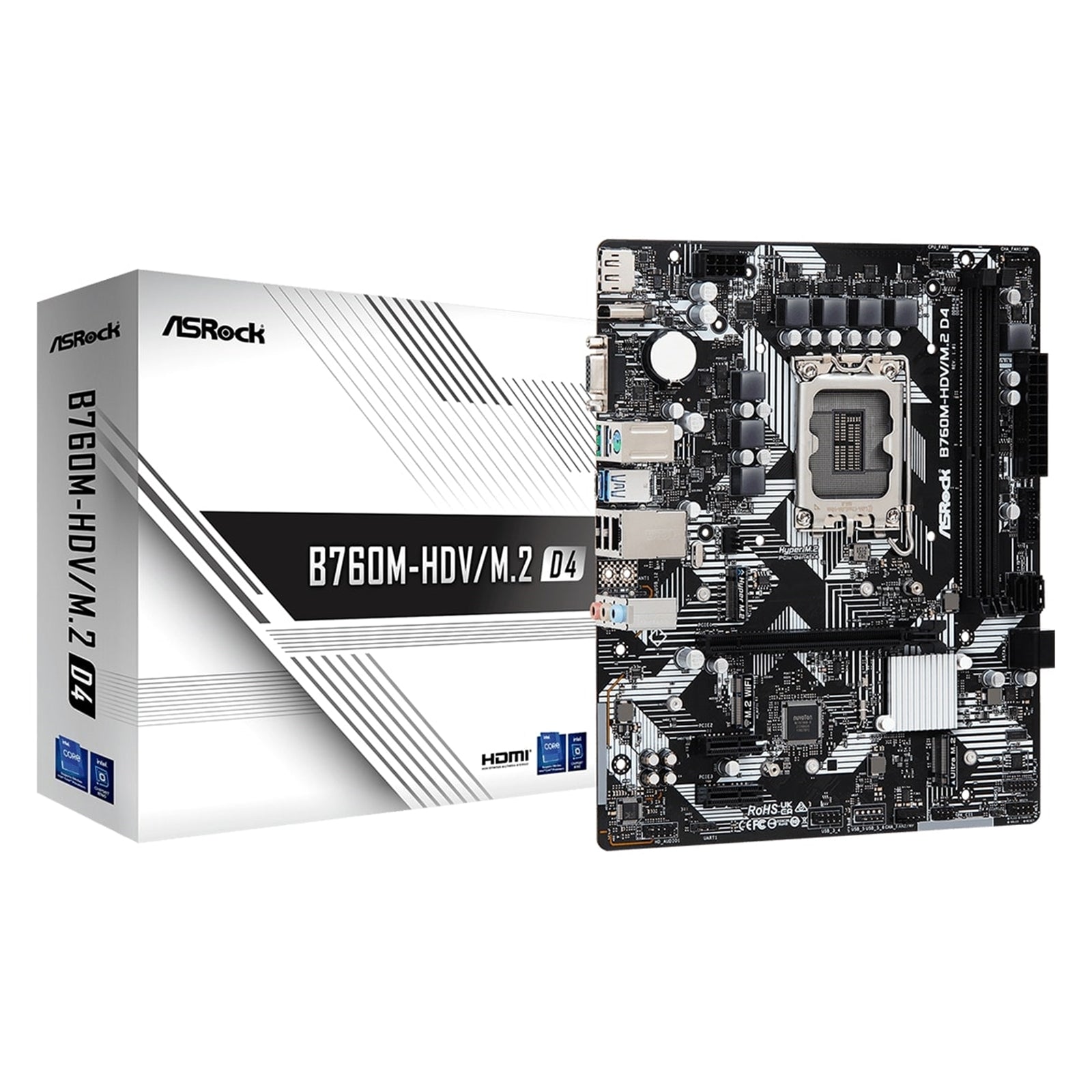

ASRock B760M-HDV/M.2 D4 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 2x M.2 Sockets, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port
Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)5+1+1 Power PhaseSupports DDR4 5333MHz (OC)1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: HDMI, DisplayPort, D-SubRealtek ALC887/897 7.1 CH HD Audio Codec4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)1 Ultra M.2 (PCIe Gen3x4 & SATA)1 USB 3.2 Gen1 Type-C (Rear)5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)5 USB 2.0 (2 Rear, 3 Front)Realtek 1G LANSupports ASRock Auto Driver Installer 5+1+1 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. 3 Graphics Outputs: Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Auto Driver Installer: No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.step1: Install Auto Driver Installerstep2: Update drivers neededstep3: Done! Unique Feature: Rock-Solid Durability5+1+1 Power PhaseEZ UpdateASRock Auto Driver Installer Software and UEFI: SoftwareASRock Motherboard Utility (A-Tuning)ASRock XFast LANUEFIASRock EZ ModeASRock Full HD UEFIASRock My Favorites in UEFIASRock Auto Driver InstallerASRock Instant FlashASRock Easy RAID Installer Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | Intel B760 |
| Memory | Dual Channel DDR4 Memory Technology2 x DDR4 DIMM SlotsSupports DDR4 non-ECC, un-buffered memory up to 5333+(OC)Supports ECC UDIMM memory modules (operate in non-ECC mode)Max. capacity of system memory: 64GBSupports Intel Extreme Memory Profile (XMP) 2.0 |
Storage Controllers
| High Speed M.2 Solution(PCIe Gen4 x4) | Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. |
| M.2 (KEY E) For WiFi | Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. |
BIOS
| Graphics | Intel Xe Graphics Architecture (Gen 12)1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
Network
| Slots | CPU:1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 modeChipset:2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
Rear Panel I/O Ports
| Connector | 1 x SPI TPM Header1 x Chassis Intrusion and Speaker Header1 x CPU Fan Connector (4-pin)1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x Front Panel Audio Connector2 x USB 2.0 Headers (Support 3 USB 2.0 ports)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Rear Panel I/O | 2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x HDMI Port1 x DisplayPort 1.41 x USB 3.2 Gen1 Type-C Port3 x USB 3.2 Gen1 Type-A Ports2 x USB 2.0 Ports1 x RJ-45 LAN PortHD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | 1 x User Manual1 x I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets |
| Form Factor | Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
Other
| Shape The Universe | HDMIPolychrhome S Y N CWiFi 6E |
