Description

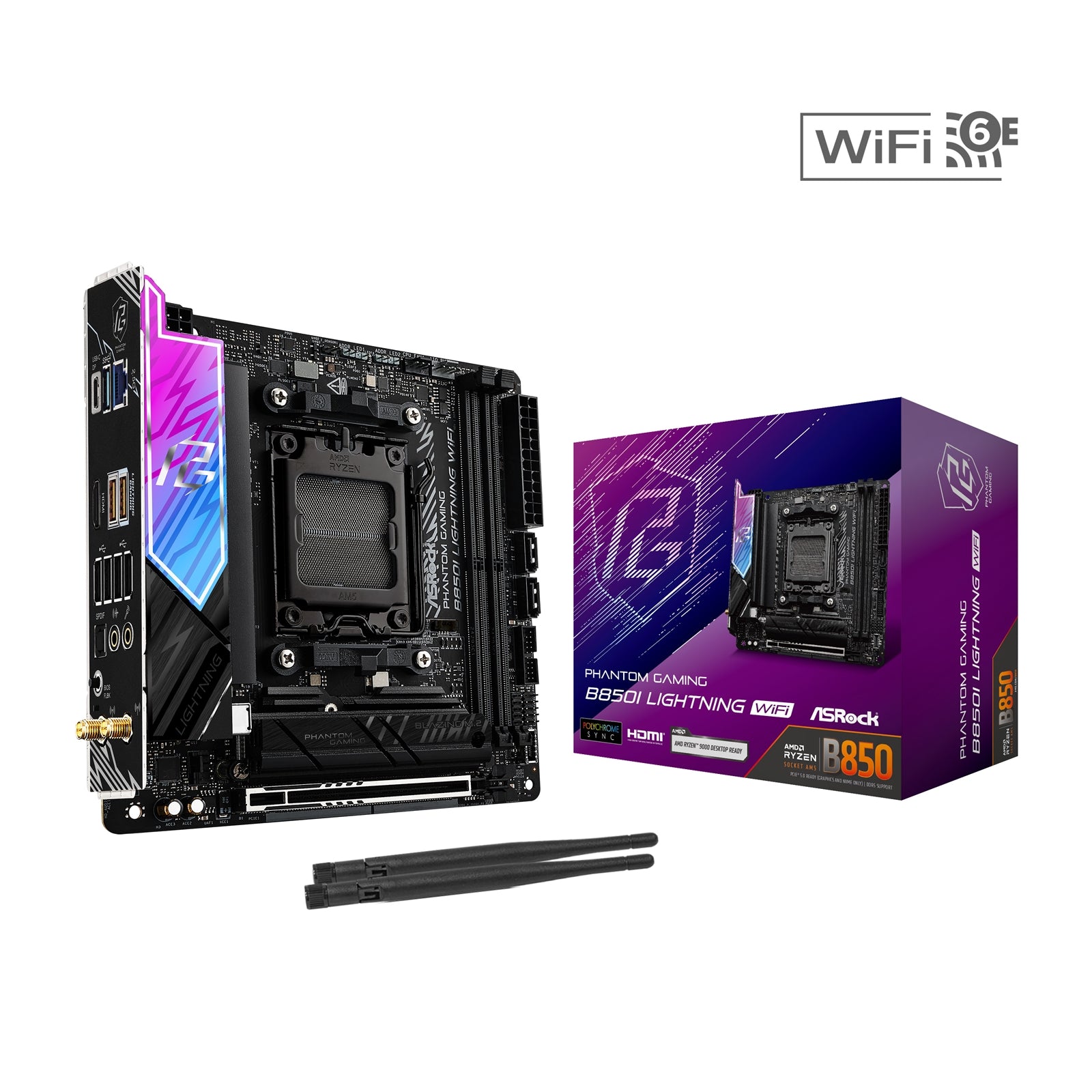

ASRock B850I Lightning WiFi PHANTOM GAMING AMD AM5 Socket Motherboard, Mini-ITX, 2x DDR5 Slots, 2x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x HDMI Port / 1x USB-C
10+1+1 Power Phase: Vcore with SPS design, delivering smoother and neater power to the CPU. USB Type-C (DP-Alt Mode): USB Alternate Mode allows USB Type-C ports to enable both data transfer and display output to DisplayPort monitors through a single cable. Lightning Gaming Ports: Allows user to connect high speed mice/keyboard for lower jitter and latency! Software and UEFI: SoftwareASRock Motherboard Utility (Phantom Gaming Tuning)Killer Control CenterASRock Polychrome SYNCUEFIASRock EZ ModeASRock Full HD UEFIASRock Auto Driver InstallerASRock Instant Flash Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | AMD B850 |
| Memory | Dual Channel DDR5 Memory Technology2 x DDR5 DIMM SlotsSupports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)Max. capacity of system memory: 128GBSupports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Expansion Slot | CPU:1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 modeChipset:1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi modulePCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.Supports NVMe SSD as boot disks |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU)1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz1 x USB 3.2 Gen2 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a) |
Chipset & Form Factor
| Platform | Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm8 Layer PCB |
Storage Controllers
| Blazing M.2 (PCIe Gen5 x4) | Supports up to 2 x NVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard. |
| Connector | 1 x Thermistor Cable Header2 x Addressable LED Headers1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector (Hi-Density Power Connector)1 x Front Panel Audio Connector1 x USB 2.0 Header (Supports 2 USB 2.0 ports)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen1 HeaderSupport in total up to 5V/3A, 15W LED StripCPU_FAN1, CHA_FAN1 and AIO_PUMP support the fan power up to 3A (36W).CPU_FAN1, CHA_FAN1 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
| BIOS Feature | 256Mb AMI UEFI Legal BIOS with GUI support |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
| Accessories | 2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas2 x Screws for M.2 Sockets1 x Thermistor Cable |
Network
| WiFi 6E (802.11axe) | Better and faster internet traffic with lower latency! |
| Killer Ethernet E3100 | Killer E3100 2.5 Gbps supports prioritization engine, ensuring top-tier networking for gaming and multimedia. |
| Wireless LAN | 802.11axe Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/ac/ax/axeSupports Dual-Band 2x2 with extended 6GHz band supportWi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.A 6GHz compatible router is required for 6E functionality.2 x antennas to support 2 x (Transmit) x 2 (Receive) diversity technologySupports Bluetooth 5.2Supports MU-MIMO |
Rear Panel I/O Ports
| Rear Panel I/O | 2 x Antenna Ports1 x HDMI Port1 x Optical SPDIF Out Port2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (DP-alt mode supports DP1.4a.)1 x USB 3.2 Gen1 Port4 x USB 2.0 Ports1 x RJ-45 LAN Port1 x BIOS Flashback Button1 x Line Out Jack (Gold Audio Jack)1 x Microphone Input Jack (Gold Audio Jack)USB32_23 are Lightning Gaming Ports.USB32_TC1 supports a maximum speed of 40 Gb/s as a USB4 port with the 8000 (Phoenix 1 and Phoenix 2) series processors. |
Other
| Unique Feature | Superb ProductivityPCIe Gen5 (Graphics, M.2)Dual Channel DDR5Rock-Solid Durability10+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink ArmorFlexible Integrated I/O ShieldUltrafast GamingKiller 2.5G LAN, 802.11axe Wi-Fi 6E ModuleASRock Lightning Gaming PortsEZ UpdateBIOS Flashback ButtonASRock Auto Driver Installer |
