Description

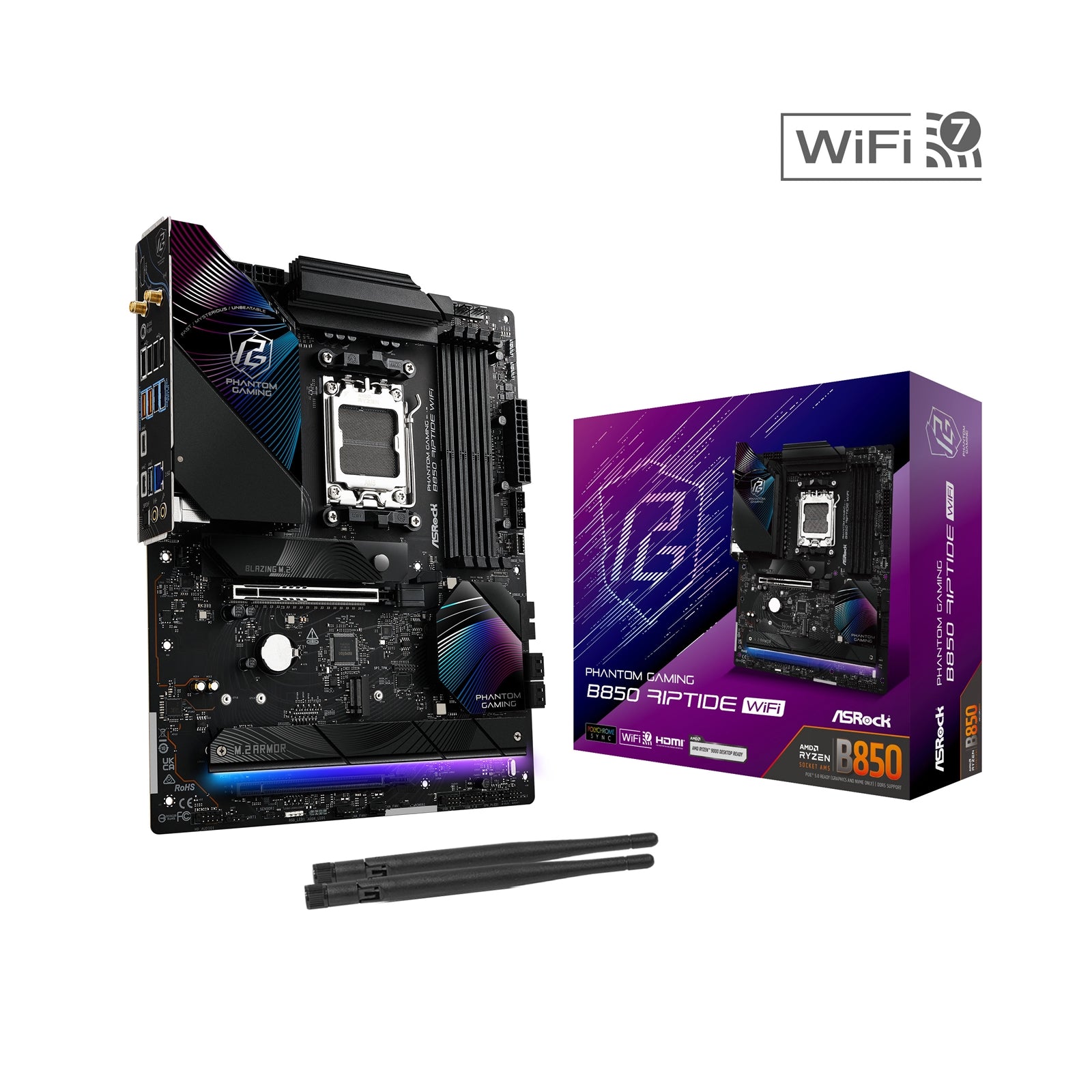

ASRock Phantom Gaming B850 Riptide WiFi AMD AM5 Motherboard | ATX | 4x DDR5 | 4x M.2 | Wi-Fi 7
14+2+1 Power Phase Design: Vcore with Dr.MOS design, delivering smoother and neater power to the CPU. Exclusive 20K Cap with 1000uF Capacitance: Featuring ASRock's exclusive 1000uF capacitor with 20,000 hrs lifespan, ensuring stable and ultimate performance. Toolless Multi-Layer M.2 Heatsink: Including a quick-release mechanism heatsink for effortless and toolless M.2 SSD installation. Lite Release Design: Equipped with an enlarged latch for easy pressing, simplifying both the installation and removal of graphics cards. Lightning Gaming Ports: Allows user to connect high speed mice/keyboard for lower jitter and latency! Wi-Fi 7 802.11be: Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency. Software and UEFI: SoftwareASRock Motherboard Utility (Phantom Gaming Tuning)Killer Control CenterASRock Polychrome SYNCUEFIASRock EZ ModeASRock Full HD UEFIASRock Auto Driver InstallerASRock Instant Flash Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | AMD B850 |
| Memory | Dual Channel DDR5 Memory Technology4 x DDR5 DIMM SlotsSupports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)Max. capacity of system memory: 256GBSupports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Expansion Slot | CPU:1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 modeChipset:1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi modulePCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.If M2_4 is occupied, PCIE2 will be disabled.Supports NVMe SSD as boot disks15� Gold Contact in VGA PCIe Slot (PCIE1) |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU)1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
Chipset & Form Factor
| Platform | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm8 Layer PCB |
Storage Controllers
| Connector | 1 x SPI TPM Header1 x Thermistor Cable Header1 x Power LED and Speaker Header1 x RGB LED Header3 x Addressable LED Headers2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector (Hi-Density Power Connector)2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)1 x Front Panel Audio Connector2 x USB 2.0 Headers (Support 4 USB 2.0 ports)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)Supports in total up to 12V/3A, 36W LED StripSupport in total up to 5V/3A, 15W LED StripCPU_FAN1 supports the fan power up to 1A (12W).CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
| BIOS Feature | 256Mb AMI UEFI Legal BIOS with GUI support |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
| Accessories | 2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas1 x ARGB Splitter Cable1 x Thermistor Cable |
Network
| Wireless LAN | 802.11be 2x2 Wi-Fi 7 ModuleSupports IEEE 802.11a/b/g/n/ac/ax/axe/beSupports 2.4GHz/5GHz/6GHz frequency bandSupports 160MHz channel bandwidth with 6GHz frequency bandWi-Fi 7 (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.1 antenna to support 2 (Transmit) x 2 (Receive) diversity technologySupports Bluetooth 5.4Supports MU-MIMO |
Rear Panel I/O Ports
| Rear Panel I/O | 2 x Antenna Ports1 x HDMI Port1 x Optical SPDIF Out Port2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)3 x USB 3.2 Gen1 Type-A Ports2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)4 x USB 2.0 Ports1 x RJ-45 LAN Port1 x BIOS Flashback Button1 x Line Out Jack (Gold Audio Jack)1 x Microphone Input Jack (Gold Audio Jack)USB32_12 are Lightning Gaming Ports.USB32_34 supports Ultra USB Power. |
Other
| Unique Feature | Superb ProductivityPCIe Gen5 (Graphics, M.2)Dual Channel DDR5Rock-Solid Durability14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink ArmorFlexible Integrated I/O Shield20K Long-lasting Black Caps (high quality and conductive polymer capacitors)Ultrafast GamingKiller 2.5G LAN, 802.11be Wi-Fi 7 ModuleASRock Lightning Gaming PortsEZ UpdateBIOS Flashback ButtonASRock Auto Driver InstallerEZ TroubleshooterASRock Post Status Checker |
