Description

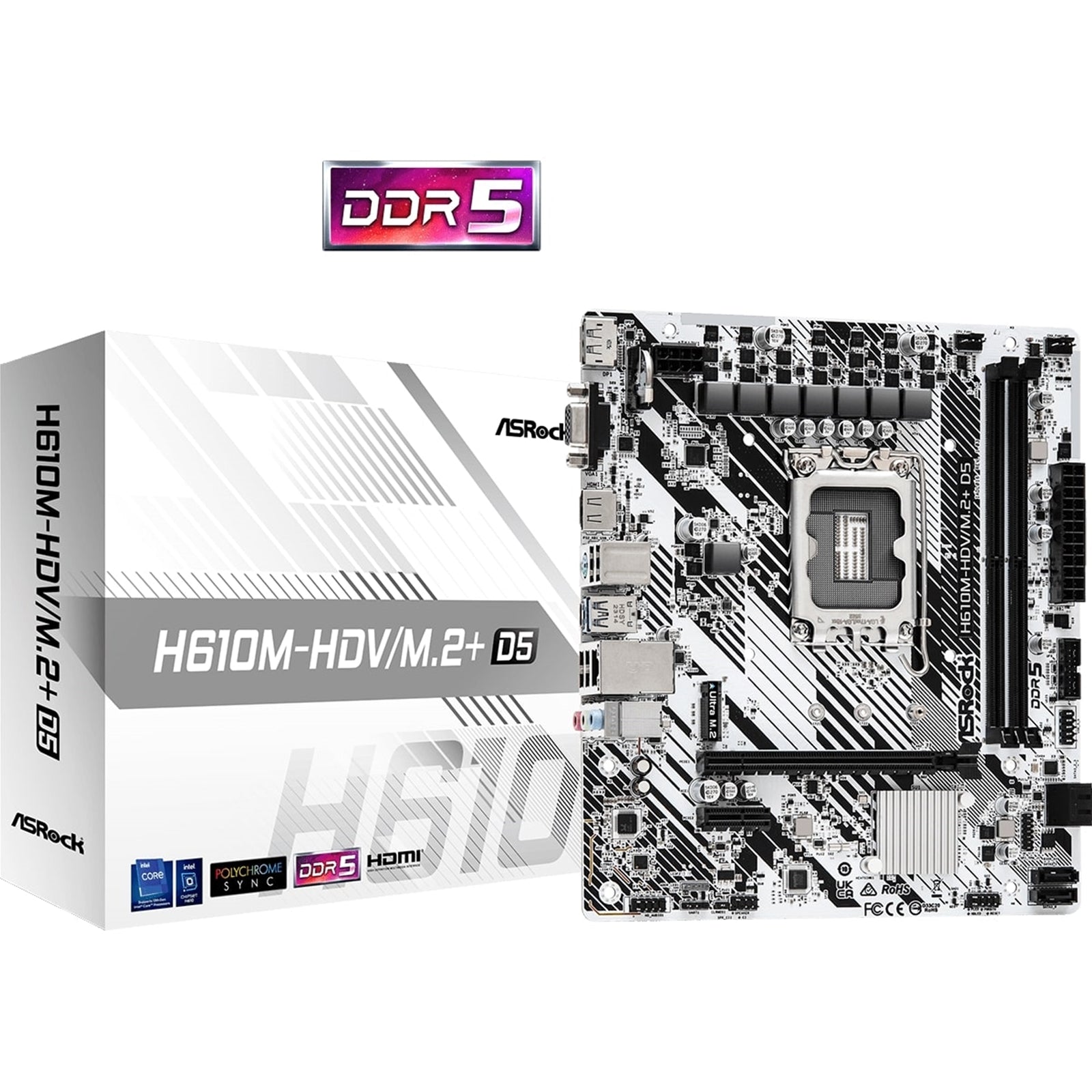

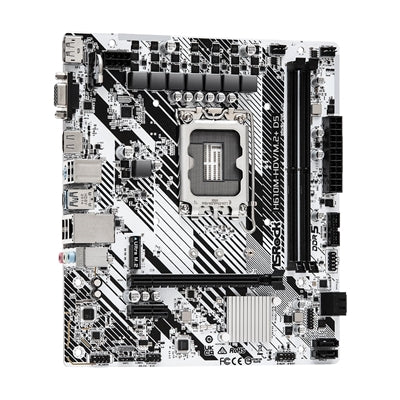

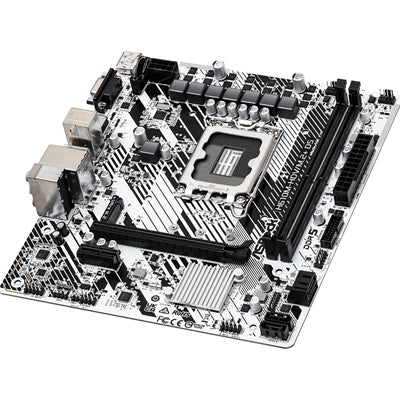

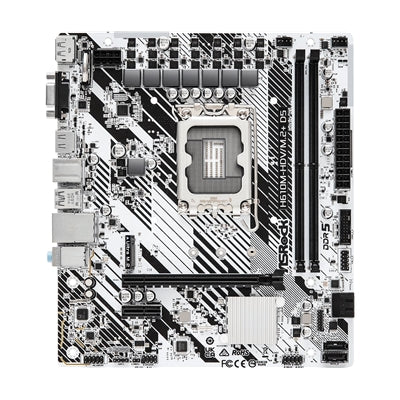

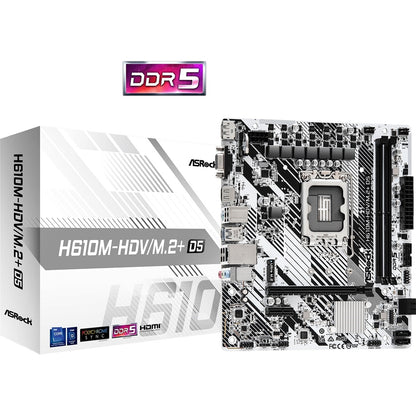

ASRock H610M-HDV/M.2+ D5 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, 1x USB-C Port, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port
6+1+1 Power Phase Design: Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. Auto Driver Installer: No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.step1: Install Auto Driver Installerstep2: Update drivers neededstep3: Done! 3 Graphics Outputs: Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage. HDMI 4k @60Hz: Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Software: ASRock Motherboard Utility (A-Tuning)ASRock XFast LANASRock Polychrome SYNC* Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | Intel� H610 |
| Memory | Dual Channel DDR5 Memory Technology2 x DDR5 DIMM Slots13th Gen Intel� Core� Processors support DDR5 non-ECC, un-buffered memory up to 5600*12th Gen Intel� Core� Processors support DDR5 non-ECC, un-buffered memory up to 4800*Max. capacity of system memory: 96GBSupports Intel� Extreme Memory Profile (XMP) 3.0* Actual support may vary by CPU. |
| Chipset: | 1 x PCIe 3.0 x1 Slot (PCIE2)**Supports NVMe SSD as boot disks |
Storage Controllers
| Chipset: | 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*4 x SATA3 6.0 Gb/s Connectors*Supports NVMe SSD as boot disks |
BIOS
| Graphics | Intel� Xe Graphics Architecture (Gen 12)*1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz*Intel� UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Accessories | 1 x User Manual1 x I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket |
| Form Factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| OS | Microsoft� Windows� 10 64-bit / 11 64-bit |
Rear Panel I/O Ports
| Connector | 1 x SPI TPM Header1 x Chassis Intrusion and Speaker Header1 x Addressable LED Header*1 x CPU Fan Connector (4-pin)**1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x Front Panel Audio Connector1 x USB 2.0 Header (Supports 2 USB 2.0 ports)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)*Support in total up to 5V/3A, 15W LED Strip** CPU_FAN1 supports the fan power up to 1A (12W).*** CHA_FAN1/WP supports the fan power up to 2A (24W).CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x HDMI Port1 x DisplayPort 1.41 x USB 3.2 Gen1 Type-C Port1 x USB 3.2 Gen1 Type-A Port4 x USB 2.0 Ports1 x RJ-45 LAN PortHD Audio Jacks: Line in / Front Speaker / Microphone |
Internal I/O Headers
| Ultra M.2 32Gb/s (PCIe Gen3 x4) | The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. |
| USB 3.2 Gen1 Type-C | USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case. |
Other
| Superb Productivity | Dual Channel DDR5 |
| Rock-Solid Durability | 6+1 Power Phase |
| EZ Update | ASRock Auto Driver Installer |
