Description

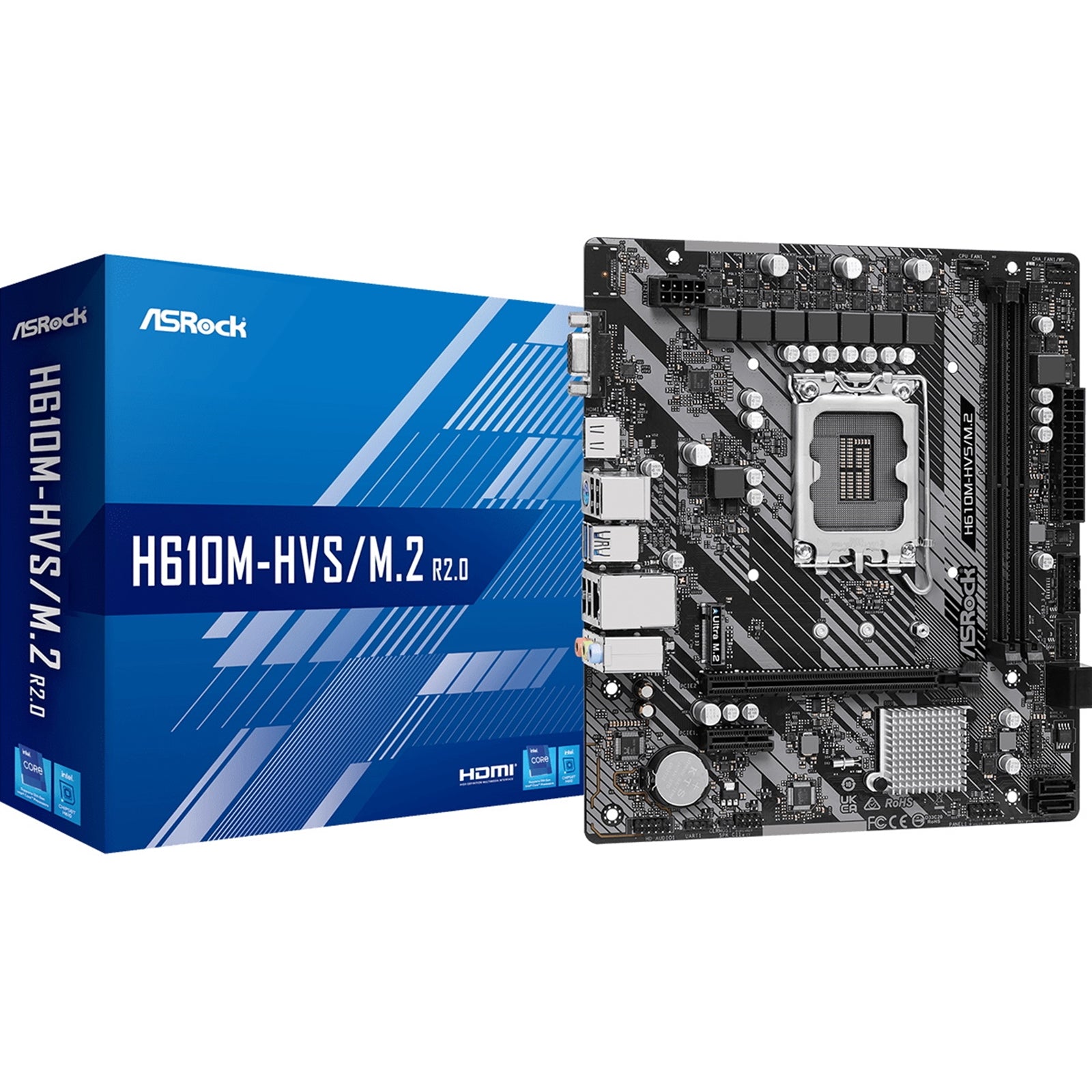

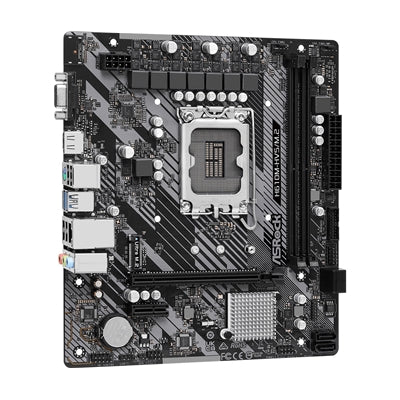

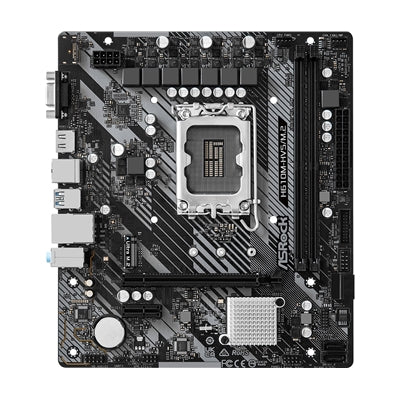

ASRock H610M-HVS/M.2 R2.0 Super Alloy Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port
Supports 12th Gen Intel Core Processors (LGA1700)7 Phase Power DesignSupports DDR4 3200MHz1 PCIe 4.0 x16, 1 PCIe 3.0 x1Graphics Output Options: HDMI, D-SubRealtek ALC897 7.1 CH HD Audio Codec4 SATA31 Ultra M.2 (PCIe Gen3 x4)4 USB 3.2 Gen1 (2 Rear, 2 Front)6 USB 2.0 (4 Rear, 2 Front)Realtek Gigabit LAN Digi Power: Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced. Dual Graphics Outputs: Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now. HDMI 4k @60Hz: Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Premium Power Choke: Compared to traditional chokes, ASRock�s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB: Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. Full Spike Protection: Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard�s components from being damaged by these unexpected voltage spikes. Software and UEFI: Software- ASRock Motherboard Utility (A-Tuning)- ASRock XFast LANUEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash
Specs
Processor
| Chipset | Intel H610 |
| Memory | Dual Channel DDR4 Memory Technology2 x DDR4 DIMM SlotsSupports DDR4 non-ECC, un-buffered memory up to 3200Supports ECC UDIMM memory modules (operate in non-ECC mode)Max. capacity of system memory: 64GBSupports Intel Extreme Memory Profile (XMP) 2.0 |
Storage Controllers
| Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) | The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. |
| Connector | 1 x SPI TPM Header1 x Chassis Intrusion and Speaker Header1 x CPU Fan Connector (4-pin)1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x Front Panel Audio Connector1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |

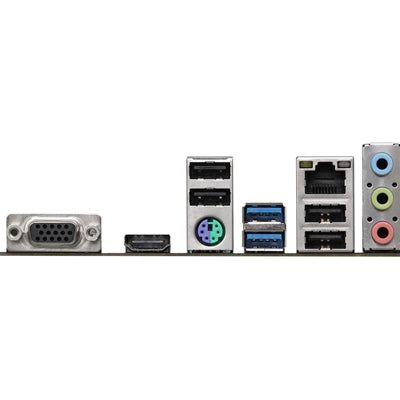

| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x HDMI Port2 x USB 3.2 Gen1 Ports (Supports ESD Protection)4 x USB 2.0 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories | Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket |
| Hardware Monitor | Fan Tachometer: CPU, Chassis/Water Pump FansQuiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump FansFan Multi-Speed Control: CPU, Chassis/Water Pump FansCASE OPEN detectionVoltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V |
| Form Factor | Micro ATX Form Factor: 8.76-in x 7.4-in, 22.3 cm x 18.8 cmSolid Capacitor design |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
BIOS
| Graphics | Intel Xe Graphics Architecture (Gen 12)Dual graphics output: support HDMI and D-Sub ports by independent display controllersSupports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60HzSupports D-Sub with max. resolution up to 1920x1200 @ 60HzSupports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port |
Network
| Slots | CPU:- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 modeChipset:- 1 x PCIe 3.0 x1 Slot (PCIE1) |
Other
| Unique Features | ASRock Super Alloy- Premium Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Ultra M.2 (PCIe Gen3x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop |
