Description

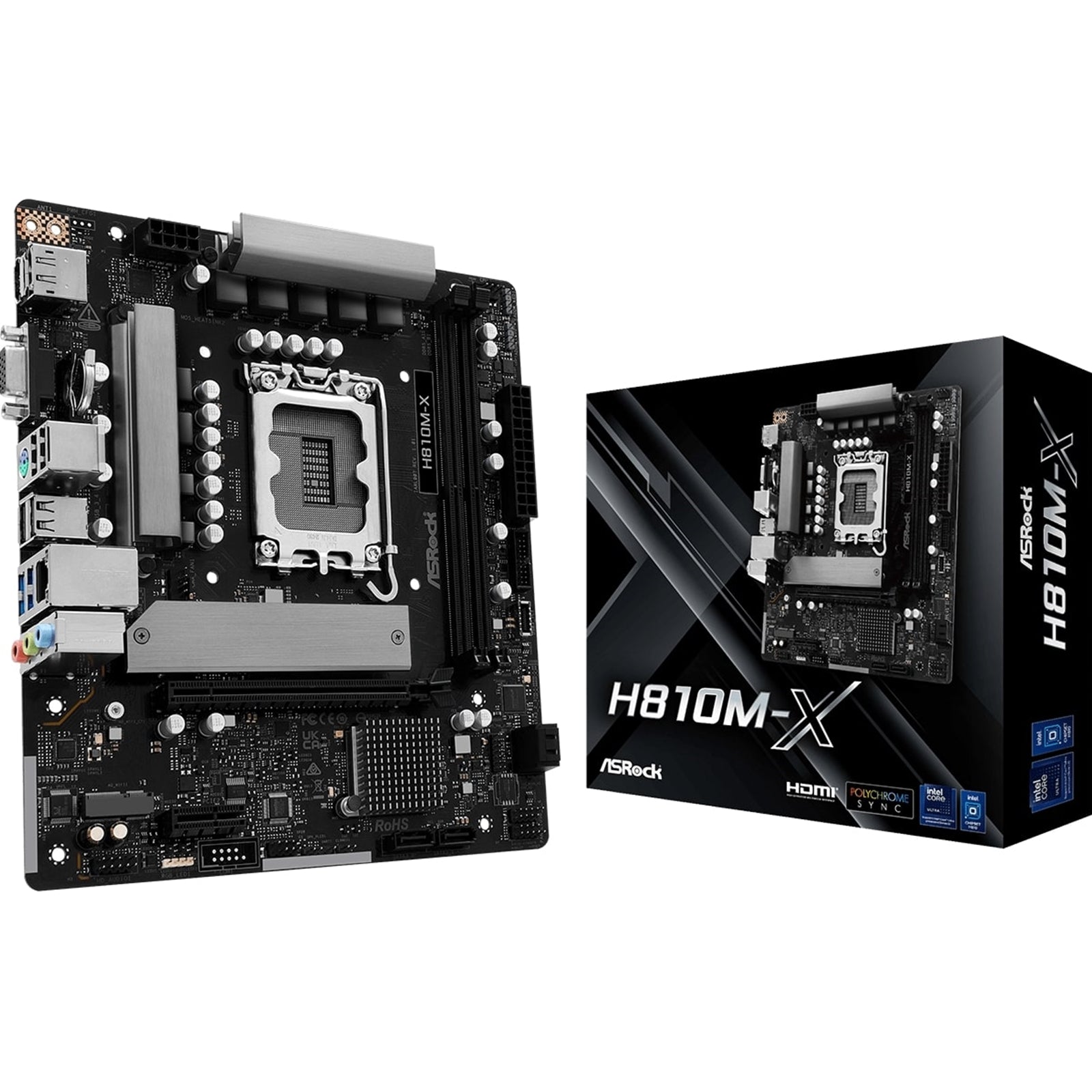

ASRock H810M-X Intel Socket 1851 Motherboard, 2x DDR5 DIMM Slots, 1x M.2 Socket, 2.5G LAN, 1x HDMI Port / 1x DisplayPort
X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks. Intelligent Cooling Design: Aluminum HeatsinkThe first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. SignalRGB: SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. 3 Graphics Outputs: Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Auto Driver Installer: No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.step1: Install Auto Driver Installerstep2: Update drivers neededstep3: Done! Superb Productivity: Dual Channel DDR5Rock-Solid Durability6+1+1+1+1 Power PhaseASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | Intel H810 |
| Memory | Dual Channel DDR5 Memory Technology2 x DDR5 DIMM SlotsSupports DDR5 non-ECC, un-buffered memory up to 6400Supports Clocked Unbuffered DIMM (CUDIMM)Max. capacity of system memory: 128GBSupports Intel Extreme Memory Profile (XMP) 3.0x |
Storage Controllers
| High Speed M.2 Solution | Hyper M.2 Gen4 x4Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. |
BIOS
| Graphics | Intel Xe LPG Graphics Architecture1 HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz1 DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
Network
| Dual Band 802.11ac WiFi | No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth. |
| Dragon 2.5 Gb/s LAN | The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you�ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. |
| Slots | CPU:1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 modeChipset:1 x PCIe 4.0 x1 Slot (PCIE2)1 xM.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
Rear Panel I/O Ports
| Front USB 3.2 Gen1 Type-C | Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. |
| Connector | 1 x SPI TPM Header1 x Power LED and Speaker Header1 x RGB LED Header2 x Addressable LED Headers1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector1 x Front Panel Audio Connector1 x USB 2.0 Header (Supports 2 USB 2.0 ports)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen1 Header |
| Rear Panel I/O | 2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x HDMI Port1 x DisplayPort 1.42 x USB 3.2 Gen1 Ports4 x USB 2.0 Ports1 x RJ-45 LAN PortHD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | SoftwareASRock Motherboard Utility (A-Tuning)ASRock Dragon 2.5G LAN SoftwareASRock Polychrome SYNCUEFIASRock EZ ModeASRock Full HD UEFIASRock My Favorites in UEFIASRock Auto Driver InstallerASRock Instant Flash |
| Accessories | 1 x I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket |
| Form Factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| OS | Microsoft Windows 11 64-bit |
Other
| Ultrafast Connectivity | 2.5G LAN |
| EZ Update | -ASRock Auto Driver Installer |
