Description

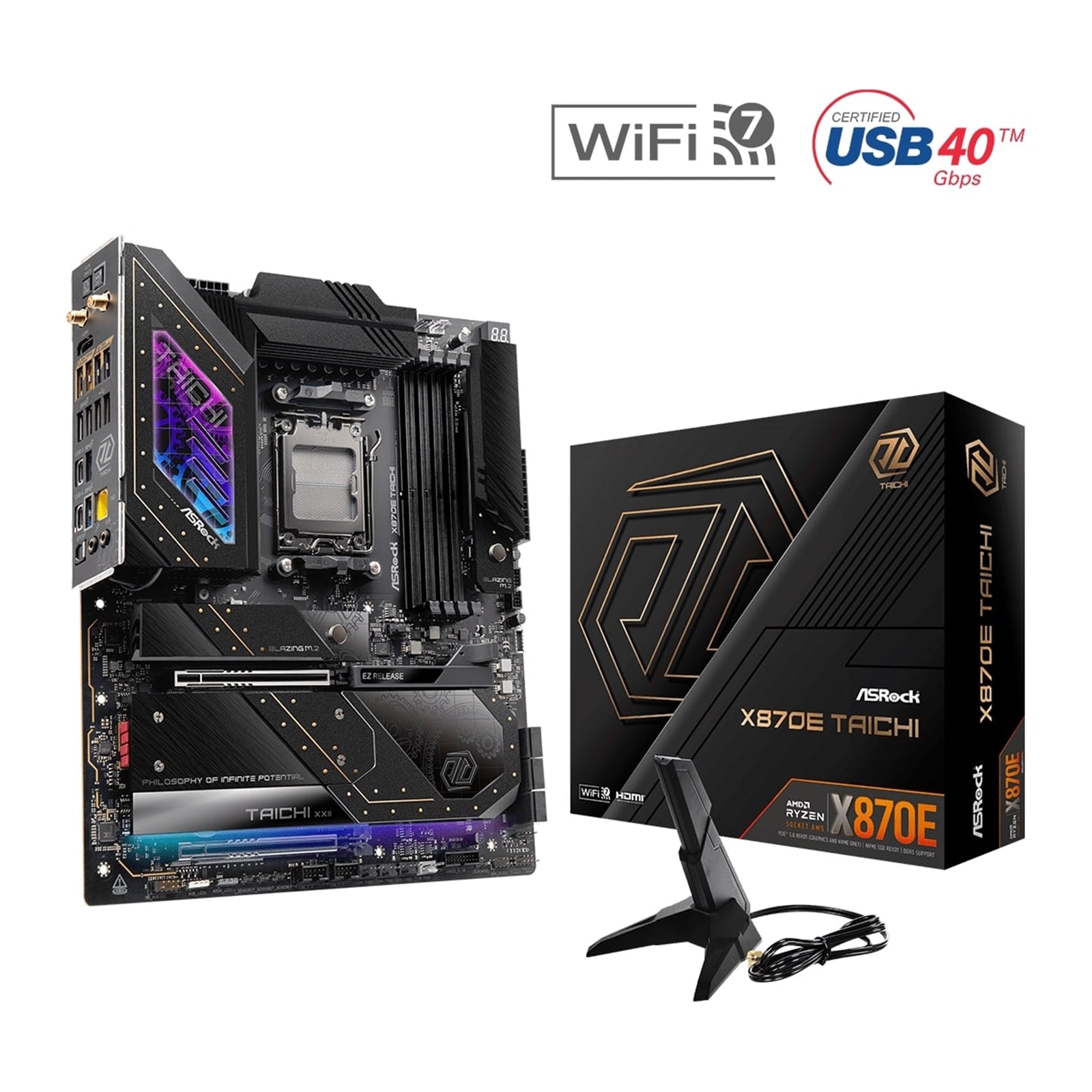

ASRock X870E TAICHI AMD AM5 Socket Motherboard, E-ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port / 2x USB-C (USB4)
Software and UEFI: SoftwareASRock Motherboard Utility (A-Tuning)ASRock Polychrome SYNC*UEFIASRock EZ ModeASRock Full HD UEFIASRock Auto Driver InstallerASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop. Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | AMD X870E |
| Memory | Dual Channel DDR5 Memory Technology4 x DDR5 DIMM SlotsSupports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*Max. capacity of system memory: 256GBSupports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules**Please refer to Memory Support List on ASRock's website for more information. |
BIOS
| Graphics | Integrated AMD RDNA� graphics (Actual support may vary by CPU)1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen� 9000, 8000 and 7000 processors with embedded graphics. |
Network
| Wireless LAN | 802.11be 2x2 Wi-Fi 7 ModuleSupports IEEE 802.11a/b/g/n/ac/ax/axe/beSupports 2.4GHz/5GHz/6GHz* frequency bandSupports 160MHz channel bandwidth with 6GHz* frequency band1 antenna to support 2 (Transmit) x 2 (Receive) diversity technologySupports Bluetooth 5.4Supports MU-MIMO*The Wi-Fi 7 module is supported by Microsoft Windows� 11 only. There is no driver available for Windows� 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows� Update and software updates once available. |
| Slots | CPU:2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*Chipset:1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire�*PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.Supports NVMe SSD as boot disks |
Rear Panel I/O Ports
| Connector | 3 x Thermistor Cable Headers1 x Power LED and Speaker Header1 x RGB LED Header*3 x Addressable LED Headers**2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***1 x 24 pin ATX Power Connector (Hi-Density Power Connector)2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)1 x Front Panel Audio Connector (15� Gold Audio Connector)2 x USB 2.0 Headers (Support 4 USB 2.0 ports)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED* Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
| Rear Panel I/O | 2 x Antenna Ports1 x HDMI Port1 x Optical SPDIF Out Port2 x USB4 Type-C Ports (40 Gb/s)*5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)2 x USB 2.0 Ports1 x RJ-45 LAN Port1 x Clear CMOS Button1 x BIOS Flashback Button1 x Line Out Jack (Gold Audio Jack)1 x Microphone Input Jack (Gold Audio Jack)* Supports USB PD 3.0 up to 5V@3A (15W) charging |
| Accessories | 4 x SATA Data Cables1 x ASRock WiFi 2.4/5/6 GHz Antenna1 x ARGB Splitter Cable3 x Thermistor Cables |
| Form Factor | EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm8 Layer PCB2oz Copper PCB |
| OS | Microsoft Windows� 10 64-bit / 11 64-bit |
Other
| Unique Feature | Superb ProductivityPCIe Gen5 (Graphics, M.2)Dual Channel DDR5USB4 Type-C Ports (40 Gb/s)Rock-Solid DurabilityServer-Grade Low-Loss PCB24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink ArmorFlexible Integrated I/O Shield20K Long-lasting Black Caps (high quality and conductive polymer capacitors)Ultrafast Connectivity5G LAN, 802.11be Wi-Fi 7 ModuleASRock Lightning Gaming PortsEZ UpdateBIOS Flashback ButtonASRock Auto Driver Installer |
