Description

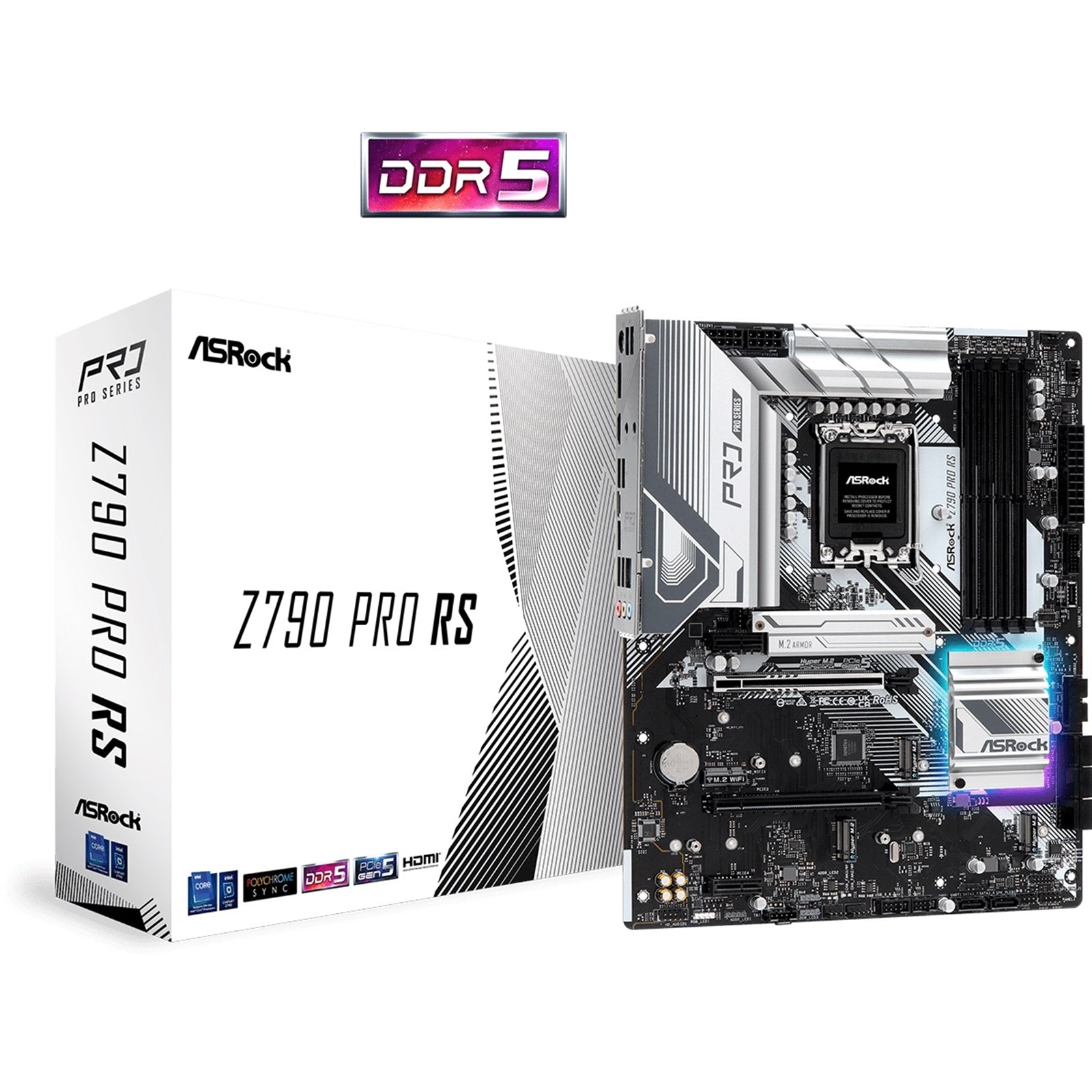

ASRock Z790 Pro RS Intel 1700 Socket Motherboard, ATX, 4x DDR5 Slots, 4x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming � with style and speed! Certifications: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Specs
Processor
| Chipset | Intel Z790 |
| Memory | Dual Channel DDR5 Memory Technology4 x DDR5 DIMM SlotsSupports DDR5 non-ECC, un-buffered memory up to 6800+(OC)Max. capacity of system memory: 128GBSupports Intel� Extreme Memory Profile (XMP) 3.0 |
| Chipset: | 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel� CNVio/CNVio2 (Integrated WiFi/BT) |
| Chipset: | 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode8 x SATA3 6.0 Gb/s Connectors |
BIOS
| Graphics | Intel Xe Graphics Architecture (Gen 12)1 x eDP 1.4, supports max. resolution up to Full HD 60Hz1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Software | ASRock Motherboard Utility (A-Tuning)ASRock Dragon 2.5G LAN SoftwareASRock Polychrome SYNC |
| Accessories | 1 x User Manual2 x SATA Data Cables5 x Screws for M.2 Sockets1 x Standoff for M.2 Socket |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm2oz Copper PCB |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
Rear Panel I/O Ports
| Connector | 1 x eDP Signal Connector1 x SPI TPM Header1 x Power LED and Speaker Header1 x RGB LED Header3 x Addressable LED Headers1 x CPU Fan Connector (4-pin)1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)1 x 24 pin ATX Power Connector2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)1 x Front Panel Audio Connector1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)2 x USB 2.0 Headers (Support 4 USB 2.0 ports)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Rear Panel I/O | 2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x DisplayPort 1.41 x USB 3.2 Gen2 Type-A Port (10 Gb/s)1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)2 x USB 3.2 Gen1 Ports4 x USB 2.0 Ports1 x RJ-45 LAN PortHD Audio Jacks: Line in / Front Speaker / Microphone |
Other
| Superb Productivity | PCIe Gen5 (Graphics)Dual Channel DDR5 |
| Rock-Solid Durability | 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink ArmorFlexible Integrated I/O Shield |
| Ultrafast Connectivity | 2.5G LAN |
| EZ Update | ASRock Auto Driver Installer |
| EZ Troubleshooter | ASRock Post Status Checker |
