Description

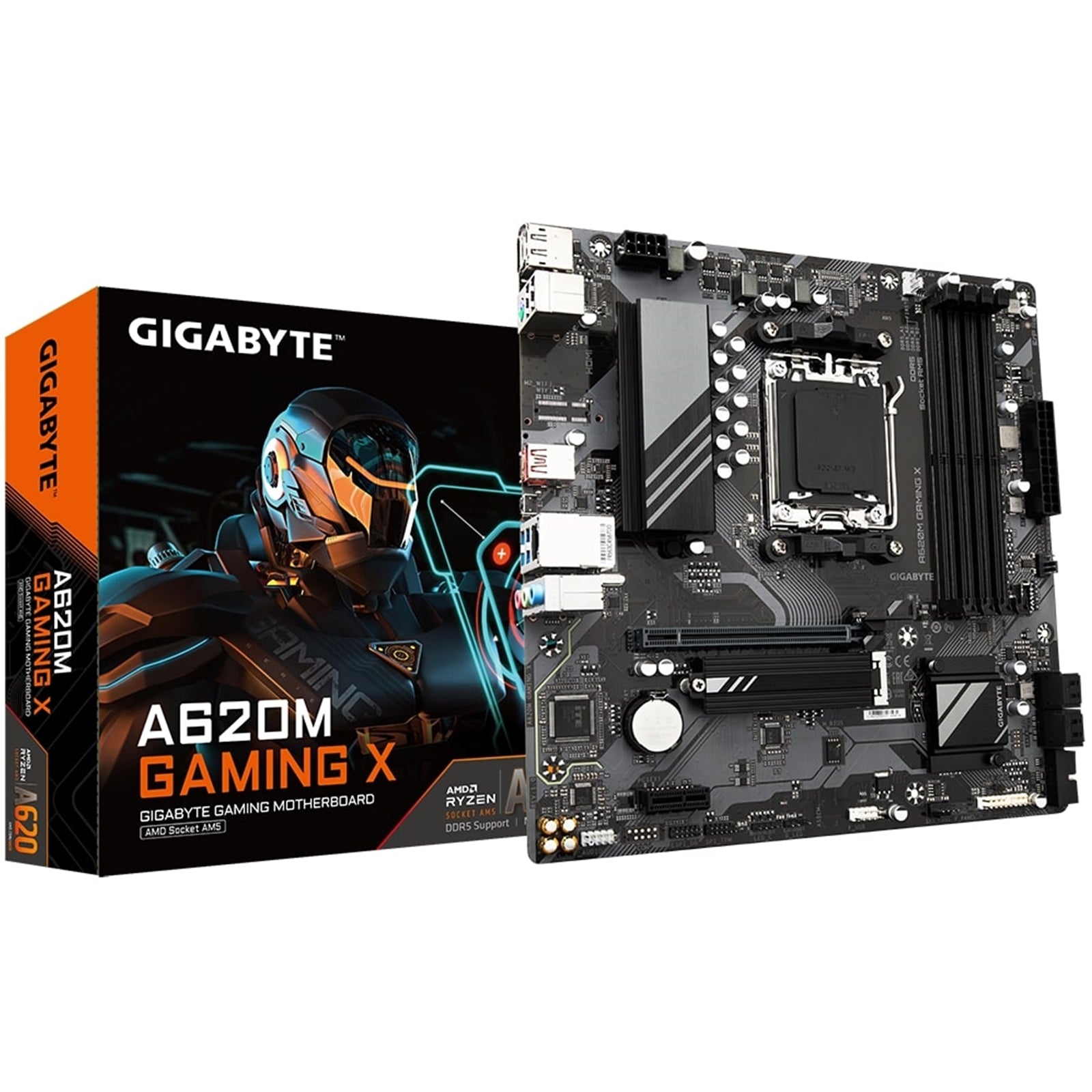

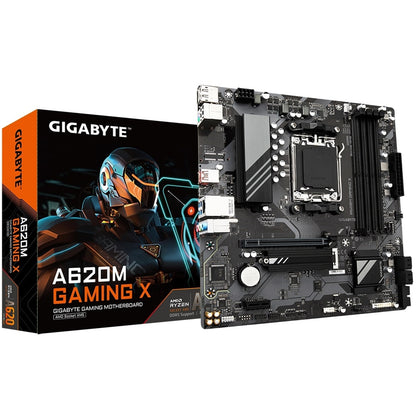

Gigabyte A620M GAMING X AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port
GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. Shielded Memory Routing: All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. - Precision ControlMultiple temperature/fan speed control points for precise fan curve - Dual Curve ModeSlope/Stair dual mode for different user scenario - Fan StopFan can stop completely below users' specified temperature point GbE LAN with Bandwidth Management: GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. High-End Audio Capacitors: GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard: GIGABYTE motherboards feature an audio noise guard that essentially separates the board�s sensitive analog audio components from potential noise pollution at the PCB level. Friendly User Interface: The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan. My Favorites: Add constantly used items into the favorite menu for quick access. Storage Information: Show all kinds of storage information including SATA, PCIE and M.2 interface. Changelog: List all changes before saving and exiting bios. Quickly review overall settings modification. Intuitive Load Line Curve: Clearly show each loadline calibration setting in an intuitive curve graph. GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.- Unified software platform for all Gigabyte supported products- Intuitive user interface for an eased experience- Modularized control components only for installed hardware- Auto update function to keep system up to date and support future products PCIe EZ-Latch: Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. Q-Flash Plus: Update the BIOS easily without installing the CPU, memory and graphics card.With GIGABYTE I/O Controller: iTE� I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control Unique Features: Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash Plus Bundled Software: Norton� Internet Security (OEM version)LAN bandwidth management software
Specs
Processor
| DDR5 Auto Booster | Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click. |
| Chipset | AMD A620 |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO�) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor:1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
Memory
| EXPO and XMP Dual Support | GIGABYTE AM5 MB supports both AMD EXPO� and Intel� XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance. |
| AMD EXPO� and Intel� XMP 3.0 User Profile | Define and create your own SPD profile into Native, AMD EXPO� and Intel� XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.- One empty SPD profile can be defined by users and carry to next computer- Quick memory performance simulation based on user input clock and timing parameters- Profile save and load function to share your memory parameters online |
BIOS
| Smart Fan 6 BIOS UI1. Improve fan curve UI | We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.2. Slope/Stair dual graph modeFan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.3. Manual InputFor advanced users, we provide fan speed manual input for more precise control.4. EZ TuningUse can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.5. Fan curve profileFan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Network
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)Chipset:4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for SATA storage devices |
Rear Panel I/O Ports
| Connecting the Future - USB Type-C� | The USB Type-C with front and rear USB 3.2 Gen 1 ports provide with speeds up to 5Gbps. With doubled bandwidth compared to the previous generation as well as backward compatibility with USB 2.0, the improved USB protocol is available now over the new reversible USB Type-C� and the traditional USB Type-A connector for better compatibility over a wider range of devices. |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C� header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x USB Type-C� port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 2 Type-A port (red)2 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x HDMI port1 x DisplayPort1 x Q-Flash Plus button1 x RJ-45 port3 x audio jacks |
Other
| Cooling Features | - High Current SupportEach fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection |
