Description

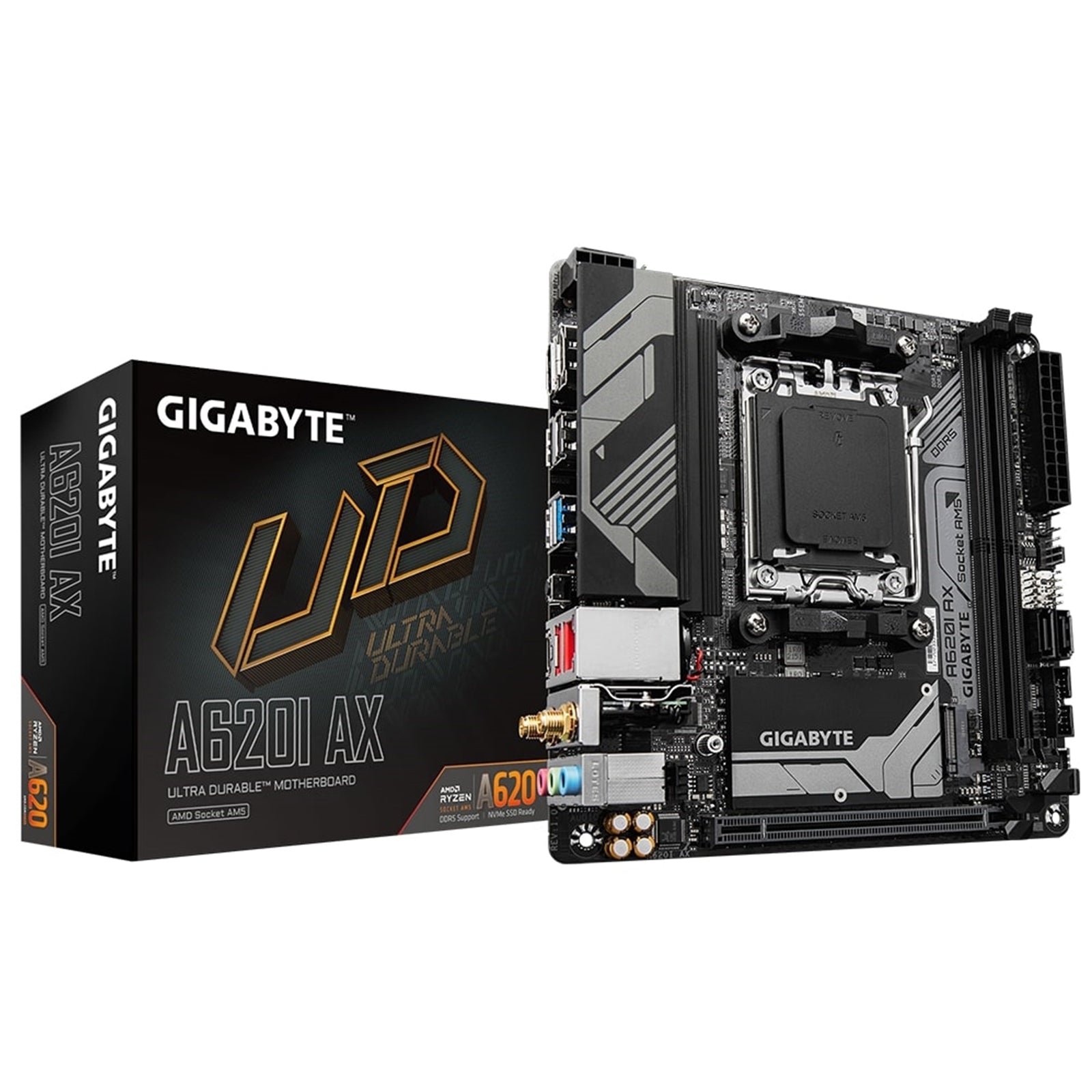

Gigabyte A620I AX (rev. 1.0) AMD AM5 Socket Motherboard, Mini-ITX, 2x DDR5 Slots, 1x M.2 Socket, 2.5GbE LAN, Wi-Fi 6E, 1 x DisplayPort / 1x HDMI Port
Durable Performance: GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform. Future Connectivity: The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage Hi-Fi Audio: High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard: GIGABYTE motherboards feature an audio noise guard that essentially separates the board�s sensitive analog audio components from potential noise pollution at the PCB level. Easy Friendly: Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. EZ-Latch: Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. Q-Flash Plus: Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you�re good to go! Smart Fan 6: Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. GIGABYTE Control Center: GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function. H/W Monitoring: Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install Unique Features: Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus Bundled Software: Norton Internet Security (OEM version)LAN bandwidth management software
Specs
Processor
| Chipset | AMD A620 |
| Memory | Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO�) and ExtremeMemory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) |
BIOS
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
Expansion Slots
| PCIe 4.0 Hardware Design | GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance |
Network
| 802.11ax Wi-Fi 6E | The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. |
| 2.5GbE LAN | First adopter on 2.5GbE LAN onboard2X Faster than ever-Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.-Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet |
| Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate(Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU:AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Storage Interface | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs2 x SATA 6Gb/s connectorsRAID 0 and RAID 1 support for NVMe SSD storage devicesRAID 0 and RAID 1 support for SATA storage devices |
Rear Panel I/O Ports
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x M.2 Socket 3 connector2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Clear CMOS jumper1 x chassis intrusion header |
| Back Panel Connectors | 1 x DisplayPort1 x HDMI port1 x USB Type-C port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 2 Type-A port (red)1 x USB 3.2 Gen 1 port3 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port2 x SMA antenna connectors (2T2R)3 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
