Description

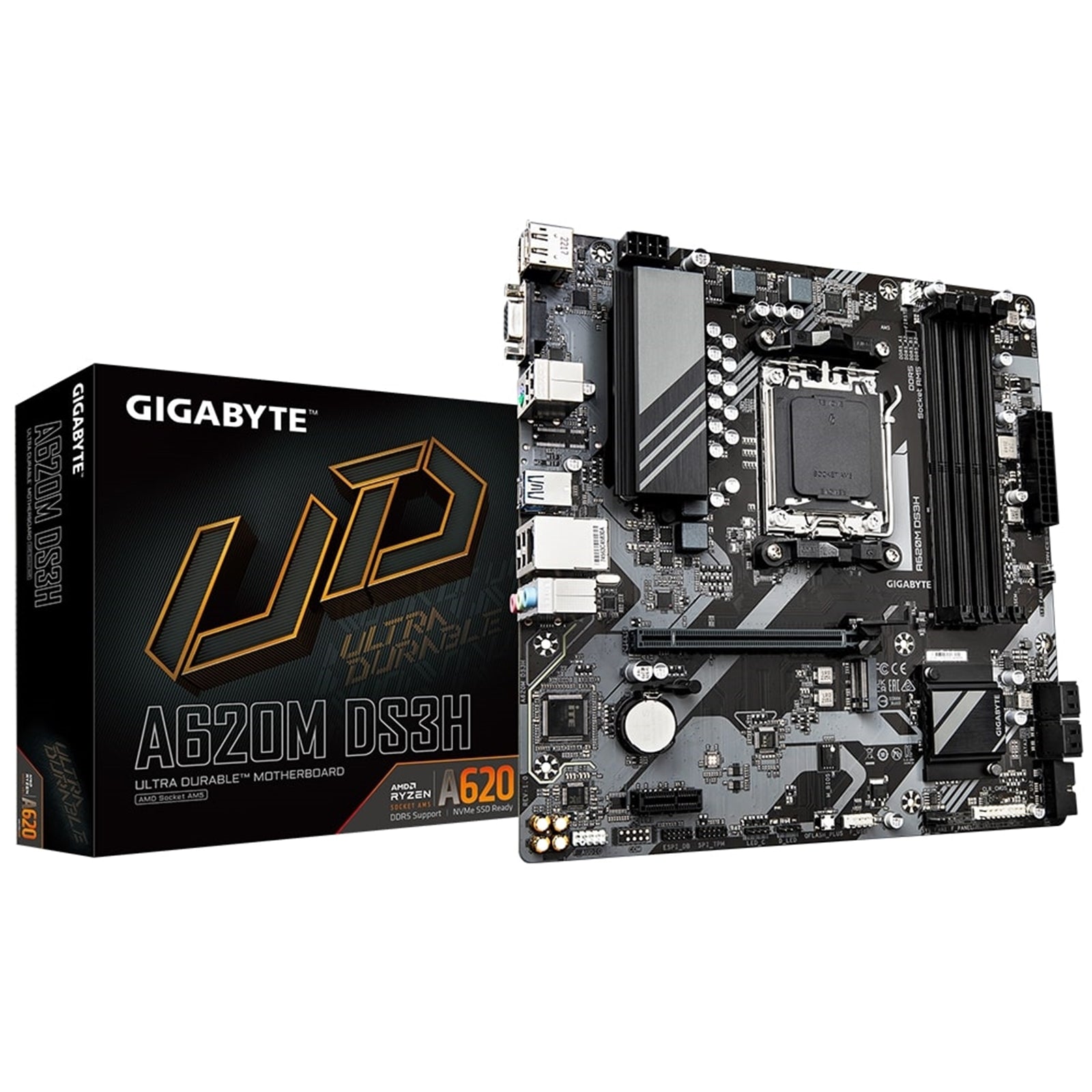

Gigabyte A620M DS3H Ultra Durable AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 1x M.2 Socket, 1x USB-C Port, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port
Durable Performance: GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform. Future Connectivity: Future ConnectivityThe ultimate connectivity with blazing data-transfer speeds through the next generation network and storage GbE LAN with Bandwidth Management: GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. Hi-Fi Audio: High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.Audio Noise GuardGIGABYTE motherboards feature an audio noise guard that essentially separates the boards sensitive analog audio components from potential noise pollution at the PCB level. Easy Friendly: Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. Smart Fan 6: Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. Durable Performance: GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform. Future Connectivity: The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. GbE LAN with Bandwidth Management: GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. Hi-Fi Audio: High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.Audio Noise GuardGIGABYTE motherboards feature an audio noise guard that essentially separates the boards sensitive analog audio components from potential noise pollution at the PCB level. Easy Friendly: Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. EZ-Latch: Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. Q-Flash Plus: Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and youre good to go!STEP 1: Plug 24pin & 8pin power supply cable on motherboardSTEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB portSTEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically. Smart Fan 6: Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. H/W Monitoring: Voltage detectionTemperature detectionFan speed detectionFan fail warningFan speed control Unique Features: Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash Plus Bundled Software: Norton Internet Security (OEM version)LAN bandwidth management software
Specs
Processor
| Chipset | AMD A620 |
| Memory | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor:1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
Memory
| EXPO & XMP Support | DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond |
| EXPO & XMP Support | DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond |
BIOS
| Smart Fan 6 BIOS UI | Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.Manual Input: For advanced users, we provide fan speed manual input for more precise control.EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. |
| Smart Fan 6 BIOS UI | Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.Manual Input: For advanced users, we provide fan speed manual input for more precise control.EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Expansion Slots
| PCIe 4.0 Hardware Design | GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. |
| PCIe 4.0 Hardware Design | GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. |
Network
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 modeChipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
Rear Panel I/O Ports
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x USB Type-C port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 port4 x USB 2.0/1.1 ports1 x HDMI port1 x DisplayPort1 x D-Sub port1 x RJ-45 port3 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
Other
| Digital VRM Design | 5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs |
| Cooling Features | High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current ProtectionPrecision Control: Multiple temperature/fan speed control points for precise fan curveDual Curve Mode: Slope/Stair dual mode for different user scenarioFan Stop: Fan can stop completely below users' specified temperature point |
| Digital VRM Design | 5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs |
| Cooling Features | High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current ProtectionPrecision Control: Multiple temperature/fan speed control points for precise fan curveDual Curve Mode: Slope/Stair dual mode for different user scenarioFan Stop: Fan can stop completely below users' specified temperature point |
